MUTOH Rockhopper II Series Manual de usuario

Multi-Purpose Eco-Solvent Production Printer

Rockhopper II

Rev. 1.0 AP-75095

User's Guide

Read This Manual Before Using The

Equipment.

Rockhopper II

INSTALLATION

MANUAL

Multi-Purpose Eco-Solvent Production Printer

Rockhopper II

Installation Manual included in the

User's Guide

Rockhopper II - INSTALLATION MANUAL

TABLE OF CONTENTS

1Introduction･･････････････････････････････････････････････････ 3

1.1 Purpose of this manual･･･････････････････････････････････････････････3

1.2 Safety instruction････････････････････････････････････････････････････3

2Unpacking･･･････････････････････････････････････････････････ 4

2.1 Unpacking procedure ････････････････････････････････････････････････4

2.1.1 Unpacking packaging box of the main unit ･･･････････････････････････････････4

2.1.2 Unpacking stand packaging box ････････････････････････････････････････････5

2.2 Verification of packaged items ････････････････････････････････････････5

2.2.1 Packaging box of the main unit ･････････････････････････････････････････････5

2.2.2 Accessories box･･････････････････････････････････････････････････････････6

2.2.3 Stand packaging box･･････････････････････････････････････････････････････6

3Assembly ･･･････････････････････････････････････････････････ 7

3.1 Assembling the stand ････････････････････････････････････････････････7

3.2 Installing the stand ･･････････････････････････････････････････････････7

3.3 Installing accessories ････････････････････････････････････････････････8

3.3.1 Installing the scroller receiver･･･････････････････････････････････････････････8

3.3.2 Installing the waste fluid tank･･･････････････････････････････････････････････9

3.4 Removal of protective packaging material ･････････････････････････････11

3.5 Installation of optional product ･･･････････････････････････････････････12

4Installation ･････････････････････････････････････････････････ 13

4.1 Choosing a place for the printer ･･････････････････････････････････････13

4.1.1 Installation environment Requirements ･････････････････････････････････････13

4.1.2 Required space ･････････････････････････････････････････････････････････14

4.2 Installing the printer･････････････････････････････････････････････････15

Rockhopper II - INSTALLATION MANUAL

1 Introduction

1.1Purpose of this manual

This manual explains the unpacking, assembly and installation operation procedures of the

Multi-Purpose Eco-Solvent Production Printer (Rockhopper II) made by MUTOH EUROPE N.V..

This manual is prepared for unpacking, assembly and installation of this printer.

Before unpacking, assembly and installation of the printer, first understand the contents and

directions in this manual.

CAUTION



No part of this product or manual may be reproduced, copied, or transmitted in any form or by

any means,except for personal use, without the permission of MUTOH EUROPE N.V..



The product and the contents of this manual may be changed without prior notification.

 MUTOH EUROPE N.V..has made the besteffortstokeep thispublication free from error,

but if you find any uncertainties or misprints, please call us or call the shop where you bought

this product.

 MUTOH EUROPE N.V..shallnot be liable forany damages or troubles resulting from the

use of this products or this manual.

1.2Safety instruction

Safety terms in this manual are categorized into the following three types depending on the

degree of the risk (or the scale of accident).

Read the following explanations carefully, and follow the instructions in this manual.

Safety terms Details

WARNING

Must be followed carefully to avoid death or serious bodily injury.

CAUTION

Must be observed to avoid bodily injury (moderately or lightly) or damage to your

product.

NOTE

Contains important information and useful tips on the operation of your product.

Rockhopper II - INSTALLATION MANUAL

2 Unpacking

The unpacking procedure and contents of the package are described below.

2.1Unpacking procedure

The unpacking procedure is described below.

The product is sent to the user with 2 packages, 1 for the main unit and the other for the

stand.

CAUTION



When unpacking this product, always work with 4 people or more.



When removing this product from the packaging box, always remove the vinyl plastic, and

hold on the side of the product. Holding the unit over the vinyl plastic wrapping can result in

slippage and dropping the unit, resulting in damage.

2.1.1Unpacking packaging box of the main unit

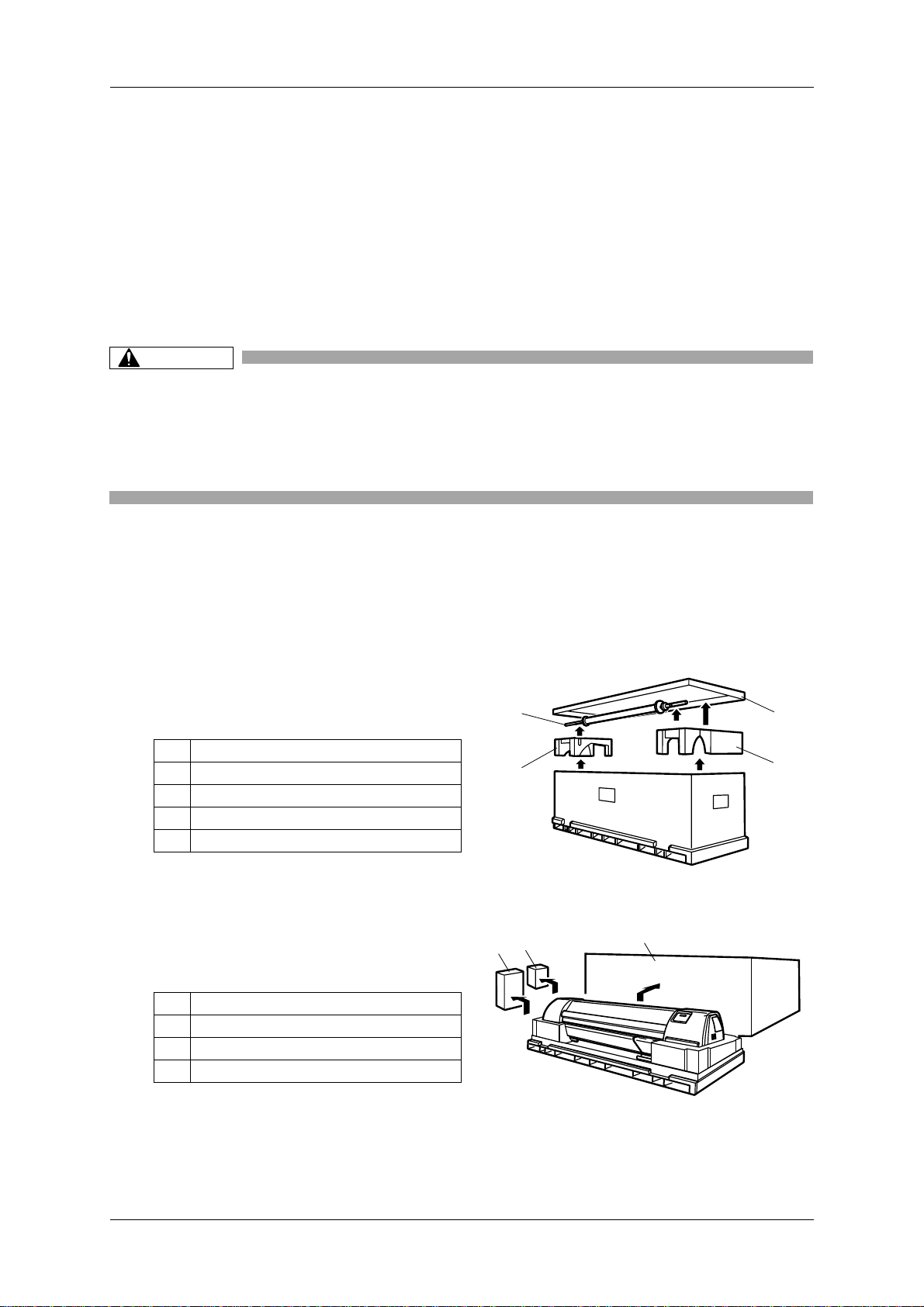

Unpack the package of the main unit according to the following procedure.

1. Move the packaging of the main unit to the location to unpack.

2. Remove the restraining bands.

3. Remove the top board, and take out the

packaging material (right upper side and

left upper side) and the scroller.

No. Name

1 Top board

2 Packaging material (right upper side)

3 Packaging material (left upper side)

4 Scroller

4. Remove the outer boards, and take out the

accessories box, and the packaging box of

the waste fluid tank.

No. Name

1 Outer board

2 Accessories box

3 Packaging box of the waste fluid tank

231

Rockhopper II - INSTALLATION MANUAL

2.1.2Unpacking stand packaging box

Unpack the package of the stand according to the following procedure.

1. Move the packaging of the stand to the location to unpack.

2. Open the package, and take out the foot,

stay, and the four packaging materials.

No. Name

1 Stay

2 Foot

3 Packaging material

2.2Verification of packaged items

After unpacking the packaging box, inspect to make sure that the unit is not damaged, and

that all necessary parts are present.

NOTE

 The contents of the packages may be different depending on the market where they are used.

Contact the nearest MUTOH local dealer for details.

 If any part is missing or broken, contact either of the following:



The shop where you bought your MUTOH printer.



Nearest MUTOH local dealer.

2.2.1Packaging box of the main unit

No. Name Q’ty No. Name Q’ty

1 Main unit 1 set 3 Waste fluid tank 1 set

2 Scroller 1 4 Accessories box 1 set

Rockhopper II - INSTALLATION MANUAL

2.2.2Accessories box

No. Name Q’ty No. Name Q’ty

1 Scroller receiver (left side) 1 11 Cable clamp 3

2 Scroller receiver (right side) 1 12 Screw driver 1

3 Power cable 1 13

4 14 User's Guide 1

5 Tube clamp 2 15 Quick Start Manual 1

6 Foot switch 1 16 Network board Operation manual*1

7 Cleaning cloth for the cleaning wiper 1 set 17 Media Holder (left) 1

Hexagon socket head cap screw (M6 x 30)

8 18 Media Holder (right) 1

Hexagon socket head cap screw (M6x 16)

8 19 Installation sheets

10 Assembly tool (Hexagon wrench:

diagonal diameter 5mm)

2.2.3Stand packaging box

No. Name Q’ty No. Name Q’ty

1 Stay 1 set 2 Foot 2

11 12

14 16

18 19

* = included in User's Guide

Rockhopper II - INSTALLATION MANUAL

3 Assembly

The assembly of this product is described below.

CAUTION



When assembling this product, always work with 4 people or more.

3.1Assembling the stand

Assemble the stand according to the following procedure.

1. Place the stand upside down as shown in

the figure.

2. Install the foot to the stay according to the

following procedure.

a) Attach two feet on the bottom of the stay

as shown.

b) Attach the hexagon socket head cap

screws (M6 x 30: each 4) to each foot.

c) Using the assembly tool, tighten the

hexagon socket head cap screws to install

the feet.

No. Name

1 Stay

2 Foot

3 Hexagon socket head cap screw (M6 x 30)

3. Assembling the stand is completed.

3.2Installing the stand

Install the stand to the main unit according to the following procedure.

1. Place the stand with its feet on the floor.

2. With at least four persons, lift up the main

unit by holding it by the handles.

3. Place the main unit on the stand.

No. Name

1 Stand

2 Main unit

3 Handle

narrow wide

narrow

wide

Rockhopper II - INSTALLATION MANUAL

4. Attach the hexagon socket head cap screws

(M6 x 16: 8) to the stand.

5. Using the assembly tool, tighten the hexagon

socket head cap screws to install the stand.

No. Name

1 Hexagon socket head cap screw (M6 x 16)

2 Stand

3 Main unit

6. Installing the stand is completed.

3.3Installing accessories

Installing procedure of the accessories is described below.

The accessories include scroller receivers and a waste fluid tank.

NOTE

 When installing the accessories, always work from the back of the main unit.

3.3.1Installing the scroller receiver

Install the scroller receiver according to the following procedure.

1. Remove the handles from the main unit

according to the following procedure.

a) Using the assembly tool, loosen the eight

hexagon socket head cap screws.

b) Remove the following parts:



Handles (2)



Hexagon socket head cap screws (M6 x 16: 8)

No. Name

1 Handle

2 Hexagon socket head cap screw (M6 x 16)

3 Main unit
