Mustek ScanExpress A3 Manual de usuario
A3 Scanner
with
The TWAIN Driver (For PC)
English
User Manual
Contents
Preface
Chapter One
Setting Up the Scanner 1
System Requirements ..................................... 1
Unpacking the Scanner .................................. 2
The Scanner Parts ........................................... 2
Unlocking the Scanner ................................... 4
Locking the Scanner ....................................... 4
Installing the Scanner Driver .......................... 5
Configuring the Software ............................... 6
Network Scan ................................................. 6
Installing Hardware ........................................ 8
Just in Case it Happens .................................. 9
Chapter Two
Scanning Tutorial 11
Power Up the Scanner ................................ 11
Position the Document ................................. 11
Scanning Methods ........................................ 12
Using the Scanner Panel ...............................12
The Scanner Panel ........................................ 13
Acquire the Scanner TWAIN Driver ............ 15
The Dialog Box ............................................ 16
The Main Folder ...........................................17
The Enhancement Folder ..............................18
The Filters Folder ......................................... 22
The Preview Window ................................... 23
Prescan the Image ........................................ 24
Set Up the Scan Parameters ......................... 25
Execute the Scan Command .........................26
Using Batch Scan ......................................... 27
The Batch Scan Dialog Box ......................... 27
Chapter Three
Calibrator 29
Contents and Requirements .......................... 29
Introduction .................................................. 29
Calibrating and Applying ............................. 30
Chapter Four
Appendices 33
Appendix A: Specifications* ........................ 33
Appendix B: Maintenance ............................ 35
Cleaning Procedures .................................... 36
Appendix C: Troubleshooting ...................... 37
Determining Error Messages ........................ 37
LED Ready Indicator Messages ................... 37
Other Troubleshooting ..................................37
A3 Scanner User Manual (PC)
1
The scanner and the bundled software comply with
TWAIN for the PC platform. For the scanner and
scanner software to perform suitably to task, you
should at least have:
IBM PC or compatible with Pentium III-based
processor
Windows® XP/Vista/7
Available USB port
SVGA color monitor
CD-ROM or DVD-ROM drive
At least 256 MB RAM
150 MB available hard disk space for software
installation
This chapter covers the scanner installation and has
the following topics:
System Requirements
Unpacking the scanner
Package contents
The scanner parts
Unlocking and locking the scanner
Installing the scanner
Installing TWAIN
1
Setting Up the Scanner
System Requirements
Setting Up the Scanner
Chapter One
A3 Scanner User Manual (PC)
2
Carefully unpack the contents of the scanner
package.
Inspect the items closely and if you find any item
damaged or missing, please contact your Service
Center. Also, save the box and packing material for
in case you have to ship the scanner later.
Document
Cover
Scan Window
Glass
Carriage Lock
LED Power Indicator
LED Ready Indicator
Power Switch
• Document Cover
The document cover holds the document in place
during scanning. It can be raised when scanning
objects such as books.
• Scan Window Glass
The scan window glass is where you lay down
and position documents for scanning. Alignment
marks and rulers are printed on the borders to help
you position documents.
• Carriage Lock
The carriage lock prevents the scanner’s internal
mechanism from moving during shipment. Unlock
the scanner before using and re-lock it when
shipping the scanner.
• LED Power Indicator
When you turn on the scanner, the LED power
indicator flashes momentarily and then remains
lit.
Unpacking the Scanner
The Scanner Parts
Setting Up the Scanner
Chapter One
A3 Scanner User Manual (PC)
3
• LED Ready Indicator
When scanning or warming up, the LED ready
indicator will keep flashing. When the scanner is
available for scanning, the LED ready indicator
will remain lit.
• Power Switch
Powers ON/OFF electrical power.
Setting Up the Scanner
Chapter One

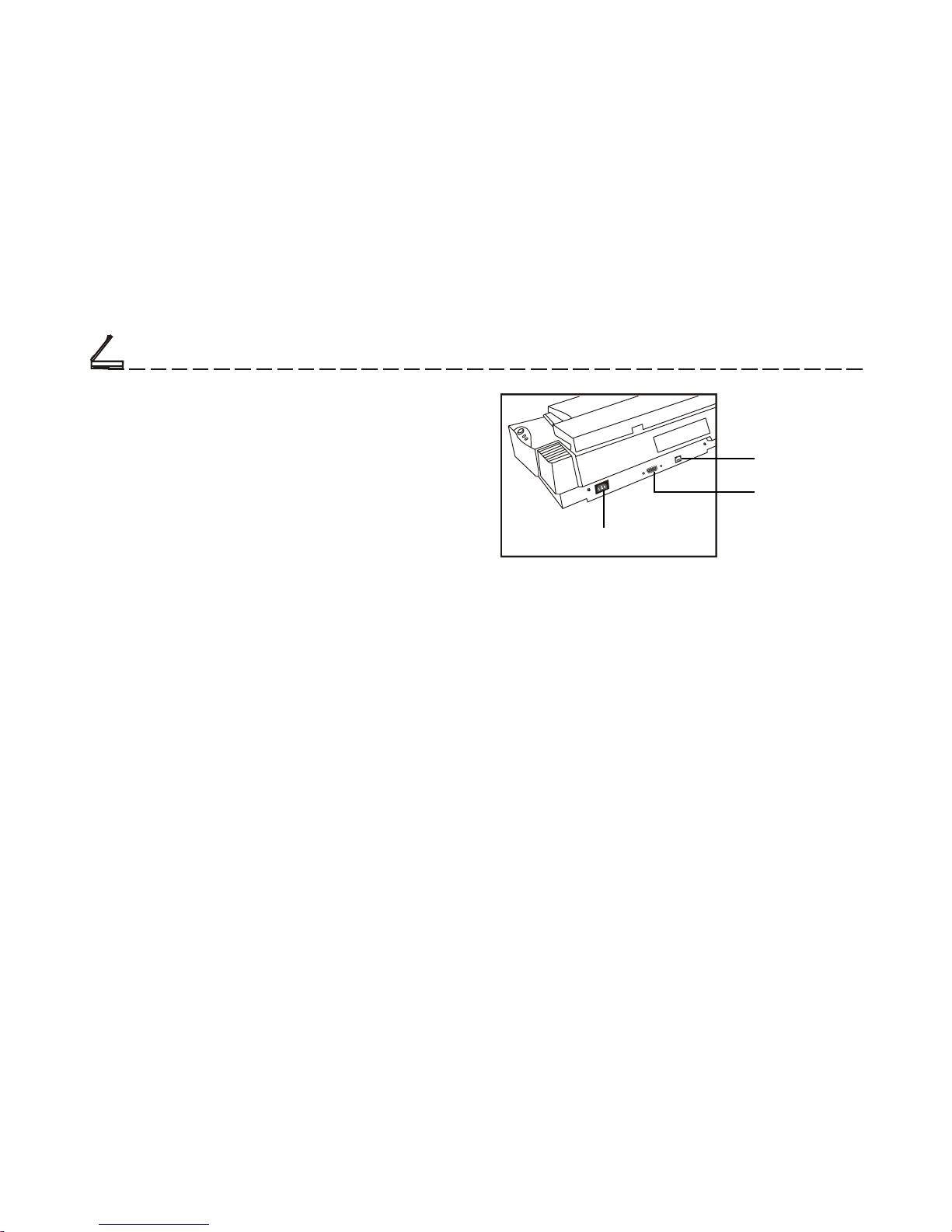

Power Cord Receptable
USB Port
Transparency
Adaptor Port
• USB Port
The Universal Serial Bus Port on the rear panel
are true plug-and-play serial ports for attaching
your scanner to your computer.
• Transparency Adapter Port
This port is for connecting an optional transpar-
ency adapter.
• Power Cord Receptable
Connect the scanner Power Cord to the Receptable.
This is used for your scanner’s power supply.
A3 Scanner User Manual (PC)
4
Unlocking the Scanner
In the rear of the scanner is a carriage lock that
protects the scanning mechanism during shipping.
To prevent causing damage to the scanner, you should
unlock the carriage before operating the unit. As
shown in the illustration, push the carriage lock down
to release the carriage.
Locking the Scanner
In case you need to ship the scanner once after
installation, be sure to lock the carriage.
Failing to do so may cause damage to the unit’s
scanning mechanism. To lock the scanner, first
select Start, Programs, A3 scanner, “Scanner Lock”.
After successfully running the program, and the
carriage has stopped moving, you can now lock the
scanner by pushing the carriage lock up as shown in
the illustration.
Setting Up the Scanner
Chapter One
Lock
Unlock
Lock
Unlock
A3 Scanner User Manual (PC)
5
Installing the Scanner Driver
Please complete the software drivers installation
before installing the scanner. Do not connect the
power cord to the scanner at this stage.
1. Insert the Driver Instal-
lation CD into your disk
drive.
2. Follow all on screen
instructions.
If, after inserting the Driver Installation CD into your
disk drive, the Driver Installation Welcome screen
does not appear, do the sollowing:
a. Click on Start and select Run.
b. In the Run dialog box, type drive:\Autorun
where driver is your CD-ROM drive and click OK.
Setting Up the Scanner
D:\Autorun
c. Follow all on-screen instructions.
When presented with the option of whether to
restart Windows after completing the software
drivers installation, please choose Ye s .
Note: Do not use the “add hardware” icon to install
your scanner.
Chapter One
A3 Scanner User Manual (PC)
6
Configuring the Software
In order to scan with your scanner driver, you must
first configure the TWAIN-compliant application
software that came with your scanner or which was
purchased seperately.
The configuration process only has to be done once.
After the configuration process is complete, the
TWAIN driver will control all interactions between
your scanner and the host program. To configure the
software:
1. Make sure the scanner is still on.
2. Launch Windows.
3. Launch the host application software that came
with the scanner.
4. Open the host application’s Select Source
command (usually under the File menu) and
choose Select Source to display the Select
Source dialog box.
5. From the list of sources, choose your scanner
Setting Up the Scanner
as your image source and click Select. You will
return to the main screen of the host application.
Software configuration is now complete.
Network Scan
Enable users to search the installed A3 scanners in
the network and acquire images from this network
scanner.
Note: You must install TCP/IP Internet Protocol and
complete its required installation and setting.
To use the Network Scan:
1. When using any application program to Select
Source, choose Scanner-Network.
Chapter One
