I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A181CUSP SERIES FULLY RECESSED ADA FOUNTAIN & CUSPIDOR

NOTICE

A dielectric coupling must be used to connect the drinking fountains to the water supply . A nonmetallic

coupler is furnished with this drinking fountain to meet this requirement.

ROUGHING-IN AND DIMENSIONAL DRAWING

Prior to roughing consult with local, state, and federal codes for proper mounting height.

NOTES:

Dimensions indicated are for ADA frontal approach installation. For Child ADA-ABA compliant parallel

approach installation, decrease height of installation for spout to be 30” maximum above finished floor.

Provide clear floor space as required. Adjust vertical dimensions as required to comply with federal,

state, and local codes.

Adjust vertical dimensions as required to comply with federal, state, and local codes.

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A181-CUSP

Page 2 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

1-1/4" OD SLIP

JOINT WASTE

CONNECTION

GENERAL NOTES:

1. ALL DIMENSIONS ARE IN INCHES.

*2. DIMENSIONS SHOWN ARE FOR RECOMMENDED ADULT HEIGHT. ADJUST VERTICAL

DIMENSIONS AS NECESSARY TO COMPLY WITH FEDERAL, STATE & LOCAL CODES.

3. STOP VALVE NOT PROVIDED.

17"

WALL

OPENING

12"

WALL

OPENING

22" - 40"

253

6" (4) Ø1

8" MTG

HOLES

ACCESS

PANEL

72" MIN

WALL

OPENING

*33"

30"

WALL

OPENING

27"

WALL

OPENING

15" MIN 15" MIN

17" MIN

303

IMPORTANT:

1. Waste P-Trap and Water Supply Service Stop Valve to be supplied by other in accordance with local

codes.

2. Water supply is 3/8” copper tube (Fountain) & ½” male NPSM (Cuspidor). See Figure “E”. Waste is 1-

1/4” OD female slip joint connection.

3. Completely flush supply lines of all foreign debris before connecting to fixture. Optional water filter is

available should there be problems from the water supply with taste, odor, color or sediment.

4. WARNING: Warranty is voided if installation is not made following current Acorn Engineering

Company installation instructions and if components are assembled to the fixture that are not

approved by Acorn Engineering Company .

5. Fixtures operates within water pressure range of 20 to 105 psig. Acorn Engineering Company will not

warranty fixtures damaged when connected to supply lines with flow pressure lower than 20 psig or

higher than 105 psig. A pressure regulator must be furnished by others on supply line if inlet pressure

is greater than 105 psig.

™

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A181-CUSP

Page 3 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

INSTALLATION:

1. Install Mounting Brackets to the bottom and top of the Rough-In opening. WARNING: Mounting

Brackets MUST be securely anchored and centered within the opening. See Figure B.

2. Install the Air Valve Assembly to the rear of the upper support brace as shown in Figure C. This Air

Valve Assembly is supplied for the Cuspidor only.

3. Make sure that the air tube is connected to the pushbutton and valve (Cuspidor only).

4. Install the (4) provided captive nuts into the lower mounting bracket as shown in Figure D.

5. Hang the Fountain & Cuspidor on the Mounting Bracket making sure that bracket and flange from the

Fountain & Cuspidor engage. The Fountain & Cuspidor must sit flush against the wall.

6. Anchor the Fountain & Cuspidor assembly to the bottom Mounting Bracket using the supplied #10-32

screws & washers. The screws need to pass through the tabs on both units and into the tabs of the

lower frame bracket containing the captive nuts. Tighten the screws to pull the Fountain & Cuspidor

flush with the wall.

7. Install water supply and drain as required per Figure A rough-in dimensions.

8. Thoroughly flush the supply lines, connect water supply to the Cuspidor.

9. Make up 1-1/4” OD P-Trap waste connection.

UPPER MOUNTING

BRACKET CENTERED

IN OPENING

FOUNTAIN

ASSEMBLY

CUSPIDOR

ASSEMBLY

REMOVABLE

ACCESS COVER MOUNTING

TAB

MOUNTING

TAB

CAPTIVE NUT

TYP

LOWER MOUNTING

BRACKET, CENTERED

IN OPENING

AIR VALVE

ASSEMBLY

TO SPRAY NOZZLE

THIS END IS SEALED

½" NPS SUPPLY

TO PUSHBUTTON

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A181-CUSP

Page 4 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

START UP:

1. Before assembling bottom cover to the Cuspidor, but after thoroughly flushing the supply line and

connecting it to the fixture, turn on building water supply and check all connections for leaks.

2. Air within the Fountain & Cuspidor or the structure supply piping will cause an irregular outlet stream

until purged out by incoming water.

3. Recheck all water and drain connections with water flowing through system.

4. Install Removable Access Covers to the Fountain & Cuspidor bottom Mounting Bracket, install the

supplied #8-32 screws from the bottom of the Removable Access Cover.

Repairs must be made with Murdock Manufacturing Company parts only. Please order through your local

representative or distributor. The phone number to locate your local representative is 1.800.591.9360.

CLEANING & MAINTENANCE GUIDE:

1. Periodically remove access panels and clean out in-line strainer.

2. Do NOT use harsh chemicals, abrasive or petroleum based cleaners. Use of these will void the Acorn

warranty.

3. Exterior panels can be cleaned using mild household detergents or warm, soapy water. Extra care

must be used cleaning chrome plated items and mirror finished stainless steel. They can scratch easily

and should only be cleaned using a clean, soft cloth and mild soap with water or a mild glass cleaner.

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A181-CUSP

Page 5 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

PUSH-IN FITTING INSTALLATION

NOTE: FITTINGS AND TUBE SHOULD BE KEPT

CLEAN, BAGGED AND UNDAMAGED PRIOR TO

INSTALLATION.

2. Pull on the fitted tubing to ensure it is secure. Tube

should not come free from the fitting. Water test the

connection assembly prior to leaving the site to ensure

there are no leaks.

DISCONNECTING THE TUBE:

To disconnect the tube from the fitting ensure that the

water line is depressurized. Push collet square towards

the push-in fitting body and hold. While holding the collet

in, pull on the PE tubing to remove from the push-in fitting.

TO CUT TUBE:

Cut to fit length of 1/4” PE tubing and remove any burrs

or sharp edges. Ensure that the outside diameter is free

from score marks. Tube ends should be square.

INSERTING THE TUBE:

1. Firmly and fully insert the tubing end into the push-in

fitting up to the tube stop located approximately ½”

deep.

COLLET

O-RING

TUBE STOP

COLLET

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A181-CUSP

Page 6 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

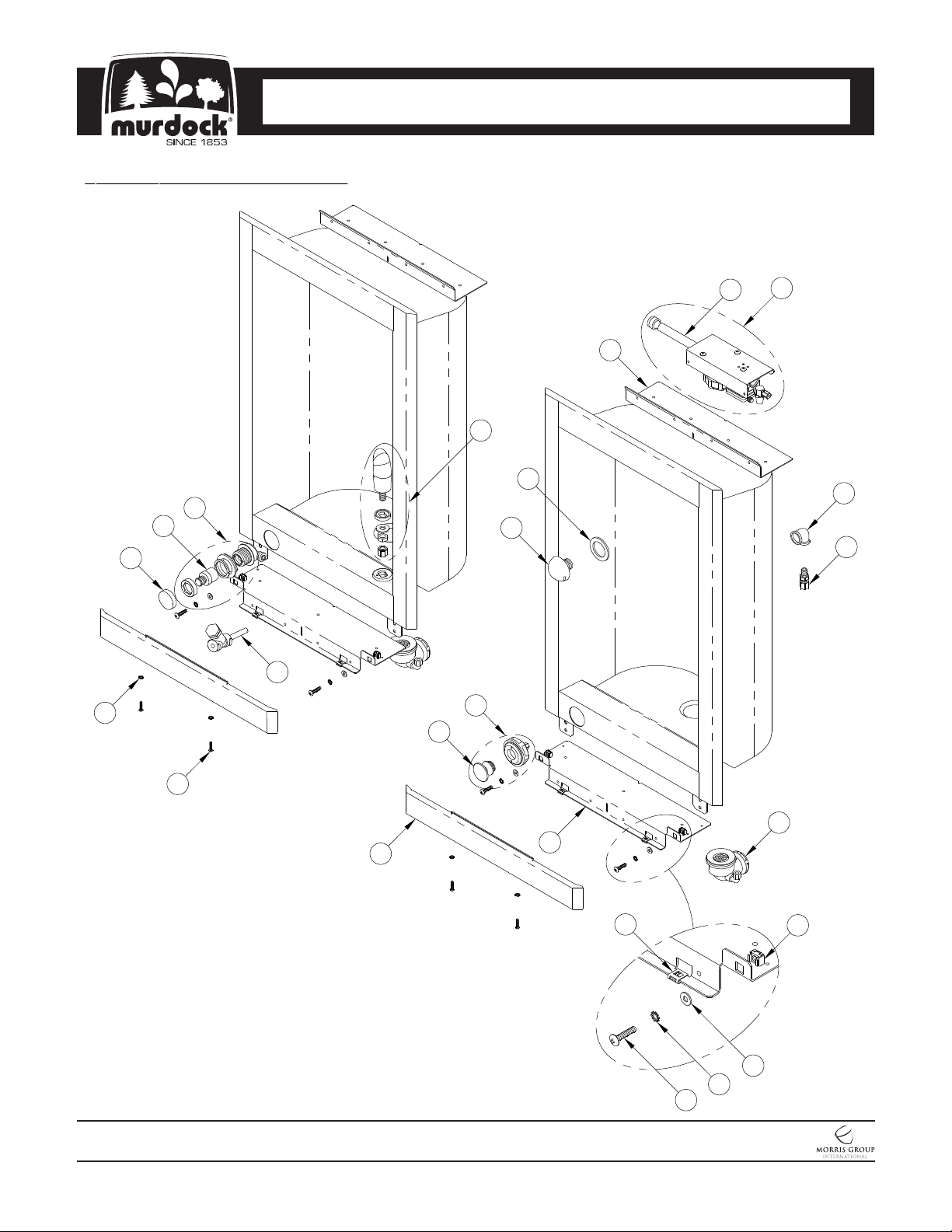

PARTS BREAKDOWN DRAWING

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A181-CUSP

Page 7 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

A181400S-CUSP PART LIST:

A181400S PART LIST:

ITEM # PART NUMBER DESCRIPTION

7000-012-001 STAINLESS STEEL BUBBLER ASSEMBLY

7000-099-002 LOW FLOW FLEX BUBBLER GRAY

2 7035-128-199 UPPER MOUNTING BRACKET

3 7035-412-001 CHECK STOP & AIR VAVLVE ASSY

4 2195-010-000 HOSE S/S BRAIDED

5 1720-010-000 REDUCING ELBOW

6 1895-002-001 1/4" COMPRES FITTING PLASTIC

7 0431-222-000 RUBBER WASHER

8 5200-151-001 SPRAY NOZZLE

9 4926-055-001 GRID STRAINER w/ CLOSE ELL ASSY.

10 0316-020-000 CAPTIVE NUT

11 0331-004-000 #10 FLAT WASHER

12 0321-011-000 #10 STAR WASHER

13 0116-006-000 #10-32 PHILLIPS SCREWS

14 7035-111-199 PANEL, LOWER, SHORT, ADA

15 0279-002-000 #8-32 SOCKET CAP BUTTON HD SCREW 3/4" LG

16 0322-001-000 #8 PLATED STAR LOCK WASHER (EXTERNAL)

17 7002-125-001 WELDED PUSHBUTTON/ AIR TROL VALVE ASSY

18 7002-125-002 PUSHBUTTON ASSY, AIR VALVE

19 7035-306-001 BRACKET, FRAME, LWR, FTN ONLY & ADA

20 7000-415-000 SELF RETAINING J NUT

21 7000-021-001 Y' STRAINER ASSY

22 7000-091-001 PUSHBUTTON w/ HEX ASSY

23 7000-060-000 FLOW REGULATOR CARTRIDGE (0.5 GPM)

24 7000-050-001 VALVE ASSEMBLY

ITEM# PART NUMBER DESCRIPTION

7000-012-001 STAINLESS STEEL BUBBLER ASSEMBLY

7000-099-002 LOW FLOW FLEX BUBBLER GRAY

2 7035-128-199 UPPER MOUNTING BRACKET

3 N/A N/A

4 N/A N/A

5 N/A N/A

6 N/A N/A

7 N/A N/A

8 N/A N/A

9 4926-055-001 GRID STRAINER w/ CLOSE ELL ASSY

10 0316-020-000 CAPTIVE NUT

11 0331-004-000 #10 FLAT WASHER

12 0321-011-000 #10 STAR WASHER

13 0116-006-000 #10-32 PHILLIPS SCREWS

14 7035-111-199 PANEL, LOWER, SHORT, ADA

15 0279-002-000 #8-32 SOCKET CAP BUTTON HD SCREW 3/4" LG

16 0322-001-000 #8 PLATED STAR LOCK WASHER (EXTERNAL)

17 N/A N/A

18 N/A N/A

19 7035-306-001 BRACKET, FRAME, LWR, FTN ONLY & ADA

20 7000-415-000 SELF RETAINING J NUT

21 7000-021-001 'Y' STRAINER ASSEMBLY

22 7000-091-001 PUSHBUTTON w/ HEX ASSY

23 7000-060-000 FLOW REGULATOR CARTIRIDGE (0.5 GPM)

24 7000-050-001 VALVE ASSEMBLY

A181-CUSP

Page 8 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

A1804000-CUSP PART LIST:

ITEM# PART NUMBER DESCRIPTION

1 N/A N/A

2 7035-128-199 UPPER MOUNTING BRACKET

3 7035-412-001 CHECK STOP & AIR VALVE ASSY

4 2195-010-000 HOSE S/S BRAIDED

5 1720-010-000 REDUCING ELBOW

6 1895-002-001 1/4" COMPRES FITTING PLASTIC

7 0431-222-000 RUBBER WASHER

8 5200-151-001 SPRAY NOZZLE

9 4926-055-001 GRID STRAINER w/ CLOSE ELL ASSY

10 0316-020-000 CAPTIVE NUT

11 0331-004-000 #10 FLAT WASHER

12 0321-011-00 #10 STAR WASHER

13 0116-006-000 #10-32 PHILLIP SCREWS

14 7035-111-199 PANEL, LOWER, SHORT, ADA

15 0279-002-000 #8-32 SOCKET CAP BUTTON HD SCREW 3/4" LG

16 0322-001-000 #8 PLATED STAR LOCK WASHER (EXTERNAL)

17 7002-125-001 WELDED PUSHBUTTON/ AIR TROL VALVE ASSY

18 7002-125-002 PUSHBUTTON ASSY, AIR VALVE

19 7035-306-001 BRACKET, FRAME, LWR FTN ONLY & ADA

20 7000-415-000 SELF RETAINING J NUT

21 N/A N/A

22 N/A N/A

23 N/A N/A

24 N/A N/A

A181-CUSP

Page 9 of 9

02/26/16

7020-003-001

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

CONTEMPORARY WATER COOLERS

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

DRINKING FOUNTAINS

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Fuente al aire libre de Murdock

Murdock

Murdock A481CUSP Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A131-VR Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A171 Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A131-VR-BF4 Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A481408S-CUSP Instrucciones de instalación y funcionamiento

Murdock

Murdock M-OBR4-GRD-FRA3 Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A151-VR-BF4 Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A132-VR Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A172-UG-D1-BFS Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A172-SO Series Instrucciones de instalación y funcionamiento

Murdock

Murdock AI81.8 Series Manual de usuario

Murdock

Murdock A152-BF4-FRA Series Manual de usuario

Murdock

Murdock A152.8FG Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A172UBL-VR Series Manual de usuario

Murdock

Murdock A191.8-BF Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A151-VR Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A151.8-VR Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A132-BF4 Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A152400F-BF4 Instrucciones de instalación y funcionamiento

Murdock

Murdock A172-UG Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A132 8-VR-BF3 Series Instrucciones de instalación y funcionamiento

Murdock

Murdock M-30 Manual de usuario

Murdock

Murdock A172FGVR Series Instrucciones de instalación y funcionamiento

Murdock

Murdock A131408F Manual de usuario

Manuales populares de Fuente al aire libre de otras marcas

Sunnydaze Decor

Sunnydaze Decor XSS-578 Manual de usuario

Campania International

Campania International Bibendum FT-400 Manual de usuario

Elkay

Elkay FLEXI-GUARD EFHA8 1M Series Manual de instalación

S.R.Smith

S.R.Smith Color Light Stream 2CLSLBK Manual de usuario

Hozelock Cyprio

Hozelock Cyprio Cascade 1500 Manual de usuario

Campania International

Campania International Juliet Fountain Manual de usuario

YARDART

YARDART FT-155 Manual de usuario

Alpine

Alpine WIN732 Manual de usuario

Campania

Campania Valencia Manual de usuario

Campania International

Campania International FT-320 Manual de usuario

GardenWize

GardenWize SWGSL230 Manual de usuario

Kelkay

Kelkay Easy Fountain Rustic Windmill Manual de usuario

Alpine

Alpine WIN258 Manual de usuario

Bond

Bond Signature Series Manual de usuario

Kenroy Home

Kenroy Home 51112COPBL Guía de instalación

EasyPro

EasyPro Tranquil Décor HBB39 Manual de usuario

Angelo Decor

Angelo Decor Castillo Manual de usuario

Campania International

Campania International Girona FT-102A Manual de usuario
