MULTIQUIP Whiteman Series Guía

MULTIQUIP

HITEMAN

SERIES

MODELS

J36H55

J36R60

J36H9OH

J36R9OH

J36H90

J36R90

M30H55

WALK-BEHIND TROWELS

(HONDA GX160/270 AND ROBIN EX170/270 GASOLINE ENGINES)

Revision #4 (07/23/08)

To find the latest revision of this

publication, visit our website at:

www.multiquip.com

THIS MANUAL

MUST

ACCOMPANYTHE EQUIPMENT AT ALLTIMES.

PROPOSITION 65 WARNING

CALIFORNIA



Proposition 65 Warning

Engine exhaust and some of

its constituents, and some dust created

by power sanding, sawing, grinding,

drilling and otherconstruction activities

contains chemicals known to the State

of California to cause cancer, birth

defects and other reproductive harm.

Some examples of these chemicals are:

•

Lead from lead-based paints.

•

Crystalline silica from bricks.

•

Cementand other masonry products.

•

Arsenic and chromium from chemically

treated lumber.

Your risk from these exposures varies,

depending on how often you dothistype

of work. To reduce your exposure to

these chemicals:

ALWAYS

work in a

well ventilated area, and work with

approved safety equipment, such as

dust masks that are specially designed

to filter out microscopic particles.

PAGE 2 — J36/M30 WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #4 (07/23/08)

RESPIRATORY HAZARDS

Grinding/cutting/drilling of masonry, concrete, metal and

other materials can generate dust, mists and fumes

containing chemicals known to cause serious or fatal

injury or illness, such as respiratory disease, cancer,

birth defects or other reproductive harm. If you are

unfamiliar with the risks associated with the particular

process and/or material being cut or the composition of

the tool being used, review the material safety data

sheet and/or consult your employer, the material

manufacturer/supplier, governmental agencies such as

OSHA and NIOSH and other sources on hazardous

materials. California and some other authorities, for

instance, have published lists of substances known to

cause cancer, reproductive toxicity, or other harmful

effects.

Control dust, mist and fumes at the source where

possible. In this regard use good work practices and

follow the recommendations of the manufacturers or

suppliers, OSHA/NIOSH, and occupational and trade

associations. Water should be used for dust

suppression when wet cutting is feasible. When the

hazards from inhalation of dust, mists and fumes cannot

be eliminated, the operator and any bystanders should

always wear a respirator approved by NIOSH/MSHA for

the materials being used.

SILICOSIS/RESPIRATORYWARNINGS

SILICOSIS WARNING

Grinding/cutting/drilling of masonry, concrete, metal and

other materials with silica in their composition may give

off dust or mists containing crystaHine silica. Silica is a

basic component of sand, quartz, brick clay, granite and

numerous other minerals and rocks. Repeated and/or

substantial inhalation of airborne crystalline silica can

cause serious or fatal respiratory diseases, including

silicosis. In addition, California and some other

authorities have listed respirable crystalline silica as a

substance known to cause cancer. When cutting such

materials, always follow the respiratory precautions

mentioned above.

J361M30 WALK-BEHIND TROWEL - OPERATION AND PARTS MANUAL REV. #4 (07/23/08) - PAGE 3

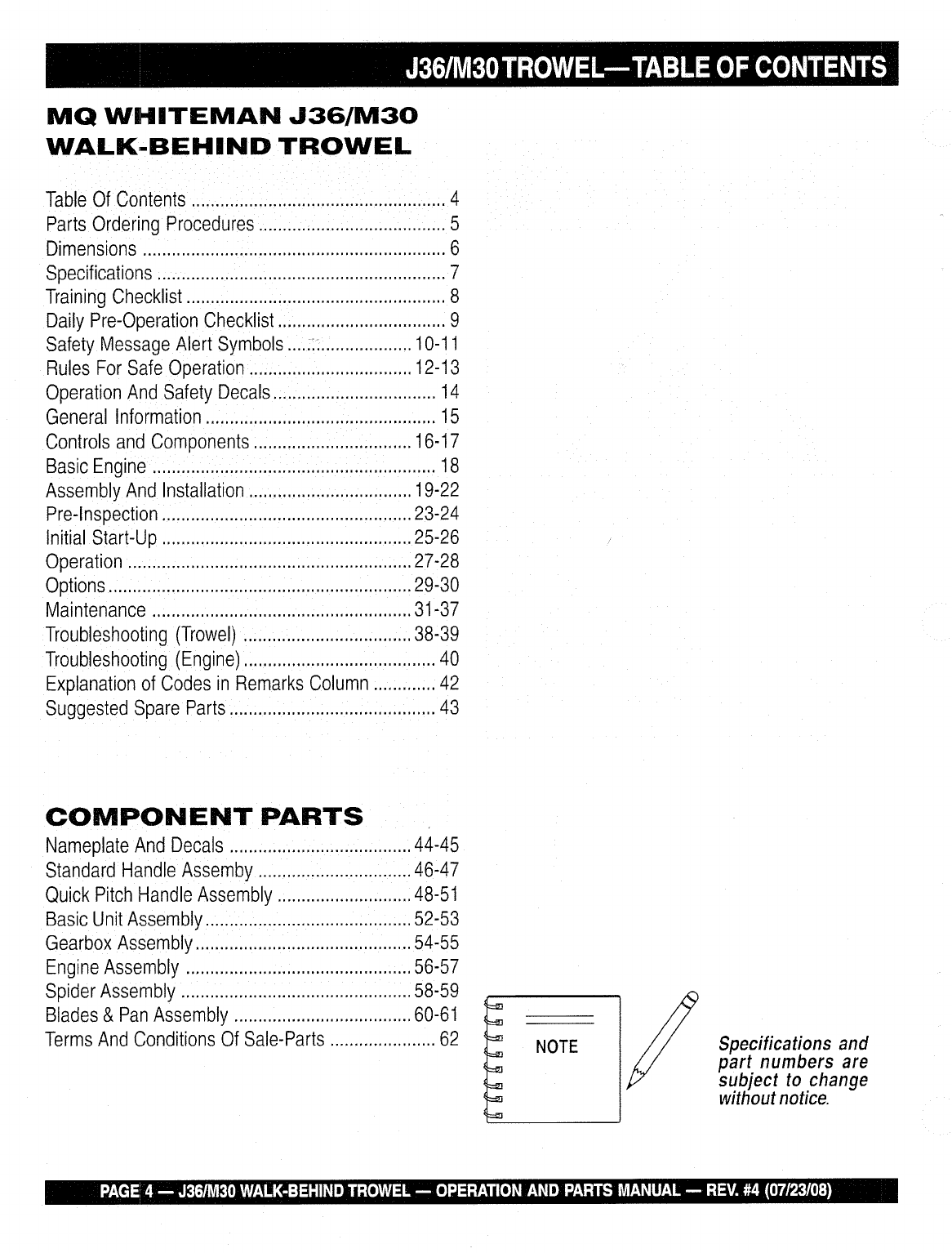

J36/M3OTROWEL-TABLE OF CONTENTS

MQ WHITEMAN J361M30

WALK-BEHIND TROWEL

Table Of Contents



Parts Ordering Procedures



Dimensions



Specifications



Training Checklist



Daily Pre-Operation Checklist



Safety Message Alert Symbols



10-11

Rules For Safe Operation



12-13

Operation And Safety Decals



General Information



Controls and Components



16-17

Basic Engine



Assembly And Installation



19-22

Pre-Inspection



23-24

Initial Start-Up



25-26

Operation



27-28

Options



29-30

Maintenance



31-37

Troubleshooting (Trowel)



38-39

Troubleshooting (Engine)



Explanation of Codes in Remarks Column



Suggested Spare Parts



Specifications and

part numbers are

subject to change

without notice.

COMPONENT PARTS

Nameplate And Decals



44-45

Standard Handle Assemby



46-47

Quick Pitch Handle Assembly



48-51

Basic Unit Assembly



52-53

Gearbox Assembly



54-55

Engine Assembly



56-57

Spider Assembly



58-59

Blades & Pan Assembly



60-61

Terms And Conditions Of Sale-Parts



NOTE

PAGE 4 — J36/M30 WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #4 (07/23/08)

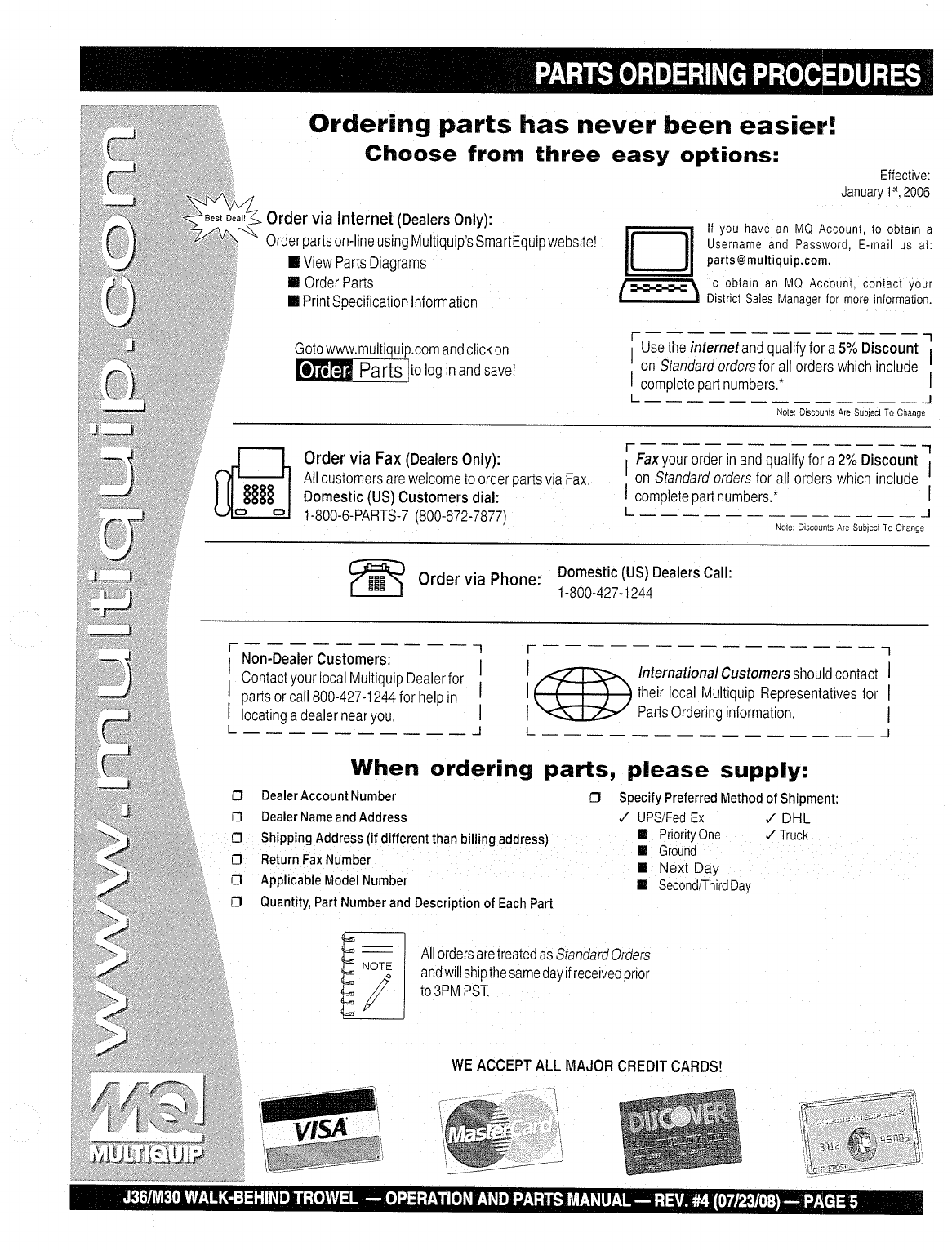

Parts

Order

Specify Preferred Method of Shipment:

/ UPS/Fed Ex

•

Priority One

•

Ground

•

Next Day

•

SeconcliThird Day

s/ DHL

Truck

Ordering parts has never been easier!

Choose from three easy options:

Effective:

January ls', 2006

Best

Deal!

Order via Internet (Dealers Only):

Order parts on-line using Multiquip's SmartEquipwebsite!

111 View Parts Diagrams

111

Order Parts

IS Print Specification Information

Goto www.multiquip.com

and click on

If you have an MC) Account, to obtain a

Username and Password, E-mail us at:

[email protected]

To obtain an MD Account, contact your

District Sales Manager for more information.

to log in and save!

Use the

internet

and qualify for a 5% Discount

' on

Standard orders

for all orders which include '

complete part numbers.*



Note: Discounts Are Subject To Change

Order via Fax

(Dealers Only):

All customers are welcome to order parts via Fax.

Domestic (US) Customers dial:

1-800-6-PARTS-7 (800-672-7877)

Fax

your order in and qualify for a 2% Discount

' on

Standard orders

for all orders which include '

1 complete part numbers.*



Note: Discounts Are Subject To Change

Order via Phone:

Domestic (US) Dealers Call:

1-800-427-1244

Non-Dealer Customers:

Contact your local Multiquip Dealer for

parts or call 800-427-1244 for help in



locating a dealer near you.



International Customers

should contact

their local Multiquip Representatives for

Parts Ordering information.

When ordering parts, please supply:

El Dealer Account Number

C1 Dealer Name and Address

Shipping Address (if different than billing address)

•

Return Fax Number

•

Applicable Model Number

•

Quantity, Part Number and Description of Each Part

All

orders are treated as

Standard Orders

and will ship the same day if received prior

to 31

M PST.

WE ACCEPT ALL MAJOR CREDIT CARDS!

J361M30 WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL REV. 4t4 (07/23/08)— PAGE 5

J36/M3OTROWEL- DIMENSIONS

Figure 1 J36/M30 Trowel Dimensions

Table 1. J-36/M-30

Trowel Dimensions &

J-36

Weights

M-30

Handle Type Standard

Quick Pitch

Standard

Quick Pitch

A - Height (Lifting Bale)

27 in. (686 mm) 26 in. (661 mm)

B - Height (Engagement Lever) 40 in. (1016 mm) 42 in. (1067 mm) 40 in. (1016 mm)

42 in. (1067 mm)

C - Width

37.4 in. (950 mm) 31.75 in. (807 mm)

D - Length 74 in. (1880 mm) 74 in. (1880 mm)

Shipping Weight - 5.5 HP Honda/6 HP Robin

225 lb. (102 Kg) 235 lb. (107 Kg)

195 lb. (88.5 Kg)

205 lb. (93 Kg)

Shipping Weight - 9 HP Honda/9 HP Robin

235 lb. (107 Kg) 245 lb. (111 Kg)

n/a n/a

PAGE 6 — J36/M30 WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #4 (07/23/08)

J-36 High Speed

M-30

Model

Trowel Specifications

J36H55/J36R60



J36H90/J36R90

Number of Blades

Ring Diameter

37.38 in. (950 mm)

37.38

in. (950 mm)

37.38 in. (950 mm) 31.75 in. (807 mm)

Rotor - RPM

60 - 130

90 - 15560 -

115

60 - 130

Path Width

34.5 in (876 mm)



34.5

n (876 mm)

28.67 in (728 mm)

Vibration (Hand/Arm)

19.0 m/s

Sound Pressure (Weighted)

Sound Pressure (Guaranteed)

94 db

109

109 db

109 db 109 db

NOTE:



The vibration level indicated is the maximum RMS (Root

Mean Square) value obtained at the handle grip while

operating the walk-behind trowel at full throttle on steel

plate with blades partially pitched.



Sound pressure is a weighted measure. It is measured at

the operator's ear position while the walk-behind trowel is

operating at full throttle on concrete in a manner most often

experienced in

"normaf

circumstances. Sound pressure

may vary depending upon the condition of the concrete.

Engine

Model

Table 3.

HONDA GX16OUT1QX2T

Specifications (Engines)

ROBIN EX170D50040

HONDA GX27011TQA2

ROB1N EX270D50020

Type

Air-cooled 4 stroke,

Single Cylinder, OHV,

Horizornal Shaft Gasoline

Engine

Air-cooled 4 stroke,

Single Cylinder, OHV,

Horizontal Shaft Gasoline

Engine

Air-cooled 4 stroke,

Single Cylinder. OHV,

Horizontal Shaft Gasoline

Engine

Air-cooled 4 stroke Single

Cylinder, OHV, Horizontal

Shaft Gasoline Engine

Bore X S roke

2.70 in. X 1,8 in.

(68 mm x 45 mm) 2.64 in. X 1.89 in.

(67 mm x 48 mm)

3.0 in. X 2.3 in.

(77 mm x 58 mm)

2.95 in. X 2.36 in.

(75 mm x 60 mm)

Displacement

163 cc

169 cc

270 cc

265 cc

Max Output

5.4 H.P. @ 3600 RPM 5.7 H.P. @ 4000 RPM 9 H.P. @ 3600 RPM 9 H.P. @ 4000 RPM

Fuel Tank

Capacity

Approx. 0.95 U.S. Gallons

(3.6 Liters)

Approx. 0.95 U.S. Gallons

(3.6 Liters)

Approx. 1.59 U.S. Gallons

(6.0 Liters)

Approx. 1.59 U.S. Gallons

(6.0 Liters)

Fuel

Unleaded Gasoline Unleaded Gasoline Unleaded Gasoline Unleaded Gasoline

Lube Oil Capacity

0.63 Qt. (0.6 Liters)

1.06 Qt. (1.1



Liters)

1.06 Qt. (1.0 Liters)

Speed Control

Method

Centrifugal Fly-weight

Type

Centrifugal Fly-weight

ype

Centrifugal Fly-weight

Type

Centrifugal Fly-weight

Type

Starting Method

Recoil Start

Recoil Start Recoil Start

Dimension (L x W x H)

12.3 x 14.3 X 13.2 in.

(312 X 362 X 335 mm)

11.97 x 13.94 X 13.2 in.

(304 X 354 X 335 mm)

14.0 x 16.9 X 16.1



in.

(355 X 430 X 410 mm)

13.82 x 16.54 X 16.14 in.

(351 X 420 X 410 mm)

Dry Net Weight

33.1



lbs



(15 Kg.)

33.1 lbs



(15 Kg.)

55.1 lbs



(25 Kg.)

46.3 lbs



(21 Kg.)

J361M30 WALK-BEHIND TROWEL - OPERATION AND PARTS MANUAL - REV. M (07/23/08) - PAGE 7

TRAINING CHECKLIST

This checklist will list some of the minimum requirements for

machine maintenance and operation. Please feel free to detach

it and make copies. Use this checklist whenever a new operator

is to be trained or it can be used as a review for more experienced

operator's.

NO.

TRAINING CHECKLIST

DESCRIPTION

OK?

DATE

Read Operator's Manual completely.

Machine layout, location of components, checking of engine and

gearbox fluid level.

Fuel system, refueling procedure.

Operation of controls (machine not running).

Safety controls, clu ch operation.

Emergency stop procedures.

Startup of machine.

Maneuvering.

Pitching.

Concrete finishing techniques.

Shutdown of machine.

Lifting of machine.

Machine transport and storage.

Operator



COMMENTS:

Trainee

PAGE 8 — J36/M30 WALK-BEH1ND TROWEL — OPERAT1ON AND PARTS MANUAL — REV. #4 (07/23/08)

DAILY PRE-OPERATION CHECKLIST

Engine Oil Level.

Gearbox Fluid Level.

Condition of Blades.

Blade Pitch Operation.

Clutch Operation.

J36/111130TROWEL- DAILY PRE-OPERATION CHECKLIST

DAILY PRE-OPERATION CHECKLIST

COMMENTS:

J36/M30 WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV.

4t4

(07/23/08)— PAGE 9

NOTE

HAZARD SYMBOLS

FOR YOUR SAFETY AND THE SAFETY OF

OTHERS!

Safety precautions should be followed at all times when operating

this equipment. Failure to read and understand and comply with

the Safety Messages and Operating Instructions could result in

injury to yourself and others.

This Owner's Manual has been developed to provide complete

instructions for the safe and

efficient operation of the MQ

Whiteman J36/M30 TROWEL. For

engine maintenance information,

please refer to the engine

manufacturer's instructions for data

relative to its safe operation.

Before using this WALK-BEHIND TROWEL. ensure that the

operating individual has read, understands, and complies

with all instructions in this manual.

SAFETY MESSAGE ALERT SYMBOLS

The three (3) Safety Messages shown below will inform you

about potential hazards that could injure you or others. The

Safety Messages specifically address the level of exposure to

the operator, and are preceded by one of three words: DANGER,

WARNING, or CAUTION.

Engine exhaust gases contain poisonous

carbon monoxide. This gas is colorless and

odorless, and can cause death if inhaled,

NEVER operate this equipment in a confined

area or enclosed structure that does not

provide ample free flow air.

Gasoline is extremely flammable, and its

vapors can cause an explosion if ignited. DO

NOT start the engine near spilled fuel or

combustible fluids. DO NOT fill the fuel tank

while the engine is running or hot. DO NOT

overfill tank, since spilled fuel could ignite if it

comes into contact with hot engine parts or

sparks from the ignition system, Store fuel in

approved containers, in well-ventilated areas

and away from sparks and flames. NEVER

use fuel as a cleaning agent.

You WILL be

K1LLED

SERIOUSLY 1NJURED

if you DO NOT follow these directions.

You CAN be KILLED or

SER1OUSLY INJURED

you DO NOT follow these directions,

Engine components can generate extreme heat.

To prevent burns, DO NOT touch these areas

while the engine is running or immediately after

operations. NEVER operate the engine with

heat shields or heat guards removed.

NEVER operate equipment with covers, or

guards removed. Keep

fingers, hands, hair

and

clothing

away from all moving parts to

prevent injury.

You CAN be

INJURED

if you DO NOT follow

these directions.

Potential hazards associated with trowel operation will be

referenced with Hazard Symbols which appear throughout this

manual, and will be referenced in conjunction with Safety

Message Alert Symbols.

PAGE 10

—

J36/M30 WALK-BEHIND TROWEL — OPERATION AND PARTS MANUAL — REV. #4 (07/23/08)

Otros manuales para Whiteman Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Paleta de MULTIQUIP

MULTIQUIP

MULTIQUIP CA4HM Manual de usuario

MULTIQUIP

MULTIQUIP Whiteman CA5BC Manual de usuario

MULTIQUIP

MULTIQUIP BS90C Guía

MULTIQUIP

MULTIQUIP Whiteman Series Manual de usuario

MULTIQUIP

MULTIQUIP Whiteman series Manual de usuario

MULTIQUIP

MULTIQUIP Whiteman series Manual de usuario

MULTIQUIP

MULTIQUIP WHITEMAN INSTACLUTCH J Series Manual de usuario

MULTIQUIP

MULTIQUIP HPHA36C5H Guía

MULTIQUIP

MULTIQUIP Whiteman series Manual de usuario

MULTIQUIP

MULTIQUIP LD6 Manual de usuario

MULTIQUIP

MULTIQUIP js36h55 Guía

MULTIQUIP

MULTIQUIP Whiteman HTXD6i Manual de usuario

MULTIQUIP

MULTIQUIP Whiteman HHN31VTCSL5 Guía

MULTIQUIP

MULTIQUIP Mikasa Series Guía

MULTIQUIP

MULTIQUIP J36E2 Manual de usuario

MULTIQUIP

MULTIQUIP BS46H90 Guía

MULTIQUIP

MULTIQUIP J-36 Guía

MULTIQUIP

MULTIQUIP Whiteman HTN-28K-TCSL Manual de usuario

MULTIQUIP

MULTIQUIP BH11C Manual del propietario

MULTIQUIP

MULTIQUIP Whiteman series Manual de usuario

MULTIQUIP

MULTIQUIP BH11C Manual del propietario

MULTIQUIP

MULTIQUIP B Series Manual de usuario

MULTIQUIP

MULTIQUIP WHITEMAN EPOXY/M Series Guía

MULTIQUIP

MULTIQUIP Whiteman HHNG5 Manual de usuario

Manuales populares de Paleta de otras marcas

allen

allen HP105 Guía de aplicación

Bartell

Bartell BM90 Manual de usuario

Stone

Stone CF24E Manual de usuario

allen

allen HDX750 Guía de aplicación

Norton

Norton MTA 36 Guía

MBW

MBW F24 Manual de usuario

MBW

MBW MK8-75 Manual de usuario

Wacker Neuson

Wacker Neuson CT 36-400E Manual de usuario

Atlas Copco

Atlas Copco BG 240 E Guía de mantenimiento y servicio

MQ Multiquip

MQ Multiquip JS36/30H55DE Series Guía

swepac

swepac TR 600P Manual de usuario

allen

allen PRO436DF Guía

Wacker Neuson

Wacker Neuson CT 36 Manual de usuario

Marshalltown

Marshalltown Speed Striker STRIKE45-L Manual de usuario

Wacker Neuson

Wacker Neuson CRT 48-31V Manual de usuario

Northern Industrial

Northern Industrial tmt-36 Manual del operador

BOMAX

BOMAX BM-836H Manual de usuario

ENAR

ENAR TIFON 908 Manual de usuario
