GA SERIES PORTABLE GENERATORS — WHEEL KIT INSTRUCTIONS — REV. #0 (04/08/14) — PAGE 1

GA Series Portable Generators

Wheel Kit Instructions for GA36HR, GA6HR and GA6HRS

The following instructions are intended to assist the user in the installation of the Wheel Kit. Please read all assembly

instructions before installing the kit.

REQUIRED TOOLS

1/4" Drive Ratchet with Socket Set

Snap Ring Tool

PARTS

Verify that all parts are accounted for. See Table 1 below

and Figure 1 on page 3.

Table 1. GA Series Generator Wheel Kit

Item

No. Part No. Description QTY. Item

No Part No Description QTY.

1 A3417400303 Axle, Transport Wheel 1 10 A3417400804 Handle, LS 1

2 A3417400404 Bracket, Axle Frame 2 11 W0805003103 Rubber Hand Grip 2

3 L0120236304A Bracket, Mounting Axle 4 12 0016908020 Bolt, M8X20 With Flat/Lock Washers 16

4 Y0605802053 Wheel 2 13 0016906015 Bolt, M6X15 With Flat Lock Washers 8

5 Y0080000020 Snap Ring 2 14 0010108025 Bolt, M8X25 2

6 A3417400904 Support Stand 2 15 0207608000 Nut, M8 2

7 A3417401304 Bracket, Handle RS 1 16 0041208000 Washer, Flat M8 2

8 A3417401404 Bracket, Handle LS 1 17 0601851116 Washer, Plastic 4

9 A3417400704 Handle, RS 1 18 0012308020 Bolt, M8X20 With Flat/Lock Washers 6

WORK SAFELY!

Follow all shop safety rules when performing this installation.

Make sure work area is clean and free of debris.

GA SERIES PORTABLE GENERATORS — WHEEL KIT INSTRUCTIONS — REV. #0 (04/08/14) — PAGE 2

PROCEDURE

Reference Figure 1 for all instructions.

Wheel/Axle Installation (Step 1)

1. Place generator on secure level ground where it will

not slip or slide.

2. Using four M8X20 bolts (item 12), that includes a lock

washer and ﬂat washer, attach axle frame brackets

(item 2) to the bottom right and left sides of the pipe

frame. Tighten securely.

3. Place the four axle mounting brackets (item 3) onto

axle (item 1).

4. Next, using eight M8X20 bolts (item 12), that includes

a lock washer and ﬂat washer secure the four axle

mounting brackets (item 3) to the left and right side

axle frame brackets (item 2).Tighten securely.

5. Place wheels (item 4) onto axle and secure wheels to

axle with with snap ring (item 5).

Stand Installation (Step 2)

1. Using eight M6X15 bolts (item 13), that includes a

lock washer and ﬂat washer, attach support stands

(item 6) to pipe frame. Tighten securely.

Handle Installation (Step 3)

1. Using two M8X20 bolts (item 18), that includes a

lock washer and ﬂat washer attach left-side handle

bracket (item 8) to pipe frame. Tighten securely.

2. Lubricate (grease) free end of left-side handle

(item 10) and slide rubber hand grip (item 11) onto

handle.

3. Using a M8X25 bolt (item 14), M8 flat washer

(item 16), two plastic washers (item 17) and ﬂanged

lock nut (item 15), attach left-side handle (item 10) to

left-side handle bracket (item 8). Do not over tighten.

4. Repeat for right-side handle (item 9).

GA SERIES PORTABLE GENERATORS — WHEEL KIT INSTRUCTIONS — REV. #0 (04/08/14) — PAGE 3

STEP 1

STEP 2

STEP 3

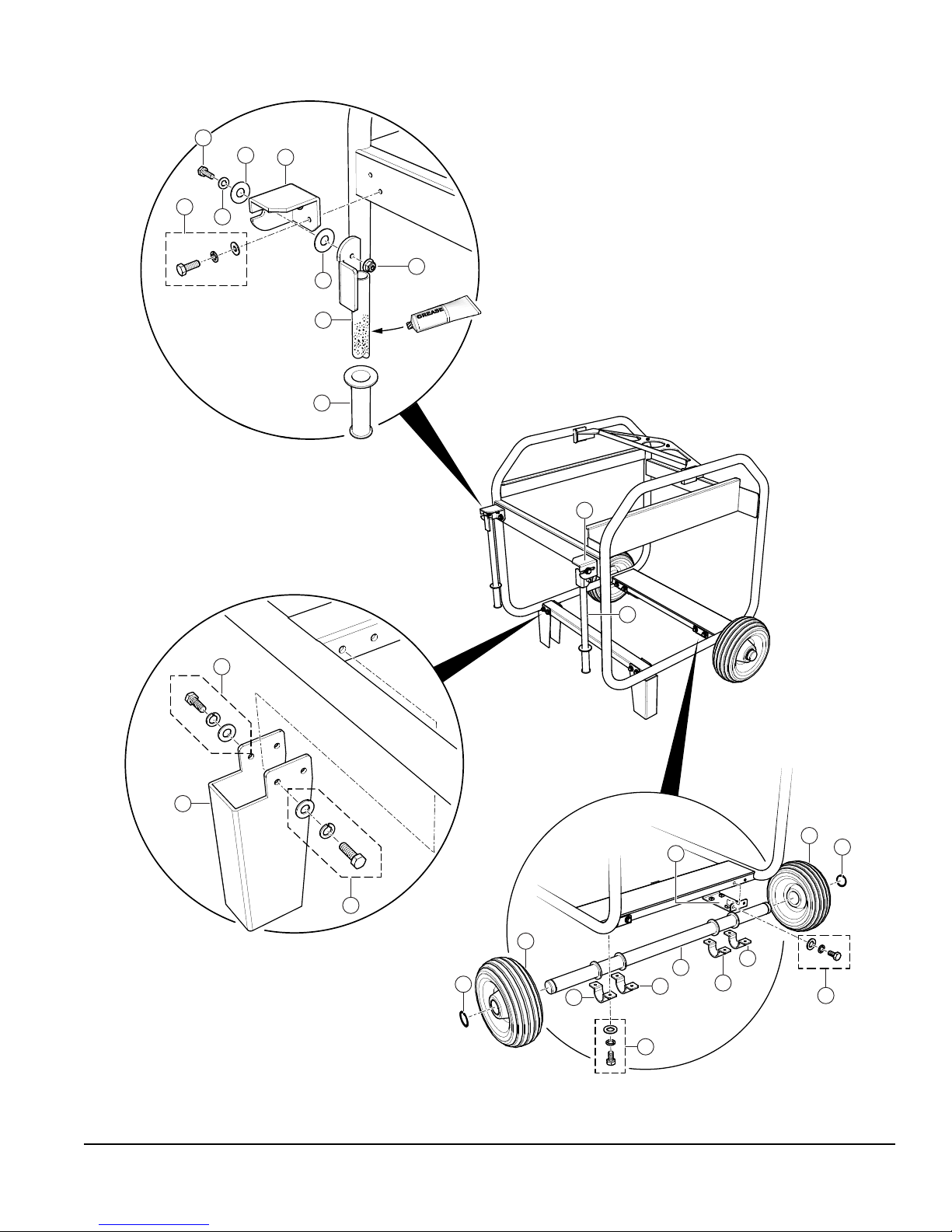

Figure 1. Wheel Kit Assembly

GA Series Portable Generators

Wheel Kit Instructions for GA36HR, GA6HR and GA6HRS

Your Local Dealer is:

HERE’S HOW TO GET HELP

PLEASE HAVE THE MODEL AND SERIAL

NUMBER ON-HAND WHEN CALLING

United StateS

Multiquip Corporate Ofﬁce MQ Parts Department

18910 Wilmington Ave.

Carson, CA 90746

Contact: mq@multiquip.com

Tel. (800) 421-1244

Fax (310) 537-3927

800-427-1244

310-537-3700

Fax: 800-672-7877

Fax: 310-637-3284

Service Department Warranty Department

800-421-1244

310-537-3700

Fax: 310-537-4259 800-421-1244

310-537-3700

Fax: 310-943-2249

Technical Assistance

800-478-1244 Fax: 310-943-2238

Canada United Kingdom

Multiquip Multiquip (UK) Limited Head Ofﬁce

4110 Industriel Boul.

Laval, Quebec, Canada H7L 6V3

Contact: jmartin@multiquip.com

Tel: (450) 625-2244

Tel: (877) 963-4411

Fax: (450) 625-8664

Unit 2, Northpoint Industrial Estate,

Globe Lane,

Dukinﬁeld, Cheshire SK16 4UJ

Contact: sales@multiquip.co.uk

Tel: 0161 339 2223

Fax: 0161 339 3226

Multiquip Inc

, the MQ logo and the Whiteman logo

are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other

trademarks are the property of their respective owners and used with permission.

This manual

MUST accompany the equipment at all times. This manual is considered a permanent part of the equipment and should remain with the unit if resold.

The information and speciﬁcations included in this publication were in effect at the time of approval for printing. Illustrations, descriptions, references and technical data contained in

this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change speciﬁcations, design or the information published

in this publication at any time without notice and without incurring any obligations.
