DA/DAC SERIES — SINGLE SIDE ACCESS KIT INSTRUCTIONS P/N 14252 — REV. #0 (9/24/15) — PAGE 1

DA/DAC Series Generators

Single Side Access/Service Modiﬁcations

The following instructions are intended to assist the user in the installation of the Single Side Access Kit for DA/

DAC Series Generators. It is recommended the following procedure be performed by a Multiquip Authorized

Service Center (ASC) or by a Multiquip Field Service Manager. Generator or engine failures caused by improper

ﬁeld installation are not covered under the Multiquip Limited Warranty. Please read all assembly instructions before

installing the kit.

REQUIRED TOOLS

10mm, 14mm sockets

3/8" Ratchet W/Extension

Electric Drill W/Extension

1/2" Drill Bit

Straight-Edge Ruler

Motor Oil

Funnel

High Temperature Sealant

PARTS

Verify that all parts are accounted for. See Figure 1 and

Table 1.

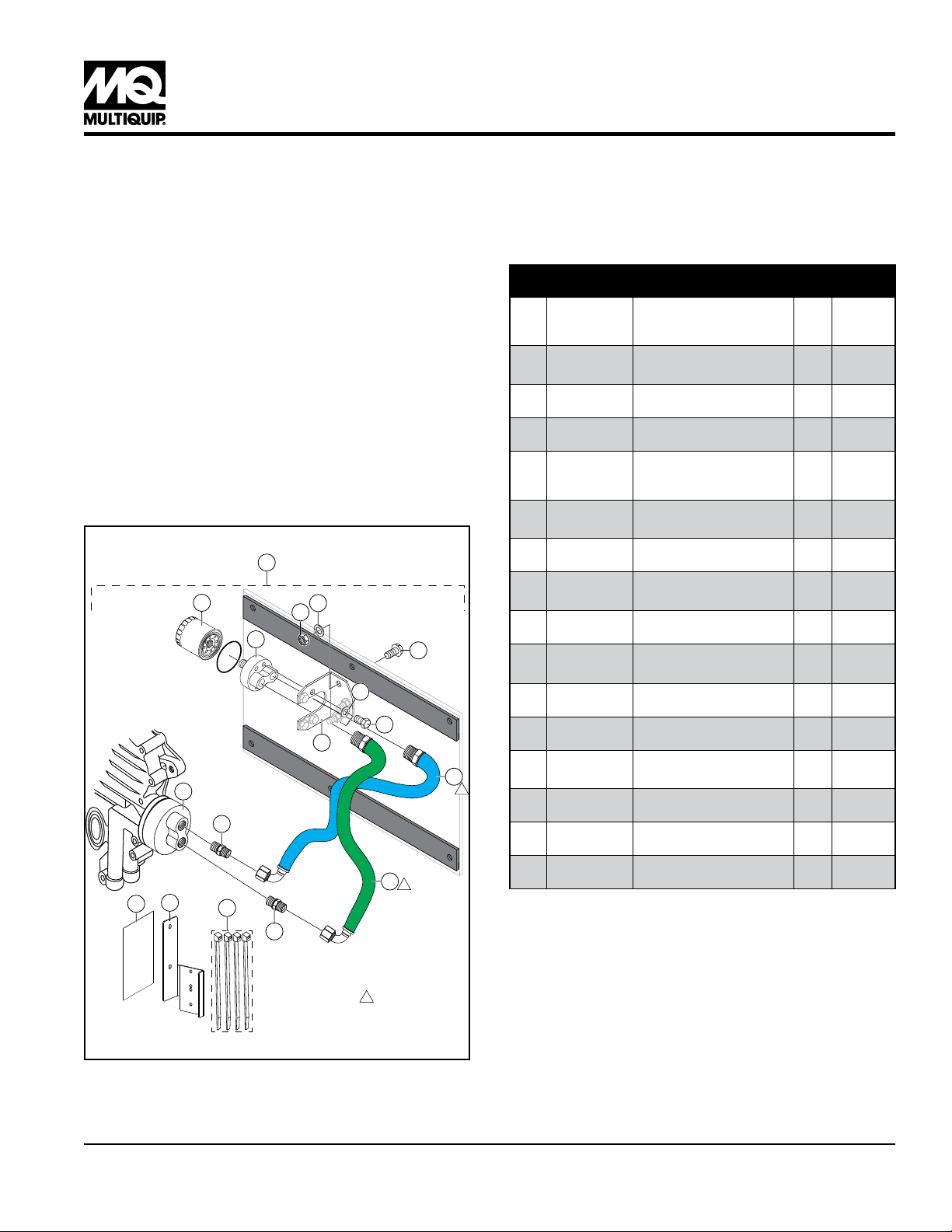

Figure 1. Single Side Access/Service Kit

DA/DAC SINGLE

SIDE ACCESS

INSTALLATION

INSTRUCTIONS

12 13

HOSE COLORS SHOWN

HERE FOR CLARITY.

SUPPLIED HOSES ARE

GRAY COLORED.

NOTE:

WORK SAFELY!

Only a qualiﬁed service technician with proper training

should perform this installation. Follow all shop safety rules

when performing this installation.

Table 1. Single Side Access/Service Kit

Item

No. Part No. Description QTY. Remarks

1 13505 Kit, Single Side Access/Service 1 Includes

items 2-15

2 148002003 Filter, Adapter 1

3 149002000 Filter Head 1

4 149149001 Bracket 1

5 14052 Fitting, 3/4 MPT x 5/8 MORB

Straight 2

6 32379 Screw, HHFS 3/8-16 x 1.0" ZN 3

7 10133 Nut, Nyloc 3/8-16 3

8 10136 Washer, Flat SAE 3/8 3

9 0400 B Screw, HHC 5/16-18 x 1/2" 4

10 0161 C Washer, Lock 5/16 MED 4

11 HH15032430 Filter, Spin-On 1

12 14252 Instructions, Kit, Single Side

Access/Service 1

13 12467 Bracket, Hose 1

14 1662 Tie Wrap, 11.02"L, Black 4

15 14051 Hose Assy, 5/8"IDx35.5" 2

DA/DAC SERIES — SINGLE SIDE ACCESS KIT INSTRUCTIONS P/N 14252 — REV. #0 (9/24/15) — PAGE 2

PREPARATION

1. Make sure generator is turned off and engine is cool.

2. Place the generator in an area free of dirt and debris.

Make sure it is on secure level ground. If trailer

mounted, place chock blocks underneath each wheel

to prevent the generator from rolling.

3. Open the right side cabinet panel to gain access to the

engine fuel supply and battery location.

BATTERY CABLE DISCONNECTION

1. Disconnect the negative cable (BLACK) from the

negative terminal on the battery. See Figure 2.

Figure 2. Battery Cable Disconnection

NEGATIVE

(BLACK)

POSITIVE

(RED)

FRONT PANEL SCREW REMOVAL

1. Using a 10mm socket, remove the front panel screws

(6) as shown in Figure 3.

Figure 3. Front Panel Hardware Removal

2. DO NOT set the front panel aside. Orientate the front

panel with the weather-stripping side visible/facing you.

MOUNTING BRACKET INSTALLATION

1. Locate the mounting bracket (P/N 149149001) in the kit.

2. Using a straight-edge ruler, position the mounting

bracket (Figure 4) 1" from panel top (below weather

stripping) and 8.5" from the panel side towards the

center.

Figure 4. Positioning Mounting Bracket

FRONT

PANEL

FRONT PANEL

SCREW REMOVAL (6)

WEATHER

STRIPPING

MOUNTING

BRACKET

FRONT PANEL

TOP EDGE

FRONT PANEL

SIDE EDGE

STRAIGHT

EDGE

1 2 3 4 5 6 7 8

STRAIGHT

EDGE

1 2 3

TOP

BOTTOM

DA/DAC SERIES — SINGLE SIDE ACCESS KIT INSTRUCTIONS P/N 14252 — REV. #0 (9/24/15) — PAGE 3

3. Once positioned, mark the mounting bracket screw

locations as shown in Figure 5.

4. Using a 1/2" drill bit (Figure 5), drill out three holes per

the marked mounting bracket screw locations.

5. Using a 14mm socket, secure the mounting bracket to

the front panel (Figure 5) using three HHFS 3/8-16 x 1"

screws, 3/8-16 nyloc nuts, and 3/8 ﬂat washers.

Figure 5. Securing Mounting Bracket To Panel

NOTICE

Depending on drill and drill bit quality, pre-drilling the

mounting bracket screw locations with a smaller drill

bit may be necessary.

3/8-16 X 1”

HHFS SCREW

3/8-16

NYLOC

NUT

3/8

FLAT

WASHER

FRONT

PANEL

DRILLING

LOCATION

OIL FILTER AND FILTER HEAD INSTALLATION

1. Locate the spin-on oil ﬁlter (P/N HH15032430) and

ﬁlter head (P/N 149002000) in the kit.

2. Apply a thin, clean ﬁlm of oil on the oil ﬁlter oil seal to

prevent leaks and screw the oil ﬁlter into the ﬁlter head

(see Figure 6).

3. Using a 10mm socket, secure the ﬁlter head to the

mounting bracket (Figure 6) using two HHC 5/16-18 x 1/2"

screws and 5/16 lock washers.

Figure 6. Mounting Oil Fiter and Filter Head

NOTICE

DO NOT overtighten the oil ﬁlter in the ﬁlter head.

Overtightening the oil ﬁlter may cause pinching or

breaking of the oil seal.

OIL

FILTER

OIL FILTER

OIL SEAL

FILTER

HEAD

5/16-18 X 1/2”

SCREWS

5/16

LOCK

WASHER

DA/DAC SERIES — SINGLE SIDE ACCESS KIT INSTRUCTIONS P/N 14252 — REV. #0 (9/24/15) — PAGE 4

ADAPTER FILTER TO ENGINE INSTALLATION

1. Locate the adapter ﬁlter (P/N 148002003) in the kit and

apply a thin, clean ﬁlm of oil to the oil seal.

2. Using your hands, turn the engine oil filter

counterclockwise and remove and discard as shown

in Figure 7.

Figure 7. Engine Oil Filter Removal

3. Install the adapter ﬁlter and oil seal onto engine oil ﬁlter

mount as shown in Figure 8.

Figure 8. Engine Mounted Adapter Filter

NOTICE

An oil ﬁlter or strap wrench may be required to remove

the oil ﬁlter if the engine unit is new. Original factory

paint may act like an adhesive or sealant making it

difﬁcult to remove the oil ﬁlter.

OIL

SEAL

ENGINE ORIGINAL

ENGINE

OIL

FILTER

NOTICE

Make sure you have an oil pan readily available as the

engine oil ﬁlter will drip upon removal.

ADAPTER

FILTER

OIL

SEAL

ENGINE

HOSE CONNECTIONS AND INSTALLATION

1. Locate the two 3/4" MPT x 5/8 MORB straight ﬁttings

(P/N 14052) and 5/8"ID x 35.5" hoses (P/N 14051) in

the kit.

2. Apply a high temperature sealant to the straight hose

ends and connect to the ﬁlterhead as shown in Figure 9.

3. Apply a high temperature sealant to the fittings

(Figure 9) and connect the ﬁttings and 90° hose ends

together.

4. When connecting the adapter ﬁlter and ﬁlter head make

sure to note the "IN" and "OUT" markings. The hose

connections are as follows:

• Adapter Filter OUT  Filter Head IN

• Adapter Filter IN  Filter Head OUT

Figure 9. Filter Connections

NOTICE

High temperature sealant is NOT PROVIDED in the

kit. Multiquip recommends using a high temperature

sealant equal to or stronger than Permatex 59214 high

temperature thread sealant.

HIGH TEMPERATURE

THREAD SEALANT

HIGH TEMPERATURE

THREAD SEALANT

HIGH TEMPERATURE

THREAD SEALANT

HIGH TEMPERATURE

THREAD SEALANT

STRAIGHT

HOSE END

FILTERHEAD/

OIL FILTER

OUT

90° HOSE

ENDS

3/4” MPT X 5/8”

STRAIGHT

FITTING

5/8”ID X 35.5”

HOSES

ADAPTER

FILTER

CAUTION

INCORRECT hose routing between the IN and OUT ports

of the adapter ﬁlter and ﬁlter head may lead to oil loss and

low oil pressure conditions resulting in engine damage.

DA/DAC SERIES — SINGLE SIDE ACCESS KIT INSTRUCTIONS P/N 14252 — REV. #0 (9/24/15) — PAGE 5

HOSE BRACKET INSTALLATION

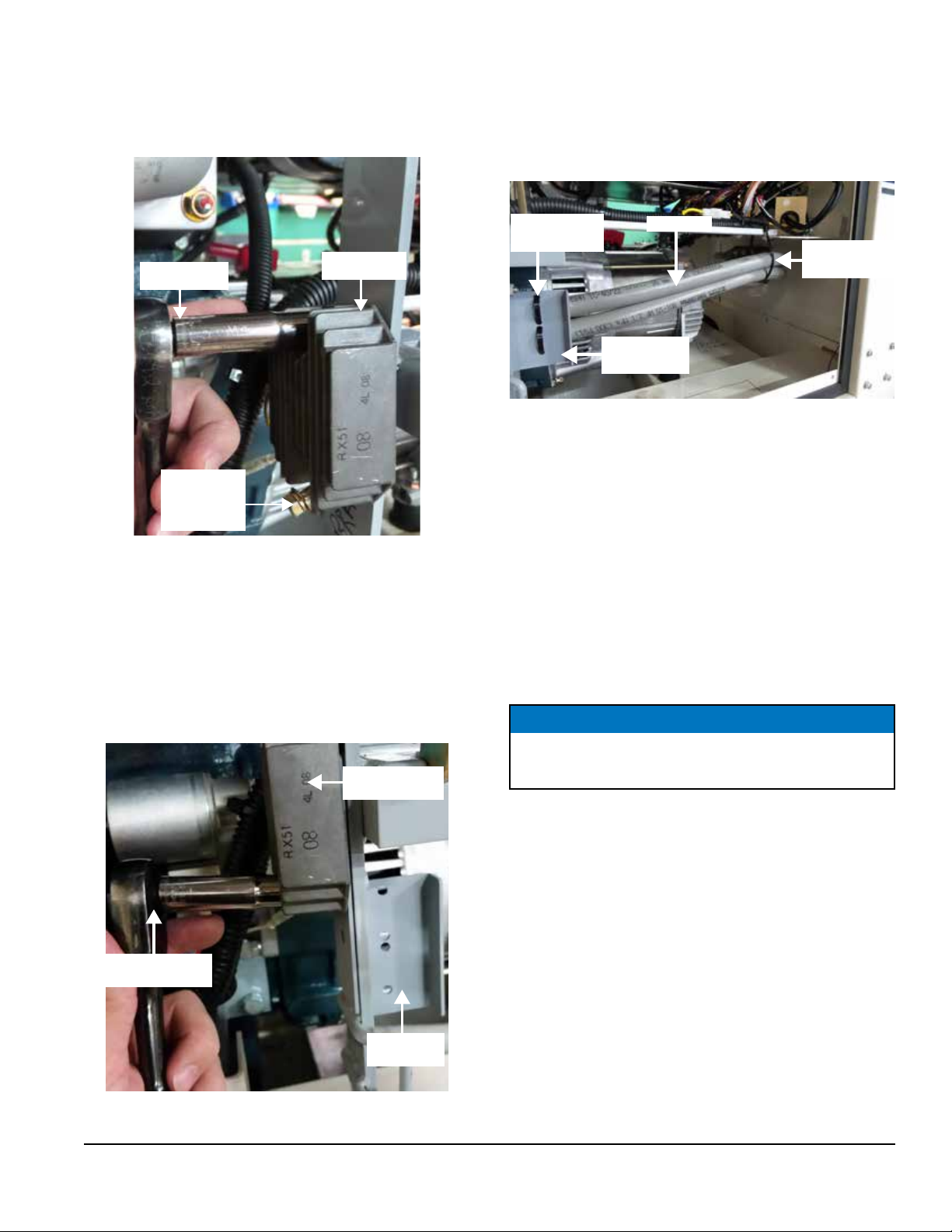

1. Using a 10mm socket, remove the two voltage regulator

mounting screws, lock washers, and ﬂat washers as

shown in Figure 10.

Figure 10. Voltage Regulator Removal

2. Align the mounting holes (Figure 11) of the voltage

regulator with the hose bracket mounting holes. Install

the hose bracket behind the voltage regulator.

3. Using a 10mm socket and same mounting hardware,

install the voltage regulator-hose bracket combination

(Figure 11) to the voltage regulator's original mounting

location.

Figure 11. Voltage Regulator-Hose Bracket

RATCHET W/

SOCKET EXT.

VOLTAGE

REGULATOR

VOLTAGE

REGULATOR

MOUNTING

HARDWARE

RATCHET W/

SOCKET EXT.

VOLTAGE

REGULATOR

HOSE

BRACKET

4. Make sure that all mounting hardware, ﬁlter, adapter,

and hose connection are tight and secure.

5. Use the provided tie wraps (4) to route, hold, and raise

the hoses (Figure 12) high enough for oil to ﬂow back

into the engine.

Figure 12. Tie Wrap Installation

POST-INSTALLATION TESTING

1. Check and ﬁll the oil level (as needed).

2. Reconnect the negative cable (BLACK) to the negative

terminal on the battery.

3. Using a 10mm socket, reinstall the front panel.

4. Make sure the work area and generator are free of any

loose hardware or debris.

5. Start and run the engine for a minimum of ten minutes.

Stop the engine and check for any leaks.

HOSES

TIE-WRAP

LOCATION TIE-WRAP

LOCATION

HOSE

BRACKET

NOTICE

You may need replace up to 1/2 quart of engine oil after

testing. Oil levels drop with new hoses and oil ﬁlters.
