MULTIQUIP GLOBUG Series Guía

OPERATION AND PARTS MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

GLOBUG SERIES

MODEL GBC

SERIAL NO. G2300001 AND ABOVE

CART TYPE LIGHTING SYSTEM

Revision #2 (10/07/19)

Go to Discount-Equipment.com to order your parts

Discount-Equipment.com is your online resource for quality parts & equipment.

Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101

Need parts?

Click on this link: http://www.discount-equipment.com/category/5443-parts/ and

choose one of the options to help get the right parts and equipment you are looking

for. Please have the machine model and serial number available in order to help us

get you the correct parts. If you don’t find the part on the website or on one of the

online manuals, please fill out the request form and one of our experienced staff

members will get back to you with a quote for the right part that your machine needs.

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,

Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,

Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,

Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,

Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,

Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.

Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,

Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,

Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,

APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith

Surface Prep,Small Line, Wanco, Yanmar

GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL —REV. #2 (10/07/19) — PAGE 3

FUEL CHEMICAL WARNING

Gasoline engine exhaust and some of

its constituents are known to cause

cancer,birth defects and other

reproductive harm.

Go to Discount-Equipment.com to order your parts

PAGE 4 — GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL — REV. #2 (10/07/19)

TABLE OF CONTENTS

GBC Lighting System

Fuel Chemical Warning ........................................... 3

Table of Contents..................................................... 4

Safety Information ............................................... 5–9

Speciﬁcations ........................................................ 10

Dimensions............................................................ 11

Footcandle Plot...................................................... 12

General Information............................................... 13

Components .................................................... 14–15

Setup ............................................................... 16–17

Operation......................................................... 18–21

Maintenance.................................................... 22–27

Wiring Diagram...................................................... 28

Explanation of Code in Remarks Column.............. 30

Suggested Spare Parts ......................................... 31

Component Drawings

Nameplate and Decals .................................... 32–33

Balloon and Lamp Assembly........................... 34–35

Mast Assembly ................................................ 36–37

Base Assembly................................................ 38–39

Outrigger Assembly......................................... 40–41

NOTICE

Speciﬁcations and part numbers are subject to change

without notice.

Go to Discount-Equipment.com to order your parts

GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL —REV. #2 (10/07/19) — PAGE 5

SAFETY INFORMATION

Do not operate or service the equipment before reading

the entire manual. Safety precautions should be followed

at all times when operating this equipment.

Failure to read and understand the safety

messages and operating instructions could

result in injury to yourself and others.

SAFETY MESSAGES

The four safety messages shown below will inform you

about potential hazards that could injure you or others.The

safety messages speciﬁcally address the level of exposure

to the operator and are preceded by one of four words:

DANGER, WARNING, CAUTION

or NOTICE.

SAFETY SYMBOLS

DANGER

Indicates a hazardous situation which, if not avoided,

WILL result in DEATH or SERIOUS INJURY.

WARNING

Indicates a hazardous situation which, if not avoided,

COULD result in DEATH or SERIOUS INJURY.

CAUTION

Indicates a hazardous situation which, if not avoided,

COULD result in MINOR or MODERATE INJURY.

NOTICE

Addresses practices not related to personal injury.

Potential hazards associated with the operation of this

equipment will be referenced with hazard symbols which

may appear throughout this manual in conjunction with

safety messages.

Go to Discount-Equipment.com to order your parts

PAGE 6 — GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL — REV. #2 (10/07/19)

SAFETY INFORMATION

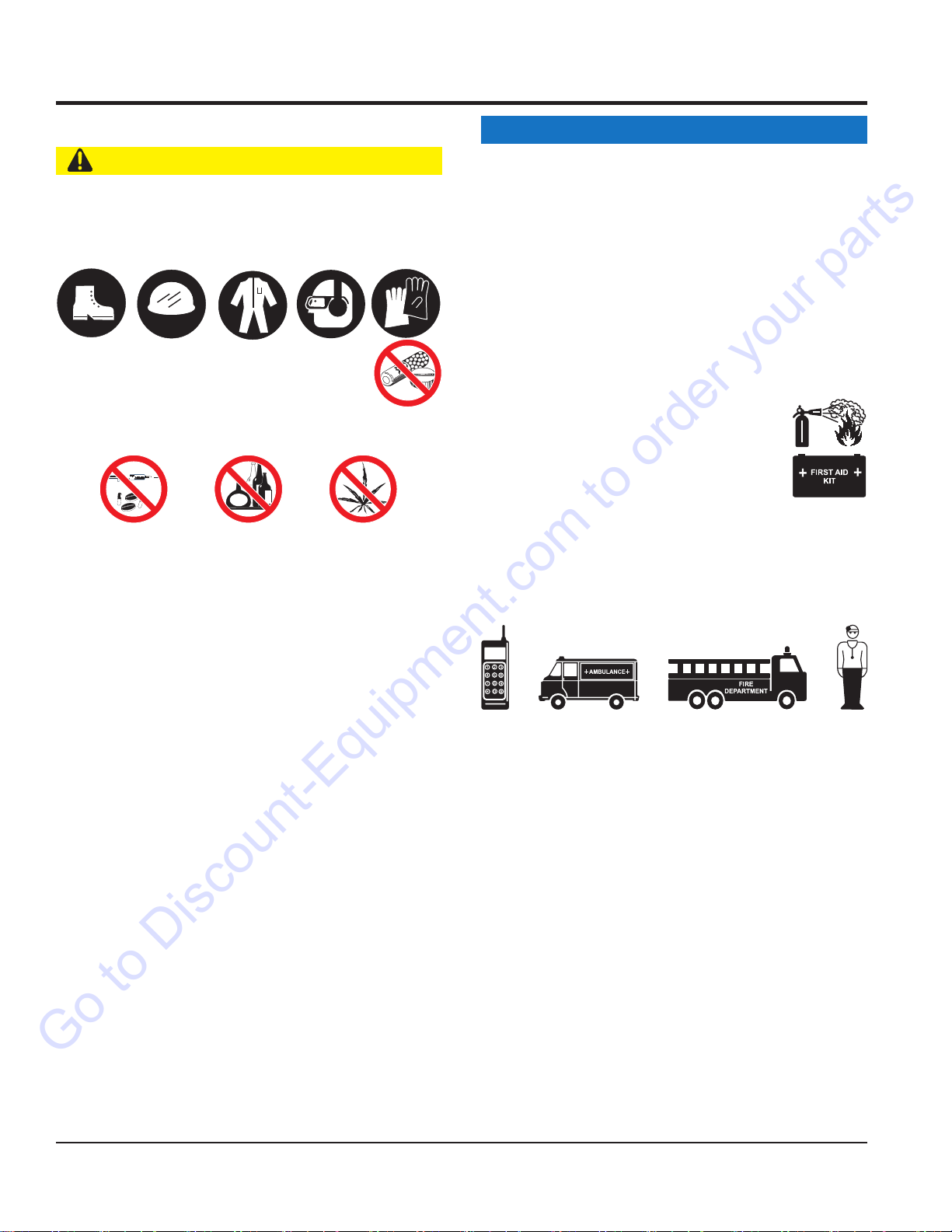

GENERAL SAFETY

CAUTION



NEVER operate this equipment without proper protective

clothing, shatterproof glasses, respiratory protection,

hearing protection, steel-toed boots and other protective

devices required by the job or city and state regulations.



NEVER operate this equipment when not

feeling well due to fatigue, illness or when

under medication.



NEVER operate this equipment under the inﬂuence of

drugs or alcohol.



ALWAYS check the equipment for loosened threads or

bolts before starting.



DO NOT use the equipment for any purpose other than

its intended purposes or applications.

NOTICE



This equipment should only be operated by trained and

qualiﬁed personnel 18 years of age and older.



Whenever necessary, replace nameplate, operation and

safety decals when they become difﬁcult read.



Manufacturer does not assume responsibility for any

accident due to equipment modiﬁcations. Unauthorized

equipment modiﬁcation will void all warranties.

NEVER

use accessories or attachments that are not

recommended by Multiquip for this equipment. Damage

to the equipment and/or injury to user may result.

ALWAYS know the location of the nearest

ﬁre extinguisher.

ALWAYS know the location of the nearest

ﬁrst aid kit.

ALWAYS know the location of the nearest phone or

keep

a phone on the job site.

Also, know the phone numbers

of the nearest ambulance, doctor and

ﬁre department.

This information will be invaluable in the case of an

emergency.

Go to Discount-Equipment.com to order your parts

GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL —REV. #2 (10/07/19) — PAGE 7

SAFETY INFORMATION

LIGHTING SYSTEM SAFETY

WARNING



NEVER disconnect any emergency or safety devices.

These devices are intended for operator safety.

Disconnection of these devices can cause severe injury,

bodily harm or even death. Disconnection of any of

these devices will void all warranties.

CAUTION



NEVER attempt service on a running machine.

NOTICE



To prevent the lighting system from overturning, NEVER

use in winds that exceed 22 mph (10 m/s).



The lighting system should only be used in temperatures

between 23° to 104°F (-5° to 40° C). Failure to comply

with these operating parameters could cause the lamp

to malfunction and shorten the ballast life.



ALWAYS keep the lighting system in proper running

condition.



Fix damage to lighting system and replace any broken

parts immediately.



ALWAYS store equipment properly when it is not being

used. Equipment should be stored in a clean, dry location

out of the reach of children and unauthorized personnel.

LAMP SAFETY

WARNING

NEVER

attempt to replace lamp with the power on.

Always unplug the power cord from the generator or

power source when changing the lamp.

ALWAYS allow a sufﬁcient amount of time for the lamp to

cool

before changing. The possibility exists of severe burns.

CAUTION

NEVER

use force when installing the lamp.Excessive force

could cause the lamp to break, causing bodily harm.

NOTICE

NEVER

leave any grease or oil residue on lamp surface

when replacing or removing lamp. This can create hot

spots, reducing the service life of the lamp.

ALWAYS make sure lamp surface is clean and dry.

ALWAYS

replace with MQ recommended type lamp. See

parts section of this manual.

If applicable, ALWAYS

make sure the lamp guard is

installed correctly. NEVER deform the lamp guard.

NEVER

unplug the lamp’s AC power cable during

operation.

ALWAYS have a trained technician

to install and

remove lamp or replace any damaged ﬁxture wiring.

Go to Discount-Equipment.com to order your parts

PAGE 8 — GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL — REV. #2 (10/07/19)

SAFETY INFORMATION

BALLOON SAFETY

WARNING



To prevent serious burns, NEVER touch

or unzip the balloon envelope when the

lamp is on.

CAUTION



ALWAYS keep the balloon away from sharp objects and

excessive amounts of heat.

NOTICE



To prevent balloon deformation, NEVER use lighting

system in strong winds.



DO NOT place the balloon inside its protective cover

until the lamp has had a sufﬁcient amount of time to cool

down. This will prevent the balloon’s nylon cover from

being burned (touching the lamp surface).



ALWAYS place the balloon inside its protective cover

after each use. This will prolong the life of the balloon

material, keeping it protected from harsh environmental

elements.



Replace balloon immediately if damaged. A damaged

balloon will not inﬂate properly, and may become more

damaged by touching the hot lamp surface.



DO NOT use excessive force when zipping and unzipping

the balloon. Be gentle with the zipper mechanism. If the

zipper is broken, the balloon will become unusable.

GENERATOR SAFETY

If using a generator to power lighting system,

refer to applicable generator manual safety

information section.

ELECTRICAL SAFETY

DANGER



Lighting system is equipped with a ground pin on the

power plug. For your protection, ALWAYS

complete the

grounding path. NEVER

insert the AC power plug into a

2-prong receptacle to operate lighting system.

When applying power to the lighting system,

ALWAYS

connect the AC power plug to a 3-prong receptacle that

is grounded. The possibility exists of

electrical shock,

electrocution and even death

if the lighting system is

not grounded.

NEVER operate lighting system or

handle any electrical equipment while

standing in water, while barefoot, while

hands are wet or in the rain.A dangerous

electrical shock could occur, causing

severe bodily harm or even death.

ALWAYS make sure the area above

the lighting system is open and clear

of overhead power lines and other

obstructions. Contact with overhead

power lines or other obstructions could

result in equipment damage, electrical

shock, electrocution and even death.

Power Cord/Cable Safety

DANGER

NEVER let power cords or cables lay in water.

NEVER use damaged or worn

cables or cords. Inspect

for cuts in the insulation

NEVER grab or touch a live power

cord or cable with wet hands. The

possibility exists of electrical shock,

electrocution or death.



Make sure power cables are securely connected.

Incorrect connections may cause electrical shock

and

damage to the lighting system.

NOTICE

ALWAYS

make certain that proper power or extension

cord has been selected for the job. See Cable Selection

Chart in this manual.

Go to Discount-Equipment.com to order your parts

GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL —REV. #2 (10/07/19) — PAGE 9

SAFETY INFORMATION

LOADING AND UNLOADING

Cart Type - With Liﬁting Hook

If lighting system is equipped with a transport lifting hook,

refer to the following safety information.

CAUTION



Before lifting, make sure that lighting system parts are

not damaged and screws are not loosened or lost.



ALWAYS make sure crane or lifting device has been

properly secured to lifting hook of the equipment.



NEVER lift the equipment while lighting system is

running.



Make sure the mast is completely lowered before lifting

the lighting system.



Use adequate lifting cable (wire or rope) of sufﬁcient

strength.



Use one point suspension hook and lift straight upwards.



Never allow any person or animal to stand underneath the

equipment while lifting.



DO NOT lift machine to unnecessary heights.

ACCIRCUIT

BREAKER

120/240V

30A

120V

30A 20A

20A

OFF

IDLE

CONTROL

OPERATION

SWITCH

OFF

FULLPOWER

SWITCH

120V

120V/240V

120

OFF

21A

LIFTING

HANGER

LIFTING

SCHACKLE

GENERATOR

LIFTING BALE

FORK LIFT

ALIGNMENT

ARROWS

(4 PLACES)

LIFTING

HOOK

Cart Type - No Liﬁting Hook

If lighting system is not equipped with a transport lifting

hook and the mast is removable, refer to the following

safety information.



Before lifting, make sure that the mast and lamp are

removed as described in the manual.



The cart can be safely lifted by two persons to the

transport vehicle.

TRANSPORTING SAFETY

NOTICE



When transporting the lighting system, if applicable,

always place in stow position

and place mast in its

carrying case.

ALWAYS

remove balloon/lamp assembly from the mast

when transporting lighting system. This will prevent

damage to the bulb due to vibration.

NEVER

leave the balloon/lamp exposed during transport.

Exposure to excess wind or rain could damage the

balloon’s nylon cover.

ALWAYS

place balloon inside its protective cover during

transport. Be sure the cover is secured tightly around the

balloon/lamp assembly.

Go to Discount-Equipment.com to order your parts

PAGE 10 — GBC LIGHTING SYSTEM • OPERATION AND PARTS MANUAL — REV. #2 (10/07/19)

SPECIFICATIONS

Table 1. Speciﬁcations

Model GBC

Input Voltage 90-130, 170-240 VAC

Max. Current 9.3 A @ 120 V

Frequency 50-60 Hz Single-Phase

Lamp Type 1,000 Watt Metal Halide

Total Luminous Flux 99,750 lm

Standard Balloon Diameter 47.2 in (1200 mm)

Light Coverage (360°) 150 ft (45.7 meters)

Lamp Surface Temperature (Longitudinal) 476.6° F (247° C) max

Lamp Surface Temperature (Transversal) 417.2° F (214° C) max

Balloon Dimensions (L x W x H) 47.2 x 47.2 x 28.3 in.

(1200 x 1200 x 720 mm)

Balloon Material Polyester

Balloon Heat-Resisting Temperature 320-356° F (160-180° C)

Internal Balloon Temperature 126° F (52° C)

Balloon Water Resistance 1,500 mm H

Fan Motor Voltage 24 VDC

Fan Motor Current 1.2 A

Fan Motor Pressure 0.324 kPA (0.047 psi)

Outriggers 3

Mast - Number of Stages 3 (air shock absorbers)

Dimensions (L x W x H)

Upper Working Position

51.2 x 52.2 x 73.6 to 126 in

(1,300 x 1,325 x 1,870 to 3,200 mm)

Dimensions (L x W x H)

Storage

27.6 x 40 x 47.7 in

(700 x 1,023 x 1,212 mm)

Weight 133.4 lb (49.8 kg)

Appropriate Generator 1700 Watts

Go to Discount-Equipment.com to order your parts
