MSI RS350 Manual de usuario

English

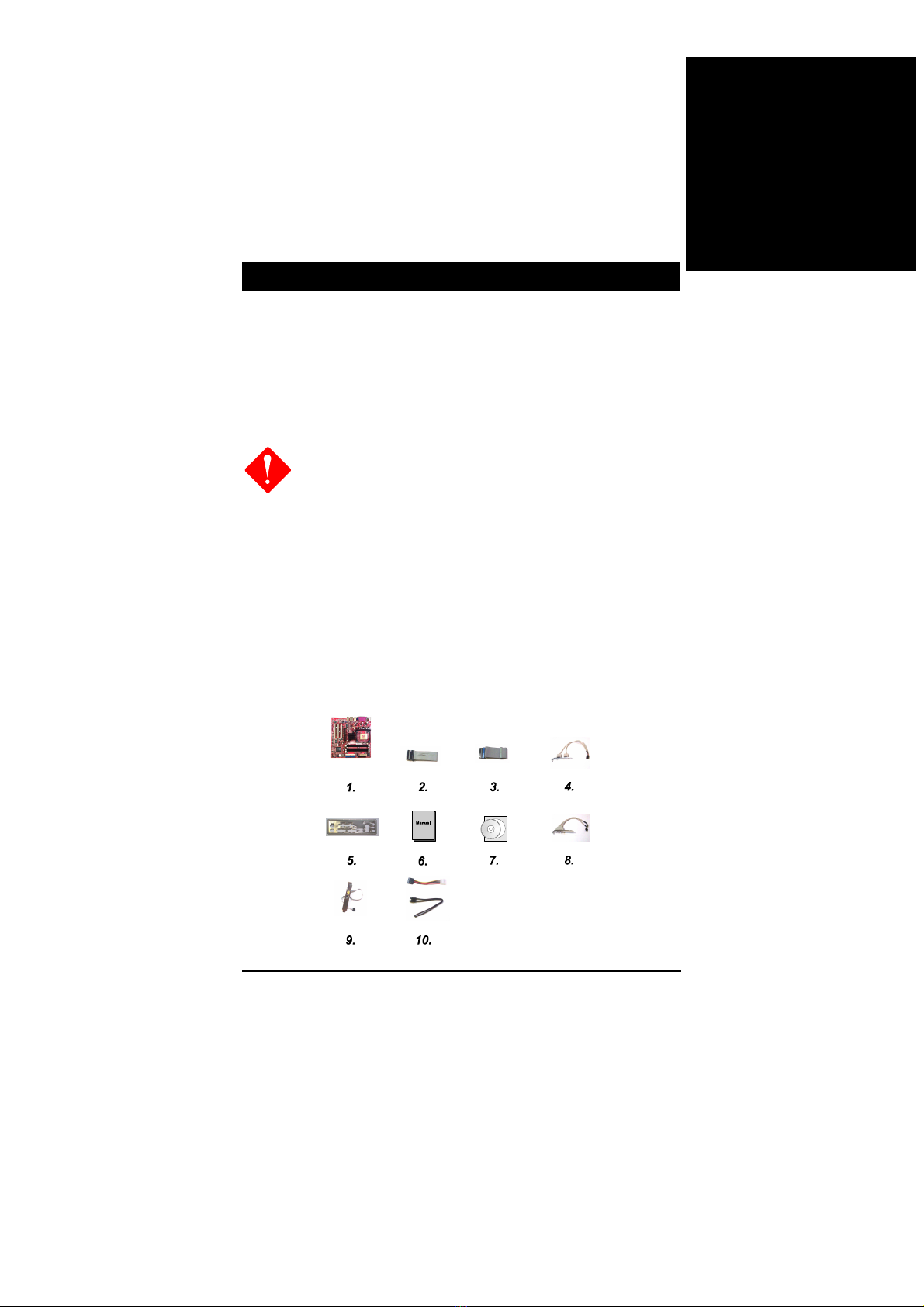

Before Start

This quick reference together with the EZ guide is used for providing you with

the assistance when installing computer system. For detail information, please

read the user manual.

1. Static electricity may cause damage to the integrated

circuits on the motherboard. Before handling any

motherboard outside of its protective packaging,

ensure that there is no static electric charge in your

body.

2. Never run the processor without the heatsink properly

and firmly attached. PERMANENT DAMAGE WILL

RESULT!

Package Checklist

If you discover any item below was damaged or lost, please contact your

vendor. 1. Mainboard 2. Floppy cable 3. IDE cable 4. USB cable (optional) 5.

I/O shielding 6. Manual 7. Driver CD 8. 1394 cable (optional) 9. TV-Out

cable (optional) 10. SATA cables (optional)

Quick Reference

Mainboard Manual

English

Hardware Installation

CPU

1. Swing the lever upward to 90 degree.

2. Install the CPU and make sure the the pin 1

orientation by aligning the socket corner marking

with the socket corner closest to the lever tip. Do

not insert the CPU by force.

Apply some thermal materials on the CPU top;

and install a fan with heatsink that approved by

CPU manufacturer. Affix the CPU by pressing

the lever downward and locking it.

3. Place the fan with heatsink on the CPU top

and press down two plastic clips to hook up with

the holes on the retention module on two sides.

4. Press down the white bar on each clip to

fasten the fan set on the retention module.

Quick Reference

English

Memory

1. Locate DDR DIMM sockets on the mainboard.

2. Install DDR DIMM straight down into the

socket 1 using both hands, then socket 2, and so

forth.

3. The clip on both ends of the socket will close

up to hold the DDR DIMM in place when the

DDR DIMM reaches the socket bottom.

Mounting Mainboard

1. When using an electric screwdriver, the torque is set

to the allowable range of 5.0 ~ 8.0kg/cm.

2. Be aware of the shape edges of devices.

1. Locate mounting holes on the mainboard.

2. Place the board over the frame inside the

chassis. Be sure that the board and frame are

aligned.

3. Affix the mainboard by copper columns.

Connecting Devices

Mainboard Manual

English

1. Locate floppy drive frame and storage on the chassis.

2. Place the drive from the front panel side into

the frame.

3. Affix the drive on the frame by screws.

3. Connect the floppy ribbon cable and power wires. The colored line

on the ribbon cable (pointed by blue arrowhead) must be the same side

with the pin1 of the connector.

Connecting CD/DVD Drive

1. Locate CD/DVD drive frame and storage on the chassis.

2. Place the drive from the front panel side into

the frame.

3. Affix the drive on the frame by screws.

Quick Reference

English

4. Connect the IDE ribbon cable and power wires. The colored line on

the cable (pointed by blue arrowhead) must be the same side with the

pin1 of the connector.

Connecting Hard Drive

1. Locate hard drive frame and storage on the chassis.

2. Place the hard disk drive from the rear of the

frame as the arroaw head indciated.

3. Affix the drive on the frame by screws.

4. Connect the IDE ribbon cable and power wires. The colored line on

the cable (pointed by blue arrowhead) must be the same side with the

pin1 of the connector.

Mainboard Manual

English

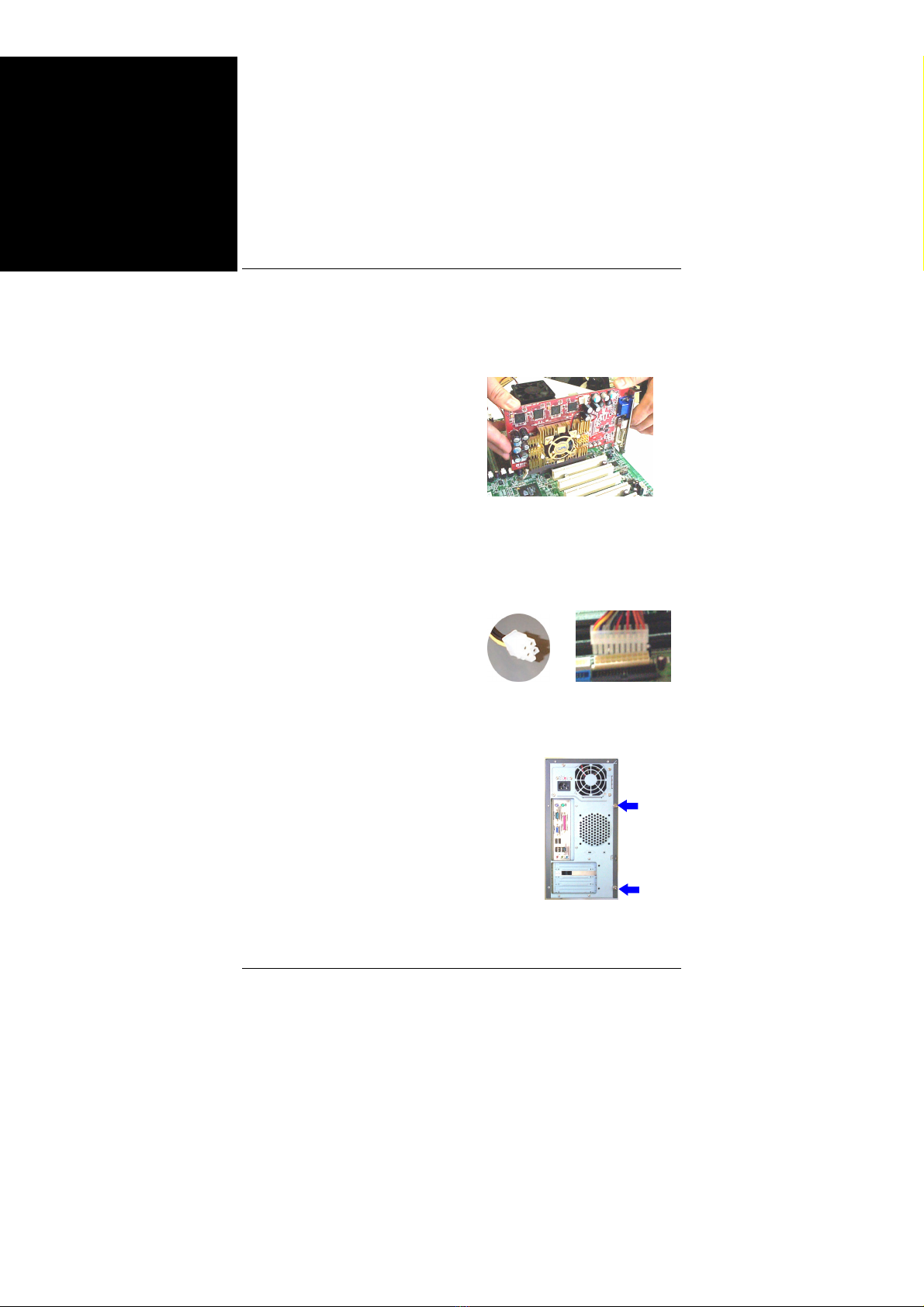

Installing Cards

1. Select an available card slot.

2. Remove the slot cover from

chassis.

3. Push the card firmly into the slot. Secure the card with the screw.

Connecting ATX Power

The 20-hole power plug is connected

to ATX power connector. The 4-hole

Power plug is on ATX_12V power

connector.

Assembly System Case

Place the cover on the chassis and

secure the screws on the cover (as

arrow heads pointed) either by a

screw driver or by fingers to tighten

them up.

Quick Reference

English

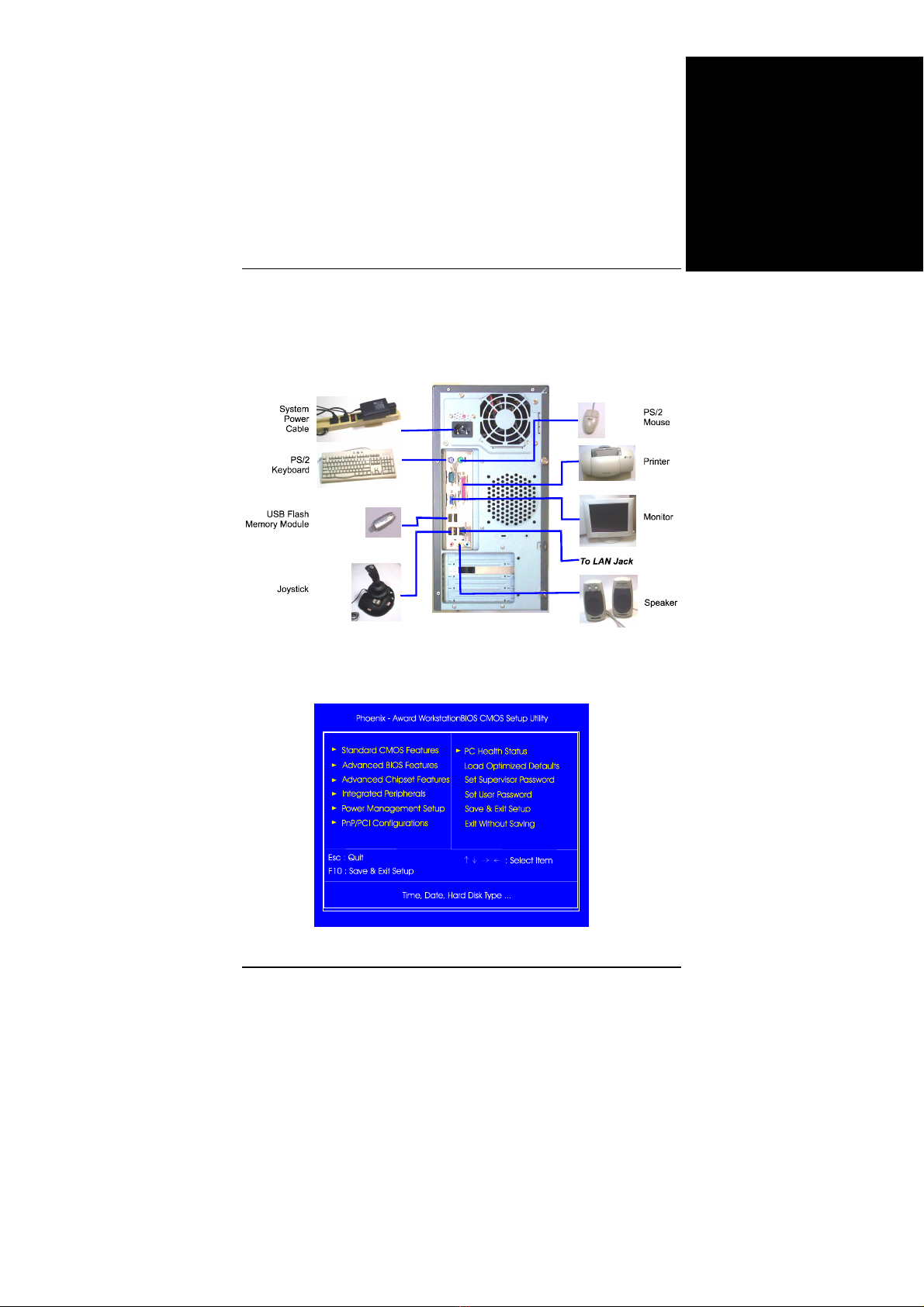

Attach Peripheral Devices

Link peripheral devices to your system via rear/front panel.

BIOS Setup

Mainboard Manual

English

Standard CMOS Setup

Use the arrow keys to highlight the item and then use PgUp or PgDn

keys to select the value you want in each item.

Load Fail-Safe Defaults

This submenu is selected to diagnose the problem after the computer

boots, if the computer will not boot. These settings do not give optimal

performance.

Driver Installation

Drivers

Place your lst Utilities CD into your CD Drive. The top menu will

appear on the screen. Select the item Drivers to start the auto running

feature.

Help

The item provides you with some information about the features and

drivers. Reading it will be helpful on installation.

Software Bundle

The item provides you with some useful software tools to assist you to

manage your computer system.
