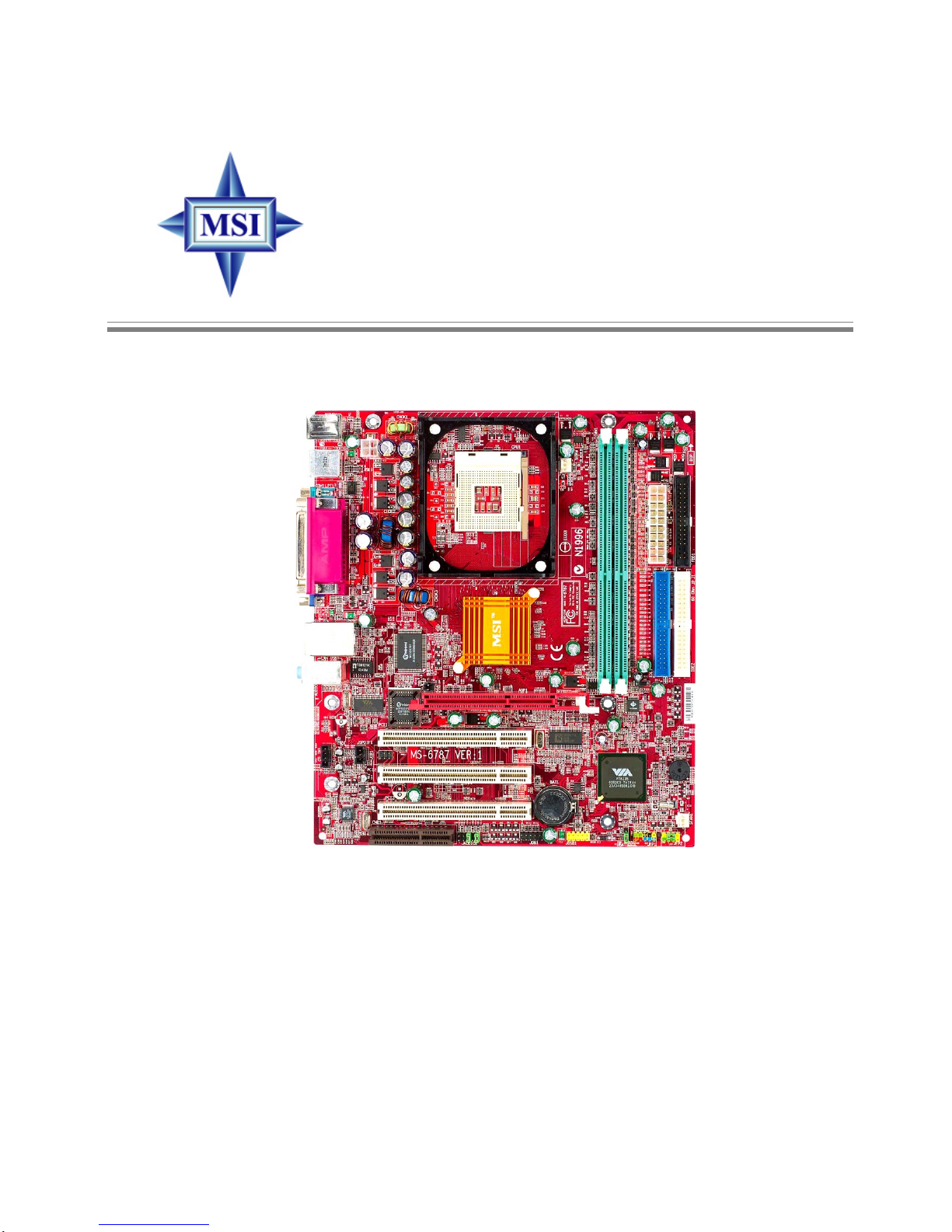

MSI MS-6787 Manual de usuario
i
Version 1.1
G52-M6787X3
MS-6787 (v1.X) M-ATX Mainboard
P4MAM Series
ii
Manual Rev: 1.1
Release Date: July 2003
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-StarInternational MS-6787
Testedtocomply
withFCCStandard
ForHomeorOfficeUse
iii
CopyrightNotice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
Intel®and Pentium®are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows®95/98/2000/NT/XP are registered trademarks of Microsoft
Corporation.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
V1.1 RemoveJKBV1jumper July 2003
TechnicalSupport
If a problem arises with your system and no solution can be obtained from the
user’s manual, please contact your place of purchase or local distributor.
Alternatively, please try the following help resources for further guidance.
Visit the MSI website for FAQ, technical guide, BIOS updates, driver
updates, and other information: http://www.msi.com.tw/
iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipmentfromoverheating. DONOTCOVER THEOPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always UnplugthePower Cordbeforeinsertingany add-oncardormodule.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged.
zLiquid has penetrated into the equipment.
zThe equipment has been exposed to moisture.
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged.
zThe equipment has obvious sign of breakage.
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED,STORAGETEMPERATUREABOVE600C(1400F),IT
MAYDAMAGETHEEQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
v
CONTENTS
FCC-B Radio Frequency Interference Statement ..........................................iii
Copyright Notice ..........................................................................................iii
Revision History ........................................................................................... iii
Technical Support ......................................................................................... iii
Safety Instructions .......................................................................................iv
Chapter1.GettingStarted ........................................................................ 1-1
Mainboard Specifications .................................................................... 1-2
Mainboard Layout ...............................................................................1-4
MSI Special Features ...........................................................................1-5
Color Management ........................................................................1-5
PCAlert™4 ...................................................................................1-6
FuzzyLogic™4 .............................................................................1-7
LiveBIOS™/LiveDriver™ ............................................................1-9
Live Monitor™ ..............................................................................1-9
Chapter2.HardwareSetup ....................................................................... 2-1
Quick Components Guide ....................................................................2-2
Central Processing Unit: CPU ..............................................................2-3
CPU Core Speed Derivation Procedure .........................................2-3
CPU Installation Procedures for Socket 478 ..................................2-4
Installing the CPU Fan ..................................................................2-5
Memory................................................................................................2-7
Memory Speed/CPU FSB Support Matrix .....................................2-7
DDR Module Combination ............................................................ 2-7
Installing DDR Modules ...............................................................2-8
Power Supply .......................................................................................2-9
ATX 20-Pin Power Connector: ATX1 ............................................2-9
ATX 12V Power Connector: JPW1 ................................................2-9
BackPanel .......................................................................................... 2-10
vi
Connectors......................................................................................... 2-11
Floppy Disk Drive Connector: FDD1........................................... 2-11
Fan Power Connectors: CFAN1/SFAN1 ...................................... 2-11
Hard Disk Connectors: IDE1, IDE2 .............................................. 2-12
IrDA Infrared Module Header: JIR1 (Optional) ........................... 2-13
Chassis Intrusion Switch Connector: JCI1 (Optional) ................. 2-13
CD-InConnector:CD_IN1 .......................................................... 2-14
SPDIF-Out Connector: JSPDIF1 (Optional) ................................. 2-14
Front Panel Connectors: JFP1/JFP2............................................. 2-15
Front Panel Audio Connector: JAUDIO1 .................................... 2-16
Front USB Connector: JUSB1...................................................... 2-17
Jumpers .............................................................................................. 2-18
Clear CMOSJumper: JBAT1 ........................................................ 2-18
CPU Support Jumper: JP1 ............................................................ 2-19
Slots ................................................................................................... 2-20
AGP (Accelerated Graphics Port) Slot......................................... 2-20
PCI (Peripheral Component Interconnect) Slots.......................... 2-20
CNR(CommunicationNetworkRiser) Slot .................................. 2-20
PCI Interrupt Request Routing .................................................... 2-21
1-1
Getting Started
Chapter 1. Getting
Started
Thank you for choosing the P4MAM Series (MS-6787 v1.
X) micro ATX mainboard. The P4MAM Series is based on VIA®
VT8751A & VT8235 chipsets for optimal system efficiency.
Designed to fit the advanced Intel®Pentium®4 processors in
478 pin package, the P4MAM Series delivers a high performance
and professional desktop platform solution.
Getting Started
1-2
MS-6787 M-ATX Mainboard
Mainboard Specifications
CPU
hSupports Intel®Pentium®4/Celeron (Socket 478) processor.
hFSB@400MHz/533MHz.
hSupports up to 3.06GHz.
Chipset
hVIA®VT8751Achipset(664BGA)
- 64bit P4 processors FSB I/F (533MHz).
-64bitDDRSDRAMmemoryI/F(200/266MHz).
-32bitAGPI/F(66MHz)for4x/2xmode.
- 8bit V-Link I/F (66MHz) with peak bandwidth of 266MB/s.
hVIA®VT8235chipset(376BGA)
- Dual-channel UDMA 133/100/66/33 master mode EIDE controller.
- 6 ports USB controller (v2.0).
- KBD controller with PS2 mouse support.
- SMBus I/F and ACPI/APM compliance power management.
- LPC I/F for super I/O and 2MB flash ROM (BIOS).
-AC-97linkcontroller to cooperate w/externalAC97audio & modem codec.
- 10/100Mbps Fast Ethernet controller.
- Supports HSP modem.
MainMemory
hSupports four memory banks using two 184-pin DDR DIMM.
hSupports up to 2GB PC2100/PC1600 SDRAMs.
hSupports 2.5v DDR SDRAM.
Slots
hOne AGP (Accelerated Graphics Port) 4x slot.
hThree PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).
hOne CNR (Communication Network Riser) slot.
On-BoardIDE
hAn IDE controller on the VIA®VT8235 Chipset provides IDE HDD/CD-
ROM with PIO, Bus Master and Ultra DMA 33/66/100/133 operation modes.
hCan connect up to four IDE devices.
1-3
Getting Started
On-BoardPeripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 1 serial port (COM A)
- 1 parallel port supports SPP/EPP/ECP mode
- 6 USB 2.0 ports (Rear * 4/ Front * 2)
- 1 audio (Line-In/Line-Out/Mic) port
-1RJ45 LANjack
- 1 VGA port
Audio
hAC97 link controller integrated in VT8235.
hVIA®VT1616 6-channel software audio codec.
- Compliance with AC’97 v2.2 spec.
LAN
hVIA®VT6103 PCI local bus single-chip Fast Ethernet Controller.
- With external 10/100 Base-T Lan transformer.
- Integrated Fast Ethernet MAC and PHY in one chip.
- Supports 10Mb/s and 100Mb/s auto-negotiation operation.
- Compliance with PCI v2.2 and PC99 standard.
- Supports ACPI power management.
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hMicro-ATXFormFactor: 243mm x 214mm.
Mounting
h6 standard mounting holes.
1-4
MS-6787 M-ATX Mainboard
Mainboard Layout
P4MAM Series (MS-6787 v1.X) Micro ATX Mainboard
BATT
+
VIA
VT8235
DIMM1
DIMM2
CD_IN1
JSPDIF1
JFP2JFP1
JIR1
(Optional)
JCI1
(Optional)
JBAT1
JUSB1JAUDIO1
ATX1
SFAN1
CFAN1
PCI Slot 1
PCI Slot 2
PCI Slot 3
IDE1
IDE2
Top: Parallel Port
Bottom:
COM A
VGA Port
Top: Mouse
Bottom: Keyboard
Top: LAN Jack
Bottom: USB
Ports
USB
Ports
Codec
JPW1
T: Line-In
M:
B: Mic
Line-Out
FDD1
Winbond
W83697HF
VIA
VT6103
VIA
VT8751A
BIOS
AGP Slot
CNR
JP1
Otros manuales para MS-6787
1
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Placa madre de MSI
MSI
MSI P67A-GD65 Series Manual de usuario
MSI
MSI MS-7366 Manual de usuario
MSI
MSI H81M-E34 Series Manual de usuario
MSI
MSI Creator X299 Manual de usuario
MSI
MSI H61I-E35 V2/W8 Series Manual de usuario
MSI
MSI Z370 GAMING PRO CARBON Manual de usuario
MSI
MSI MSI-5149 Manual de usuario
MSI
MSI MS-6315 Manual de usuario
MSI
MSI GF615M Manual de usuario
MSI
MSI Z87-G43 GAMING Manual de usuario
MSI
MSI MICRO ATX AL12 Manual de usuario
MSI
MSI 915G Neo2-FR Manual de usuario
MSI
MSI X370 GAMING PRO CARBON Manual de usuario
MSI
MSI MS 7005 - 651M-L Motherboard - Micro ATX Manual de usuario
MSI
MSI MAG B460M MORTAR WIFI Manual de usuario
MSI
MSI H61MA-E35 (B3) Manual de usuario
MSI
MSI B450M MORTAR MAX Manual de usuario
MSI
MSI IM-QM77 Manual de usuario
MSI
MSI Wind Board 330 Manual de usuario
MSI
MSI MEG Z490 ACE Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
