MSI B550M PRO/ A520M PRO Manual de usuario

Quick Start

Thank you for purchasing the MSI® B550M PRO/ A520M PRO motherboard. This Quick

Start section provides demonstration diagrams about how to install your computer.

Some of the installations also provide video demonstrations. Please link to the URL to

watch it with the web browser on your phone or tablet. You may have even link to the

URL by scanning the QR code.

Preparing Tools and Components

DDR4 Memory

Graphics Card

SATA Hard Disk Drive SATA DVD Drive

Phillips Screwdriver

Chassis

Power Supply Unit

A Package of Screws

Thermal Paste

CPU Fan

AMD®AM4 CPU

II Quick Start

Safety Information

∙The components included in this package are prone to damage from electrostatic

discharge (ESD). Please adhere to the following instructions to ensure successful

computer assembly.

∙Ensure that all components are securely connected. Loose connections may cause

the computer to not recognize a component or fail to start.

∙Hold the motherboard by the edges to avoid touching sensitive components.

∙It is recommended to wear an electrostatic discharge (ESD) wrist strap when

handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is

not available, discharge yourself of static electricity by touching another metal object

before handling the motherboard.

∙Store the motherboard in an electrostatic shielding container or on an anti-static

pad whenever the motherboard is not installed.

∙Before turning on the computer, ensure that there are no loose screws or metal

components on the motherboard or anywhere within the computer case.

∙Do not boot the computer before installation is completed. This could cause

permanent damage to the components as well as injury to the user.

∙If you need help during any installation step, please consult a certified computer

technician.

∙Always turn off the power supply and unplug the power cord from the power outlet

before installing or removing any computer component.

∙Keep this user guide for future reference.

∙Keep this motherboard away from humidity.

∙Make sure that your electrical outlet provides the same voltage as is indicated on

the PSU, before connecting the PSU to the electrical outlet.

∙Place the power cord such a way that people can not step on it. Do not place

anything over the power cord.

∙All cautions and warnings on the motherboard should be noted.

∙If any of the following situations arises, get the motherboard checked by service

personnel:

▪Liquid has penetrated into the computer.

▪The motherboard has been exposed to moisture.

▪The motherboard does not work well or you can not get it work according to user

guide.

▪The motherboard has been dropped and damaged.

▪The motherboard has obvious sign of breakage.

∙Do not leave this motherboard in an environment above 60°C (140°F), it may damage

the motherboard.

III

Quick Start

Installing a Processor

https://youtu.be/Xv89nhFk1vc

IV Quick Start

⚠

Important

If you are installing the screw-type CPU heatsink, please follow the figure below to

remove the retention module first and then install the heatsink.

Quick Start

Installing DDR4 memory

http://youtu.be/T03aDrJPyQs

VI Quick Start

HDD LED

RESET SW

Connecting the Front Panel Header

http://youtu.be/DPELIdVNZUI

JFP1

HDD LED HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

2 10

+- --

Power LED

HDD LED Reset Switch

Reserved

Power Switch

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

RESET SW

POWER SW

POWER LED+

POWER LED-

HDD LED

VII

Quick Start

BAT1

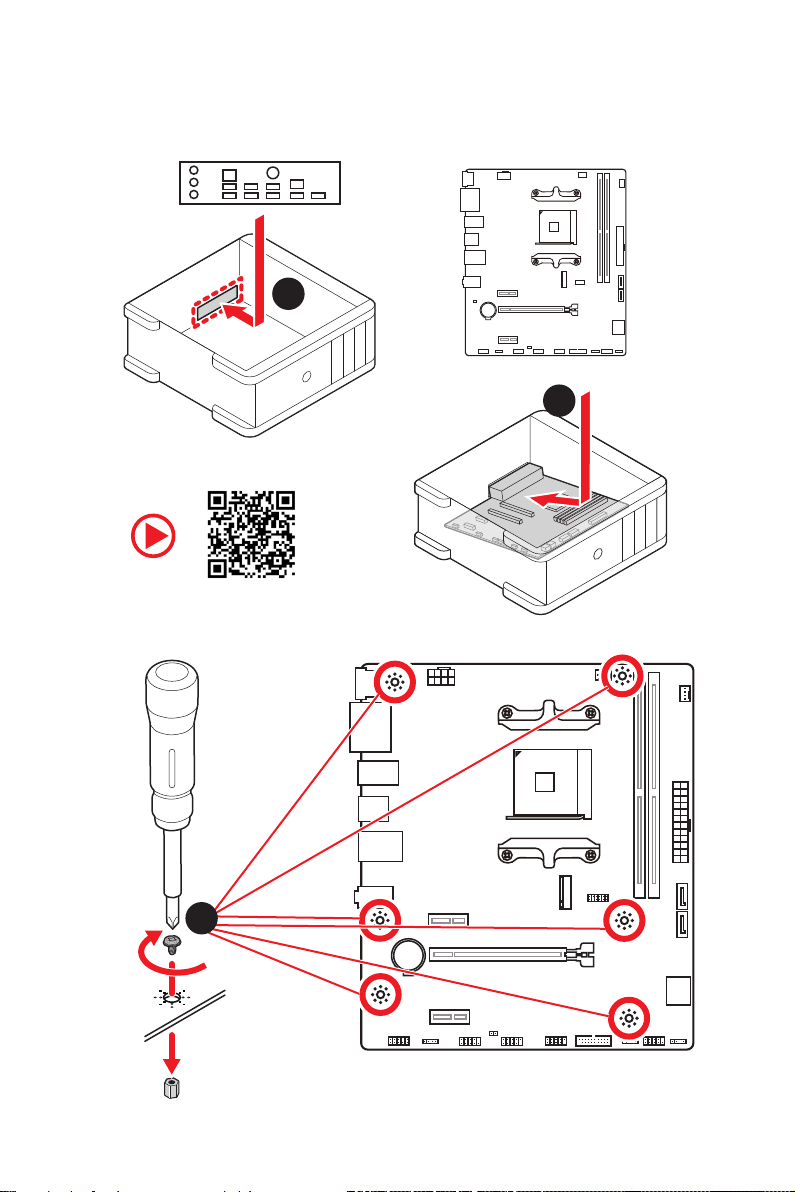

Installing the Motherboard

https://youtu.be/wWI6Qt51Wnc

Torque:

3 kgf·cm*

*3 kgf·cm

= 0.3 N·m

= 2.6 lbf·in

BAT1

VIII Quick Start

Connecting the Power Connectors

http://youtu.be/gkDYyR_83I4

ATX_PWR1

CPU_PWR1

Quick Start

Installing SATA Drives

http://youtu.be/RZsMpqxythc

XQuick Start

Installing a Graphics Card

http://youtu.be/mG0GZpr9w_A
