MSI Modern AM241 Manual de usuario
Modern Series
All-in-one PC
Modern AM241 (MS-AE01)
Modern AM241T (MS-AE01)
Modern AM241P (MS-AE01)
Modern AM241TP (MS-AE01)
Modern AM271 (MS-AF81)
Modern AM271P (MS-AF81)
2Contents
Contents
Getting Started.............................................................................................................. 3
Package Contents................................................................................................... 3
Safety & Comfort Tips ............................................................................................ 3
System Overview..................................................................................................... 4
Connecting the Power ............................................................................................ 9
Adjusting the Monitor ........................................................................................... 10
OSD Setup............................................................................................................. 11
Component Replacement & Upgrade .................................................................. 15
System Operations ..................................................................................................... 16
Power Management ............................................................................................. 16
Network Connection (Windows 10) ...................................................................... 18
System Recovery (Windows 10)............................................................................ 21
System Recovery (F3 Hotkey Recovery) (Optional) .............................................. 25
Troubleshooting.......................................................................................................... 26
Safety Instructions...................................................................................................... 28
TÜV Rheinland Certification....................................................................................... 30
Regulatory Notices..................................................................................................... 31
Revision
V1.0, 2021/02
3
Getting Started
Getting Started
This chapter provides you with the information on hardware setup procedures. While
connecting devices, be careful in holding the devices and use a grounded wrist strap
to avoid static electricity.
Package Contents
All-in-one PC Modern AM241, Modern AM241T, Modern AM241P,
Modern AM241TP, Modern AM271, Modern AM271P
Documentation
User Manual (Optional)
Quick Guide (Optional)
Warranty Card & Warranty Book
Accessories
Mouse (Optional)
Keyboard (Optional)
AC/DC Adapter
Power Cord
⚠
Important
∙
Contact your place of purchase or local distributor if any of the items is damaged or
missing.
∙
Package contents may vary by country.
∙
The included power cord is exclusively for this personal computer and should not be
used with other products.
Safety & Comfort Tips
∙Choosing a good workspace is important if you have to work with your PC for a long
period of time.
∙Your work area should have enough illumination.
∙Choose the proper desk and chair and adjust their height to fit your posture when
operating.
∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s
back (if available) to support your back comfortably.
∙Place you feet flat and naturally on the floor, so that your knees and elbows have the
proper position (about 90-degree) when operating.
∙Put your hands on the desk naturally to support your wrists.
∙Avoid using your PC in a place where discomfort may occur (such as on the bed).
∙The PC is an electrical device. Please treat it with great care to avoid personal
injury.
4Getting Started
System Overview
Front View
1
1Touch Screen (For Modern AM241T / Modern AM241TP)
5
Getting Started

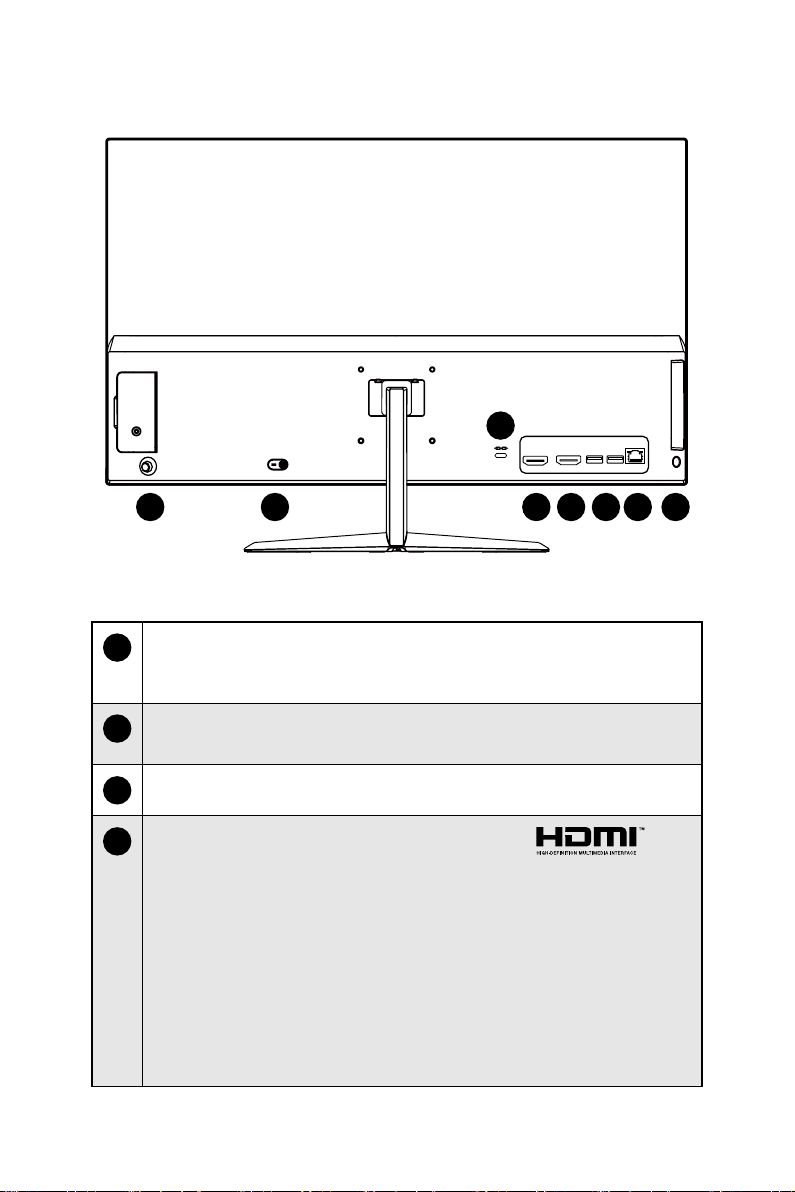

Rear View
1 2
3
4 6 7 85
1Navi Key
The AIO PC comes with a Navi Key, a multi-directional control that helps
navigate the On-Screen Display (OSD) menu.
2Power Jack
Power supplied through this jack supplies power to your system.
3Kensington Lock
4HDMI-In Port (with MSI Instant Display Technology)
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams. HDMI supports
all TV format, including standard, enhanced, or high-definition video, plus
multi-channel digital audio on a single cable.
With MSI Instant Display Technology, when you connect power to the AIO PC
successfully, the monitor will automatically enter “standby” mode without
pressing the power button. When devices are connected to the HDMI-in
port, the monitor will be turned on immediately. You can also switch the
modes through the Monitor Power/ Mode Button on the side panel if you
have already turned on your AIO PC. This technology helps to save more
energy for your system.
6Getting Started
5HDMI-Out Port
The High-Definition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams. HDMI supports
all TV format, including standard, enhanced, or high-definition video, plus
multi-channel digital audio on a single cable.
6USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
7LAN Jack
The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.
Green/ OrangeYellow
LED Color LED State Condition
Yellow Off LAN link is not established.
On (steady state) LAN link is established.
On (blinking) The computer is communicating with
another computer on the LAN.
Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
8Power Button
Press the power button to turn the system on and off.
7
Getting Started
Side View
7
1
2
3
4
5
6
1USB 3.2 Gen 2 Port (Type-C)
This connector is provided for USB peripheral devices. This connector can
provide up to 5V 3A of power. (Speed up to 10 Gbps)
2USB 3.2 Gen 2 Port
This connector is provided for USB peripheral devices. (Speed up to 10
Gbps)
3Combo Audio Jack
This connector is provided for headphones or speakers or microphones.
4Monitor LED
5Hard Disk Drive LED
This indicator shows the activity status of the HDD. It flashes when the
system is accessing data on the HDD and remains off when no disk activity
is detected.
8Getting Started
6System Power Button/ LED
Press the system power button to turn the system on or off.The power LED
glows when the system is turned on and goes offwhen the system is shut
down. In terms of power saving, the LED blinks in S3 (Suspend to RAM)
mode and goes off in S4 (Suspend to Disk) mode.
72.5” HDD Bay
Top & Bottom View
1 1
3 3
2
1Ventilator
The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.
2USB 2.0 Port
This connector is provided for USB peripheral devices. (Speed up to 480
Mbps)
⚠
Important
High-speed devices are recommended for USB 3.2 ports whereas low-
speed devices, such as mouse or keyboard, are suggested to be plugged
into the USB 2.0 ports.
3Stereo Speakers
The built-in stereo speakers deliver high quality sound with stereo system.
9
Getting Started

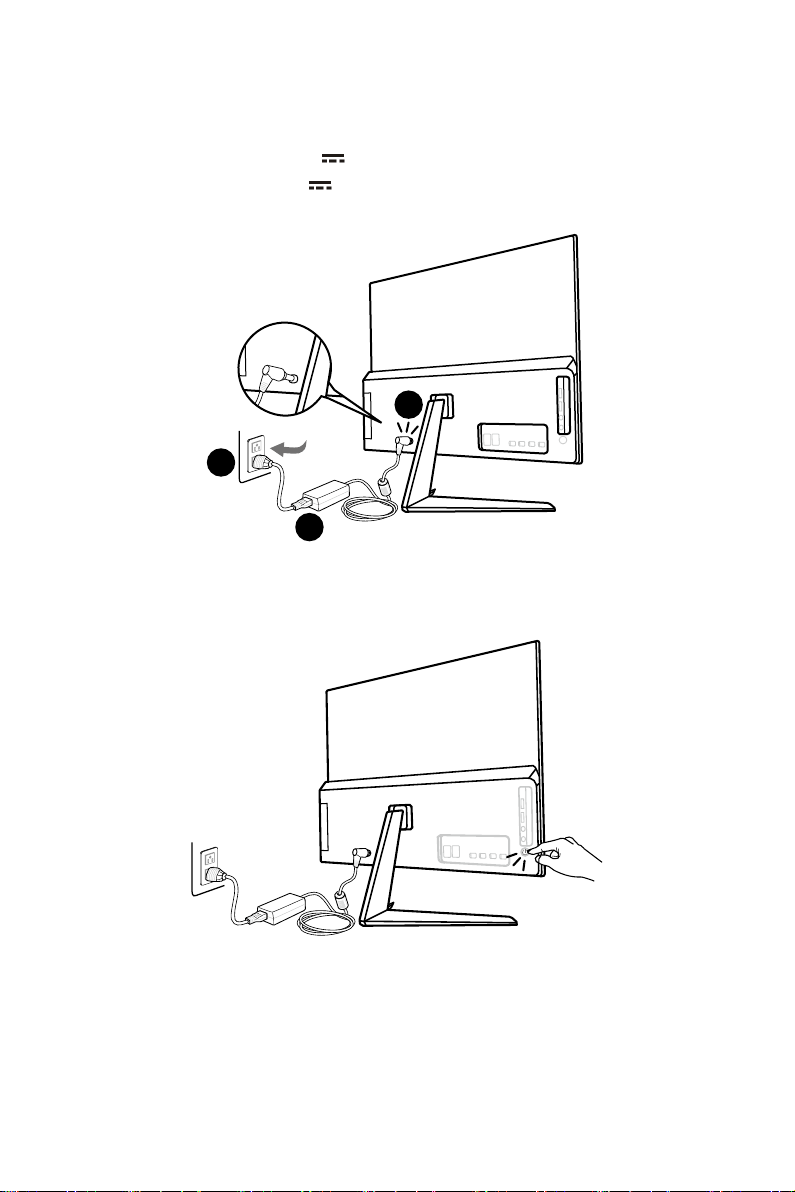

Connecting the Power
Connect the adapter to the AIO PC and plug in the power cord.
•(Option 1) 100-240V, 19.5V 6.15A
•(Option 2) 100-240V, 19V 4.74A
1
2
3
1
3
2
Press the power button to power on the AIO PC.
10 Getting Started
Adjusting the Monitor
This AIO PC is designed to maximize your viewing comfort with its adjustment
capabilities.
⚠
Important
∙
The illustrations are for reference only. Your AIO PC may vary in appearance.
∙
Please make sure the AIO PC has been grounded to earth through the AC power
cord and the electrical outlet before powering on the AIO PC.
∙
Do not use any sharp objects on the display panel.
∙
Avoid pressing the display panel when adjusting.
Modern AM241 / Modern AM241T / Modern AM271
-4
O
20
O
Modern AM241P / Modern AM241TP / Modern AM271P
-4
O
20
O
130mm
