Installation Manual
Olympus Series
Single (Hyper Heat & E Star) & Multi-Zone Models
Due to updates and constantly improving performance, the information and instructions
within this manual are subject to change without notice. Please visit
www.mrcool.com/documentation to ensure you have the latest version of this manual.
Version Date: 3-01-21
Contents
Outdoor Unit Installation ......
20
1. Installation location ..............................20
2. Install drain joint .................................. 21
3. Anchor outdoor unit ........................... 22
4. Connect signal and power cables .... 24
4
Safety Precautions .................................. 3
!
1Accessories ............................................... 5
2Overview .................................................. 7
Page 1 mrcool.com
Indoor Unit Installation ...........11
3
1. Installation location.................................11
2. Attach mounting plate to wall...............12
3. Drill wall hole for connective piping.....13
4. Prepare refrigerant piping ....................14
5. Connect drain hose.................................15
6. Connect signal cable...............................16
7. Wrap piping and cables..........................18
9. Mount indoor unit...................................19
Refrigerant Piping Connection ...................... 27
A. Note on Pipe Length ............................................................. 27
B. Connection Instructions –Refrigerant Piping .................. 27
1. Cut pipe .............................................................................. 27
2. Remove burrs ................................................................... 28
3. Flare pipe ends ................................................................. 28
4. Connect pipes .................................................................... 29
Air Evacuation ................................. 31
5
6
Electrical and Gas Leak Checks ..... 33
7
Test Run ........................................... 35
8
EU Disposal Guidelines .................. 37
9
MC MC
Contents
Page 2
mrcool.com
1. Electrical Safety Checks .................................. 33
2. Gas Leak Checks .............................................. 33
3. Self Correction Function ................................. 34
1. Evacuation Instructions .................................. 31
2. Note on Adding Refrigerant........................... 32
Page 3
Safety Precautions
mrcool.com
WARNING
DO NOT modify the length of the power supply cord or use an extension cord to power the unit.
DO NOT
When connecting refrigerant piping, DO NOT let substances or gases other than the refrigerant
enter the unit. The presence of other gases or substances will lower the unit’s capacity, and may
cause abnormally high pressure in the operation cycle. This may cause explosion and injury.
DO NOT allow children to play with the air conditioner. Children should be supervised around the
unit at all times.
Installation must be performed by an authorized technician. Improper installation may cause
Installation must be performed according to installation instructions. Improper installation may
In North America, installation must be performed in accordance with the requirement of NEC and
CEC (by authorized personnel only.) Contact an authorized service technician for repair or mainte-
nance of the unit.
cannot support the weight, or the installation is performed improperly, the unit may fall and cause
serious injury and/or damage.
For all electrical work, follow all appropriate wiring standards, regulations, and the Installation Manual.
Read Before Installation
Incorrect installation may cause serious damage or injury.
either a WARNING or CAUTION.
WARNING
CAUTION
This symbol indicates ignoring instructions may cause death or serious injury.
This symbol indicates that ignoring instructions may cause personal injury,
damage to the unit, or property damage.
This symbol indicates that you should NEVER perform the indicated action.
1.
2.
3.
4.
5.
6.
!
Safety Precautions
Page 4
Safety Precautions
mrcool.com
Note about Flourinated Gasses:
7.
8.
9.
10.
12.
1.
2.
1.
2.
3.
4.
5.
6.
You must use an independent circuit to supply power. DO NOT connect other appliances to the same
circuit. Insufficient electrical capacity or defects in electrical work can cause electrical shock and/or fire.
prevent external forces from damaging the terminal. Improper electrical connections may overheat,
All wiring must be properly arranged to ensure that the control board cover can close properly. If the
control board cover is not closed properly, it can lead to corrosion and cause the connection points on
In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed
air-conditioning units is highly recommended.
This appliance can be used by children aged 8 years and above, and persons with reduced physical,
sensory, or mental capabilities, or lack of experience and knowledge, if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children should not play with the appliance. Cleaning and user maintenance should not be made by
children without supervision.
For units that have an auxiliary electric heater, DO NOT install the unit within 3 feet (1 meter) of
combustible materials.
DO NOT install the unit in a location that may be exposed to combustible gases. If combustible gas
DO NOT operate your air conditioner in a wet room, such as a bathroom or laundry room. Too
much exposure to water may cause electrical components to short circuit.
The product must be properly grounded during installation, or electrical shock may occur.
Install drainage piping according to the instructions in this manual. Improper drainage may cause
water damage to your home and property.
unit itself.
If the system has a leak-detection system installed, it should be checked for leaks at least once every 12
months.
Keep a record of all leak checks for the lifetime of the unit.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly
qualified person in oreder to avoid a hazard.
11.
,
Page 5
Safety Precautions
mrcool.com

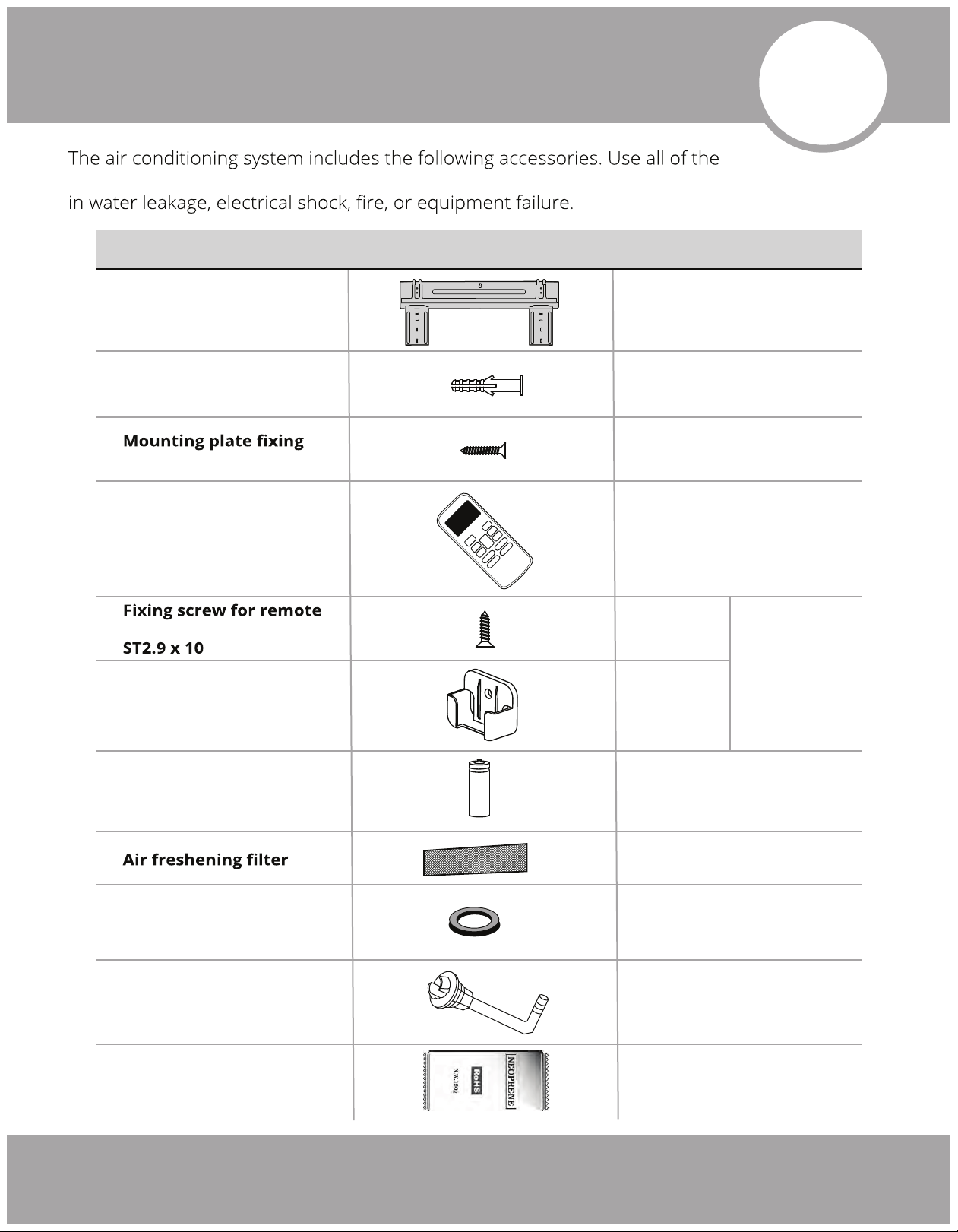

1
Accessories
1
(Sealant for Wall Sleeve)
1
1
1 (optional)
1
1
Neoprene
Clip anchor
screw ST3.9 X 25
Remote control
controller holder
Remote control holder
Dry battery AAA.LR03
Seal
Drain joint
Mounting plate
5 or 8
5 or 8
2
1
Optional
Parts
2
PART LOOKS LIKE...QUANTITY
installation parts and accessories to install the air conditioner. Improper installation may result
Page 6mrcool.com
1
1
1 (this)
Accessories
1
(w/ Manual in
Controller Box)
Owner’s Manual
Installation Manual
Remote Control
Manual
Smart Controller Kit
PART LOOKS LIKE...QUANTITY
Please read this manual carefully before installation and keep it for future reference.
Owner’s Manual
Olympus Series
For more details visit www.MrCool.com
Please read this manual carefully before installation and keep it for future reference.
Please read this manual carefully before installation and keep it for future reference.
Installation Manual
Olympus Series
For more details visit www.MrCool.com
Please read this manual carefully before installation and keep it for future reference.
Remote Control
User Manual
Parts must be purchased
separately. Consult your
dealer about the pipe size.
Liquid side
Gas side
1/4 in (6.35 mm)
3/8 in (9.52 mm)
3/8 in (9.52 mm)
1/2 in (12.7 mm)
5/8 in (16 mm)
Connecting
pipe assembly
***Disclaimer***
Google assistant will only work with the wall-mounted air handlers. It will not work
with the cassettes or ceiling recessed applications.
Page 7 mrcool.com
NOTE ON ILLUSTRATIONS
Illustrations in this manual are for explanatory purposes. The actual shape of your unit may vary.
Remote Control
Remote Holder
Refrigerant Piping
Signal Cable
Drainage Pipe
Front Panel
(with display)
Wall Mounting Plate
Outdoor Unit
Power Cable
Fresh Air Filter
Airinlet (rear)
Airinlet (side)
Airoutlet
Airoutlet (bottom)
Indoor Unit
(Interior / Air Handler)
Outdoor Unit
(Exterior / Condenser)
Refrigerant Pipe Connection
and Stop Valve (under cover)
Signal Cable
Connection from
Indoor Unit
Airinlet (rear)
Smart Controller
Module USB Port
2
Overview
Fig. 2.1
Page 8

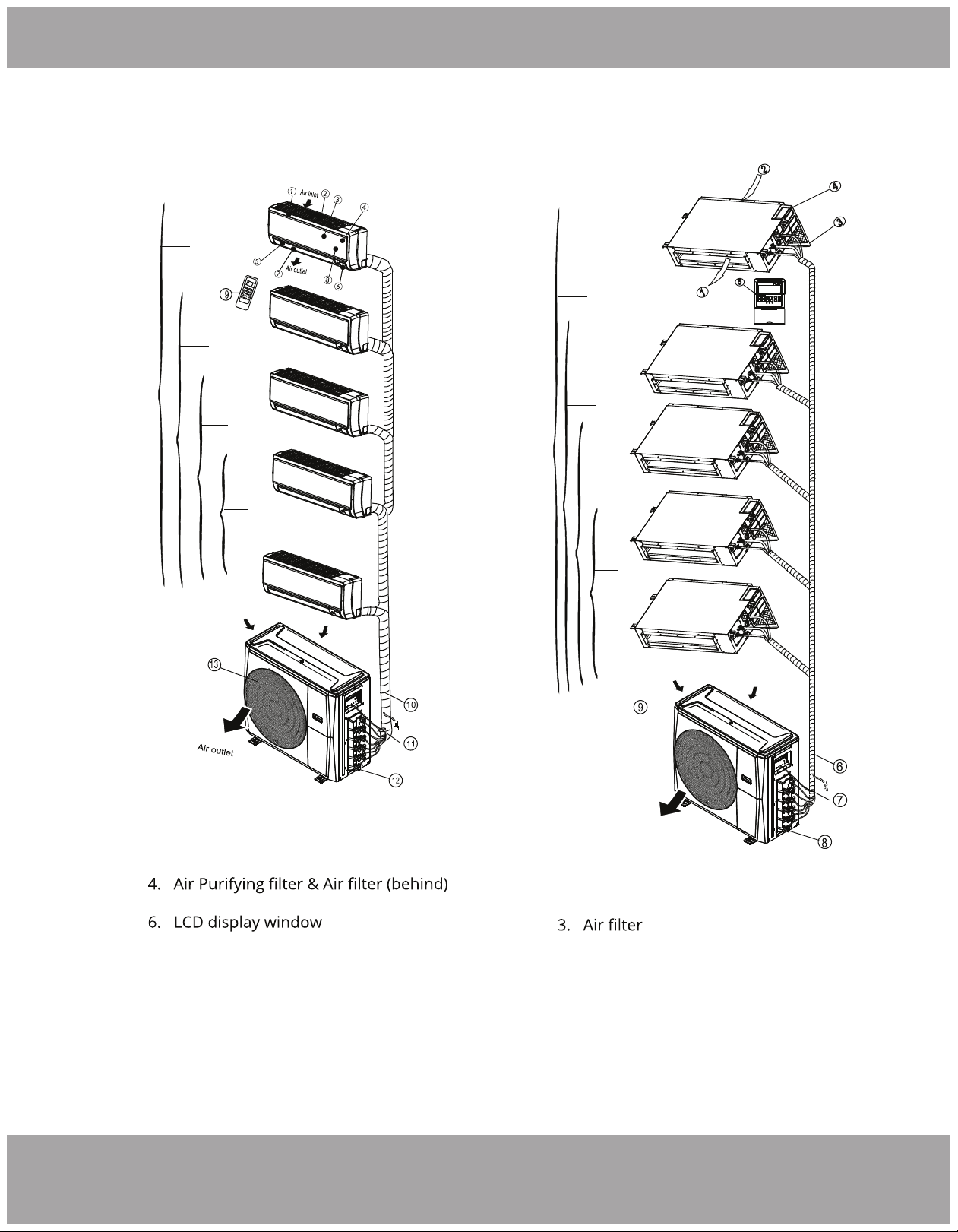

Overview - Multi-Zone
mrcool.com
Fig. 2.2
Fig. 2.3
5-Zone
4-Zone
3-Zone
2-Zone
5-Zone
4-Zone
3-Zone
2-Zone
Wall-Mounted Handlers Ceiling Ducted Handlers
Indoor unit
1. Panel frame
2. Rear air intake grille
3. Front panel
5. Horizontal louver
7. Vertical louver
8. Manual control button (behind)
9. Remote control holder
Outdoor unit
10. Drain hose, refrigerant pipe
11. Connective cable
12. Stop valve
13. Fan hood
Indoor unit
1. Air outlet
2. Air inlet
4. Electric control cabinet
5. Wire controller
Outdoor unit
6. Drain hose, refrigerant pipe
7. Connective cable
8. Stop valve
9. Fan hood
Page 9
Overview - Multi-Zone
mrcool.com

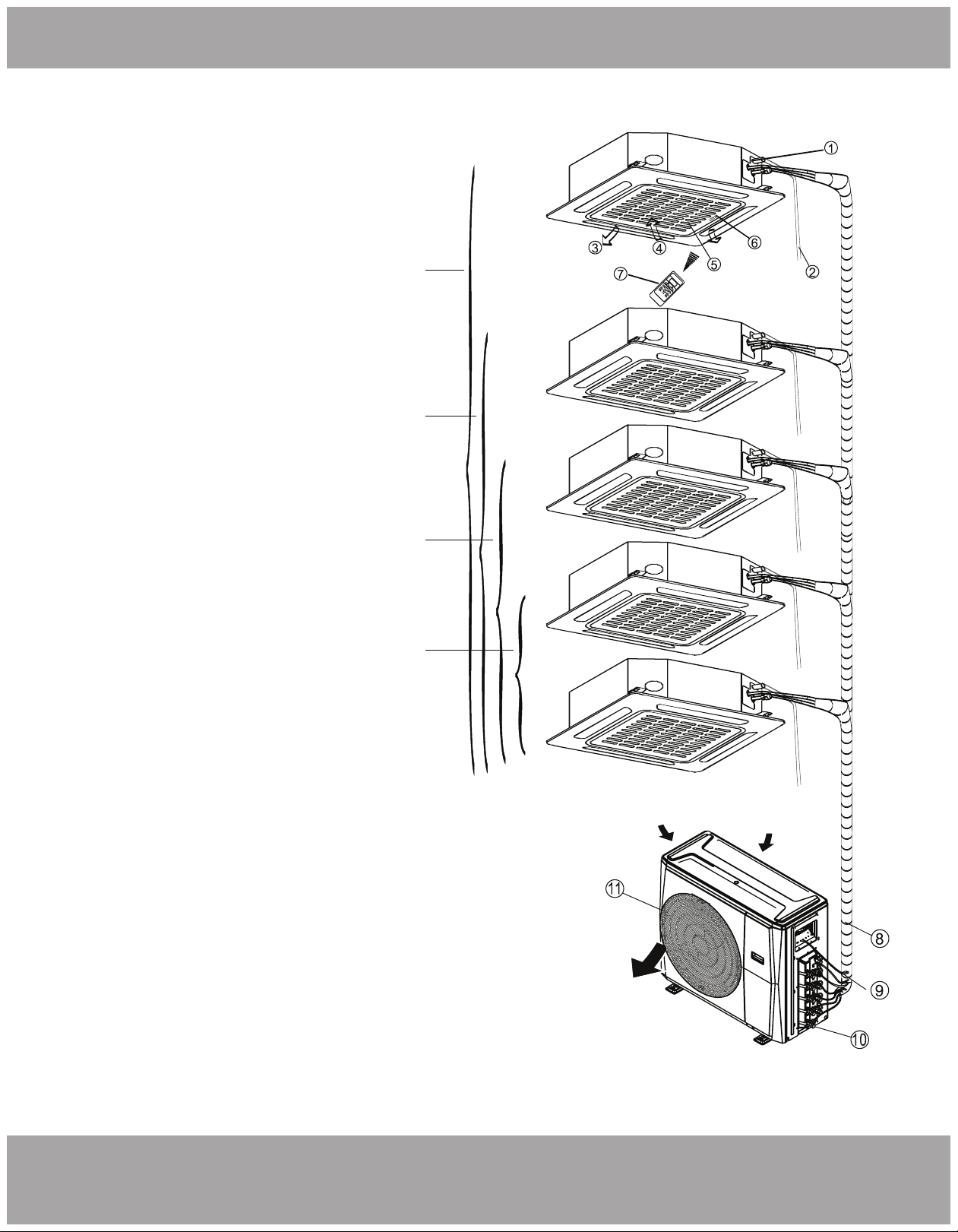

Cassette Handlers
Fig. 2.4
5-Zone
4-Zone
3-Zone
2-Zone
Indoor unit
1. Drain pump (from indoor unit)
2. Drain hose
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote control
Outdoor unit
8. Refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood
