Overview

The VPort 461A is a 1-channel Industrial Video Encoder with

H.264/MJPEG video compression. The H.264 algorithm provides the best

video quality on the market today with lower bandwidth requirements

than other video compression standards. In addition, to meet

requirements for multiple video streams, the VPort 461A can provide up

to 3 video streams simultaneously with H.264 and MJPEG compression.

Users can use the video streams for different purposes, such as viewing,

recording or analysis. Finally, the industrial-rugged design, with -40 to

75°C operating temperature, built-in fiber Ethernet ports, IP30 form

factor protection, and industrial certifications, make the VPort 461A

suitable for harsh environments.

Package Checklist

The VPort 461A ships with the following items:

•VPort 461A.

•6-pin terminal block for 1 power input and 2 digital inputs.

•8-pin terminal block for the other power input, and 2 relay outputs.

•5-pin terminal block for the RS-232/422/RS-485 PTZ control port.

•Quick Installation Guide.

•Document & Software CD (includes User’s Manual, Quick Installation

Guide, Moxa IVN Solution Datasheet and Utility).

•Warranty Card.

Note: If any of these items are missing or damaged, please contact your

customer service representative for assistance.

NOTE

Check the model name on the VPort’s side label to confirm the

model name is correct for your order.

NOTE

This product must be installed in compliance with your local laws

and regulations.

Features

High Performance Audio-Video Networking Solution

•Works with NTSC/PAL analog video cameras.

•Supports H.264/MJPEG video compression technologies.

•Up to 3 simultaneous video streams.

•Lower latency, under 200 ms.

•DynaStream™ for network efficiency with dynamic frame rate

change.

•CBR Pro™ supported for high image quality during limited bandwidth

transmissions.

•1 BNC video input.

•Each video stream up to 30 frames/sec in Full D1 (720 x 480)

resolution in NTSC, and 25 frames/ sec in Full D1 (720 x 576)

resolution in PAL.

•Select between Full D1/ 4CIF/ VGA/ CIF/ QCIF resolutions.

•1 audio input and 1 audio output for 2-way voice communication.

•TCP, UDP, and HTTP network transmission modes.

•Supports Modbus/TCP for easy communication with SCADA systems.

- 3 -

•Supports standard RTSP (Real-time streaming protocol) for easy

integration.

•Supports multicast (IGMP) protocols for efficient network

transmission.

•Supports QoS (TOS) for priority transmission.

•Supports SNMP V1/V2c/V3 for network management.

•Built-in web server and RS-232 console for remote access and

configuration.

•Supports one SD card slot (SDHC interface) for local video recording

on the SD card during network interruptions.

•Two auto-sensing 10/100BaseT(X) Ethernet ports.

•Supports maximum of 10 unicast connections and 50 multicast

clients.

•Set up video quality in CBR (constant bit rate) or VBR (variable bit

rate).

•Supports 1 RS-232/485 DB9 COM port for controlling a PTZ

(PAN/TILT/ZOOM) motorized camera via a TCP/IP network.

•Supports 1 RS-232/RS-422/RS-485 5-pin PTZ port for controlling a

PTZ (PAN/TILT/ZOOM) motorized camera via a TCP/IP network.

•UPnP and IP filtering supported.

•Supports 802.1X for security authentication.

Rugged Industrial Design

•Two 12/24 VDC and 24 VAC redundant power inputs with LED

indicators

•-40 to 75°C operating temperature for harsh industrial environments

(“T” model)

•35 mm DIN-Rail mounting or panel mounting installation

(with optional accessory)

•IP30 form factor protection

•CE, FCC, UL 60950-1 approvals for industrial applications

Intelligent Alarm Trigger Capability

•Supports anti tamper alarm for intelligent video surveillance.

•Built-in Video Motion Detection (VMD)

•Equipped with 2 DIs and 2 relays (DO) for external sensors and

alarms.

•Provides snapshot images of alarm trigger, and pre and post alarm

states.

•Supports sequential snapshot images

•Messages with snapshot images can be sent via FTP and email.

•Capable of setting an alarm schedule

Video Management and Control

•Supports standard ONVIF Profile S specifications

•Free Moxa VPort SDK Plus (software development kits) supported

with flexible interface and sample codes for customized application or

system integration.

•Moxa SoftNVR-IA IP surveillance software supported for the video

recording and management solution.

NOTE

If you are interested in the Moxa VPort SDK PLUS

or SoftNVR-

IP surveillance software

, please go to Moxa’s website

(www.moxa.com

) to download the software, or contact a Moxa

sales representative for more information.

- 4 -

VPort 461A Panel Layout

1. Grounding screw

2. RS-232 console port

3. Hardware reset button

4. 8-pin terminal block for Relay 1,

Relay 2, and power input 1 (PWR1)

5. 6-pin

terminal block for DI 1, DI 2,

power input 2 (PWR2)

6. LEDs for STAT, PWR1, PWR2,

FAULT

7. LEDs for VIDEO, PTZ and SD

8. SD card (SDHC) slot

9. 2 RJ45 10/100BaseTX Ethernet

port with 10 /100 Mbps LED

10.

AUDIO OUTPUT port for external

speaker

11.

AUDIO INPUT port for mic-in and

line-in connection

12.

RS-232/422/485 COM port with

DB9 male connector for PTZ

camera or serial device control

13.

RS-232/422/485 PTZ port with

5-pin terminal block for PTZ

camera control

14.

1 BNC connector for video input

15.

Model name

16.

Screw hole for wall mounting kit

17.

DIN-Rail mounting kit

- 5 -

First-Time Installation and Configuration

Before installing the VPort 461A, check to make sure that all items in the

package checklist are in the box. In addition, you will need access to a

notebook computer or PC equipped with an Ethernet port.

Step 1: Select the Power Source

The VPort 461A can be powered by a DC power input from 12 to 32 VDC,

or an AC power input from 18 to 30 VAC. Two power inputs are provided

for redundancy. Users can check the LED status located on the front panel

to see if the power inputs are correctly connected. If one of the power

inputs fails, the FAULT LED will light up red, providing the power failure

alarm is enabled.

NOTE

The VPort 461A series supports power input specifications of

-32 VDC for 12/24 VDC power input, or 18-

30 VAC for 24 VAC

power input.

Step 2: Connect the VPort 461A to a Network

The VPort 461A has two auto-sensing 10/100 Mbps RJ45 Ethernet ports

for network connectivity. Each has a LED indicator for indicating the 10

Mbps or 100 Mbps Ethernet connections.

NOTE

These two Ethernet ports can be cascaded in daisy chain link, or

connected to two different switch ports for Ethernet port

redundancy.

In addition, they also act as an Ethernet switch,

which means one port could be reserved

for original use, while

the second port could be an extension port for

other purpose

such as linking to the other VPort.

Step 3: Connect the VPort 461A to cameras and an audio source

The VPort 461A has 1 VIDEO INPUT port. Use the BNC connector (1.0 Vpp,

75Ω) and coaxial cable to connect video cameras to the VPort to input

analog video signals.

The VPort 461A has one audio input and one audio output. A microphone

(with built-in amplifier) or an amplifier can be plugged directly into the

AUDIO INPUT port, and a speaker can be plugged into the AUDIO OUTPUT

port.

NOTE

One VIDEO LED is located on the VPort 461A’s front panel to

indicate the video signal transmission status for video input.

Check the LED status to see if the video is working properly.

ATTENTION

A ground loop isolator is recommended to be used between the

camera and the VPort to avoid a sudden current, which is

generated by the electric potential difference between these two

device’s ground power, to burn out the VPort’s chips and boards.

- 6 -

Step 4: Connecting motorized PTZ cameras and serial devices

The VPort 461A has two RS-232/422/485 ports. One is a COM PORT with

DB9 male connector, and the other is a PTZ PORT with 5-pin terminal

block connector. Both ports can be used for connecting PTZ control cables

for controlling PTZ cameras over the TCP/IP network.

In addition, the DB9 male COM PORT can also be used to connect general

serial devices, such as card readers, for transmitting serial data over a

TCP/IP network. This port can be used to connect serial devices to the

VPort 461A instead of a video camera.

To enable PTZ control, users should configure the PTZ control protocol in

the web-based manager.

NOTE

The PTZ control protocol is not standardized. To use a particular

PTZ control protocol, the video server must support the driver for

that protocol. Currently, the

VPort 461A supports PTZ control

protocol drivers for:

1. Pelco D

2. Pelco P

If you need to use a protocol that is not on the list, contact the

manufacturer of the camera to get the PTZ control commands,

and then program its PTZ control using the

VPort 461A’s

Custom

Camera function.

NOTE

The VPort 461A comes with a PTZ driver upload function for

implementing new PTZ drivers. Please contact a Moxa sales

representative if you need assistance from Moxa’s R&D

department to create a new PTZ driver.

NOTE

The “Transparent PTZ Control” function in the camera driver list is

used to transmit the PTZ control signal over a TCP/IP network to

the VPort video decoder or PC (additional driver required). The

PTZ control panel or keyboard can directly control the PTZ

camera or device, eliminating the need for a PTZ camera driver

and allowing

the use of PTZ cameras with the VPort encoder.

The

transparent

PTZ control function will be supported after the

V1.1

firmware version is released.

Step 5: Configure the VPort 461A’s IP address

After powering on the VPort 461A, wait a few seconds for the POST

(Power On Self Test) to run. The STAT LED turns green to indicate that the

POST process has been completed. The IP address will be assigned when

the 10/100 Mbps NETWORK LED blinks. The IP address assigned after the

POST is completed depends on the network environment.

Network Environment with DHCP Server

In this case, the IP address of the VPort 461A is assigned by a DHCP

Server. Use the DHCP Server’s IP address table, or use the Moxa VPort

utility to determine the IP address that was assigned by the DHCP Server.

NOTE

After powering on the VPort 461A, wait a few seconds for the

POST (Power On Self Test) to run. The IP address will be assigned

when the 10/100 Mbps NETWORK LED blinks.

- 7 -

Using the Moxa VPort and EtherDevice Configurator Utility

(edscfgui.exe)

1. Run the edscfgui.exe program to search for the VPort and EDS

switches. After the Utility window opens, select or click on Broadcast

Search, which is located under the List Server menu, to initiate a

search (note that you can also click on the Broadcast Search

icon to initiate a search).

NOTE

You may download the VPort and EtherDevice Configurator

software from Moxa’s website at www.moxa.com.

2. The Broadcast Search window will show a list of all switches and

VPorts located on the network. The progress of the search will also

be indicated.

- 8 -

3. When the search has ended, the Model Name, MAC address, and IP

address of the EDS switches and VPorts will be listed in the Utility

window.

NOTE

Broadcast Search can only search for devices connected to the

same LAN subnet as the VPort. If your devices are located on a

different LAN subnet, use the “Specify IP Address” function to

search for the device by keying in the IP address.

4. Double click the selected VPort, or use Internet Explorer to access

the VPort’s web-based manager (web console).

Network Environment without a DHCP Server

If your VPort is connected to a network that does not have a DHCP server,

then you will need to configure the IP address manually. The default IP

address of the VPort 461A is 192.168.127.100 and the default subnet

mask is 255.255.255.0. Note that you may need to change your

computer’s IP address and subnet mask so that the computer is on the

same subnet as the VPort.

To change the IP address of the VPort manually, access the VPort’s web

server, and then navigate to the System Configuration



Network



General page to configure the IP address and other network settings.

Select the Use fixed IP address checkbox to ensure that the IP address

you assign is not deleted each time the VPort is restarted.

Step 6: Log on to the VPort 461A web-based manager

Type the IP address in the web browser’s address input box and then

press enter.

Step 7: Install the ActiveX Control Plug-in

A security warning message will appear the first time you access the

VPort’s web-based manager. The message is related to installing the

VPort ActiveX Control component to your PC or notebook. Click on Yes to

install this plug-in to enable the ability to view video in the IE web

browser.

- 9 -

NOTE

For Windows XP SP2 or later operating systems, the ActiveX

Control component will be blocked for system security reasons.

In this case, the VPort’s security warning message window may

not appear. Users should unblock the ActiveX control function or

disable the security configuration to enable the installation of

VPort’s ActiveX Control component.

Step 8: Accessing the homepage of the VPort 461A’s web-based

manager

After installing the ActiveX Control component, the homepage of the

VPort 461A’s web-based manager will appear. Check the following items

to make sure the system was installed properly:

1. Video Images.

2. Audio Sound (make sure your PC’s or notebook’s sound is turned

on).

3. Video Information.

Step 9: Accessing the VPort’s System Configuration

Click on System Configuration to access the overview of the system

configuration to change the configuration. Model Name, Server Name, IP

Address, MAC Address, Firmware Version, and LED Status appear in the

green bar near the top of the page. Use this information to check the

system information and installation.

For details of each configuration, check the User’s Manual on the software

CD.

- 10 -

NOTE

After accessing the VPort 461A’s web-based manager,

administrators should access

System Configuration



System



Account to set up the administrator’s password and enable

the authentication function. The administrator account name is

admin. An authenti

cation window will pop up requesting the

account name and password each time the

VPort 461A is

accessed.

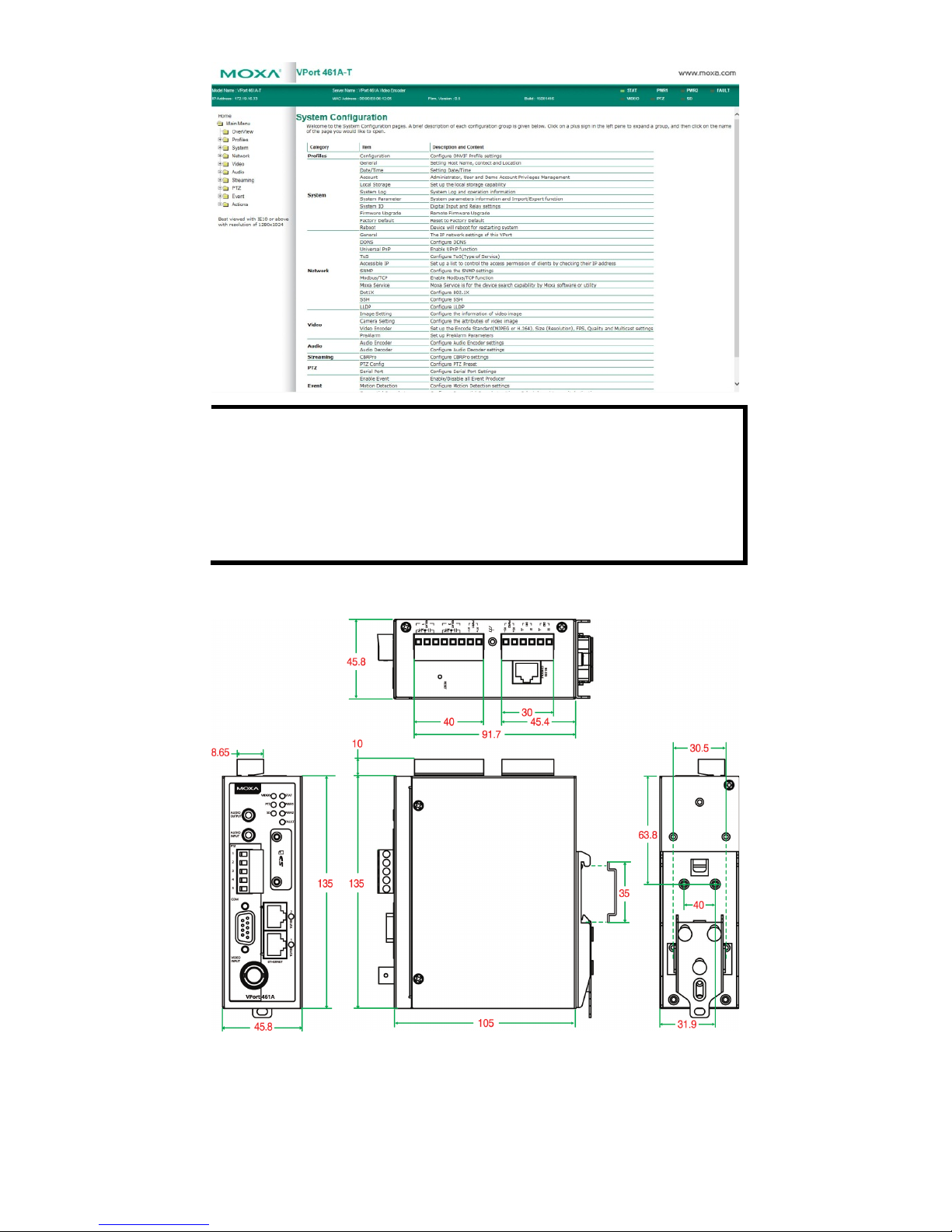

Mounting Dimensions (unit = mm)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Moxa Technologies

Moxa Technologies

Moxa Technologies Transio A52 Manual de usuario

Moxa Technologies

Moxa Technologies ICF-1150 series Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5000 Series Manual de usuario

Moxa Technologies

Moxa Technologies VPort 451 Manual de usuario

Moxa Technologies

Moxa Technologies VPort 464 Series Manual de usuario

Moxa Technologies

Moxa Technologies PTC-101 Series Manual de usuario

Moxa Technologies

Moxa Technologies ME50-M-SC Manual de usuario

Moxa Technologies

Moxa Technologies VPort 364 Series Manual de usuario

Moxa Technologies

Moxa Technologies ICF-1180I Series Manual de usuario

Moxa Technologies

Moxa Technologies A50 Manual de usuario

Moxa Technologies

Moxa Technologies NPort 5600-8-DT Manual de usuario

Moxa Technologies

Moxa Technologies TCF-142-S Manual de usuario

Moxa Technologies

Moxa Technologies IMC-21 Manual de usuario

Moxa Technologies

Moxa Technologies UPORT 1110 Manual de usuario

Moxa Technologies

Moxa Technologies IMC-21A series Manual

Moxa Technologies

Moxa Technologies Transio A52 Manual de usuario

Moxa Technologies

Moxa Technologies MGate 5118 Series Manual de usuario

Moxa Technologies

Moxa Technologies UPort 2210 Manual de usuario

Moxa Technologies

Moxa Technologies VPort D351 Manual de usuario

Moxa Technologies

Moxa Technologies CSM-200-1213 Manual de usuario

Moxa Technologies

Moxa Technologies VPort 251 Series Manual de usuario

Moxa Technologies

Moxa Technologies IMC-101 Series Manual

Moxa Technologies

Moxa Technologies VPort 354 Manual de usuario

Moxa Technologies

Moxa Technologies Media Converter Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
