Moxa Technologies IoLogik 2500 Series Manual de usuario

P/N: 1802025000034

*1802025000034*

ioLogik 2500 Series

Quick Installation Guide

Smart Remote I/O

Version 6.1, January 2021

Technical Support Contact Information

www.moxa.com/support



- 2 -

Package Checklist

•ioLogik 2500 series device

•3-pin screw terminal block (for power input)

•2 12-pin screw terminal blocks (for I/O)

•2 8-pin RJ45-to-DB9 cables (CBL-RJ45M9-150)

•1 antenna (only for wireless modules)

•Quick installation guide (printed)

Appearance

Top View

Front View

- 3 -

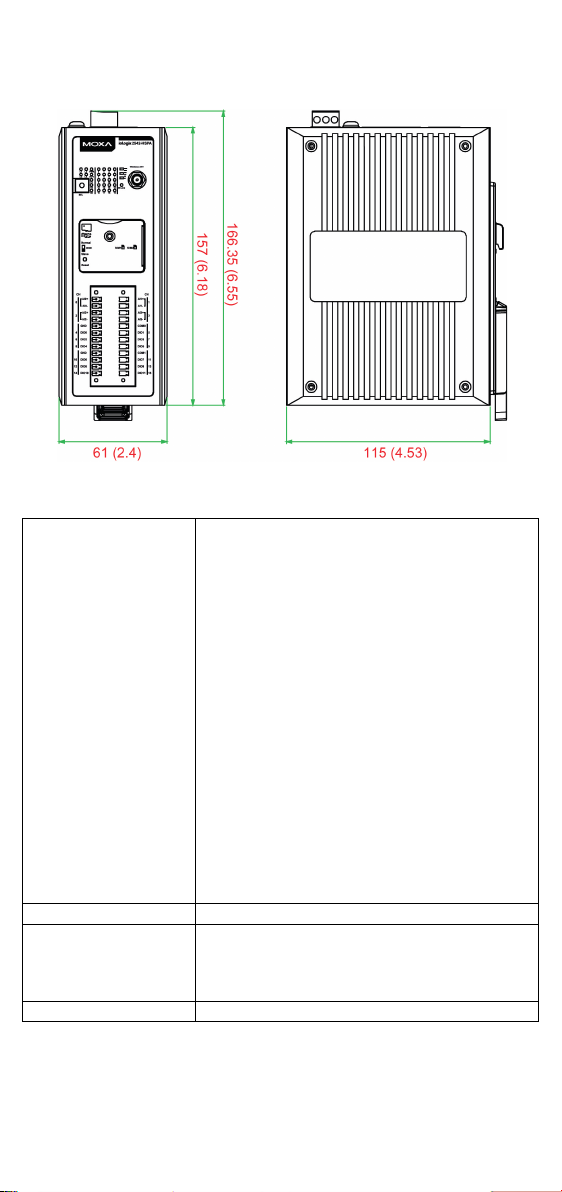

Physical Dimensions (unit = mm/inch)

Specifications

Input Current

ioLogik 2512 Series:

ioLogik 2512-GPRS Series:

ioLogik 2512-HSPA Series:

ioLogik 2512-WL1 Series:

ioLogik 2542 Series:

ioLogik 2542-GPRS Series:

ioLogik 2542-HSPA Series:

ioLogik 2542-WL1 Series:

254 mA @ 24 VDC,

529 mA @ 12 VDC,

133 mA @ 48 VDC

416 mA @ 24 VDC

352 mA @ 24 VDC,

728 mA @ 12 VDC,

187 mA @ 48 VDC

354 mA @ 24 VDC,

735 mA @ 12 VDC,

189 mA @ 48 VDC

281 mA @ 24 VDC,

589 mA @ 12 VDC,

144 mA @ 48 VDC

494 mA @ 24 VDC

311 mA @ 24 VDC,

649 mA @ 12 VDC,

166 mA @ 48 VDC

380 mA @ 24 VDC,

797 mA @ 12 VDC,

203 mA @ 48 VDC

Input Voltage

12 to 48 VDC

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)

Wide Temp. Models:

Ethernet: -40 to 75°C (-40 to 167°F)

Wireless: -30 to 70°C (-22 to 158°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

- 4 -

Hardware Installation

I/O Wiring

Digital Inputs/Outputs

Analog Inputs

Mounting

There are two sliders on the back of the unit for DIN rail and wall

mounting.

•Mounting on a DIN rail

Step 1: If the spring-loaded bracket is locked in place, push the

recessed button to release it.

Step 2: Insert the top of the rail into the upper lip of the attachment

plate’s slot.

Step 3: The attachment unit should now snap into place along the

rail.

•Mounting on a wall (optional)

Step 1: Remove the DIN rail attachment plate.

Step 2: Install the wall mounting kit to the back of the unit with M3

screws.

Step 3:

Install the unit to the wall. The heads of the

screws should be less than 6.0 mm in diameter, and

the shafts should be less than 3.5 mm in diameter, as

shown in the figure

at the right.

- 5 -

Connecting the Power

The ioLogik 2500 can receive power from a 12 to 48 VDC power source.

Input power is applied to the positive (V+) and negative (V-) terminals on

the connector.

For most applications, it is

desirable to ground the system by

connecting the system's power

supply function ground (FG) to the

power

terminal's ground and the

chassis ground (indicated with red

markings in the image at the

right).

NOTE

For safety reasons, wires connecting the power supply should be

at least 2 mm in diameter (e.g., 12 gauge wires).

Connecting to a Network

The ioLogik 2500 has four built-in RJ45 Ethernet ports for connecting

standard direct or crossover Ethernet cables.

LED Indicators

Type

Color

Description

Power

(PWR)

Green

System power is ON

Off

System power is OFF

Ready

(RDY)

Green

System ready

Red

System error

Off

System is not ready

Ethernet Port

(L1/L2/L3/L4)

Green

Ethernet connection enabled in 100 Mbps

Amber

Ethernet connection enabled in 10 Mbps

Flashing

Data transmitting

Off

Disconnected

Serial Port

(P1/P2)

Green

Amber

Flashing

Data transmitting

Off

Disconnected

SD Green SD card inserted

Flashing

SD card being accessed

I/O Channel

Status*

Green

Channel ON

Off

Channel OFF or No Counter/Pulse Signal

W.Link**

Green

Cellular connection established

Off

Signal Status**

Off

No signal, or No SIM card

1 LED

Weak or insufficient (SMS only)

2 LEDs

Average (good for cellular connections)

3 LEDs

Excellent signal

*Use the rotary switch to select which module's I/O channel status is

displayed.

**Wireless Modules Only.

- 6 -

System Configuration

Configuration via IOxpress Utility

The configuration of the ioLogik 2500 is mainly done with the IOxpress

utility. IOxpress is a search utility that helps users locate an ioLogik 2500

device on the local network. The latest version of the utility can be

downloaded from Moxa's website.

•Default IP Address: 192.168.127.253

•Default Subnet Mask: 255.255.0.0

NOTE

Be sure to configure the host PC’s IP address to the same subnet

as the ioLogik 2500. For example, 192.168.127.250

Load Factory Default Settings

There are three ways to restore the ioLogik 2500 to factory default

settings.

1. Hold the RESET button for 5 seconds.

2. In the IOxpress utility, right-click on the ioLogik device to be reset

and select Reset to Default.

3. Select Load Factory Default from the web console.

WARNING

This equipment is intended to be used in Restricted Access

Locations. External metal parts are hot! Before touching it,

special attention or protection is necessary.

How to Download the Software

Step 1: Click on the following link to open the Support & Downloads

search tool:

http://www.moxa.com/support/support_home.aspx?isSearchShow=1

Step 2: Type the model name in the search box or select a product from

the drop down box and then click Search.

- 7 -

Step 3: Click the Software Packages link to download the latest

software for the product.

ATEX Information

1. Certificate number: DEMKO 15 ATEX 1603X

2. Certification string: Ex nA IIC T4 Gc

3. Standards covered:

EN 60079-0:2012+A11:2013, EN 60079-15:2010

4. The equipment shall be installed in an enclosure that provides a

degree of protection not less than IP54 in accordance with EN

60079-15 and accessible only by the use of a tool.

5. These products are for use in an area of not more than pollution

degree 2 in accordance with EN 60664-1.
