Mountain Buggy Carrycot

Instruction Manual

English 1-10

Designed and made in New Zealand by Mountain Buggy Ltd. Manufactured by Tritec Manufacturing Ltd,

an ISO 9001 certied company. Models made to BS 7409:1996, AS/NZS 2088:2000.

Français 11-20

Conçu et fabriqué en Nouvelle-Zélande par Mountain Buggy Ltd. Fabriqué par Tritec Manufacturing Ltd,

une société certiée ISO 9001. Modèles conformes à la BS 7409:1996, AS/NZS 2088:2000.

Deutsch 21-30

Entwickelt und hergestellt in Neuseeland durch Mountain Buggy Ltd und produziert von Tritec

Manufacturing Ltd., einem nach ISO 9001 zertizierten Unternehmen. Modelle nach BS 7409:1996, AS/NZS

2088:2000.

Italiano 31-40

Ideato e fatto in Nuova Zelanda da Mountain Buggy Ltd. Prodotto da Tritec Manufacturing Ltd, una ditta

certicata con ISO 9001. Modelli sono conformi alla BS 7409:1996, AS/NZS 2088:2000.

Español 41-50

Proyectado y fabricado en Nueva Zelanda por Mountain Buggy Ltd. Producido por Tritec Manufacturing Ltd,

una empresa certicada con ISO 9001. Modelos se conforman a la BS 7409:1996, AS/NZS 2088:2000.

Nederlands 51-60

Ontworpen en gefabriceerd in Nieuw Zeeland door Mountain Buggy Ltd en geproduceerd door Tritec

Manufacturing Ltd. een ISO 9001 gecerticeerde onderneming. Modellen gemaakt volgens de BS 7409:1996,

AS/NZS 2088:2000.

Svenska 61-70

Design och framställning i Nya Zeeland av Mountain Buggy Ltd. Tillverkad av Tritec Manufacturing Ltd, ett

företag met ISO 9001 certikat. Modeller ar tillverkade enligt BS 7409:1996, AS/NZS 2088:2000.

This manual covers all carrycot attachments – single, double and twin options.

Carrycots t onto the following Mountain Buggy® models:

ENGLISH

Welcome

Congratulations on your purchase of a Mountain Buggy carrycot.

We know how precious and inspiring a new little person can be in your world. It’s so

important to be able to show your baby to the world and just as important to show the

world to your baby.

At Mountain Buggy you and your baby matter to us. That’s why we have spent years

researching and developing a product that is safe, comfortable and in tune with

modern parents needs. We want you to be able to live your new family lifestyle with all

the freedom and satisfaction you have always experienced.

We also know that many parents use strollers incorrectly and as a result may put

their children at risk. Please take the time to read through this manual carefully. Your

Mountain Buggy carrycot will provide you with optimum safety if you follow the

instructions as detailed.

If you have any concerns, questions or comments about your Mountain Buggy carrycot

or how to use it, please do not hesitate to contact us. We’d love to hear from you.

Fitting a carrycot to your buggy is simple. However, it is important to follow the correct

instructions.

Important:

Please read instructions carefully, follow them strictly and keep these instructions for

future reference. Your child’s safety is your responsibility and may be compromised if you

do not follow these instructions.

Warning

•Carrycot is suitable for newborns through to 6 months old, or until baby can sit up

unaided.

•Baby must not be in Carrycot when it is being fastened or removed from the stroller

frame.

•Depth from top of mattress to top of side of Carrycot at any position within 300mm/11.8in

from harness attachment points, should not be reduced to less than 150mm/5.5in when

mattress is in position. Mattresses purchased separately should conform to BS 1877 part

10.

•Do not add a mattress thicker than 25mm.

•Check snap locks are closed and rmly attached to frame so Carrycot will not tip or fall.

•Check Carrycot is horizontal and located correctly onto stroller frame. Refer back to

diagrams for your model to ensure positioning of snap locks is correct.

•Do not use Carrycot if you are unable to secure it to stroller frame. In this case contact

store where stroller was purchased for more help.

•Check that Carrycot attachment devices are correctly engaged before use.

•Always remove Carrycot before folding stroller.

For the sake of your precious passenger, please

read these warnings before using your Mountain

Buggy Carrycot.

ENGLISH

Removing the Sunhood

1. Standing beside your stroller and using a

reasonable degree of force, pull the sunhood

support wire towards you (by about 50mm/2in).

2. Remove support wire W from sunhood bush J on

the side nearest to you.

3. Unfasten sunhood domes that

attach the sunhood to stroller

frame and to stroller seat back.

Removing the Seat

1. Unfasten domes on seat that attach to frame.

2. Urban (Jungle) Only: unfasten strap

underneath seat at point A.

3. Terrain Only: remove seat support wire from

stroller frame at C and D. Push seat forward,

then slide fabric o seat

support wire.

Preparing your Stroller to ﬁt the Carrycot

Before you can attach the Carrycot to your stroller you will need to remove the fabric

sunhood and seat on your stroller.

IMPORTANT INFORMATION FOR DOUBLE AND

TRIPLE STROLLERS

If you have a double or triple stroller you will need to remove the centre metal bars of the

frame to release the domed fabric. You may then need to reattach the metal bars without

the fabric, depending on whether you are attaching a Double or a Twin Carrycot. See chart

below.

How to remove the centre bar(s)

1. Terrain only: undo seat base nut with a spanner at

point F and remove hinge pin from seat base.

2. Urban and Terrain models: unfasten wing nut at

point G and remove centre bar at both ends (points

G and H).

Double Stroller Frame Triple Stroller Frame

Twin

Carrycot

No centre bar No centre bar on side attaching Twin

Carrycot. Centre bar remains on side not

accommodating Twin Carrycot.

Double

Carrycot

Centre bar required.

Remove hammock fabric

from seat you wish to

replace with Carrycot.

Centre bar required.

Remove hammock fabric from seat you

wish to replace with Carrycot. Double

Carrycot can only be tted to outside

seat positions.

Preparing your Stroller (continued)

Centre bar

Seat base

Heel

rest

›››

ENGLISH

Fitting your Carrycot to your Stroller

Mountain Buggy oer a range of carrycot and stroller combinations, so please choose the

instructions you need to follow from the list below based on which carrycot model you are

wanting to attach to which stroller.

Single Stroller Double Stroller Triple Stroller

Single Carrycot Conguration 1

Double Carrycot Conguration 2 Conguration 2

Twin Carrycot Conguration 1 Conguration 2

Instructions for Conguration 1 are located on pages 6-7

Instructions for Conguration 2 are located on pages 8-10

Examples of Carrycot combinations

Double Stroller with Double Stroller with Triple Stroller with

2 Double Carrycots Twin Carrycot 1 Double and 1 Twin

Carrycot

Preparation

You will need to have all components on the parts list

shown to t Carrycot to your stroller.

Have a look at sides of Carrycot. There are three holes

on each side of Carrycot to allow snap locks to be tted.

Conguration varies depending on the Mountain Buggy

model you have.

•Two snap locks are tted to each side of Carrycot.

The unused hole can be tted with the spare screw

and cover button.

How to t the Snap Locks

1. Place one snap lock over hole A. Make sure it is

aligned correctly with the hole in Carrycot.

2. Using Allen key, rotate screw in snap lock in

clockwise direction until screw is tight. Snap lock

will still be able to rotate but is rmly attached.

3. Connect second snap lock according to model

directions below.

4. Repeat on other side.

For Urban (Jungle) models

5. Fit second snap lock to position B.

6. Fit small screw and cover button to hole C.

For Terrain Models

5. Fit second snap lock to position C.

6. Fit small screw and cover button to hole B.

Conﬁguration 1 Instructions

PLEASE FOLLOW THESE INSTRUCTIONS IF YOU

ARE FITTING:

a: a Single Carrycot to a Single Stroller

b: a Twin Carrycot to a Double Stroller

Fitting the Snap Locks to the Carrycot

URBAN

TERRAIN

›››

2 x screws

2 x cover buttons

Allen key

Carrycot

PARTS LIST

4 x snap locks

ENGLISH

Conﬁguration 1 Instructions (continued)

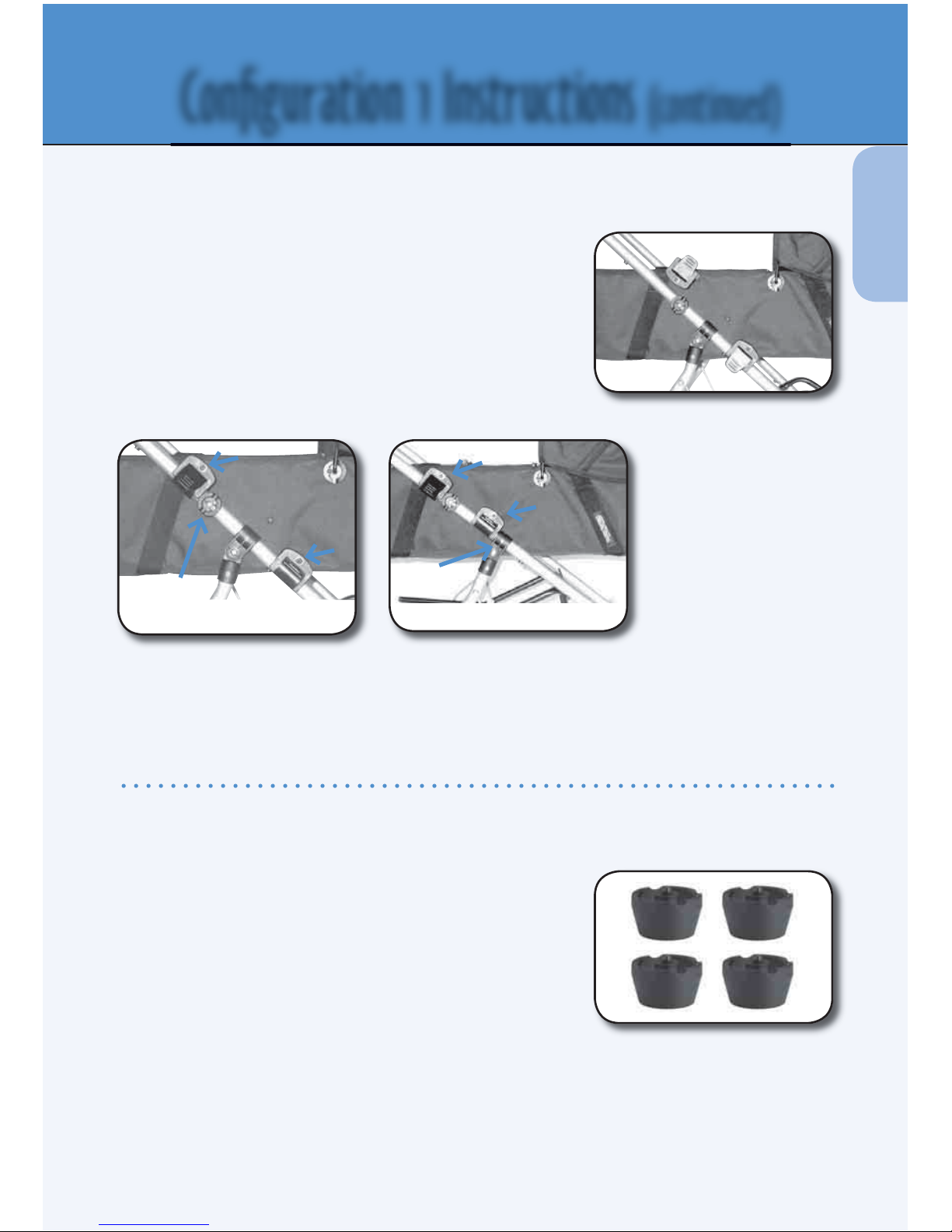

Fitting the Carrycot to the Frame

1. Ensure snap locks are rotated so screw holes are

on top.

2. Open snap locks.

3. Place Carrycot onto Buggy frame. Conrm

positioning as pictured below.

4. Push snap locks rmly down at, making sure you hear the lock ‘click’, indicating

they are fully locked.

Fitting the Feet to the Carrycot

1. Take one foot and place provided screw through

hole in narrow end of foot.

2. Screw whole unit into one of the 4 holes located

on bottom of Carrycot.

3. Ensure foot is screwed tightly.

4. Repeat process for all 4 feet.

To remove: unscrew each foot from bottom of Carrycot.

✔

✘

TERRAIN URBAN

sunhood joint

Place snap lock X directly above

sunhood joint

tube joint

Place snap lock Y directly above tube joint

Conﬁguration 2 Instructions

Fitting the Snap Locks and Slider Plate to the Carrycot

Preparation

Make sure you have all the necessary

parts as outlined in this picture.

NB: The sliding plates part kit is

not supplied with a twin carrycot

and will need to be separately

purchased to attach the twin to

a triple stroller. Also note that the

snap locks used in Conguration 1

are dierent from those used in this

instruction.

Work out which side you want to

attach the Carrycot to. If you want to position the Carrycot onto the right side of stroller,

put the snap locks onto the right side of the Carrycot and the sliding plate onto the left. To

position the Carrycot onto the left side of the stroller the snap locks go on the left side of

the stroller and the sliding plate on the right.

NB: Left and right are considered from the point of view of the user when they are

pushing the buggy.

Attaching Snap Locks

1. Place one snap lock over hole A. Make sure it is

aligned correctly with the hole in Carrycot.

2. Using Allen key, rotate screw in snap lock in

clockwise direction until screw is tight. Snap lock

will still be able to rotate but is rmly attached.

3. Connect second snap lock according to model

directions for Urban or Terrain.

PLEASE FOLLOW THESE INSTRUCTIONS IF YOU

ARE FITTING:

a: a Double Carrycot to a Double Stroller

b: a Double Carrycot to a Triple Stroller

c: a Twin Carrycot to a Triple Stroller

›››

SLIDING PLATE PARTS KIT

1 x sliding plate

1 x Allen key

2 x screws

2 x snap locks 1 x cover buttons

1 x screw

PARTS LIST

Carrycot

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Paseante de Mountain Buggy

Mountain Buggy

Mountain Buggy +One Manual de usuario

Mountain Buggy

Mountain Buggy double terrain Manual de usuario

Mountain Buggy

Mountain Buggy Stroller Manual de usuario

Mountain Buggy

Mountain Buggy Buggy Range Outside Cove Manual de usuario

Mountain Buggy

Mountain Buggy freerider Manual de usuario

Mountain Buggy

Mountain Buggy Buggy Carrycot Manual de usuario

Mountain Buggy

Mountain Buggy Mini Manual de usuario

Mountain Buggy

Mountain Buggy freerider connector Manual de usuario

Mountain Buggy

Mountain Buggy Carrycot Manual de usuario

Mountain Buggy

Mountain Buggy Urban Double U2204 Manual de usuario

Mountain Buggy

Mountain Buggy Buggy Range Outside Cover Manual de usuario

Mountain Buggy

Mountain Buggy duo Manual de usuario

Mountain Buggy

Mountain Buggy Lite Manual de usuario

Mountain Buggy

Mountain Buggy Urban Jungle Designer Manual de usuario

Mountain Buggy

Mountain Buggy buggypod Smorph2 Manual de usuario

Mountain Buggy

Mountain Buggy duet carrycot Manual de usuario

Mountain Buggy

Mountain Buggy urban elite Manual de usuario

Mountain Buggy

Mountain Buggy Breeze Single-B1204 Manual de usuario

Mountain Buggy

Mountain Buggy carrycot plus duet Manual de usuario

Mountain Buggy

Mountain Buggy Cosmopolitan Manual de usuario

Mountain Buggy

Mountain Buggy Urban Jungle Designer Manual de usuario

Mountain Buggy

Mountain Buggy Cosmopolitan Manual de usuario

Mountain Buggy

Mountain Buggy terrain Manual de usuario

Mountain Buggy

Mountain Buggy Nano Manual de usuario

Manuales populares de Paseante de otras marcas

Hauck

Hauck Priya Trioset Manual de usuario

CHILDHOME

CHILDHOME CWQDN Manual de usuario

Dreamer Design

Dreamer Design Rebound GST Manual de usuario

Britax

Britax STEELCRAFT AGILE Manual de usuario

Graco

Graco 7427 Manual de usuario

Comfort

Comfort COMPASS Manual de usuario

OBaby

OBaby Aura Manual de usuario

Tutek

Tutek Tirso Manual de usuario

Babify

Babify Dual Plus Manual de usuario

Graco

Graco Stroller Manual de usuario

Special Tomato

Special Tomato Jogger Manual de usuario

Chicco

Chicco CORTINA TOGETHER TWO-PASSENGER STROLLER Manual de usuario

Otto Bock

Otto Bock Kimba neo Manual de usuario

Milly Mally

Milly Mally ROYAL Guía de inicio rápido

Hauck

Hauck DUETT 3 PRAM Manual de usuario

BOB

BOB DUALLIE Manual de usuario

Nuna

Nuna Pepp Manual de usuario

Britax

Britax B2 Manual de usuario
