Motorola DCX700 Manual de usuario

HD Set-top

DCX700

Quick Start Guide

DCX700 Quick Start Guide 1

Before You Begin

Introduction

Congratulations on receiving a Motorola DCX700 HD Set-top. This document will help you set up your DCX700 Set-top to quickly get it up and

running.

READ THIS FIRST

1. Determine if you are connecting to a:

2. Determine if you are connecting the audio to a home theater receiver or directly to the TV:

For an HDMI or IEEE-1394 video connection, no additional audio connections to the TV are required.•

For a DVI video connection, additional audio connections to theTV are required.•

If the receiver orTV has a digital audio (S/PDIF) input, use the Optical Audio (S/PDIF) output. Otherwise, use the left and right (RCA•

phono) audio outputs.

3. Locate the cabling diagram(s) that best match the conﬁguration.

4. Connect the audio and video cables in a manner matching that diagram.

5. Connect the Cable In terminal to the coaxial cable wall outlet.

6. Connect the power cord to the set-top and the AC wall outlet.

7. Perform the operational check for the remote control.

8. Optimize the high-deﬁnition settings.

High-Deﬁnition TV (HDTV) or

monitor

Use the HDMI, component video (YPbPr), or IEEE-1394 outputs. No other video connection supports HDTV.

If the TV has no HDMI input but does have a DVI input, connect a DVI-to-HDMI adapter or cable to the HDMI

out connector on the DCX set-top and the DVI input connector on the TV.

Standard-Deﬁnition TV Connect the composite video output using a composite video (RCA phono) cable.

Additional information for adjusting user settings

The DCX700 User Settings menu allows you to adjust the video, audio, and closed captioning conﬁguration of the set-top.

With the set-top in the power on state, use the DCX700 remote to access the User Settings Menu by pressing Power followed by Menu (within

two seconds).

For more detailed instructions on changing the set-top conﬁguration through the User Settings menu, please refer to the DCX700 User Guide

available online at http://motorola.com/homevideo/support.

2DCX700 Quick Start Guide

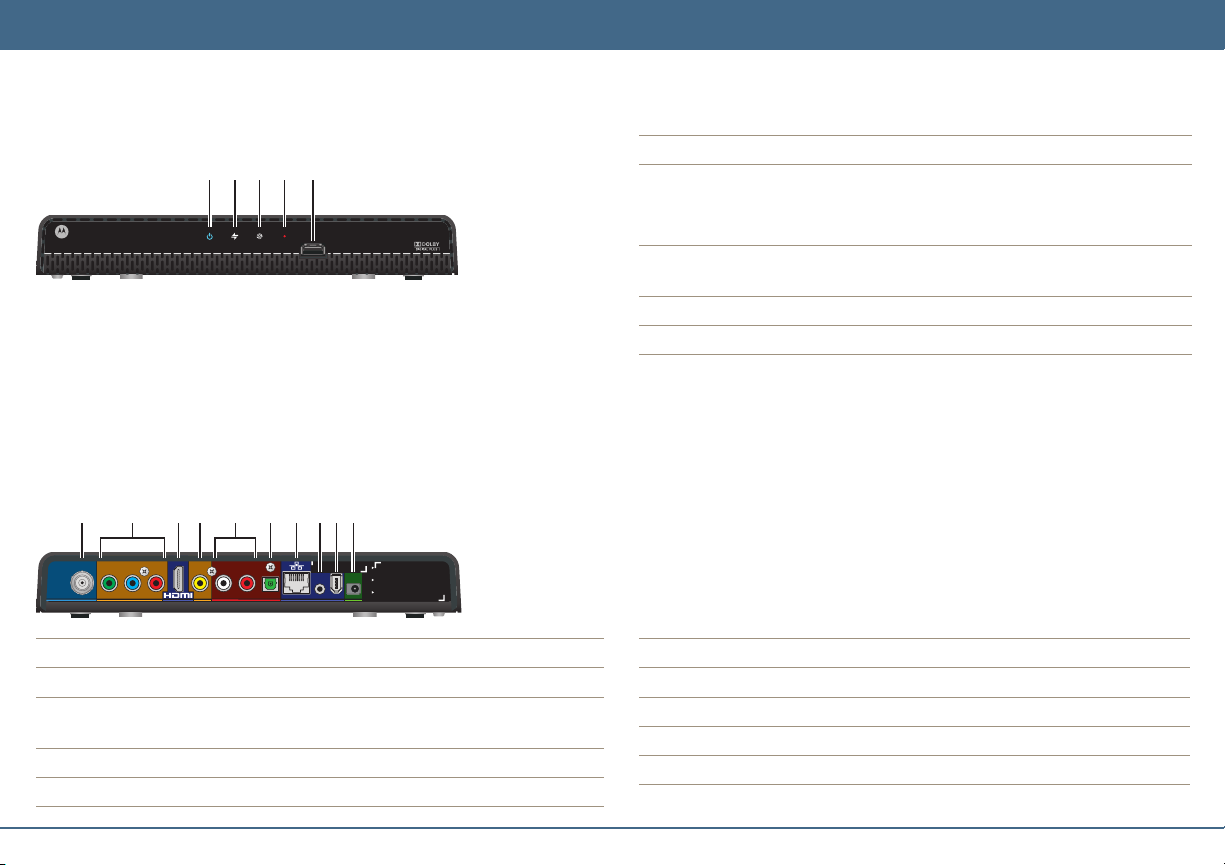

Front Panel

The front panel provides Power, Data, Home LAN, and Recording indicators, and a USB 2.0 HostType A port. The USB connector requires the

support of application software.

Rear Panel

The rear panel contains a power input; connectors for video, audio, and RF cabling; data output; and data interface connectors. Some

connectors are not enabled and require the support of application software.

Before You Begin

1 Power — Illuminates to indicate the power is on

Data — Dual function LED

• Flashes once per second to indicate unit is powering on

• Flashes once per second to indicate unit is provisioning

3LAN — Illuminates to indicate one or more set-top boxes are detected on

the home network

4 REC — Unit is in record mode on a home network device (DCX700-M only)

5USB* 2.0 — High-Speed peripheral device connection

6Digital Audio (optical) — Provides Dolby® Digital 5.1 audio or PCM output

7Ethernet* — Network connection

8Ext IR Input — Connects to a remote control set-top accessory cable

9IEEE-1394 — Audio and HDTV video device connection (US models only)

10 Power connector

POWER LAN REC

DATA

DCX700 M-

12345

LIEEE 1394

YPb Pr VIDEO

CABLE IN

RAUDIO

DIGITAL

AUDIO

OUT

EXT IR IN/

SERIAL

POWER

+5 VDC

61345278910

1Cable In — Connects to the signal from your service provider

2YPbPr — Component video output (HDTV)

3HDMI™ — High-Denition TV (HDTV) connector

(Provides Dolby® Digital Plus (7.1) audio)

4Video — Composite Video (SDTV) output

5 Audio — Composite Audio L/R outputs

*Feature is dependent upon application support

Connecting Your Device

For the best possible HDTV video quality:

1. If the TV has an HDMI input, connect it to the

DCX700 HDMI output. If the TV has a DVI input,

connect it to the DCX700 HDMI output using an

HDMI-to-DVI converter cable or adapter.

2. If the TV has neither an HDMI nor a DVI input but has

an IEEE-1394 input, connect it to the DCX700 IEEE-

1394 output.

If you use IEEE-1394, on-screen graphics do not

display. Otherwise, use the component video (Y, Pb,

and Pr) connectors.

L/R Audio connection or digital audio S/PDIF

connection is required for sound with DVI and

component video.

Note: Be sure to match up each signal to the same

connection on the TV. Otherwise, the colors will not

appear correctly on your TV.

Note: Because HDMI provides both video and audio output, no

additional audio connections to the TV are required.

DCX700 Quick Start Guide

Cabling to an HDTV for Video

Connecting Your Device

Cabling to an HDTV for Audio

DCX700 Quick Start Guide

Connecting Your Device

Cabling to an HDTV and an A/V Receiver for Video

DCX700 Quick Start Guide

Note: If the A/V receiver includes

an HDMI input and output, the

DCX700 HDMI output can be

connected directly to the A/V

receiver’s input and the A/V

receiver’s HDMI output directly

to the TV. Because HDMI

provides both video and audio

output, no additional audio

connections to the A/V Receiver

and TV are required.

Note: If the A/V receiver includes

an HDMI input and output, the

DCX700 HDMI output can be

connected directly to the A/V

receiver’s input and the A/V

receiver’s HDMI output directly

to the TV. Because HDMI

provides both video and audio

output, no additional audio

connections to the A/V Receiver

and TV are required.

Connecting Your Device

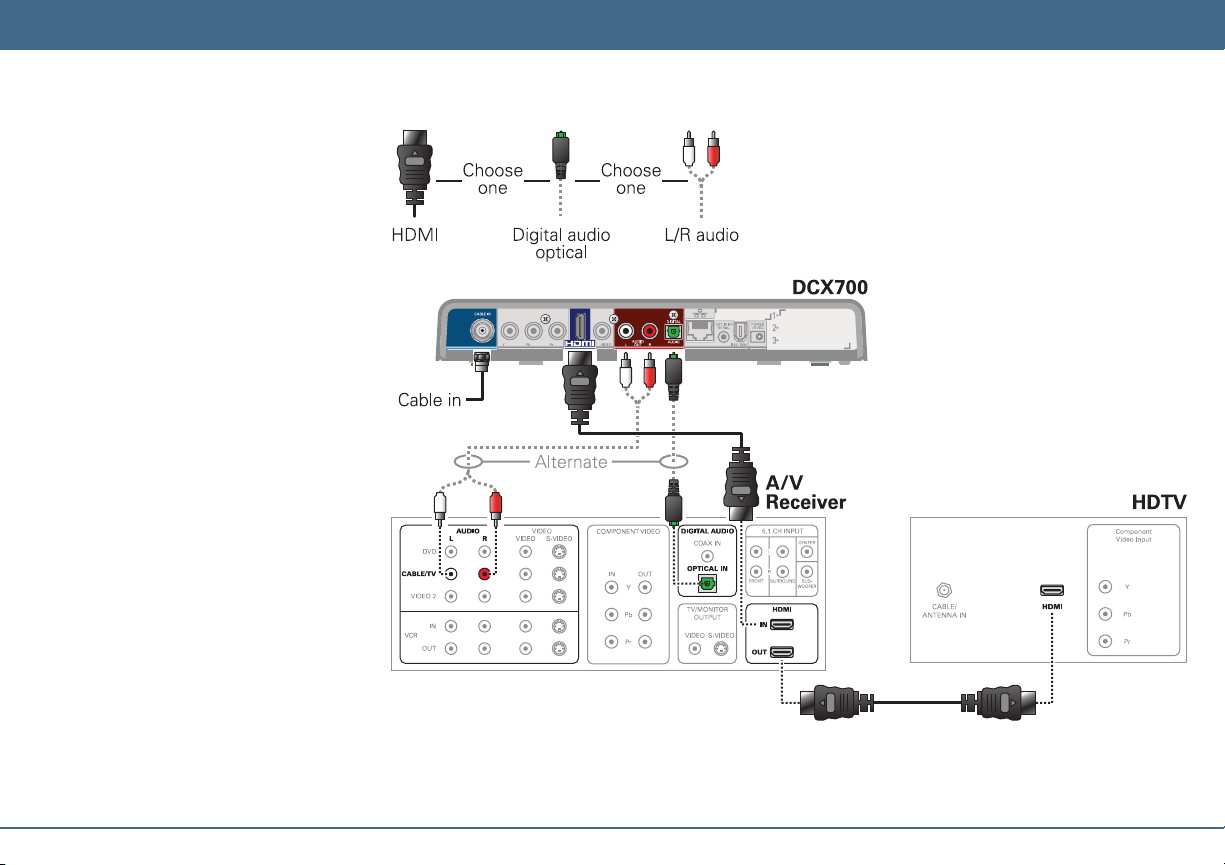

Cabling to an HDTV and an A/V Receiver for Audio

DCX700 Quick Start Guide

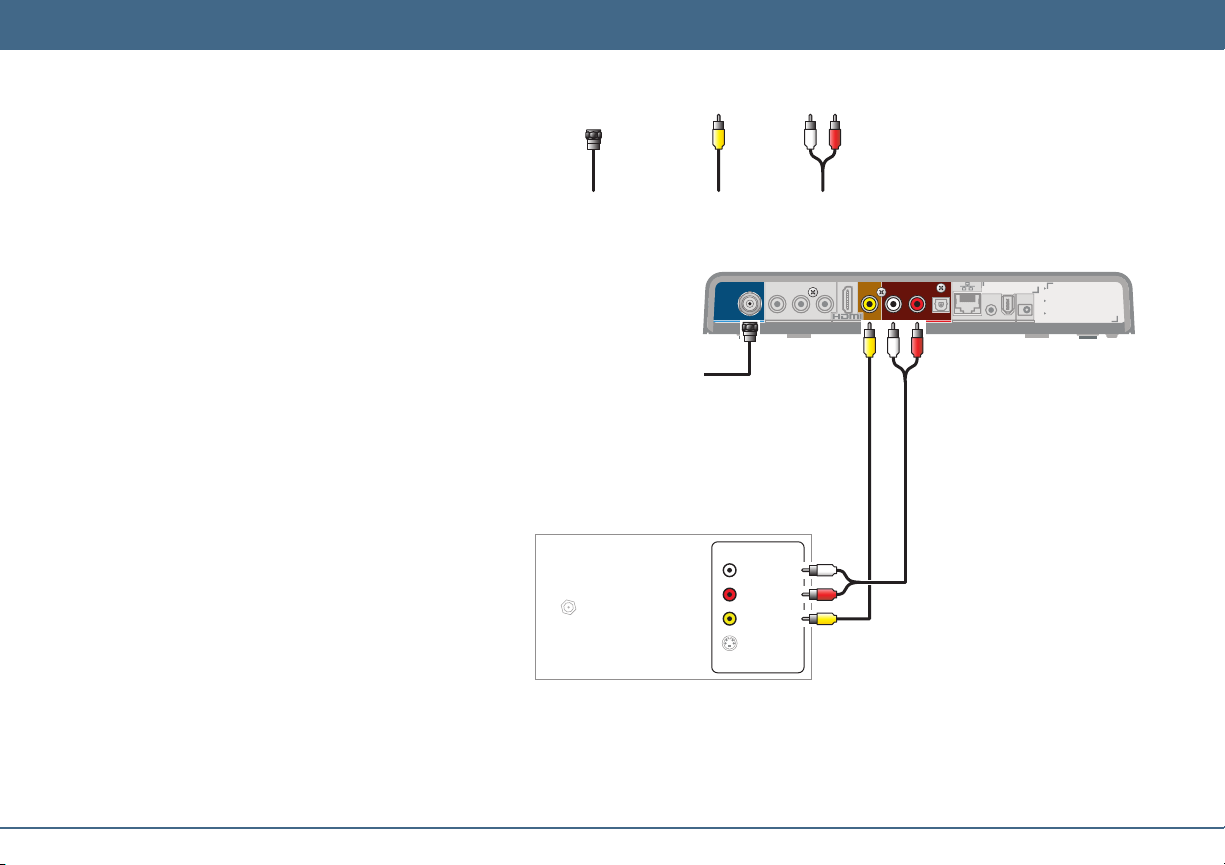

Cabling to a Standard-Deﬁnition TV

Connecting Your Device

DCX700 Quick Start Guide

DCX700

LIEEE 1394

YPb Pr VIDEO

CABLE IN

RAUDIO

DIGITAL

AUDIO

OUT

EXT IR IN/

SERIAL

POWER

+5 VDC

CABLE/

ANTENNA IN

INPUT

S-VIDEO

VIDEO

AUDIO LEFT

AUDIO RIGHT

Standard-Definition TV

L/R audio

Video

(composite)

Cable in

RF audio/video

(coax)

Note: This connection method

does not support HDTV. For

information, see Cabling to an

HDTV for Video.

Cabling to a Standard-Deﬁnition TV, A/V Receiver, and VCR

Connecting Your Device

DCX700 Quick Start Guide 8

Note: This connection method

does not support HDTV. For

information, see Cabling to an

HDTV for Video.

If degraded picture quality is

observed while viewing copy-

protected limited view programs,

do not connect through a VCR.

Instead, connect the set-top

directly to the TV

(see illustration on page 7).

DCX700

LIEEE 1394

YPb Pr VIDEO

CABLE IN

RAUDIO

DIGITAL

AUDIO

OUT

EXT IR IN/

SERIAL

POWER

+5 VDC

To TV

CABLE/

ANTENNA IN

INPUT

AUDIO

VIDEO

OUTPUT

AUDIO

VIDEO

CABLE/

ANTENNA IN

INPUT

S-VIDEO

VIDEO

AUDIO LEFT

AUDIO RIGHT

Standard-Definition TV

VCR/DVD Recorder

DIGITALAUDIO

TV/MONITOR

OUTPUT

HDMI

OUT

COAX IN CENTER

SUB-

WOOFER

SURROUNDFRONT

VIDEO S-VIDEO

DVD

CABLE/TV

VIDEO 2

OUT

VCR

AUDIOVIDEO

LVIDEO S-VIDEO

OPTICAL IN

5.1 CH INPUT

COMPONENTVIDEO

IN OUT

A/V Receiver

Alternate

L/R audio

Video

(composite)

Cable in

RF audio/video

(coax)

9DCX700 Quick Start Guide

Troubleshooting

Troubleshooting guidelines follow. If problems still occur after performing the diagnostics, call your service provider for assistance.

Problem — If this occurs: Solution — Then do one of the following:

The set-top will not

power on

The set-top may have received a software update and may not power on while the new software is being•

installed. Try again in a few minutes.

Verify that the AC power cord is connected to the set-top and an AC outlet. Unplug the set-top from the AC•

outlet and plug it back in.

If the set-top is connected to a switched outlet on another unit, verify that the unit is powered on. Unplug the•

power cord from the set-top’s AC outlet and plug it back in. Use an unswitched outlet, if possible.

The remote control does

not work

Verify that the remote control is in STB mode.•

Verify that there are no obstructions between the remote control and the set-top. Aim the remote control•

directly at the set-top front panel, not the TV or VCR.

The angle between the remote control and the set-top may be too large. Stand in front of the set-top and not•

too far to either side.

Press and release operation keys one at a time, ﬁrmly and deliberately.•

Check the batteries in the remote control. Install new batteries if needed.•

There is no audio when

viewing cable channels

Verify that the mute button on the remote control has not been pressed. Press MUTE on the remote control•

to restore sound.

If the set-top audio output is connected to the TV, verify that the mute button on the TV has not been pressed.•

If the set-top audio output is connected to a home theater receiver, verify that the receiver is set to the•

appropriate input source and the mute button on the receiver has not been pressed.

Verify that you have the correct cables for the audio connections.•

Verify that the audio cables are ﬁrmly connected between the set-top and the audio playback device (TV,•

receiver, DVD player, etc.).
