Getting Started 1 - 11
Select Wireless Manager.
Figure 1-10
Wireless Manager Window
To enable or disable a wireless connection, tap the specific button.
To enable or disable all wireless connections, tap and hold the All button.
To configure settings for a connection, tap Menu.
1 - 12 MC55A0/MC55N0 Enterprise Digital Assistant User Guide
Handstrap Replacement
Removal
To remove the handstrap:
1. Press the red Power button to suspend the MC55. The PowerKey Action window appears.
2. Tap Safe Battery Swap. The Decode LED lights red and then turns off.
3. Slide the handstrap clip out of the handstrap slot.
Figure 1-11
Handstrap Clip Removal
4. Remove the stylus tether from the handstrap.
5. Remove the battery.
6. Using a small flat screwdriver, push the head of the screwdriver between the handstrap pin and the bottom
of the housing as shown below.
7. Pry the handstrap and pin up and out of the handstrap mounting area.
CAUTION When removing handstrap pin, be carefully not to damage handstrap mounting area.
Getting Started 1 - 13
Figure 1-12
Handstrap and Pin Removal
8. Repeat for the other side of the handstrap.
9. Remove the pin from the handstrap.
Figure 1-13
Pin Removal
10. Pull the handstrap through the handstrap slot.
Installation
To install the handstrap:
1. Feed the bottom end of the handstrap into the handstrap slot on the bottom of the MC55.
12
34
1 - 14 MC55A0/MC55N0 Enterprise Digital Assistant User Guide
Figure 1-14
Feed Handstrap into Handstrap Slot
2. Slide the pin into the bottom of the handstrap.
3. Center the pin in the handstrap loop.
4. Pull the handstrap so that the pin and bottom of the handstrap slide into position in the mounting area.
Figure 1-15
Pin and Handstrap in Mounting Area
5. Replace the battery.
6. Replace the stylus tether onto the handstrap.
Figure 1-16
Slide Handstrap and Tether Over Handstrap Mount
7. Insert the handstrap clip into the slot on the MC55. Ensure that it is securely in place.
NOTE Handstrap and pin should fit securely into the handstrap mounting area. When pulling on handstrap use
enough force to engage pin into place.
CHAPTER 2 OPERATION
Introduction
This chapter explains the buttons, status icons, and controls on the MC55, and provides basic instructions for
using the MC55, including powering on and resetting.
Finger Scrolling
Finger scrolling can be used to scroll up and down web pages, documents, and lists such as the contacts list,
file list, message list, calendar appointments list, and more.
When finger scrolling, swipe or flick your finger on the screen.
To scroll down, swipe your finger upward on the screen. To scroll up, swipe your finger downward on the
screen.
To auto-scroll, flick your finger upward or downward on the screen. Touch the screen to stop scrolling.
Home Screen
The default home screen on the MC55 is the Windows Mobile Home screen. The Home screen contains a
Status Bar at the top of the screen and a Tile Bar at the bottom of the screen.
The Home screen is scrollable and contains a list of application plug-ins and an Information Status bar. The
Information Status bar highlights the application plug-in that is under it and provides additional information.
2 - 2 MC55A0/MC55N0 Enterprise Digital Assistant User Guide
Figure 2-1
Windows Mobile Home Screen
Touch and hold the screen with your finger and move the Home screen up and down. As the application names
move under the Information Status bar, information relevant to that application appear in the bar.
Figure 2-2
Moving Today Screen
You can also touch and hold the Information Status bar and move it up and down over an application name.
Remove your finger and the Information Status bar and application name center in the screen.
Figure 2-3
Moving Information Status Bar
Open the Start Menu Tiles
Status Bar
Home Screen
Tile Bar
Operation 2 - 3
Figure 2-4
Information Bar Example
To customize the Home screen, tap > Settings > Today. On the horizontal scroll, use Appearance to
customize the background and the Items to change the display format.
Classic Today Screen

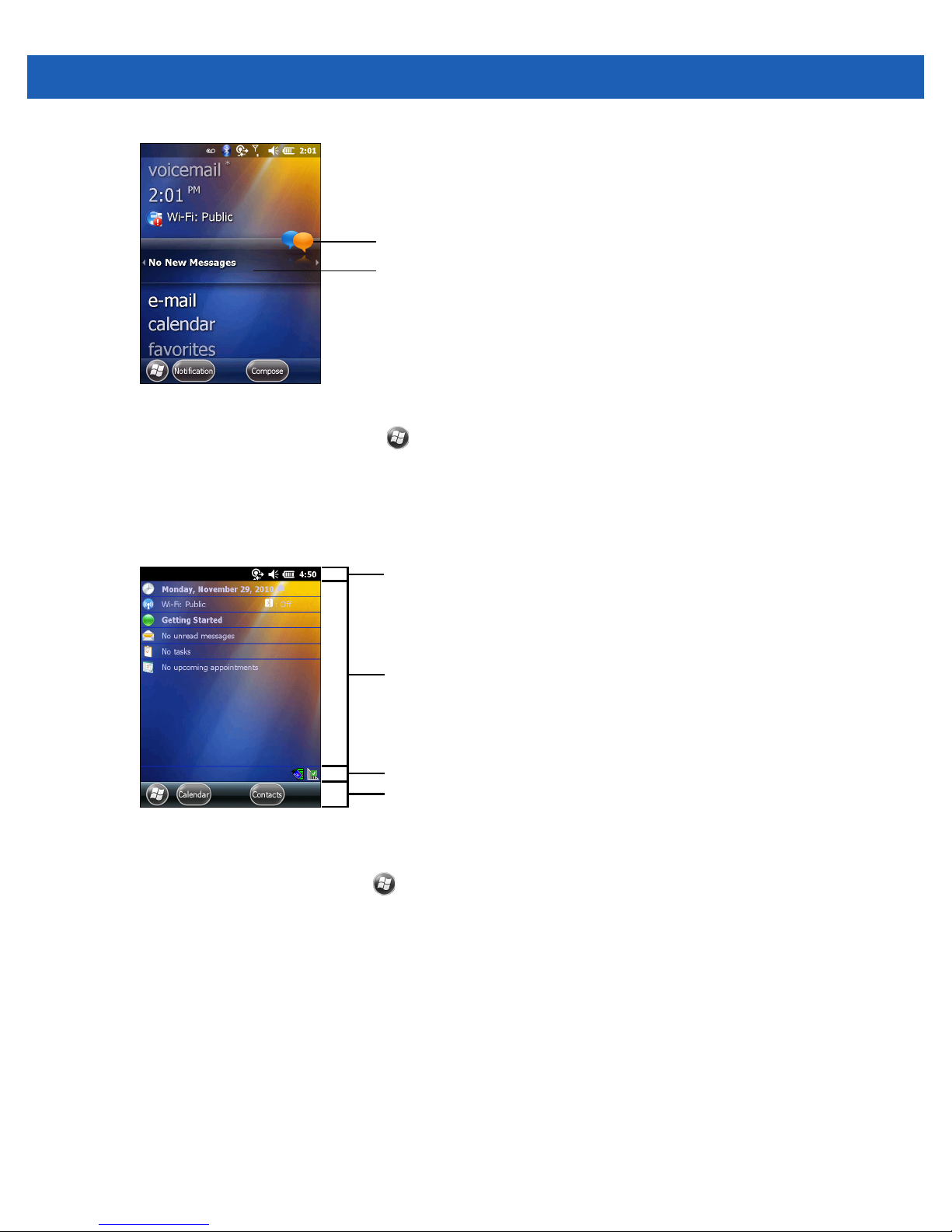

The user can change to the classic Today screen layout that is used in Windows Mobile 6.1.
Figure 2-5
Classic Today Screen
To change to the classic view tap > Settings > Home > Items.
Application Icon
Application Information
Tile Bar
Status Bar
Today Screen
Task Tray
2 - 4 MC55A0/MC55N0 Enterprise Digital Assistant User Guide
Figure 2-6
Home Screen Settings
Deselect the Windows Default checkbox and select any of the other checkboxes.
Tap .
The task bar at the bottom of the screen can contain the task tray icons listed in Table 2-1.
Status Bar
The Status Bar at the top of the screen displays the status icons listed in Table 2-2.
Table 2-1
Task Tray Icons
Icon Name Description
Wireless connection
status Wireless connection status icon. Indicates WLAN signal strength and opens
the Wireless Applications menu.
Bluetooth Enabled The
Bluetooth Enabled
icon appears in the task tray and indicates that the
Bluetooth radio is on (Displays only if the StoneStreet One Bluetooth stack
is enabled).
Bluetooth Disabled The
Bluetooth Disabled
icon appears in the task tray and indicates that the
Bluetooth radio is off (Displays only if the StoneStreet One Bluetooth stack
is enabled).
Bluetooth
Communication The
Bluetooth Communication
icon appears in the task tray and indicates
that the mobile computer is communicating with another Bluetooth device
(Displays only if the StoneStreet One Bluetooth stack is enabled).
Operation 2 - 5
Figure 2-7
Status Bar Icons
Tap the Status Bar to display an icon bar. Tap an icon to get additional notification or status information.
Table 2-2
Status Bar Icons
Icon Description Icon Description
Notifications
Indicates a reminder of an upcoming
calendar event. Notification that one or more instant
messages were received.
Notification that one or more e-mail/text
messages were received.
There are more notification icons than can
be displayed.
Indicates that the backup battery is very low. Indicates that a wireless stereo headset is
connected to the MC55.
Connectivity
Connection is active. Connection is not active.
Synchronization is occurring. Wi-Fi available.
Wi-Fi in use.
Audio
All sounds are on. All sounds are off.
Vibrate is on.
Battery
Battery is charging. Battery has a full charge.
Battery has a high charge. Battery has a medium charge.
Battery has a low charge. Battery has a very low charge.
Battery
Audio
Connectivity
Notifications
Battery
Clock
2 - 6 MC55A0/MC55N0 Enterprise Digital Assistant User Guide
Figure 2-8
Icon Bar
Tile Bar
The Tile Bar, located at the bottom of the screen, contains the Start tile to open the Start Menu. It also
displays tiles that vary depending upon the open application.
Figure 2-9
Tile Bar Examples
Start Screen
To open the Start screen, tap at the bottom left corner of the screen, or press the START key on the
keypad.
Table 2-3
Task Tray Icons
Icon Name Description
Magnify Enlarges the screen.
Notifications Indicates that notifications are available.
Headset Indicates that a wireless stereo headset is connected to the MC55.
Connectivity Displays the Connectivity dialog box.
Volume Displays the Volume dialog box.
Power Displays the Power window.
Clock & Alarms Opens the Clocks & Alarms window.
Icon Bar
