Motorola MC18 Manual de usuario

MC18

Mobile Computer

Accessories Guide

What Ships with Every MC18

MC18

1x Battery

(Electronic User Guide

loaded onto device)

BTRY-MC18-27MAG-01 MC18 PowerPrecision + 2,725 mAh

Lithium-Ion Battery. Single Pack.

Step 1:

Choose a spare battery Spare Battery options

Standard Battery

BTRY-MC18-27MAG-10 MC18 PowerPrecision + 2,725 mAh

Lithium-Ion Battery. 10-Pack.

CRD-MC18-1SLOT-01

Cradle Options

Step 2:

Choose a charging method

CRD-MC18-3SLOTH-01

MC18 3-Slot Non-Locking

High Density Cradle.

3 Slot Cradles

PSS-3KY01-00R

Single-Slot Cradle Release Key. DOES

NOT WORK ON 3-SLOT CRADLES.

CRD-MC18-3SLCKH-01

MC18 3-Slot Locking

High Density Cradle.

CRD-MC18-3SLCKS-01

MC18 3-Slot Locking Super

High Density Cradle.

KT-MC18-CKEY-20

MC18 3-Slot Cradle Release Key

(QTY-20). Used to mechanically unlock

the MC18 Terminal from the 3-Slot

Cradles and 1-Slot Cradles.

3 Slot Cradle Accessories

KT-MC18-CTOOL-01

MC18 3-Slot Cradle Cover Removal Tool.

Designed for use where hand space is limited.

MC18 Single-Slot Locking Cradle.

All MC18 Cradles require PWRS-14000-241R, DC line

cord, and Country Specific AC line cord sold separately.

Single Slot Cradles

Single Slot Cradle Accessories

Step 3:

Choose cradle connection method: Single Slot Cradles

Step 1

•Power Supply: PWRS-14000-241R

•AC Line Cord: AC Line Cord Matrix

is located on the last page

Step 3

Standard - 1.0 AMP: 12 Cradles/Devices

Fast – 1.5 AMPS: 9 Cradles/Devices

Select one of each. Step 2

Select one DC Y Cable to connect power

supply to a maximum of 12 cradles.

(6 cradles MAX linked to each Y connector)

19.5 Inch 1 Meter 2 Meters

25-66210-

01R 25-67592-

01R CBL-MC18-

Y2MET-01

Choose your required charging mode.

Standard Charging Mode Fast Charging Mode

Choose the number of cradle interconnect cables and power

extension cables required based on the table below.

(12 Connected Cradles Max – 6 Max Per Y Connector)

Number of

Cradles 2 3 4 5 6 7 8 9 10 11 12

# of Interconnect

Cables required 1 2 3 4 5 5 6 7 8 9 10

# of Extension

Cables required 2 3 4 5 6 7 8 9 10 11 12

Number of

Cradles 2 3 4 5 6 7 8 9

# of Interconnect

Cables required 1 2 3 4 5 5 6 7

# of Extension

Cables required 2 3 4 5 6 7 8 9

Cradle Interconnect Cable

(12.6 inch): 25-66431-01R

Choose the number of cradle interconnect cables and power

extension cables required based on the table below.

(9 Connected Cradles Max – 6 Max Per Y Connector)

Power Extension Cable:

CBL-MC18-EXINT1-01 Cradle Interconnect Cable

(12.6 inch): 25-66431-01R Power Extension Cable:

CBL-MC18-EXINT1-01

Step 3:

Choose cradle connection method: 3-Slot Cradles

Step 1

•Power Supply: PWRS-14000-241R

•AC Line Cord: AC Line Cord Matrix

is located on the last page

Step 3

Standard - 1.0 AMP

4x 3-Slot Cradles / 12 Devices

Fast – 1.5 AMPS

3 x 3-Slot Cradles / 9 Devices

Select one of each. Step 2

Select one DC Y Cable to connect power

supply to a maximum of 12 cradles.

(6 cradles MAX linked to each Y connector)

19.5 Inch 1 Meter 2 Meters

25-66210-

01R 25-67592-

01R CBL-MC18-

Y2MET-01

Choose your required charging mode.

Standard Charging Mode Fast Charging Mode

Choose the number of cradle interconnect cables and power

extension cables required based on the table below.

(4 Connected Cradles Max – 2 Max Per Y Connector)

Number of Cradles 2 3 4

# of Interconnect Cables required 1 1 2

# of Extension Cables required 2 3 4

Number of Cradles 2 3

# of Interconnect Cables required 1 1

# of Extension Cables required 2 3

Choose the number of cradle interconnect cables and power

extension cables required based on the table below.

(3 Connected Cradles Max – 2 Max Per Y Connector)

Cradle Interconnect Cable

(12.6 inch): 25-66431-01R Power Extension Cable:

CBL-MC18-EXINT1-01 Cradle Interconnect Cable

(12.6 inch): 25-66431-01R Power Extension Cable:

CBL-MC18-EXINT1-01

Cradle Power Extension Cable. Connects

cradle to interconnect cable in order to lengthen

cable and allow for easier installation.

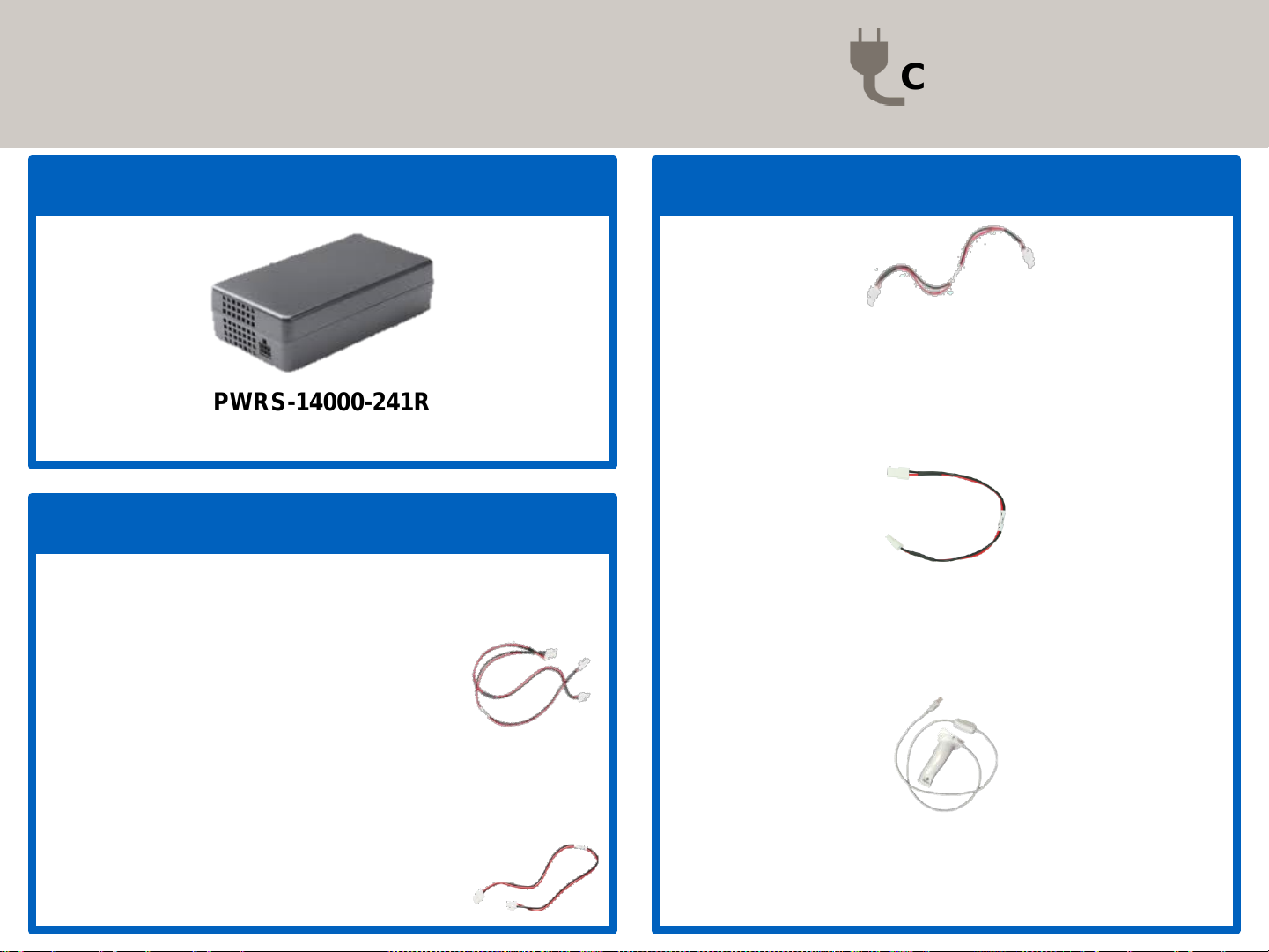

PWRS-14000-241R

PWR SPLY: 100-240VAC,12VDC, 9A .

Cradle Cables

Step 4:

Choose cradle accessories

Cables

25-66210-01R

DC Charging “Y” Cable 19.5 Inch (1 meter).

Runs from Power Supply

(PWRS-14000-241R) to two separate

charging cradles.

25-66431-01R

Cradle Interconnection Cable (12.6 Inch).

Connects Cradles to each other to run off

one power supply (PWRS-14000-241R).

Daisy Chain max = 6 Terminals per.

25-67592-01R

DC Charging “Y” Cable 39.7 Inch.

25-66431-01R

MC18 USB Client Communication Cable for

Cradle to the host system.

Power Supply

DC Cables

25-66420-01R

DC Charging Cable for use with 1-Slot Cradles

(19.5 Inch). Runs from the Power Supply

(PWRS-14000-241R) to one charging cradle.

Keys and Tools

Step 5:

Choose accessories

KT-MC18-CKEY-20

Release Key (20-Pack) for 3-Slot Cradles.

Used to mechanically unlock the MC18

Terminal from the 3-Slot & Single-Slot Cradles.

Keys and Tools

KT-MC18-REBOOT-05

Terminal Reboot Tool (5-Pack). This tool

can be reused to reboot the MC18 terminal

by connecting and holding the pins on the

tool to the terminal while holding down the

scan key for 10 seconds.

KT-MC18-CSTKIT-01

MC18 Deployment Starter Kit. Includes 20-pack of

Release Keys (KT-MC18-CKEY-20), 5-pack of

Terminal Reboot Tool (KT-MC18-REBOOT-05), and

1 Cradle Housing Tool (KT-MC18-CTOOL-01).

KT-MC18-CTOOL-01

Cradle Cover Removal Tool. The

MC18 Cradle Cover Removal tool aids

in the removal of the top housing of the

3-Slot Cradles.

PSS-3SH01-00R

This holder allows mounting the MC17 mobile

computer on a shopping cart.

Cartholder Mounting Kit

QTY-20

QTY-5

QTY-1

Deployment Kit

Step 6:

Choose an AC Line Cord

Country Three Wire Grounded AC Line Cord

Abu Dhabi 50-16000-220R: 1.8M long, CEE 7/7 plug.

Australia 50-16000-217R: 1.9M long, AS 3112 plug.

Bolivia 50-16000-220R: 1.8M long, CEE 7/7 plug.

Brazil 50-16000-727R: 18AWG, 250V, 16A, BR (3w).

China 50-16000-217R: 1.9M long, AS 3112 plug.

50-16000-257R: 1.8M long, IEC 60320 C13 plug.

Dubai 50-16000-220R: 1.8M long, CEE 7/7 plug.

Egypt 50-16000-220R: 1.8M long, CEE 7/7 plug.

Europe 50-16000-220R: 1.8M long, CEE 7/7 plug.

Hong Kong 50-16000-219R: 1.8M long, BS1363 plug.

India 50-16000-669R: 1.9M long, BS 546 plug.

Iran 50-16000-220R: 1.8M long, CEE 7/7 plug.

Iraq 50-16000-219R: 1.8M long, BS1363 plug.

Israel 50-16000-672R: 1.9M long, S132 plug.

Italy 50-16000-671R: 1.8M long, CIE 23-16 plug.

Japan 50-16000-218R: 1.8M long, NEMA 1-15P plug.

Korea 50-16000-220R: 1.8M long, CEE 7/7 plug.

50-16000-256R: 1.8M long, CEE7/7 plug.

Malaysia 50-16000-219R: 1.8M long, BS1363 plug.

New Guinea 50-16000-217R: 1.9M long, AS 3112 plug.

Russia 50-16000-220R: 1.8M long, CEE 7/7 plug.

Singapore 50-16000-219R: 1.8M long, BS1363 plug.

UK 50-16000-219R: 1.8M long, BS1363 plug.

US 23844-00-00R: 7.5 feet long.

50-16000-221R: 1.8M long, USA NEMA 5-15P.

Vietnam 50-16000-220R: 1.8M long, CEE 7/7 plug.
