Motorola LEX L10 Manual de usuario

LEX L10

MISSION CRITICAL

HANDHELD

QUICK START GUIDE

LEX L10

Welcome

The LEX L10 is a state-of-the-art device that

delivers many features and benefits in a mission

critical environment. This includes Push-to-Talk

and remote radio control that enable enhanced

communication on the move.

An electronic version of the LEX L10 User Guide

can be downloaded to the device. Tap the

Motorola Techdocs application icon, tap the

download icon, and then select the LEX L10

Mission Critical Handheld User Guide.

BEFORE USING THIS device, READ the LEX L10

Regulatory Guide (p/n MN001458A01) included

with the product package.

Getting Started

NOTE: The LEX L10 may be delivered to you with

SIM card and microSD card already installed,

activated and ready for use. In this case, ignore

steps 2 and 3.

To get started, perform the following steps:

1. Remove the screen protection film from the

screen.

2. Install the private and/or public SIM card(s).

3. Install the microSD card (if applicable).

4. Install the battery.

5. Install the battery cover.

NOTE: Ensure all battery cover snaps are fully

engaged.

6. Charge the battery.

Removing the Screen Protection Film

To enable proper operation of the LEX L10, the

screen protector must be removed before use.

Removing the Battery Cover

To remove the battery cover:

1. Hold the LEX L10 firmly as shown.

2. Using the battery cover removal slot, gently lift

the battery cover up and away from the LEX

L10.

Installing microSD Card

1. Slide the card into the card holder slot with con-

tacts facing down.

2. Push the card into the slot until it is fully seated

and locked into place.

Installing Public / Private SIM Cards

1. Slide the SIM card into the SIM card holder with

the contacts facing down. Note the card notch

position.

2. Push the SIM card into the holder until it is fully

seated and flat.

3. You should hear a click when the SIM card is

fully in place.

Installing the Battery

To install the battery:

1. Remove the battery from the packaging.

2. Insert the battery (bottom first) into the battery

compartment with the battery contacts facing

the bottom of the LEX L10.

3. Press the top of battery into place.

4. Press the battery cover into place.

NOTE: Ensure all battery cover snaps are fully

engaged.

Charging the Battery

To charge the battery:

1. Plug the USB cable into the USB charger.

2. Plug the USB charger into an AC wall outlet.

3. Lift the rubber flap that covers the USB port on

the bottom of the LEX L10.

NOTE: Ensure rubber flaps for USB port and

headset jack are firmly seated when those con-

nectors are not in use.

4. Plug the microUSB connector into the USB port.

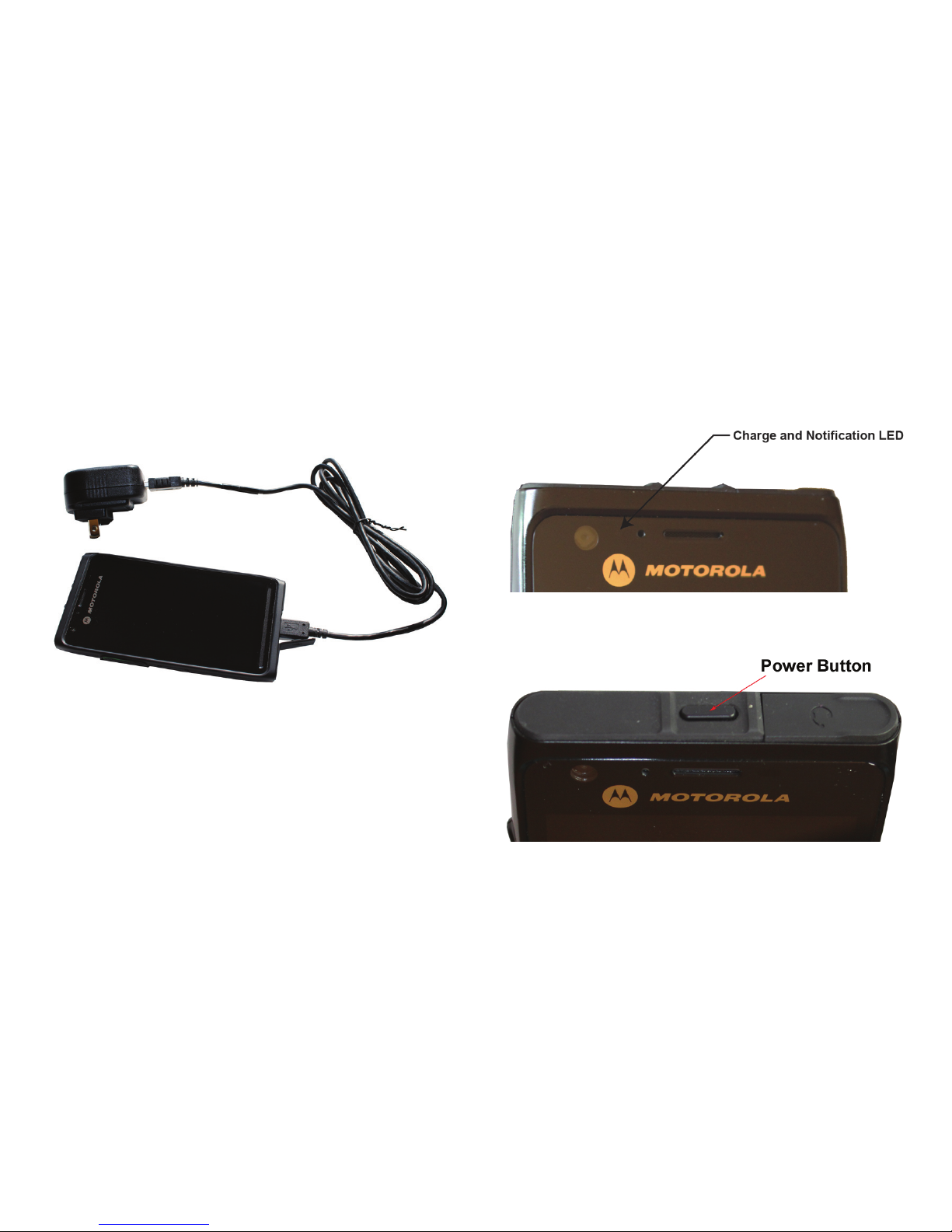

5. The charge and notification LED turns solid red,

indicating the battery is charging. When the bat-

tery is fully charged, the LED turns solid green.

Powering On / Off

Using the Front Panel Keys

• Back: Press to display the previous screen.

Closes the keyboard if the on-screen keyboard is

open.

• Home: Press to display the Home screen.

• Recent Apps: Press to display a list of recently

used applications.

Locking and Securing

Unlocking the Screen

1. Press the Power

button to wake up

the LEX L10.

2. Slide off the

screen.

Lock the Screen

Press and release the

Power button.

Setting Password

and Security

1. On the Home

screen, tap >

> Security >

Screen lock.

2. Choose a screen lock method.

The Home Screen

The Motorola

Solutions Home

Experience (MHx) is

the engine that

drives the user

interface of the LEX

L10. The Home

screen is completely

customizable

depending on the

specifications for

your agency. Each

organization may

have a different

Home screen.

Contact your

technical support for more information. This

screenshot shows an example of a Home screen.

Adding Widgets to the Home Screen

1. On the Home screen, press an hold an empty

area.

2. Tap Widgets.

3. Press and hold the desired widget, drag it to the

Home screen, and then release it.

Removing Widgets from Home Screen

1. Press and hold the widget until it enlarges -

X Remove is displayed on the screen.

2. Drag the item over X Remove until it turns red

and release. The item is removed from the

Home screen.

Switching Public / Private Phone

Modes

To switch between public and private carrier

modes:

1. Press and hold the Power button for at least

two seconds.

2. When a dialog box appears, tap Service

switch - the LEX L10 restarts.

Pair the LEX L10 with LMR Radio

This feature allows the LEX L10 to pair with and

remotely control a P25 Land Mobile Radio (LMR).

NOTE: When pairing with APX radio models, a

Mission Critical Wireless option must be enabled

on the radio.

To pair the LEX L10 with a radio:

1. On the radio, turn on the Bluetooth feature.

2. From the Home screen, tap > .

3. Place the blue pairing

point on the radio close

(no more than 2.5 cm) to

the blue pairing point on

the LEX L10.

• If the pairing process is

successful, the radio

sounds an incremental-

pitched tone to indicate

paired.

• If the pairing process

fails, the radio sounds a short, low pitched

tone.

Once a successful pairing is established, the

Bluetooth Connection screen is displayed for a

few seconds, followed by the Radio Services

application screen.

Connecting to a WiFi Network

To connect the LEX L10 to WLAN Network:

1. On the Home screen, tap .

2. Tap and set the WiFi option to ON.

3. Tap a WiFi network and enter Username and

Password information if required.

4. Wait until the WiFi network displays Con-

nected.
