Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 1

Compiled Ex lusively for MotoModders.net

MOTOROLA V3 DISASSEMBLY GUIDE

This guide will help you repla e housing parts and get to the inner

parts of your phone. I am in no way responsible for any damage

o urred to your phone. If you follow what I say to do in this guide

you should be ok. But you need a lot of time and patien e when

disassembling your phone.

YOU MUST READ EVERYTHING CAREFULLY!

!ONLY BUY HOUSINGS FROM CNN.CN, AS THEY ARE OEM!

Contents:

Steps 1 ~ 5 Fa ia Repla ement.

Steps 1 ~ 13 S reen Repla ement.

Step 20 ~ 37 Aerial Cover/Lower Front Housing Repla ement.

Step 20 ~ 55 Keypad and Flex Repla ement.

Step 62 ~ 64 Lens Repla ement.

Page 28 ~ 29 Keypad Hardware Fix, What to do if you don’t have the

plasti frame on your fa ia, or the battery lo k on your battery door:

Tools Needed:

S rewdrivers ~ T3, T4, T5, T6

Pre ision Tweezers

Mobile Phone Opening Tool

A pin

Brand new Glasses Cloth

S rew Sizes:

S reen S rews ~ T4

Rear S rews ~ T6

Mi S rews ~ T5

Right Flip S rew ~ T3

BEFORE YOU DO ANYTHING MAKE SURE YOU HAVE ALL OF

THE TOOLS NEEDED.

You an buy these from eBay or any other mobile phone website.

Take your time and don’t rush! Move away any drinks or liquid, and

have good light.

Right here we go!

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 2

Compiled Ex lusively for MotoModders.net

1. Turn off your v3, remove the battery and your sim ard.

2. Fli k out the small rubber s rew overs on the s reen. DO NOT

LOOSE these as they are extremely hard to get repla ements!

Use the pin to remove the bottom two.

3. Uns rew all 4 s rews using the T4 s rewdriver.

4. Use your nail to lift up the fa ia at the top orner of the amera

lens. This should ome up easily.

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 3

Compiled Ex lusively for MotoModders.net

5. Now use the mobile phone opening tool to slide up around the

edges of the fa ia, work down one side then the other. Then lift

the bottom part, it will be quite stiff but keep pulling. Don’t be

s ared you wont damage your phone. Then remove the hrome

buttons.

6. Fli k up the left ribbon with your nail.

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 4

Compiled Ex lusively for MotoModders.net

7. Cli k ba k the amera ribbon lo k, and remove CAREFULLY with

tweezers.

8. Lift off the silver lo king washers gently with tweezers. These are

at the bottom of the s reen.

9. Lift the small battery and ribbon off of the inner s reen housing.

Use tweezers to gently ease it up.

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 5

Compiled Ex lusively for MotoModders.net

10. Lift the speaker next to it, make sure the sti ky pad is still

atta hed. If not peel it off of the housing and sti k it to the speaker.

11. Lift the amera unit out with tweezers. There is a small hole in the

bottom orner of the unit to lift it out with.

12. Now to remove the side buttons. List ea h button off with

tweezers. DO NOT CUT THE RIBBONS! You an use a pin to get

behind the stu k down ribbon if ne essary.

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 6

Compiled Ex lusively for MotoModders.net

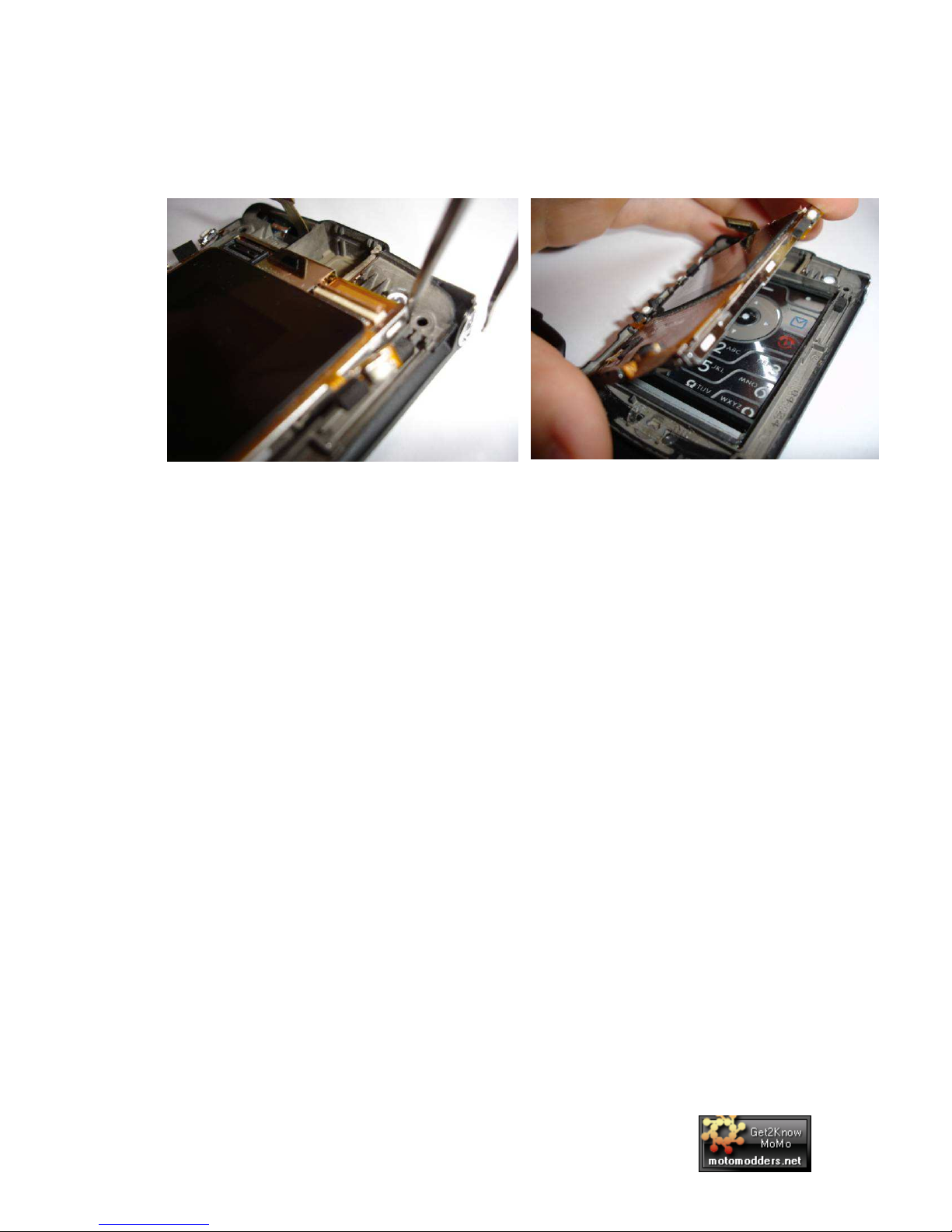

13. On e all of the buttons are unstu k and free from being stu k

down. Pla e the tweezers in the top right of the s reen, and slowly

start hinging it out. Keep lifting until it omes free.

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 7

Compiled Ex lusively for MotoModders.net

14. Lift the s reen out of the Inner s reen housing.

15. Your phone should now look like this:

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 8

Compiled Ex lusively for MotoModders.net

16. Remove the grey rubber amera housing and metal prote tor.

Pla e into the new housing.

17. Flip the phone over and remove the Right Flip S rew with the T3

s rewdriver.

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 9

Compiled Ex lusively for MotoModders.net

18. Flip the phone open and losed until the hrome flipper pops out.

If this doesn’t happen pla e the tweezers in between the bar on

the hrome flipper and ease out. Now remove the small metal part

and pla e this inside the new hrome flipper part with tweezers.

This is quite tri ky.

19. Open the flip up on the phone and turn it over. Push out the Left

Larger Flipper with a s rewdriver. MIND THE RIBBON!

Ajay16 Motorola v3 Disassembly Guide v1.1

Page: 10

Compiled Ex lusively for MotoModders.net

20. Turn the phone over and uns rew the 2 Rear S rews.

21.

The aerial over should separate slightly when lifted. Open it until

you an see the ribbon.
