1 J3500 Getting StartedModel T008

Sleep

Place your tablet in sleep mode when you go away for a short

period of time to conserve battery power. When you return,

the tablet quickly resumes activity and your desktop is the

same as you left it.

To put the tablet in sleep mode, press and release the power

button . To wake up the tablet from sleep mode, press the

power button again.

Tip The power button blinks when in sleep mode.

Getting Started with the Motion® J3500 Tablet PC

Locking and unlocking

To lock and unlock your tablet, press the Security button

on the right side of the tablet. It’s equivalent to pressing

Ctrl+Alt+Delete.

Using the pen

An important difference between traditional PCs and tablet

PCs is that you frequently use a digitizer pen instead of a

mouse and keyboard. A pen can feel more natural in your

hand than a mouse and you can use the pen while stand-

ing or walking. The J3500 pen has a pressure-sensitive tip,

eraser, and a function button. Pressing the function button

is equivalent to right-clicking a mouse.

function button

(right-click)

Pen tip eraser

Using touch (optional)

NoTe: Touch is an optional feature for the J3500.

In addition to using a pen, your J3500 Tablet PC may be

equipped with “touch,”which means you can use your ngers

to select items and open les, zoom in and out, scroll through

browser windows and documents and more.

Touch works like a mouse. Tap to select an item and double-

tap to open it.

Tip To open a right-click menu using touch, press your

nger on the display until a swirl appears, then lift your

nger and the shortcut menu appears.

Using the ngerprint reader

The J3500 comes with a ngerprint reader so that you can

log on to your tablet PC by scanning your ngerprint instead

of entering a password. This not only provides an added level

of security for your tablet, but it is also a fast and convenient

way to log on.

Power on and off

Shut down your tablet from Windows. Tap the Start menu

then tap Shut down. If Windows does not respond at all,

force the tablet to shut down pressing the power button

for about ve seconds.

Calibrate the pen and your nger so that they can be

detected more accurately on the touchscreen display. You

should do so when you rst start using the tablet and when

the pointer doesn’t align with your pen or nger. To start

the application, open the Motion Dashboard Pen & Tablet

category (see page 3).

Power button

Security button

Fingerprint readerBattery status light

2 J3500 Getting StartedModel T008

Using the buttons on the front of the J3500

You can use the buttons on the front of the tablet PC to perform many functions without having to use the pen. Press a button to perform

certain actions. Press and hold a button to perform a different set of actions.

microphone and ambient light sensor

Motion Dashboard

Motion QuickNav

Directional pad

Escape

Camera shutter

Press Press and hold

Triggers built-in

camera to take a photo Opens Windows photo

gallery

Starts Motion

QuickNav Opens Motion QuickNav

Voice Recorder

Starts Motion

Dashboard Opens Windows Journal™

Turns off the display Cancels the current task

Equivalent to the Esc key

Use to move the pointer or navigate through

documents. Equivalent to arrow keys on a key-

board. The center button is equivalent to Enter.

Customizing front panel buttons

As you become more familiar with your J3500, you may want to

customize the buttons on the front panel. For example, you can

congure the buttons to start your favorite program, run a

command or enter a key combination.

Using speech recognition

You can use speech recognition to interact with your tablet

PC by voice. Say a voice command, for example, to select an

item, open a le, scroll, select, correct or delete a word and

much more.

Before you can use speech recognition, you must congure

the microphones and train the system for the characteristics

of your voice.

To train your computer to recognize your speech

1. In Control Panel, tap the Ease of Access category, then tap

Speech Recognition.

2. Tap Train your computer to better understand you.

Also, take the Speech Tutorial to learn about all that you can

do with speech recognition.

To take the speech tutorial

1. In Control Panel, tap the Ease of Access category, then tap

Speech Recognition.

2. Tap Take Speech Tutorial.

For more information about speech recognition, search

Windows Help and Support for “speech recognition.”

3 J3500 Getting StartedModel T008

Motion Dashboard

Tap the Dashboard icon to open the Motion Dash

board application. Use the Motion Dashboard to

change common tablet settings.

Windows Taskbar

The taskbar at the bottom of your desktop displays applica-

tions that come with your J3500.

•Motion Dashboard Motion application changing tablet-

related settings.

•Motion QuickNav User interface designed for touch

devices. You can use this to access the web and

documentation cameras.

Motion

Dashboard

Motion

QuickNav

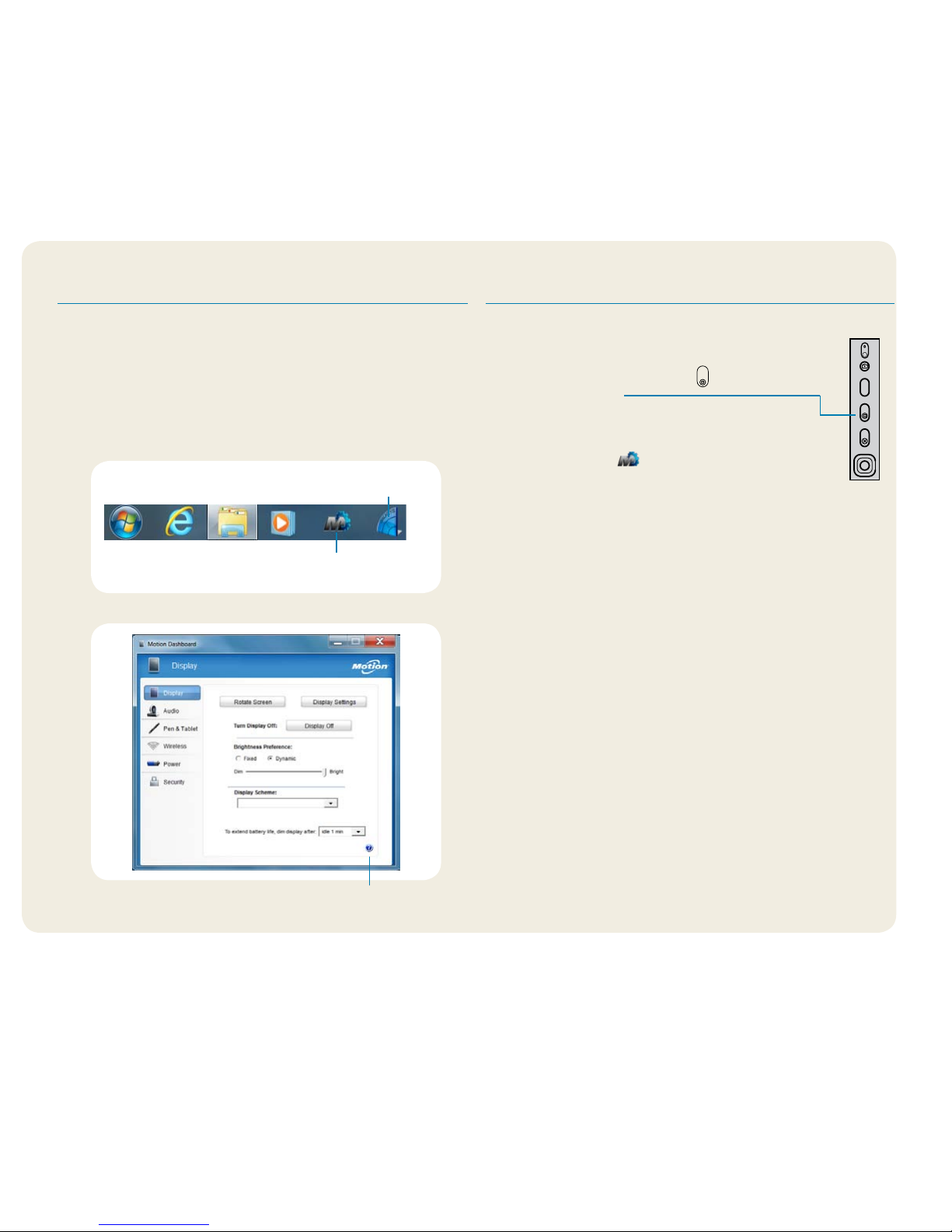

Windows taskbar

help icon

Motion Dashboard

The following table lists some of the tasks you can perform

using the Motion Dashboard.

Category Task

Display Rotate the display orientation

Adjust the brightness of the display

Set up an external display

Audio Adjust speaker and microphone volume

Suppress background noise

Pen &

Tablet Congure touch to use your nger only, pen

only or both your nger and a pen

Congure front panel buttons

Adjust touch to left-handed setting

Wireless Enable and disable Wi-Fi, Bluetooth® and

mobile broadband

Choose to have wireless disabled when the

system starts up

Power Dim the display to save power

Change what the power button does when

pressed: sleep, hibernate or shut down

Security Set up the ngerprint reader

Motion Dashboard

The Motion Dashboard provides a convenient way to change

common tablet-related settings.

To open Motion Dashboard

•Press the Dashboard button located on the front

of the tablet PC.

•From the Windows task bar, tap the Motion

Dashboard icon .

4 J3500 Getting StartedModel T008

Set up wireless

The J3500 comes with built-in Wi-Fi and Bluetooth. Your tab-

let may also be equipped with mobile broadband for access-

ing the Internet. To set up available wireless networks, follow

the steps on this page:

Step 1. Enable wireless from Motion Dashboard

1. From the task bar, tap the Dashboard icon .

2. Tap Wireless.

3. Tap the check boxes next to all wireless networks you intend

to use:

•Enable Bluetooth Internal Wireless

•Enable 802.11 Internal Wireless

•Enable Mobile Broadband with GPS*

Tip If mobile broadband is not listed, your J3500 is

not congured with a mobile broadband module.

Step 2. Set up Wi-Fi

1. From the notication area tap the wireless network icon .

2. Select a wireless network from the list of available networks.

Step 3. Set up Mobile Broadband with GPS (optional)

If you purchased your J3500 with the optional mobile broad-

band module, you can connect to high-speed cellular net-

works worldwide. With the mobile broadband module and a

data plan from one of several cellular network providers, you

have full Internet access.

NoTe: Before you can connect to a mobile broadband

network, you must have an active account with a cellular

network provider. Some providers require a SIM card for

mobile broadband access. If you are not sure whether

you need one, contact your mobile broadband provider.

To set up mobile broadband

1. Start the Motion Connection Manager. From the Start menu,

select

All Programs > Motion Computing > MotionCM.

2. Tap the help icon and follow the instructions

provided in the topic Setting up mobile broadband.

If you purchased the optional mobile broadband module,

your tablet PC has GPS capabilities. You can use GPS with

your preferred mapping applications to nd your current

and destination locations.

To use GPS

•From the notication area, tap the mobile broadband

icon then tap Start GPS.

Step 4. Set up Bluetooth

The J3500 has a built-in Bluetooth adapter to connect to

other Bluetooth enabled devices.

To add a Bluetooth device

1. From the notication area, tap the Bluetooth icon

and select Add a Device.

2. Make sure the Bluetooth device is discoverable according

to the device manufacturer’s instructions. When a Bluetooth

device is discoverable, it is visible to other Bluetooth devices

within range.

3. Select the desired Bluetooth device from the list of devices.

4. Follow the on-screen instructions.

Tip To make the J3500 visible to other devices, tap the

Bluetooth icon then select Open settings. On the

Options tab, select Allow Bluetooth devices to

connect to this computer.

5 J3500 Getting StartedModel T008

Motion QuickNav

Motion QuickNav is a user interface application designed

specically for touch. You can useMotion QuickNav to:

•Take photos and insert them directly into your

documents or email

•Add geographical information to photos if your tablet

has GPS which comes with the mobile broadband

module (see page 4)

•Record video clips

•Record or play back voice notes

Using the documentation camera

Your tablet PC may have an integrated 3-megapixel auto-

focus camera. You can use the camera to take pictures and

save them on the tablet PC. The camera lens is on the back

of the unit and includes a light to illuminate the subject.

Tip You can hide the Motion QuickNav tool bar while it is

running. From the notication area, tap the Motion

QuickNav icon. Tap it again to reopen it.

Windows notication area

Starting Motion QuickNav

To start Motion QuickNav

1. Tap the Motion QuickNav icon from the taskbar.

The Motion QuickNav keyboard appears at the bottom of

your desktop.

2. Tap the Motion QuickNav tool bar icon located on the

bottom left of the keyboard to open the Motion QuickNav

tool bar.

3. Tap the QuickNav tool you want to use.

To take a photograph

1. Open the Motion QuickNav tool bar then and tap the camera

icon to open the camera viewnder.

2. Make sure the folder icon is selected under the Actions

menu.

3. Tap the geotag icon to add geographical information

and the time stamp icon to add date and time informa-

tion to your photos.

4. Frame the subject of your photo in the viewnder and tap

the shutter icon to take the photo.

5. As you continue to take photos, they appear in the tempo-

rary folder located on the left of the viewnder.

6. Select a photo on the left to display it in the edit window.

Tap an icon from the edit tool bar at the bottom of the edit

window to make changes. For example, tap the pencil icon

to write on or highlight the photo.

7. When nished editing the photo, tap the camera icon to

return the viewnder.

NoTe Your edits are saved automatically.

8. By default, the photos are saved automatically in a folder

called New Pictures under the Documents\Camera folder.

9. When you’re done taking photos, tap the close icon to

close the viewnder.

10. To close Motion QuickNav, tap and hold the QuickNav icon

in the notication area and select Exit.

Tip Make sure you don’t cover the camera lens located on

the back of the tablet.

6 J3500 Getting StartedModel T008

Tablet PC Input Panel Writing Pad

Tap the keyboard icon to open on-screen keyboard:

Tip Resize the keyboard panel by dragging the handle at

the bottom right of the keyboard.

Enter text with the input panel

You can enter text by either tapping characters on an on-

screen keyboard or writing on a virtual note pad. When you

write on the writing pad, your handwriting converts to digital

ink. “Digital inking” is the process of converting your hand-

writing to text. In the writing pad below, someone started

writing Motion Computing and “Motion” has already been

converted into digital ink.

Tip Tap the icons at the top of the input panel to view

videos on making editing gestures. To hide the video

tips, tap the icon on the right.

Video demonstrations

of writing tips

keyboard

icon

writing

pad icon

writing

pad

To open the input panel either

•Tap at the place you want to enter text, such as

in a text box. Then tap the input pane icon

•Tap the input panel tab on the left edge of the

screen

To write numbers quickly, use the numbers pad. To open the

number pad, tap the Num key at the bottom of writing pad.

You can use the Home, Delete, Print Screen and other

special keys with the expanded keyboard. Tap Tools at the

top of the input panel and select Show expanded keyboard.

Tip Use the handwriting recognition application to train the

J3500 to recognize your handwriting style. To start the

application, open the Motion Dashboard Pen & Tablet

category (see page 3). Tap Pen & Input Devices then

the Handwriting tab.

7 J3500 Getting StartedModel T008

Battery tips

•Use AC power when available. When the J3500 Tablet PC

is plugged in, the battery charges while using the tablet.

•Put your tablet in sleep mode when you are not using it.

•Stop unnecessary background applications and processes.

•When not in use, disable wireless adapters from the

Motion Dashboard Wireless page.

•Set the brightness of the display to automatically dim

after a selected number of minutes of inactivity using the

Motion Dashboard Display page.

•When using mobile broadband, reduce how often the

J3500 updates email and other Internet applications to,

perhaps, once every half-hour.

•Disable mobile broadband where you know a signal is

unavailable.

•Condition your battery once a month. To condition it, run

the tablet on battery power until the battery’s charge level

drops below 20 percent.

•For long-term storage, the battery should be charged to a

level between 20% and 40% and removed from the tablet

PC.

For more power tips, see Motion Computing Tips and Tricks.

Using the battery

The J3500 includes two battery bays for high-capacity

Lithium-ion batteries. Under normal conditions, you can run

the tablet PC on battery power for about three hours with

one battery and about seven hours with two batteries

If a second battery is not installed, the second bay holds a

non-functioning battery cartridge.

Checking battery power

You can check the remaining battery power from several

places.

•Open the Motion Dashboard Power page and view the

value under Remaining charge.

•From the notication area, tap the power indicator, which

appears differently depending on whether the tablet is

plugged in or running on battery.

– If the tablet is plugged in, tap the plug icon .

– If the tablet is on battery power, tap the battery icon .

•From the battery status light located on the right side of

the J3500 (see page 1).

Green indicates that the battery is fully charged.

Amber means that the battery is charging.

If the light is not on, the battery is not charging and the

tablet PC is running on battery power. Pen and Touch tips

•You can change from right- to left-handed use. From

Motion Dashboard Pen & Tablet category, tap Tablet PC

Settings, tap the Other tab, then tap Left-handed.

•You can open items with one tap (instead of two) and

select an item by pointing to it. From the Control Panel,

tap Appearance and Personalization, Folder Options,

then tap Specify single- or double-click to open. Tap

Single-click to open an item (point to select).

8 J3500 Getting StartedModel T008

Become a fan on Facebook

http://www.facebook.com/MotionComputing

Motion Computing and Motion are registered trademarks of Motion Computing, Inc. in the United States and other countries. All other trademarks are

properties of their respective owners. Microsoft, Windows, and Windows Journal are trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

Learn more

The purpose of this Getting Started document is to introduce

you to your tablet’s features and provide you with tips for you

to become familiar with your tablet quickly:

The J3500 User’s Guide provides more information about the

features introduced here. You can view this and other J500

manuals at motioncomputing.com/docs.

In addition to our manuals, you can get information from our

website:

•Motion Support

•Motion Knowledge Base

•Free online training videos

•J3500 accessories

•Software for the J3500 Tablet PC

General tips

•Use only the J3500 pen or your nger on the display. The

tablet does not respond to any other type of pen or stylus.

•Store the pen in the pen bay when not in use. To store the

pen in the pen bay, insert it into the bay and press it until

it clicks. To remove the pen, press it again. If you have the

pen tether attached, ensure that you have released the

pen before you pull it out using the tether.

•When attaching the pen tether, slip one end of the tether

through the hole at the end of the pen and pull the pen

through the loop until it is tight. Then, slip the other end

of the tether through the attach point and pull the pen

through the loop until it is tight.

•Clean ngerprints and smudges from the display surface

by wiping it with the display cloth provided. If needed,

use a cleaning solution recommended by Motion

Computing to clean the display. Spray the solution on the

cloth then wipe the display. See the recommended list of

tested solutions on our website.

•You can nd the serial number of the tablet PC in one of

the battery bays of the tablet PC.

Otros manuales para J3500

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Tableta de Motion Computing

Motion Computing

Motion Computing J3500 T008 Manual de usuario

Motion Computing

Motion Computing M1400 Instrucciones de instalación y funcionamiento

Motion Computing

Motion Computing CFT-003 Manual de usuario

Motion Computing

Motion Computing LE1600 Manual de usuario

Motion Computing

Motion Computing CL910 FWS-001 Manual de usuario

Motion Computing

Motion Computing LE1700 Series Manual de usuario

Motion Computing

Motion Computing LE1700 Series Manual de usuario

Motion Computing

Motion Computing LE1600 Manual de usuario

Motion Computing

Motion Computing C5 Manual de usuario

Motion Computing

Motion Computing CL910 FWS-001 Manual de usuario

Motion Computing

Motion Computing C5 Manual de usuario

Motion Computing

Motion Computing C5 Manual de usuario

Motion Computing

Motion Computing FWS-001 Manual de usuario

Motion Computing

Motion Computing Motion F5 Manual de usuario

Motion Computing

Motion Computing CL900 Manual de usuario

Motion Computing

Motion Computing LE1600 Manual de usuario

Motion Computing

Motion Computing J3400 Manual de usuario

Motion Computing

Motion Computing LE1700 Series Manual de usuario

Motion Computing

Motion Computing Motion C5v Manual de usuario

Motion Computing

Motion Computing J3600 Manual de usuario

Motion Computing

Motion Computing C5 Manual de usuario

Motion Computing

Motion Computing M1400 Manual de usuario

Motion Computing

Motion Computing CFT-003 Manual de instalación y funcionamiento

Motion Computing

Motion Computing M1400 Manual de usuario

Manuales populares de Tableta de otras marcas

Laser

Laser MID-1060 Guía del usuario

MUNBYN

MUNBYN IRT09J Guía de inicio rápido

Motorola

Motorola MC3090R - Win CE 5.0 Professional 520 MHz Manual de usuario

Dell

Dell Latitude ST Manual del propietario

Lenovo

Lenovo IdeaTab S6000L Manual del propietario

Venturer

Venturer WT9L11 Manual de usuario

EDUGEAR

EDUGEAR UnoBook Manual de usuario

Philips

Philips PI3210G/58 Manual de usuario

ADLINK Technology

ADLINK Technology IMT-BT Manual de usuario

TwinMOS

TwinMOS TwinTAB-T102D1 Manual de usuario

Archos

Archos 9.7 xenon Manual de usuario

Getac

Getac E100 Manual de usuario

HANNspree

HANNspree HANNspad SN70T3 Manual de usuario

Philips

Philips PI3105W2/55 Manual de usuario

LG LG-V935 Manual de usuario

Zeki

Zeki TBDB763B Manual de usuario

Ricoh

Ricoh eQuill Manual de usuario

DT Research

DT Research DT365CT Instrucciones de montaje
