WARNINGS

Component list

To open stroller

To attach/remove the front wheels

To apply the brakes

To attach canopy

To operate the front wheel swivel locks

To fold the stroller

To secure your child

To use the tether strap

To attach/remove the Safety 1 one safe infant carrier

Product care and maintenance

Customer service

page 7

To fit the bumper bar

To adjust the footrest

page11

page12

To attach drink holder

To adjust the backrest

To attach/remove the Safety 1 one safe

infant carrier(cont) st

To attach/remove the rear wheels

Instruction Manual & User Guide

Failure to do so could result in serious injury or death.

WARNINGS

 FOLLOW THE MANUFACTURE’S INSTRUCTIONS.

 DO NOT LEAVE CHILDREN UNATTENDED.

 MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ARE FOLDING,

UNFOLDING OR ADJUSTING THE STROLLER, OTHERWISE THEY MAY BE INJURED.

 PUT ON ALL BRAKES WHENEVER YOU PARK THE STROLLER.

 DO NOT CARRY EXTRA CHILDREN OR BAGS ON THE STROLLER, UNLESS IT IS AN

APPROVED ACCESSORY.

 Secure the child in the harness at all times.

 Ensure that the safety harness is adjusted firmly but comfortably to the child’s body.

 A harness can form loops that may be a strangulation hazard. Never leave harness straps

connected when not fitted to a child in the stroller.

 Check that the stroller is fully erected and all safety locks are engaged before placing a child

in the stroller, otherwise they may be injured.

 Do not allow children to stand on the seat or footrest.

 Do not attempt to lift the stroller by the bumper bar or child tray, if it has one.

 Do not run or jog with this stroller.

 Remove child from stroller before going up or down stairs or escalators.

 Never put hot liquids in the cup holder, (if fitted).

 Do not use the stroller near an open barbecue or exposed flame.

 Engage front wheel swivel locks (when fitted) when travelling on rough or uneven surfaces.

 This product is not intended for commercial use.

 Regularly inspect the stroller for any parts that are loose, broken, torn or missing. Attend to

the problem as soon as it is observed.

 Use only those accessories which are supplied by IGC Dorel, and approved for use with this

stroller.

 Use the tether strap to prevent the stroller rolling away.

 Keep children away from the stroller when unfolding and do not let them play with the folded

stroller.

 The weight of the child shall not exceed 17kg.

Carry basket capacity 4kg.

MC-Carter Stroller-10-11

Maximum weight for GULQN holder should not be more than 0.5kg

 To avoid danger of suffocation, keep any plastic bags away from babies and children.

Instruction Manual & User Guide

Components List:

Safety

MC-Carter Stroller-10-11

Accessories

Handles

Canopy

Canopy lock

Harness shoulder

pads

Storage latch

Rear wheel

assemblies

Footrest

Front wheel

assemblies

Front wheel

swivel

locks

Carry basket

harness

Carseat Adaptor Accessories (Sold seperately)

Safety 1st one safe infant carrier

Tether strap

Brake lever

Instruction Manual & User Guide

TO OPEN STROLLER

If thestroller has a security tie, please remove it.

Placethe stroller on the with the handles facing downwards.

Releasethe storage latch, as per Figure 1.

Lift thehandle upwards DQGaway from the front legs, as per Figure 2.

Continuethis action until the frame is fully open, as per Figure 3.

Engagethe lower frame lock by pressing it down into the locked position,

as per Figure 4.

Assembling: Carter Stroller

Figure 2

Figure 1

Figure 3 Figure 4

Ensure that both the upper and lower frame locks have fully engaged before

placing a child in the stroller.

MC-Carter Stroller-10-11

Instruction Manual & User Guide

Assembling: Carter Stroller (cont)

TO ATTACH/REMOVE FRONT WHEELS

Align the front swivel wheel assembly with the end of thefront wheel post.

Put the front wheel into the front wheel post,

as perFigure 5A.

Pull on the wheel assembly, to ensure that it has locked in place.

Front wheel assembly should be able to swivel freely.

Figure 5 B

To remove the wheel assembly, depress the button

in the end of the post and remove, as per Figure 5B.

and push until you hear a ‘click’. Repeat for the other wheel.

MC-Carter Stroller-10-11

TO ATTACH/REMOVE REAR WHEELS

Align the rear wheel assembly with the end of the rear wheel post.

Figure 5 A

Make sure to attach left and right wheels onto the correct post, as per Figure 6A.

Put the rear wheel into the rear wheel post,

as per Figure 6A.

and push until it has locked in place. Repeat for the other wheel.

To remove the wheel assembly, depress the button

in the end of the post and remove, as per Figure 6B.

Figure 6 A Figure 6 B

both sides underneath the footrest,

Instruction Manual & User Guide

Using: Carter Stroller

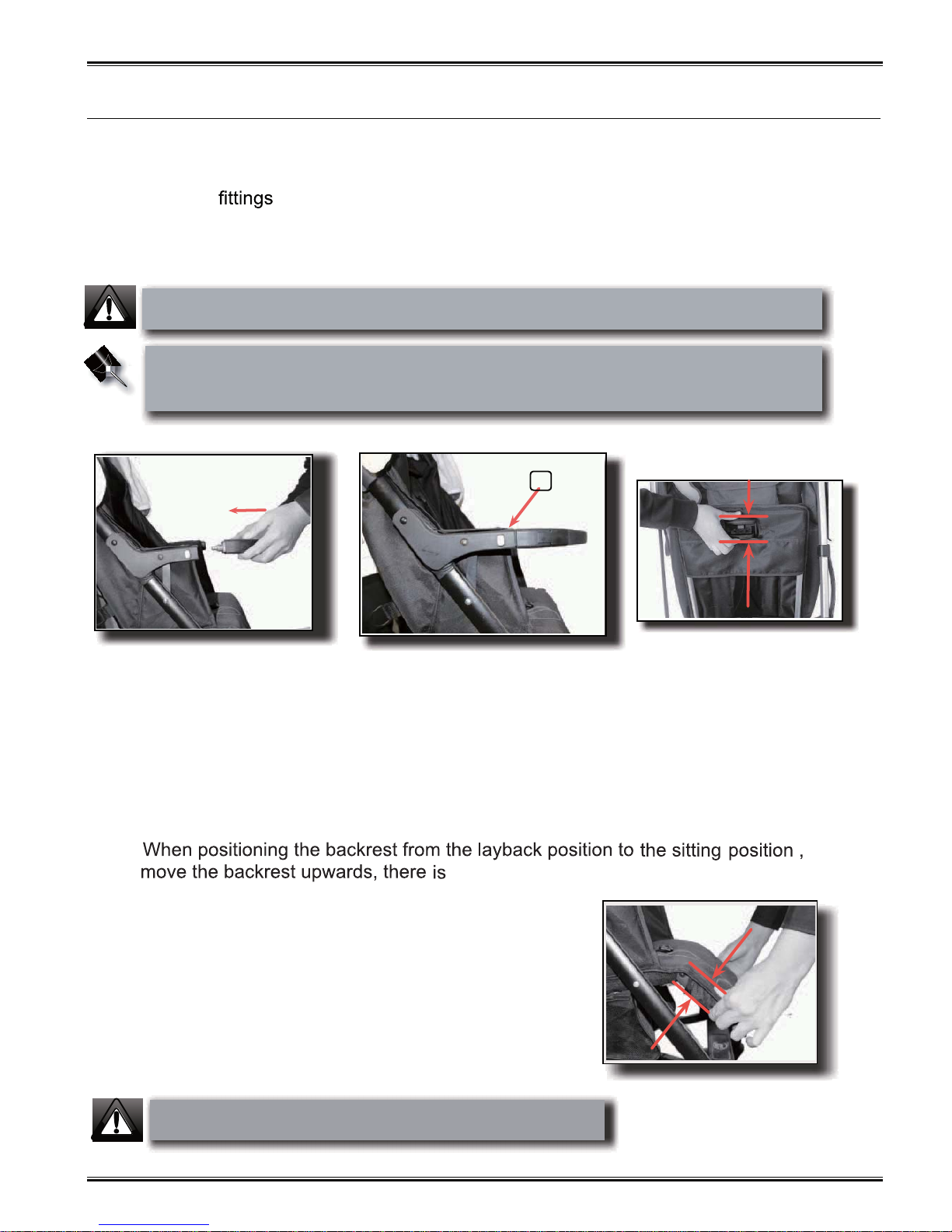

TO FIT THE BUMPER BAR

Align the on each end of the bumper bar with the hole on the front of the

Insert the bumper bar, untill it ‘clicks’ locking into place,as per Figure 7.

Figure 7

TO ADJUST THE FOOTREST

Holdand press

as per Figure10.

Adjust the footrest to the desired position.

Figure 8

Figure 10



ǡ



ϐǡFigure 7 .

end of the releasing latches on

TO ADJUST THE BACKREST



Figure 9

ȋȌ

ǡǡͺǤ

Ǥ

armrest.

To recline the backrest, hold the top of backrest adjuster and pull up the

lower lock, then release the backrest to desired position, as per

Figure9.

MC-Carter Stroller-10-11

7KHEDFNUHVWFDQEHDGMXVWHGWRSRVLWLRQVRIUHFOLQH

no need to operate the adjuster lock.

Instruction Manual & User Guide

Using: Carter Stroller (cont)

TO APPLY BRAKES

Press down on the red brake pedal, as per Figure 11. .sleehwraerhtobnodegagneyllufevahsekarbehttahterusnE .

Figure 11

To fold/unfold canopy

push the canopy forward(A), then lock into

canopy locks (B) (one on each side of the

canopy), as per Figure 12B.

The swivel wheel assembly can be locked in the straight forward direction or

unlocked to rotate freely.

Push the slider (Arepsa,nwodylbmessaehtfoelddimehtnidetacol) ,31erugiF

to lock the front wheel.

To release, lift the red brake pedal until the brakes have fully

disengaged .

To close canopy,lift the centre of the canopy locks on each

side of the canopy and push the canopy backwards.

with the

To open canopy,

position

Push the slider ( )located in the middle of the assembly

Bup,as per Figure

to unlock the front wheel. 14,

MC-Carter Stroller-10-11

TO ATTACH CANOPY

Fix canopy holder(A) onto the front tubes each side and make

sure that the pin point inside canopy holder(A) come into the

hole on tube, as per Figure 12A. AAA

Figure 12 B

Figure 12 A

TO OPERATE THE FRONT WHEEL SWIVEL LOCK

Figure 13 Figure 14

Instruction Manual & User Guide

TO USE TETHER STRAP

TO SECURE YOUR CHILD

7KH harness strapscan be adjusted by moving each

strap slider.

7KH buckle

is

released

by squeezing the buckle tongues

together.





 ϐǦ    Ǥ

ǡ

   .



Ǥ



ǡǡ

Ǥ

Using: Carter Stroller (cont)

TO FOLD THE STROLLER

 Release the canopy locks, then fold the canopybackwards.

 Lift the lower frame lock upwards, as per Figure 15.

 Press down the foot activated frame lock, as per Figure 16.

 Push the handles fully forward to fold the stroller. then apply the storage latch.

Figure 15 Figure 16

TO ATTACH THE DRINK HOLDER

Align the GULQN holder connector with the attachment

bracket on the handle, then push down to ensure the

Ȉ To remove the bottle holder,push the bottom of the drink

holder firmly then remove.

MC-Carter Stroller-10-11



drink holder is locked into place.

Instruction Manual & User Guide

Using:Carter stroller

TO ATTACH/REMOVE THE SAFETY 1 ONE SAFE

INFANT CARRIER

The Safety 1st One Safe Infant Carrier can only be in the mother facing baby

position,

as per Figure 17.

Stand the stroller upright, then apply the brake.

Ensure adapters are inserted into the frame armrests, as per

Align the One Safe Infant Carrier to the adaptors,as per Figure 19.

push down both sides of the Infant Carrier onto the

stroller frame.

Lift the Safety 1st One Safe Infant Carrier to check the seat is locked into position.

Figure 17

To remove the Safety 1st One Safe Infant Carrier. Push in the seat release buttons (A)

located

on each adaptor, lift the seat off the adapters, as per

Figure 19.

Figure 18

Safety 1st

Figure 18.

Figure 19

Release the fabric covers from two sides of frame armrests.

One Safe

Figure 19.

For adjustment Please consult the instruction manual provided

To remove the adapters. Push in the adapters release buttons (B) located on each adaptors

lift the adaptors off the frame, as per

and operational features,

Close the fabric cover on the frame armrest.

with your Safety 1st One Safe Infant Carrier.

MC-Carter Stroller-10-11

Figure 19.
