Read these instructions carefully before use and keep them for future reference.
Your child's safety may be affected if you do not follow these instructions.
This vehicle is intended for one child from birth (0 months) and up to a maximum
weight of 15 kg. This vehicle is designed to carry one child only.
Safe travelling advice for you and your baby
Pushchairs are an ideal way of transporting your baby. It is important to
remember however, that during their first six months, babies should be spending
most of their day lying flat for comfort and development
1introduction
important information, , informations importantes, Wichtige
Informationen, σηµαντικές πληροφορίες, , ważna Informacja, важная
информация, información importante, Önemli bilgi.
?
© Mothercare UK Ltd. 2010
fig 1a
Xtreme chassis with hood
and shopping basket
fig 1b
Clear plastic Weathershield™
fig 1g
Tyre Pump
fig 1c
Detachable bumper bar
fig 1d
2 rear wheels, 1 front wheel
fig 1e
Front footplate, 4 screws.
Fabric pack 3 screws with
sadle washers.
fig 1f
Cosy toes

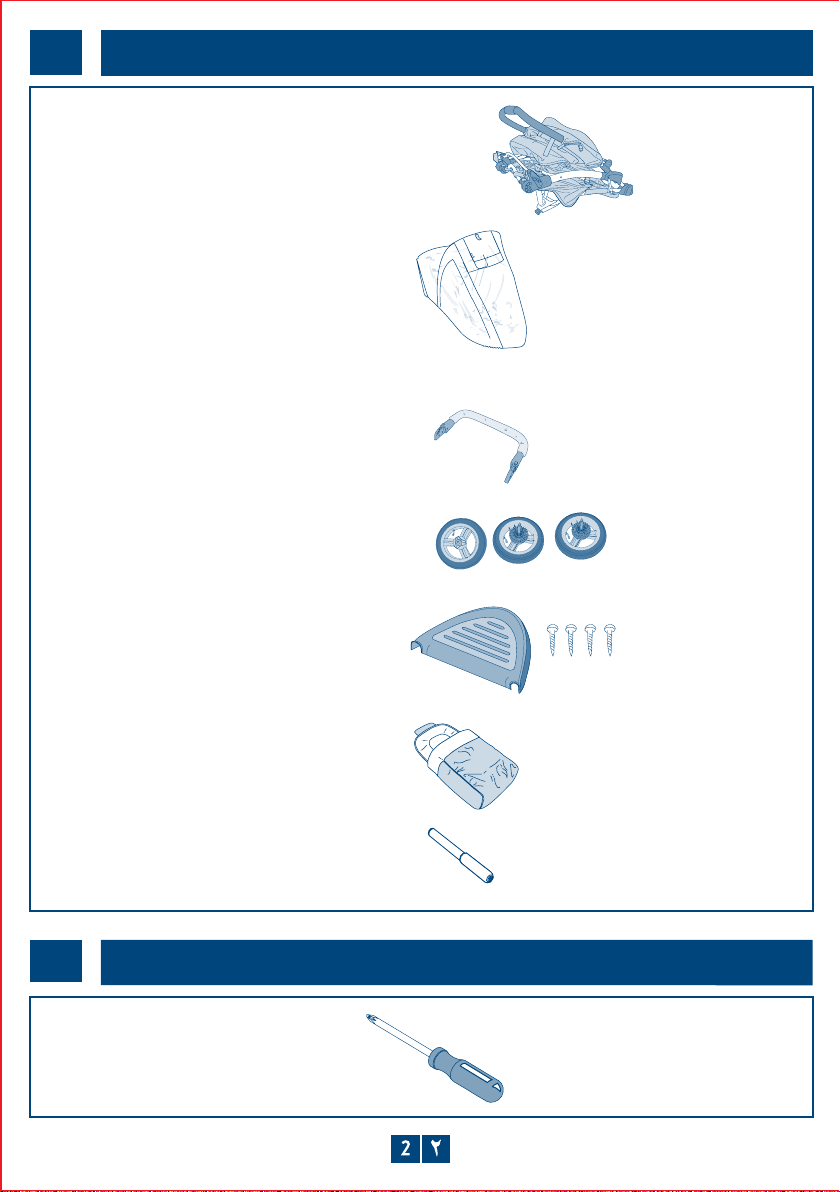

parts check list
2
tools for assembly
Tools needed:
crosshead screwdriver
3
© Mothercare UK Ltd. 2010
Unfasten the folding latch on the side of the
chassis. There is only one.
Remove all packaging materials from the
chassis. Lay the chassis on the floor with the
seat facing upwards and the handlebar
facing towards you.
unfolding the chassis
Unfold the three wheeler by lifting the
handle upwards. As the three wheeler opens,
keep lifting the handlebar until you hear a
click and the locks on both sides are fully
engaged.
preparation for use
4
fig 2
fig 3
fig 4
© Mothercare UK Ltd. 2010
fitting the foot plate
fitting the fabric to the foot plate
preparation for use
4
Fit the footplate and secure using the
4 screws supplied.
fitting the front wheel
fig 6
fig 5
fig 7 fig 7a
Fit the fabric to the footplate and secure using
the 4 poppers.
Unscrew the quick release
lever enough so the wheel
can be fitted to the forks.
Ensure that the quick
release nut and lever are
past the out turn of the
fork, and that the plastic
cones are on the inside of
the fork.
© Mothercare UK Ltd. 2010
preparation for use
4
pumping up the tyres
attaching the bumper bar
The tyre pump is secured in the shopping basket. The three-wheeler’s tyres are supplied only partially
inflated. Inflate tyres until firm. Do not over inflate them.
fitting the rear wheels
Insert the spindle on each wheel into the
wheel joint. When fully in, pull gently on each
wheel to check that they are secure.
Insert the ends of the bumper bar into the
armrests. Check the bumper bar is securely
in place by pulling it.
To remove, press the release clips
(underneath the armrests) on both sides and
pull out.
fig 8
fig 9
With the quick release lever open,
tighten in a clockwise direction
untill wheel is secure. Rotate the
lever from the open position to the
close firmly lock wheel in place.
fig 7b fig 7c
© Mothercare UK Ltd. 2010
in use
5
harness
Push down firmly on the brake bar between
the rear wheels to engage the brake. Check
the brake is on by trying to gently push
the three-wheeler. Lift the brake bar up to
release.
operating the brake
To fasten, insert both fasteners securely into
clasp. Adjust each strap length with buckles A.
To release, press the fastener prongs and
pull apart. ‘D’ rings (B) are provided for fitting
a separate harness complying with BS6684
or EN 13210.
Warning. Ensure your child wears a correctly
fitting harness at all times.
IMPORTANT:
From 6 months and
upwards the waist straps
need to be removed
from the inner loops (A).
fig 10
fig 10a
fig 10b
fig 11
0-6
months 6+
months
© Mothercare UK Ltd. 2010
in use
5
The seat back can be lowered by pressing
the fastener prongs on the clasps and
releasing the straps. To raise the seat,
re-attach the clasp and pull the straps until
the desired seat height has been reached.
reclining the seat
adjusting the front wheel swivel
The front wheel can be locked to prevent
it from swivelling. It is recommended that
you do this when travelling across rough or
uneven ground.
To lock the front wheel, pull out the button
on the front of the footplate above the
front wheel. Twist the button until it clicks
and then push it back into place. The wheel
will no longer swivel. To unlock the wheel,
repeat these steps.
fig 12
fig 12b
fig 13
© Mothercare UK Ltd. 2010
hood
The hood can be pulled forward during use
to help protect your child from wind or bright
sunlight.
in use
5
Fit the Weathershield™ on top of the hood.
The foot end of the Weathershield™ is
elasticated to fit around the footplate of the
three wheeler. There is an adjustable flap to
provide extra ventilation.
fitting the Weathershield™
fitting the cosy toe
Unclip the shoulder straps and undo the clasp,
so that the five harness straps are free. Unzip and
remove the front cover. Place the fleecy liner onto
the seat with the fastening flap at the top. Thread
the harness straps through the corresponding
holes in the liner. Fold the flap over the top of the
seat and press it down onto the velcro fastener.
Re-attach the harness straps to the clasp.
fig 14
fig 15
fig 16
© Mothercare UK Ltd. 2010
The cosy toe cover can be zipped on when
required. The cover is optional and you should be
careful not use it indoors as this might lead to your
baby overheating.
fitting the cosy toe
in use
5

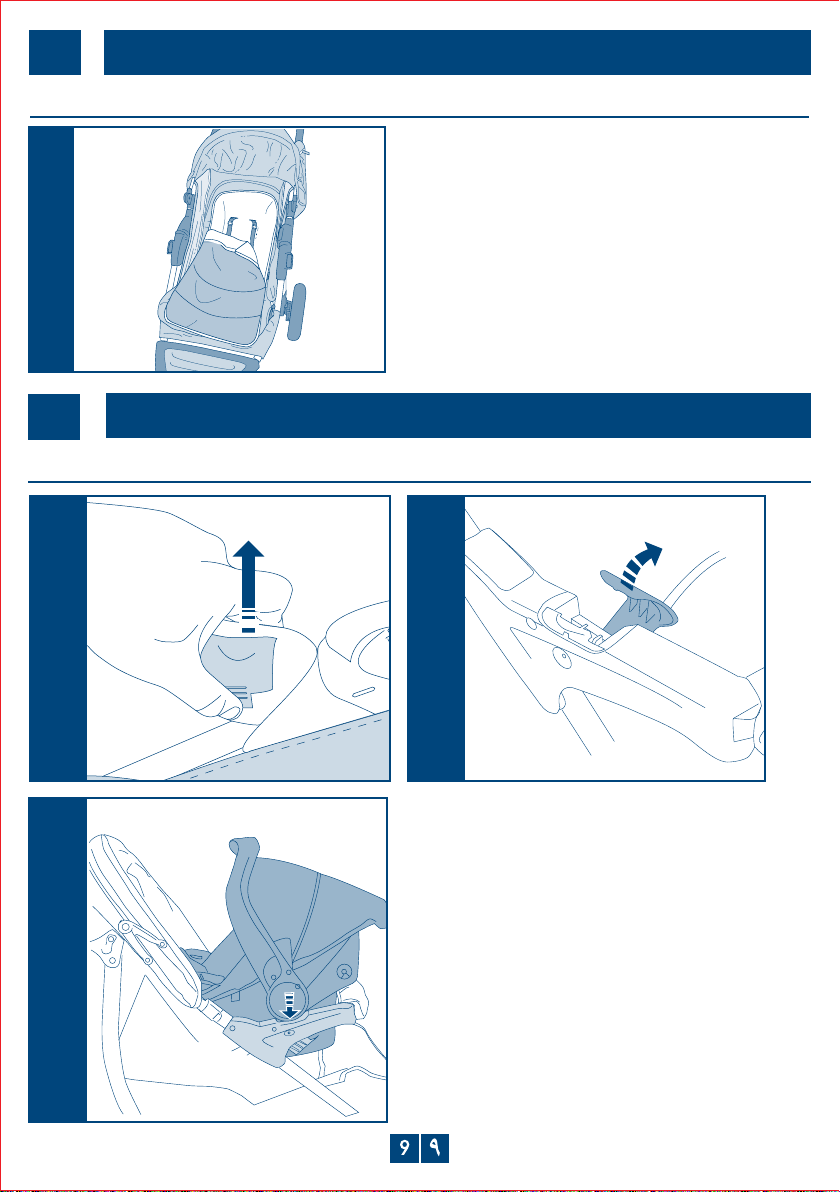

for travel systems with an infant carrier
6
attaching the infant carrier
fig 17
fig 18b open the covers on each armrest
Attach the infant carrier as shown,
ensure the infant carrier is correctly
located into the adaptors on the
armrests.
fig 18a
fig 18
© Mothercare UK Ltd. 2010
