NATTY
User’s Manual
Mortch International Ltd
Preface
Thank you very much for purchasing our scooters. And welcome to join the driver’s line of MORTC motorcycle.
With its extraordinary advantages of excellent quality, smart appearance and shape of legerity, our product will surely
bring the utmost pleasure and convenience to your life.
This manual gives you information about the general structure, function, operation and maintenance methods of
NATTY. In order to enable your beloved motorcycle to render a best performance and a longer life, please read this
manual carefully, pay particular attention to the running-in part in it and follow all the operating instruction. It is of great
importance to make your riding safer and more comfortable. Experienced staffs in our sale agency and the
maintenance shop will also offer excellent service for you.
● Please take an initial examination of your motorcycle after the first 300km running in our designated maintenance
shop, and take regular examination in every 1000km thereafter.
● All the direction, illustration and specification included in this manual are based on the latest product information.
Please be noted that they may be different from the actual status of the motorcycle if there is new revision on its
specification, and no further advice will be given.
● This motorcycle was designed and manufactured which complied with e-mark, the safety standard of Europe
Union, the maximum speed is 25 km/h. Please do NOT change any parts without professional advice and use
non-original parts in case of avoiding danger to driver and the broken of traffic laws.
Mortch International Ltd
http://www.mortch.com
CONTENTS
Guidance ………………………………………………………………………………………… 1
Position of parts ……………………………………………………………………………………… 3
Controlling parts …………………………………………………………………………………… 4
Starting pedal ……………………………………………………………………………………… 6
Fuel tank ………………………………………………………………………………………… 6
Fuel and engine oil …………………………………………………………………………………… 6
Pre-riding inspection ………………………………………………………………………………… 7
Engine starting ……………………………………………………………………………………… 8
Regular maintenance ………………………………………………………………………………… 10
Tools …………………………………………………………………………………………… 16
Technical Parameters ……………………………………………………………………………… 17
Electrical Circuit Chart ……………………………………………………………………………… 19
Mortch International Ltd
http://www.mortch.com
1
□
□□
□Guidance
Please keep safety in your mind and observe the regulations of transportation while enjoying your riding. Pay attention to
the following rules:
1. Pre-riding inspection
Please read the details in the relevant chapter for your safety.
2. Helmet
Do remember to wear helmet while riding.
3. Being amiliar with motorcycle operation
It is of great importance to ensure your safety getting
familiar with motorcycle operation.
4. Speed limitation
Drive at proper speed in accordance with the road condition,
the weather and your driving skill.
WARNING
It is dangerous to drive on the wet road.
Do not make an abrupt turning while
accelerating and keep proper distance
from other vehicles.
Mortch International Ltd
http://www.mortch.com
2
139QMB
XXXXXXXXX
☆☆
5. Positions o the numbers
The frame number and the engine number are for
the purpose of registering the motorcycle. When your
motorcycle needs inspection, repair or other special
service, the number will enable you to get good service
from our sale agency. Please note down the number
here:
□
□□
□ The rame number:
□
□□
□ The engine number:
frame number
Mortch International Ltd
http://www.mortch.com
3
□
□□
□Position o parts
1 2 3 4 5 6 7 8 9 10111213 14 15 16 17 18 19 20 21 22 23 24
BTAOTIAN
(1)
Disk brake
assy.
(2) Brake disc
(3) ead light & position light
(4) Left front turning light
(5) Rear-view mirrors
(6) elmet hook
(7) Side stand
(8) Main stand
(9)
Left rear turning ligh
t
(10) Starting pedal
(11) Muffler
(12) Right rear turning light
(13) Taillight
(14) and-hold
(15) Seat
(16) Ignition switch
(17) Right front turning
ligh
t
(18) Rear brake lever
(19) Left switches assy.
(20) Meters
(21) Right switches assy.
(22) Front brake lever
(23) Fuel tank cap
(24) Seat lock
Mortch International Ltd
http://www.mortch.com
4
□
□□
□Controlling parts
1. Rear brake lever
old it tight and the rear brake functions
2. Switches on the le t handle
A
B
C
A. orn button
B. Turning signal switch
Left turning light
Right turning light
C. Switch for high/low beam lights
3. Meters and indicating lights
A. Left turning lights indicator
B. igh beam indicator
C. Right turning lights indicator
D. Indicates the speed in km/h and Mph
E. Indicates total distance the motorcycle has run
F. Fuel gauge.
0
10
20
30
40
50
60
70
80
Km/h
Mph
0
10
20 30
40
50
AB D
CEF
0 0 0 0 0
Mortch International Ltd
http://www.mortch.com
5
U
S
P
L
O
C
K

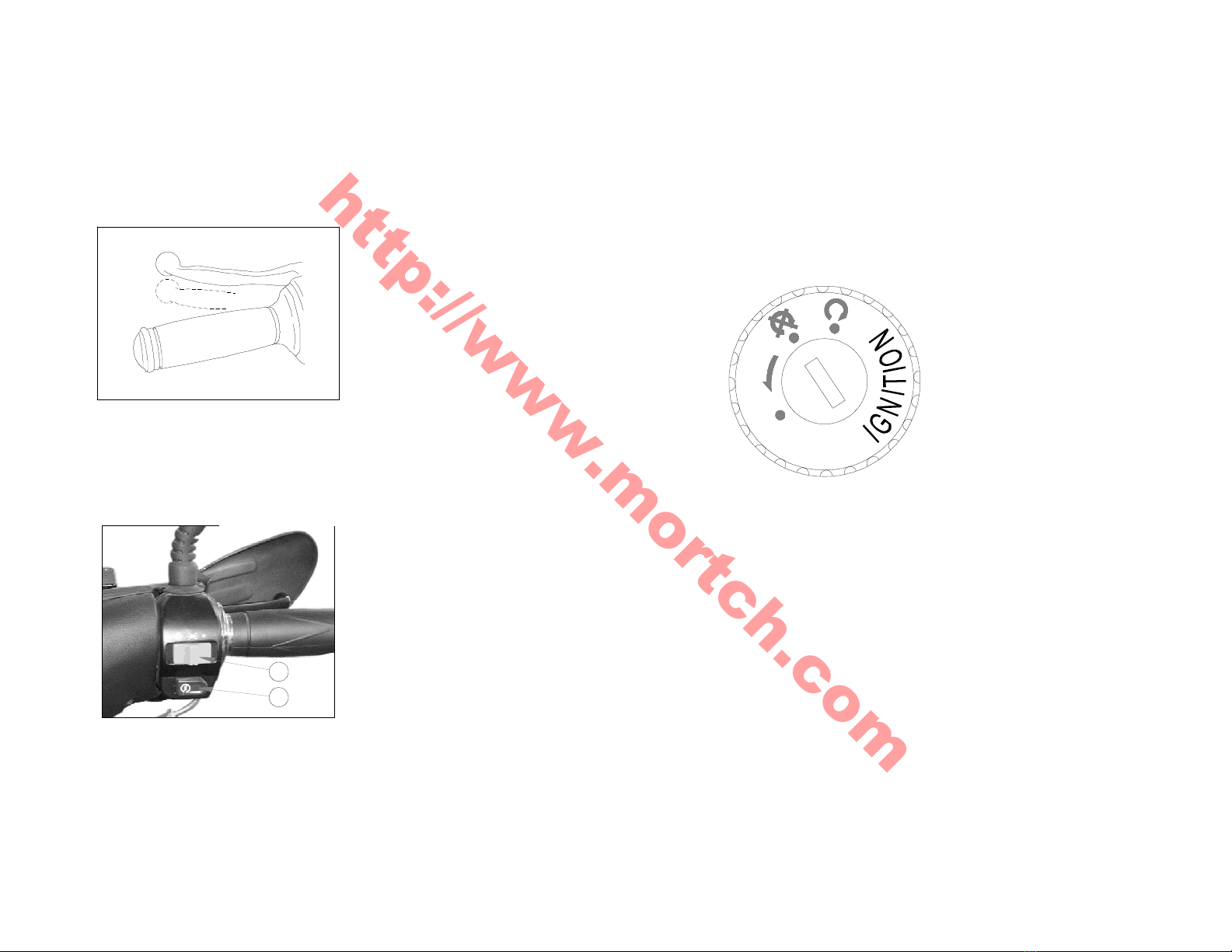

4. Front brake lever
old it tightly and the front brake functions.
5. Switches on the right handle
A
B
A. ead light switch
B. Electric starting button
When the ignition switch is at ON position, hold the
brake and push the button and then the engine works.
6. Ignition switch
OFF: The whole circuit is cut. Engine and lights cannot
be operated and the key can be withdrawn.
ON: Engine can be started and all the lights can be
operated. The key cannot be withdrawn.
LOCK: Turn the steering handle fully to the left, slightly
press the key and turn it to the position lock.
Then the key can be taken out.
Mortch International Ltd
http://www.mortch.com
6
Warning
①
15w/40-15w/50
10w/40
10w/30
-10 010 20 30 40C °
20 40 60 80 100 ° F
T
20w/40-20w/50
□
□□

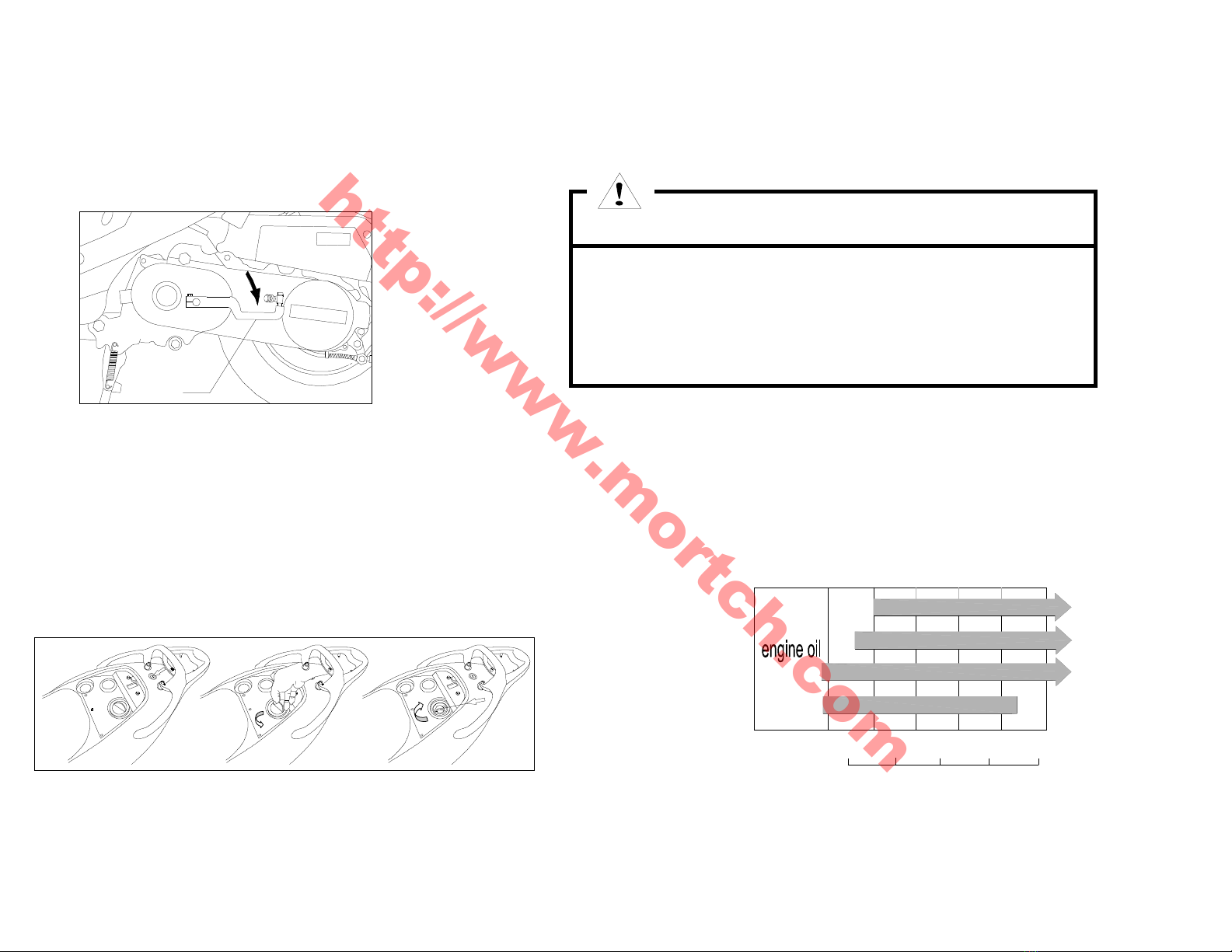

□Starting pedal
Starting pedal is for kicking start of the engine.
□
□
□
□Fuel tank
Usage o the cap:
1.Insert the key and open the seat.
2.Turn the cap counter-clockwise and take out it.
3.Align the lock tongue on cap with the notch on fuel
tank, turn the cap clockwise and tighten it.
`
□
□□
□Fuel and engine oil
A. Gasoline
igh-quality fuel is essential to the engine.
Any sand in the fuel is absolutely prohibited.
90# or higher quality lead-free gasoline is preferred.
B. Engine oil
SAE15w/40
◆
Turn off
the engine when refilling the tank.
◆Turn off the cap slowly.
◆Don’t overfill the gasoline over the designated scale
◆Do not add anything into the gasoline.
Mortch International Ltd
http://www.mortch.com
7
□
□□
□Pre-riding inspection
Please check the following parts before you drive:
No. Items Inspection content
1 Steering handlebar 1.Flexibility 2.No gap or loosing appearance
2 Brake system 1.Travel of front brake and rear brake 2.No break on the cable
3.Flexible function
3 Tires 1.Proper pressure 2.No crack or cutting
4 Fuel Sufficient fuel
5 Engine oil Sufficient engine oil
6 Lights Workable
7 orn Workable
8 Gear oil With normal stock
9 Throttle 1. Proper gap 2.Flexible function 3.Proper control lever returning
10 All the bolts and nuts No loosing appearance.
