Morel OCTAVE Series OCTAVE CENTER Manual de usuario

OCTAVE CENTER

OWNERS MANUAL

Congratulations on acquiring Morel’s Octave Center.

We encourage you to read this manual in order to understand the key issues

and important elements that led us to design and develop the Octave Center.

The information in this manual will help you get the best possible performance

out of your system.

If you have any questions, please contact your Morel dealer.

You can also visit our website at www.morelhifi.com

We are happy you have become a part of the Morel family and hope you will

enjoy the rich listening experience of the Octave.

The technological innovation we employed in the Octave Center helps to

optimize accuracy and control as well as get the best dispersion over a wide

listening area.

The dynamic reach and power handling of the Octave Center allows it to cope

with the most demanding sound effects and music and capture the details of

even the softest whisper.

The Octave Center consists of three 5 ¼”(130 mm) woofer units and a wide-

range tweeter. The construction is based on the integration of the Octave

system’s drive units in the center speaker. The center speaker has the same

sound characteristics as an Octave speaker with a more powerful bass impact

and higher power handling capability. The construction of the tweeter, located

above the woofer, serves to avoid horizontal dispersion problems that are

so typical to many center speakers.

The Octave Center acoustical design is made for high definition dialogue in an

audio-visual system and perfect for a non-compromise music reproduction.

The unusual drive unit configuration design is made as two separate sections,

divided into three individual cabinets. The central part is the bass midrange

unit with the tweeter on top, for full range performance. The two left and

right woofers operate in a common bass reflex loaded cabinet, enhancing the

low frequency bass notes.

The Octave Center is magnetically shielded therefore it can be placed close

to a TV screen, either above or below it, without causing any disturbances.

OCTAVE CENTER

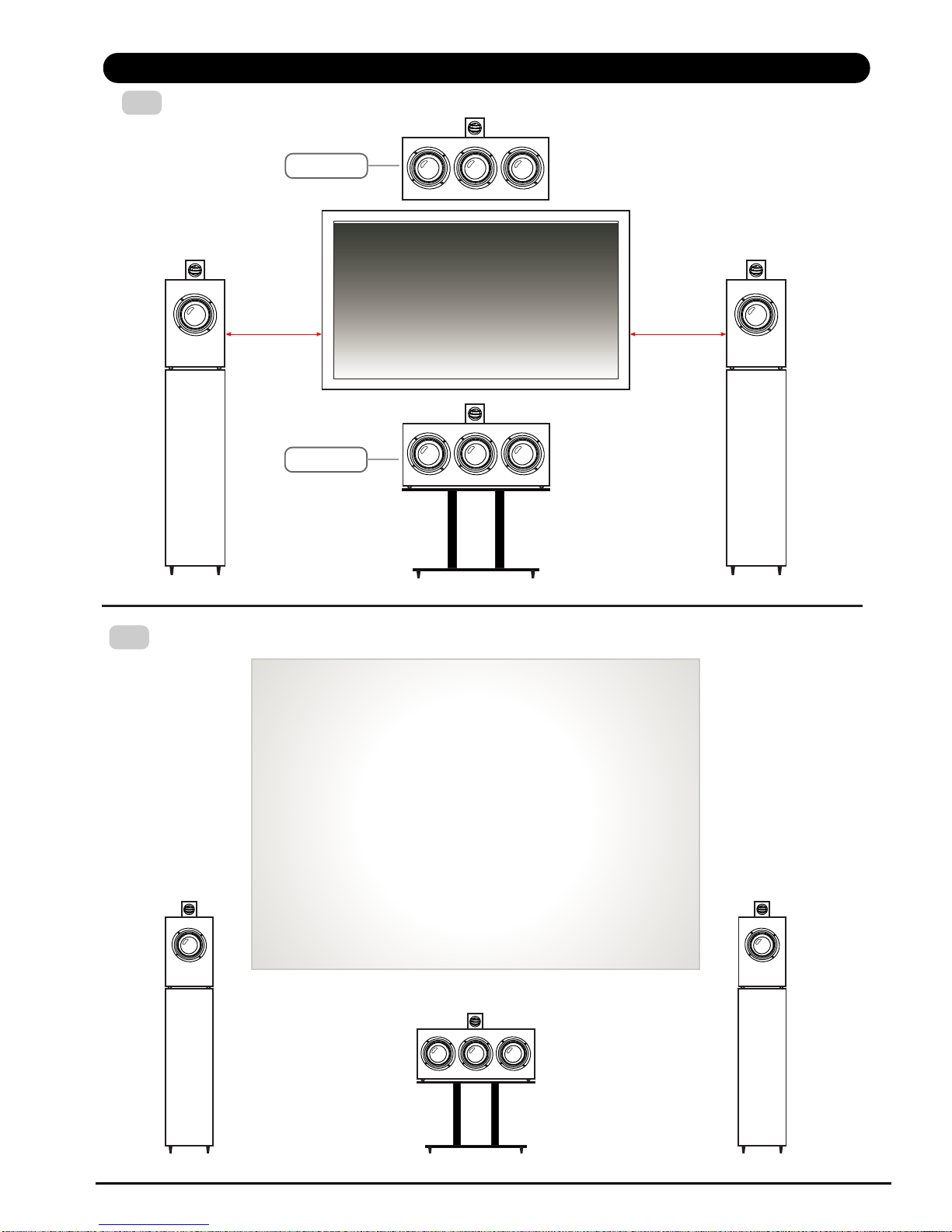

Placement options

Min 50cm Min 50cm

Plasma screen

Projector

Option A

Option B

3-way 4 units, Full range center speaker with low magnetic stray field

MDF tricoTM polimer, coated cabinet with 3 separate acoustic

chambers one for each drive unit

Double port bass reflex for bass chamber/sealed for bass midrange & tweeter

213/4“x 93/4“ 123/4“(550 x 247 x 325mm)

Woofers- two 51/4“(130mm) rear-vented. Double magnet motor.

Bass midrange- one 51/4“(130mm) rear vented hybrid motor. Both feature one

piece intergrated dome and surround cone, made of damped polymer composite.

3“ (75mm) Aluminum Hexatech voice coil using Morel external voice coil technology(EVC)

Tweeter- MID/HIGH frequency unit, low resonance soft dome, Acuflex coated,

vented double magnet Neodymium motor. 11/8“(28mm) Aluminum Hexatech voice coil

and Morel’s EVC technology. All units are shielded with low magnetic stray field.

20 - 30,000Hz (40-18,000Hz -1.5dB)

4 Ohm

300W RMS

1500W 10m/sec

88 dB

36 lbs (16 Kgs)

Within 1.5 dB - 18,000Hz

Horizontal: over 600

Vertical: over 200

SPECIFICATIONS

www.morelhifi.com

SPECIFICATIONS OCTAVE CENTER

Type

Construction

Acoustical Loading

Dimensions (W x H x D)

Drive Units

Frequency Response

Nominal Impedance

Nominal Power Handling

Peak Power Handling

Sensitivity 1 W/1 M

Weight

Dispersion
