Please first read this manual!
Dear Customer,
We desire you get the most out of this product which is produced in the
modern facilities on basis of high-quality.
For this reason, please read this manual carefully and thoroughly prior to
using the product and keep it for future reference. If you assign the product
to anybody else, please give it together with the user’s manual. When using
the product, taken into consideration all information and cautions specified
in the manual and comply with the instructions.

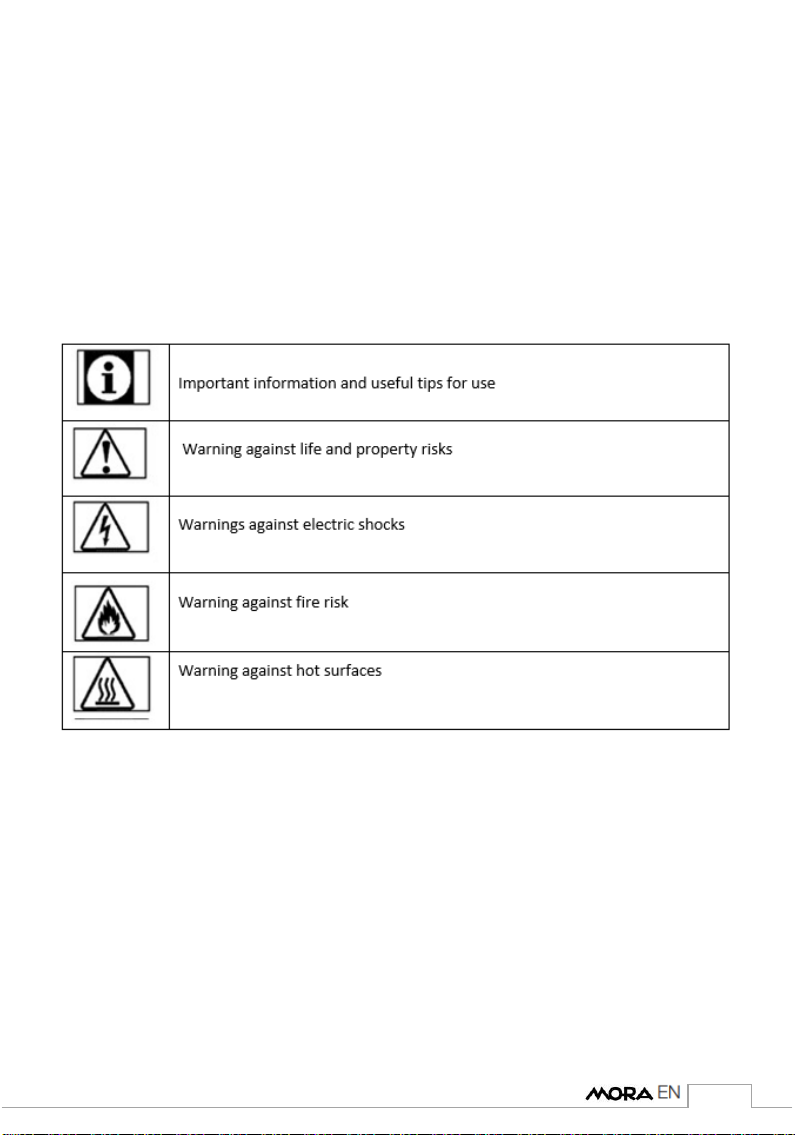

Symbols used in the user’s manual and their corresponding meanings:
The user’s manual helps you use the product quickly and safely.
• Please read the user’s manual prior to installation and operation of it.
• Always comply with the safety-related instructions.
• Keep the user’s manual at an easily accessible place as you may need it
for reference in future.
• Please read the other documents provided with the product as well.
Please remember that this user’s manual may also be applicable for other
versions. Differences between the versions are clearly indicated in the
manual.
2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS ...........................................................................3
1.1. General Safety ...........................................................................................................3
1.2. Safety for children......................................................................................................5
1.3. Safety of the electric-related works ............................................................................5
1.4. Intended use..............................................................................................................5
2. INSTALLATION............................................................................................................6
2.1. Prior to use of the product .........................................................................................6
2.2. Installation and connections.......................................................................................7
2.3. Wiring...................................................................................................................... 10
2.4. Gas connection ........................................................................................................10
2.5. Sealing inspection ....................................................................................................12
2.6. Final inspection........................................................................................................12
2.7. Disposal of the product ............................................................................................ 13
3. ABOUT PRODUCT:....................................................................................................14
3.1. General view............................................................................................................ 14
3.2. Technical specifications of your built-in range...........................................................14
4. Use of the range.......................................................................................................15
4.1. First use................................................................................................................... 15
4.2. First cleaning............................................................................................................15
4.3. Description of use of the gas range:.......................................................................... 15
4.4. Gas cut-off safety apparatus..................................................................................... 16
5. Maintenance and cleaning........................................................................................16
5.1. General information................................................................................................. 16
5.2. Cleaning the control panel........................................................................................17
5.3. Cleaning the range ................................................................................................... 17
6. Suggested solutions for problems.............................................................................18
3
1. IMPORTANT SAFETY INSTRUCTIONS
This section contains safety instructions to help prevention of physical
injury or material damage. Failure to comply with these instructions makes
any warranty invalid.
1.1. General Safety
This product is not designed for use by persons (including children)
who are lack of knowledge or experience and have deficient physical,
sensual or cognitive skills unless they are attended by a person to take
care of their safety or give necessary instructions for use of the
product. The children should be supervised and never be allowed
playing with the product.
Plug the product to an outlet/mains protected by a fuse of such value
as given in the table “Technical specifications”. In case of use with or
without transformer, remember to get the earthing installation done
by a qualified electrician. If the product is used without proper
earthing as per the applicable local regulations, our firm shall not be
responsible for any resulting loss.
If the power cable/plug is damaged, do not operate the product.
Contact with the Authorized Service Center.
If the product is damaged and has a noticeable damage, do not
operate the product.
Do not perform any repair or modification on the product. However,
you may remedy some troubles; see suggested solutions for the
problems, page 18.
Never wash the product by spraying or pouring water on it! There is
risk of electric shock!
Do not use the product under the conditions when your judgement is
affected due to effect of medical drug and/or alcohol.
Disconnect the product with the mains during the installation,
maintenance, cleaning and repair operations.
Always get the installation and repair operations done by an
authorized service center. The manufacturing firm may not be held
responsible for any loss that may arise due to operations performed by
any unauthorized persons and consequently the product warranty
becomes invalid.
4
Be careful when using alcohol in the food. The alcohol evaporates at
high temperature and when it contacts with hot surfaces, it may
inflame and cause fire.
Do not heat the sealed cans and glass jars. The resulting pressure may
cause burst of the jar.
As the edges of the product will be hot when working, do not put any
flammable substances near it.
Keep open all around the ventilation channels.
The product may be hot during use. Do not touch the hot parts and
heating elements, etc.
Make sure the product is switched off after each use.
Product and accessible parts of the product are hot during use of it.
Do not touch the product in use.
Do not use sharp and piercing tools when cleaning the glass; such
materials may give harm to your product.
As superheated oil may cause fire, always keep watch when the
product is in use.
In case of possible fire, do not attempt to extinguish the fire with
water; disconnect the power connection of the product immediately
and cover the fire by help of a wet blanket.
Do not use steam cleaner.
If the glass of the product is broken: switch off all burners and any
electric heater element immediately and disconnect power supply of
the equipment; do not touch the surface of the equipment and do not
use the equipment.
To clean the glass of the range, never you abrasive agents or sharp
metal scrapers that may destroy the surface and cause the glass to be
broken.
Do not use the product on the nylon, flammable and heat-sensitive
materials.
Pots placed on the heaters of the range should be in proper sizes.
Do not scrub the buttons and inox surfaces of the range by means of
scrapping objects; do not use Scotch-Brite.
If the flame of burner is accidentally off, the burner is switch off in
controlled manner and it is not fired for minimum 1 minute.
5
1.2. Safety for children
The exposed parts of the product will get heated during use and after
use until it cools down; keep children away.
CAUTION: During use of the grill, the accessible parts may be hot. You
should keep the children away from the product.
The children under 8 eight years old should not touch the product
when they are unattended by a adult.
This equipment may be used by children above 8 years old and/or
persons who are handicapped physically, sensually or cognitively if
they are duly informed about risks and safe use of the product.
The children should not play with the product. Cleaning and
maintenance of the equipment may not be performed by the children
unattended.
Packaging materials may be dangerous for the children. Keep the
packaging materials at a place not accessible by the children or thrown
in the garbage by sorting out according to the instructions on waste.
1.3. Safety of the electric-related works
All Works on the electric equipment and systems should be performed
by an authorized and qualified person.
This product is not suitable for you with a remote system.
In case of any damage, switch off the product or disconnect the power
supply. To this end, switch of the fuse of the house.
Make sure the fuse rated value is same with the current of the
product.
1.4. Intended use
This product is designed for domestic use. It is not allowed for industrial
use.
“CAUTION: this product should be used for cooking only. It should not be
used for different purposes such as heating a room, etc.”
The producer may not be held responsible for any loss that may occur due
to improper use or during transportation. The service life of the product
you purchase is 10 years. This is the time during which the producer should
make available spare parts necessary for operation of the product in the
specified way.
6
2. INSTALLATION
2.1. Prior to use of the product
Make sure the power and/or gas installation is suitable. If not, make
the necessary arrangements by means of qualified technical and installer.
The customer shall be responsible for preparation of the place where
the product shall be placed as well as the power and/or gas installation.
For installation of the product, you should comply with the rules
specified in the local standards concerning power and/or gas
Control the product prior to installation to find out whether there is
any damage or not. If the product is damaged, do not make the installation.
The damaged products may cause risk for your safety.
Any works on the gas equipment and system should be performed by
authorized and qualified persons.
The products have no system for discharge of gas that may occur as a
result of burning. The product should be installed and connected as per the
applicable regulations concerning installation. You should observe the
requirements regarding ventilation.
Air necessary for burning is taken from the room air and the emitted
gases are directly given to the room.
A good ventilation is required in the room for safe operation of your
product. If there is no window or door to be used for ventilation of the
room, an additional ventilation system should be installed.
The floor area of the kitchen should be bigger than 8m².
Kitchen volume should be bigger than 20m³.
The chimney outlet should be at height of 1.80m from the floor and
in diameter of 150mm directly opening to the atmosphere.
7

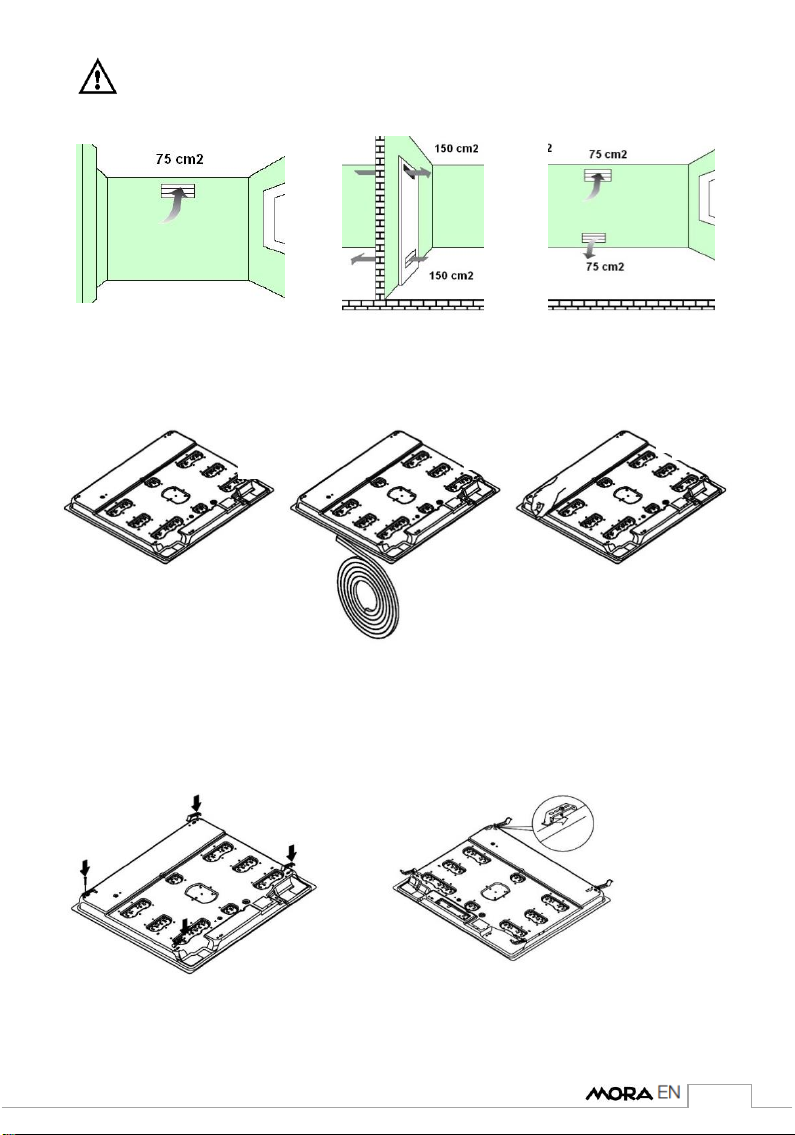

Air vent should be near the kitchen floor and minimum75cm²,
opening to the outer atmosphere
2.2. Installation and connections
2.2.1. Preparation of the built-it range prior to installation
Place the mounting
legs as shown in the
figure.
Figure 4
Turn upside down range in
the Styrofoam in the
package and apply the
silicon.
In case of inox products,
apply the silicon on inox
surface, and in case of
glass range products apply
to the glass surface.
Apply the silicon
supplied in the
package around
the range as
shown in the
figure
Mounting legs
connection holes.
Figure 5
Figure 1
Figure 2
Figure 3
8
1. Glass 5. Upper Tray
2.Silicon Seal 6.Silicon Seal
3.Tray 7.Counter Surface
4.Connection Element 8.Connection Clips
9.Screw
The range is equipped with a seal to prevent the liquids through the
cavities into the cabinet. In order to place this seal, adhere the seal as
shown in the figures above. Turn the range upside down and remove the
protective tape of the rubber seal and adhere it to the range; both ends of
the seal should meet each other. Install the mounting sheets as shown in
figure 5 by help of screw. And place the range in the opening on the
counter.

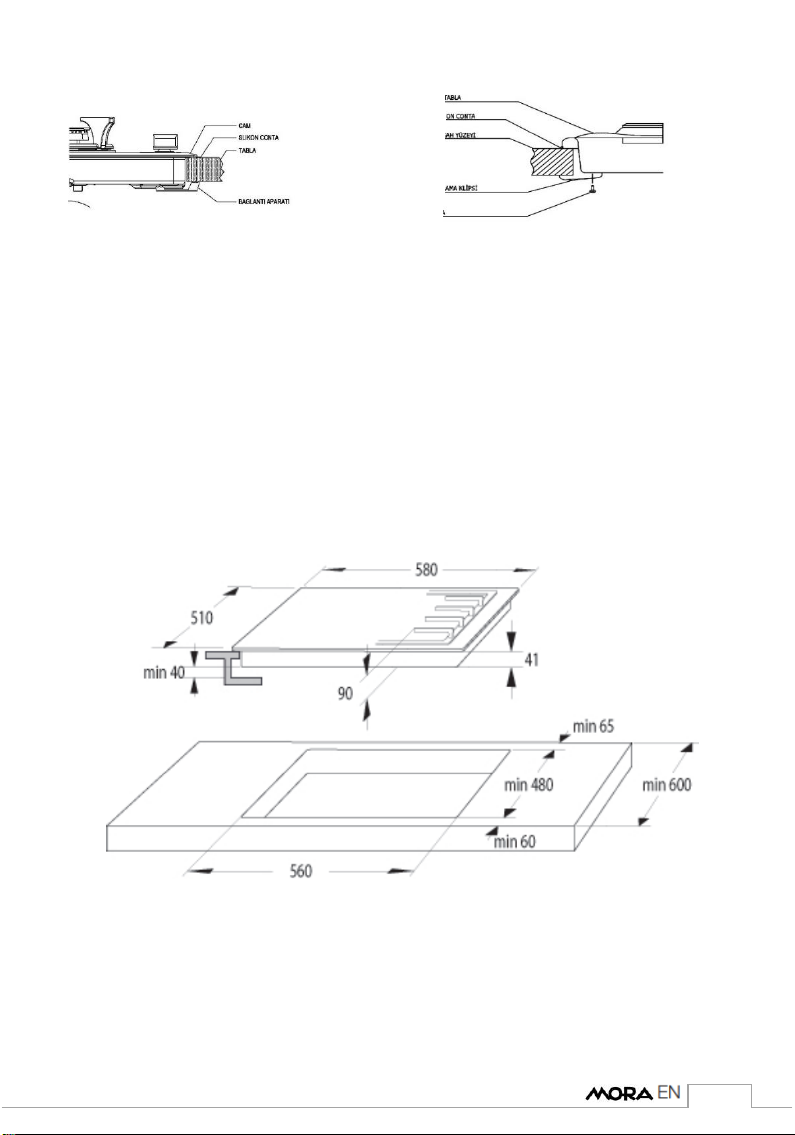

Appliance dimensions
Figure 6
Figure 7
1
2
3
4
5
6
7
8
9
VDP645X
5
9

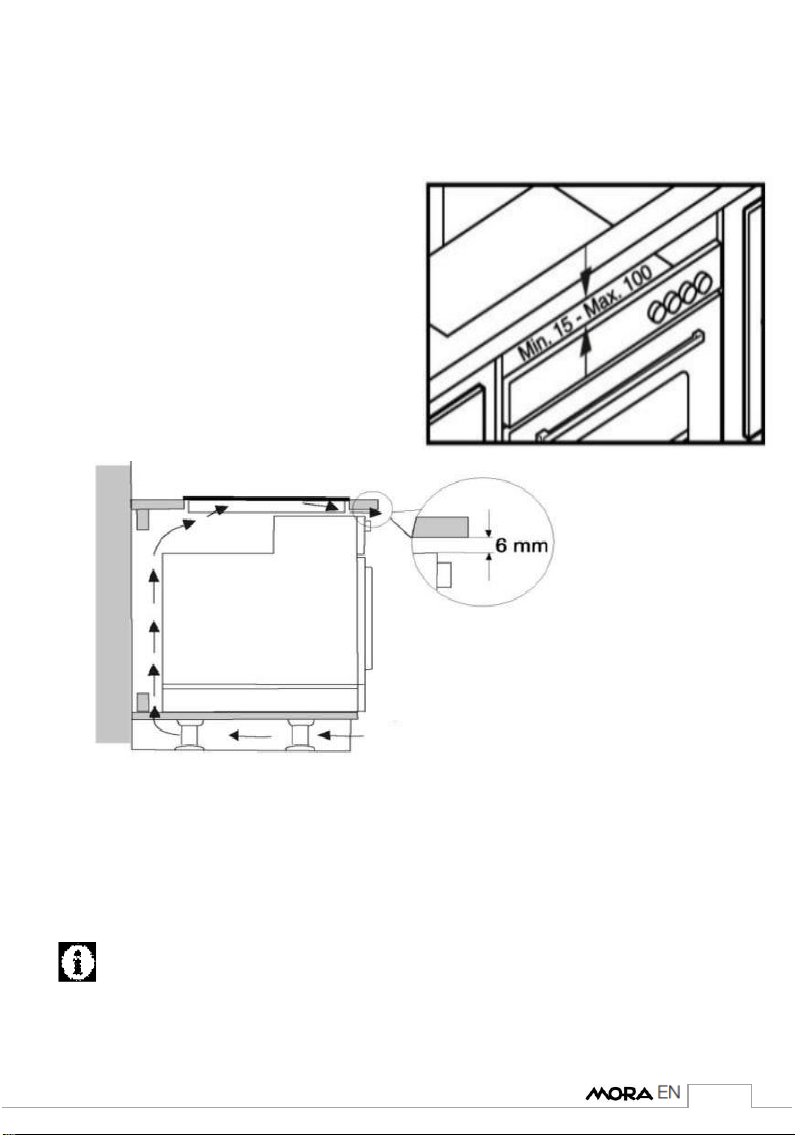

Figure 7 shows the size to which the counter will be cut for installation of
the range. Place the prepared range into the counter cut to these sizes. If
you will use the range on the built-in oven, observe the figures 8 and 9 for
proper air circulation between the oven and range.
Start to use after you remove the protective film on Inox surface.
Figure 7
Figure 8
Figure 9
Tabla de contenidos
Manuales populares de TELEVISOR de otras marcas
Philips
Philips Colour Television Manual de usuario
Toshiba
Toshiba 27A10 Manual de usuario
Philips
Philips 42PF9630A/37 Manual de usuario
Hitachi
Hitachi 32FX48B Manual de usuario
DAEWOO ELECTRONICS
DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario
Changhong Electric
Changhong Electric uhd55b6000is Manual de usuario
