Moonboon Hammock motor Manual de usuario

User manual

Moonboon hammock motor

User manual

Important: Read the user manual carefully

and keep it for future use.

Hammock motor

User manual

Moonboon hammock motor

Contents

Instructions – Video

What is Included

Assembly

Mounting

Height

Weight

Using the Hammock Motor

Malfunction Indication

Safety Checklist

Questions and Answers

Cleaning

Disposal

User manual

Moonboon hammock motor

moonboon.com/pages/videos

Moonboon has developed a series of videos to show you

easily and quickly how to assemble and mount your Moonboon

product.

The instructional videos are a supplement to the user manual. It

is critical that you read this user manual.

Scan the QR code below with your smartphone or use this link

to see the videos:

Instructions Video

User manual

Moonboon hammock motor

User manual

Moonboon hammock motor

What is Included

1 hammock motor

1 24V power supply and 10 feet / 3 meters of cord

2 snap hooks with plastic parts









x 2

User manual

Moonboon hammock motor

Assembly

Your snap hooks already comes with plastic parts mounted on them. The

plastic parts prevents metal against metal in your set-up. Before hanging

the motor, you need to attach the snap hooks to the motor.

The snap hooks must be put on from the side, laying flat against the motor

- otherwise, they can not be rotated properly into place.

The narrow end of the snap hooks should point towards the motor, see

picture 4.

It is important that you lock your snap hooks once they are fitted correctly.

This is done by gently securing the safety lock.

User manual

Moonboon hammock motor

Mounting

The nylon string is to be fastened as

close to the center of the hammock

as possible while still leaving distance

between the motor wire and the ham-

mock spring. Make sure to prevent the

wire from touching and wearing out

the fabric covering the spring.

Please note

First deal with your hanging equipment – ceiling hook, door frame clamp,

or tripod stand.

If you hang your hammock from a ceiling hook and the motor from a

strap/chain, you must carefully read the section on WEIGHT.

Put the motor’s parts together in accordance with the instructions on page

Now use the upper snap hook for hanging the motor. Feed the power

cable into the small hole at the top of the motor. The power cord is 10

feet / 3 meters long, so you need to place the hammock near a power

outlet.

Make sure the power cord does not trail down the motor or the hammock

but rather is kept away from them.

Now hang the spring and then the hammock in the snap hook under the

motor. Check that the snap hooks are working and close properly.

Once the hammock is hung, the nylon string coming out of the bottom of

the motor is to be wound around the fabric at the top of the hammock. Do

this by pulling the string down, winding it around the fabric, and fastening

the S-hook around the string so that it is fixed in place.

It is important that the string is securely fastened before you let go of it.

See the illustration on the right.

Once the hammock motor and the nylon string are in place, you may turn

the power on. Read the sections on HEIGHT and WEIGHT before using

the motor.

If the motor is suspended from the

ceiling, it is important to use a stain-

less steel hook without coating. Similar

precautions must be applied if you use

a metal chain.

Please note

User manual

Moonboon hammock motor

Use of the Moonboon motor,

hammock, and door frame clamp

requires a minimum of 86 inches /

220 cm between the door frame

and the floor to accommodate the

hammock and the motor.

Please note

Height

It is essential that the hammock with motor does not touch the floor during

operation. Before using the hammock, perform two tests to ensure that

the hammock does not touch the floor.

First test: Empty hammock

Mount the hammock as instructed and manually stretch the spring as

much as you can. Pull on the spring until you feel the safety strap (the

nylon strap inside the spring) preventing any further expansion. When the

spring is fully extended, space must remain between the bottom of the

hammock and the floor.

Now place the child in the hammock and repeat the test described

above: Stretch out the spring until you feel the safety strap keeping it from

stretching further.

Here, too, space must remain between the bottom of the hammock and

the floor.

Second test: Child in the hammock

Follow these instructions and perform

the tests regularly as your child

grows and becomes heavier. That

is how you ensure that the hammock

never touches the floor.

Please note

User manual

Moonboon hammock motor

Baby weighing less than 17.6 lbs / 8 kg

If the child weighs less than 17.6 lbs / 8 kg, the strap/chain between the

motor and the ceiling must not be longer than 6 inches / 15 cm.

Baby weighing more than 17.6 lbs / 8 kg

If baby weighs more than 17.6 lbs / 8 kg, there must be no more than 20

inches / 50 cm of strap/chain between the motor and the ceiling.

Weight

The motor works by keeping the hammock spring in constant motion.

Therefore, the weight of your child is a key factor in the functioning of the

motor.

The Moonboon hammock and motor may be used for babies weighing

between 9 lbs / 4 kg and 33 lbs / 15 kg. If you are using a hammock

from a different supplier, you may not be able to use the motor until baby

weighs 13 lbs / 6 kg. This is due to the differences among hammocks in

terms of the stiffness of the spring.

if you hang the motor in a strap or chain from a ceiling hook, your baby’s

weight will determine how long the strap/chain can be. If the following

recommendations are not followed, there is a risk that the motor will not

function properly and then will turn itself off.

Insufficient weight in the hammock

will cause the motor to malfunction

or turn off.

Please note

User manual

Moonboon hammock motor

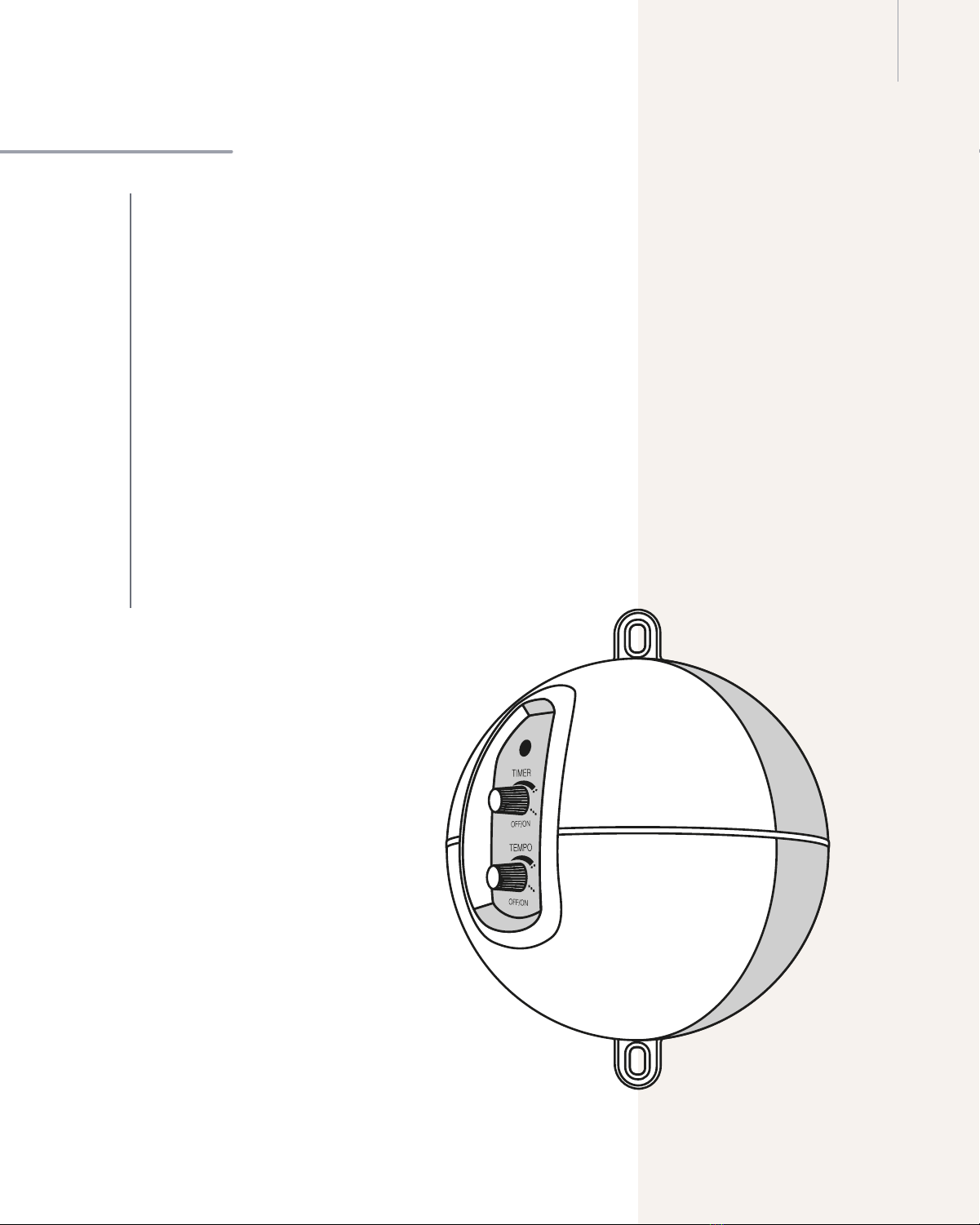

Timer

The upper button ‘TIMER’ is used to set the duration of the operation of

the motor.

The 3 dots each represent 1 hour. The motor may be set to operate be-

tween 5 minutes and 3 hours.

Tempo

The lower button ‘TEMPO’ is used to set the speed of operation.

Turn the arrow to the left for the lowest speed and to the right for the

highest speed.

Starting the motor

- First turn the ‘TIMER’ button and set the desired time.

- Then turn the ‘TEMPO’ button and set the desired speed.

If the light is green and both buttons have been set, just put your hand on

the cross pin and activate the hammock by pressing down once or twice.

The motor will kick in and begin operating the hammock. The tempo set-

ting may be adjusted at any time to the preference of your baby.

Once the set time has been reached, the motor will slowly decrease its

speed and stop.

Please note that the motor will not work without weight in the hammock.

Using the Motor

Once you have mounted the hammock motor and connected the power,

you may begin using it.

You may turn off the motor at any time by turning the buttons back to their

leftmost position.

Review the safety checklist and

ensure that all instructions have been

followed before starting the motor

for the first time.

The hammock motor may be

stopped at any time by touching the

hammock or the spring. Doing so will

make the motor light come on red,

and the motor must be restarted be-

fore it can resume operating.

Please note

Please

User manual

Moonboon hammock motor

No light

Check that the power cord is firmly inserted into the top of the motor and

that the power is on. Turn off the power and wait 30 seconds before

turning it on again.

If the light still does not come on, the hammock motor may need servic-

ing. Please contact our customer service team.

The light alternates between red and green

This is an indication that the wrong kind of power is being supplied. See

the details in the safety checklist.

The light is red

There has been a malfunction in the motor. The hammock motor may be

restarted by turning off both buttons and turning them on again.

If the light is red repeatedly, some reasons could include:

- that there is insufficient weight in the hammock. Read the section on

WEIGHT.

- that the strap/chain above the motor is too long (ceiling mounted mo-

tor). Read the section on WEIGHT.

- that the motor starts at too low a speed. You could start the motor at a

higher speed and then reduce the speed as desired.

- that the motor wire is not fastened correctly to the hammock.

- that baby is fussy and moves around too much in the hammock. The

motor will register such movement as an irregular tug at the wire, which is

a safety risk, and it will turn off.

Malfunction Indication
