PFDW75_
IP Ready (Network) PTZ & 12VDC Models:
PFDW75C2N / PFDW75C12N
The PFDW75C2N is a pressurized dome housing with WM20G gooseneck wall mount, clear
dome, with 24VAC input, heater/blower, for an IP network PTZ camera, 120 to 24VAC, 96W
transformer. The PFDW75C12N is the 12VDC version
IP Ready (Network) Fixed:
PFDW75CF2N
Pressurized dome housing with WM20G gooseneck wall mount, clear dome, with 24VAC
input, heater/blower, (1) xed camera bracket (7.5” MCL), 120 to 24VAC, 96W transformer.
The PFDW75 outdoor 7” FusionDome™ offers versatility and camera protection
in a compact size. Pressurization eliminates the effects of moisture, dirt, and
pollution on valuable camera equipment. Supports many analog and network
cameras. A heater and blower are standard. 24VAC input.
Although the Pressurized FusionDome may be purged with common
compressed air, utilizing an inert gas like nitrogen provides pressure
longevity and reduces the risk of contaminated compressed air in
the system.
Compressed Air or Inert Gas:
© 2009-2010, Moog Videolarm, Inc. All Rights Reserved
Product and company names listed are trademarks or trade names of their respective companies.
Tinted and clear domes available. Specify “C” for Clear or “T” for Tinted.

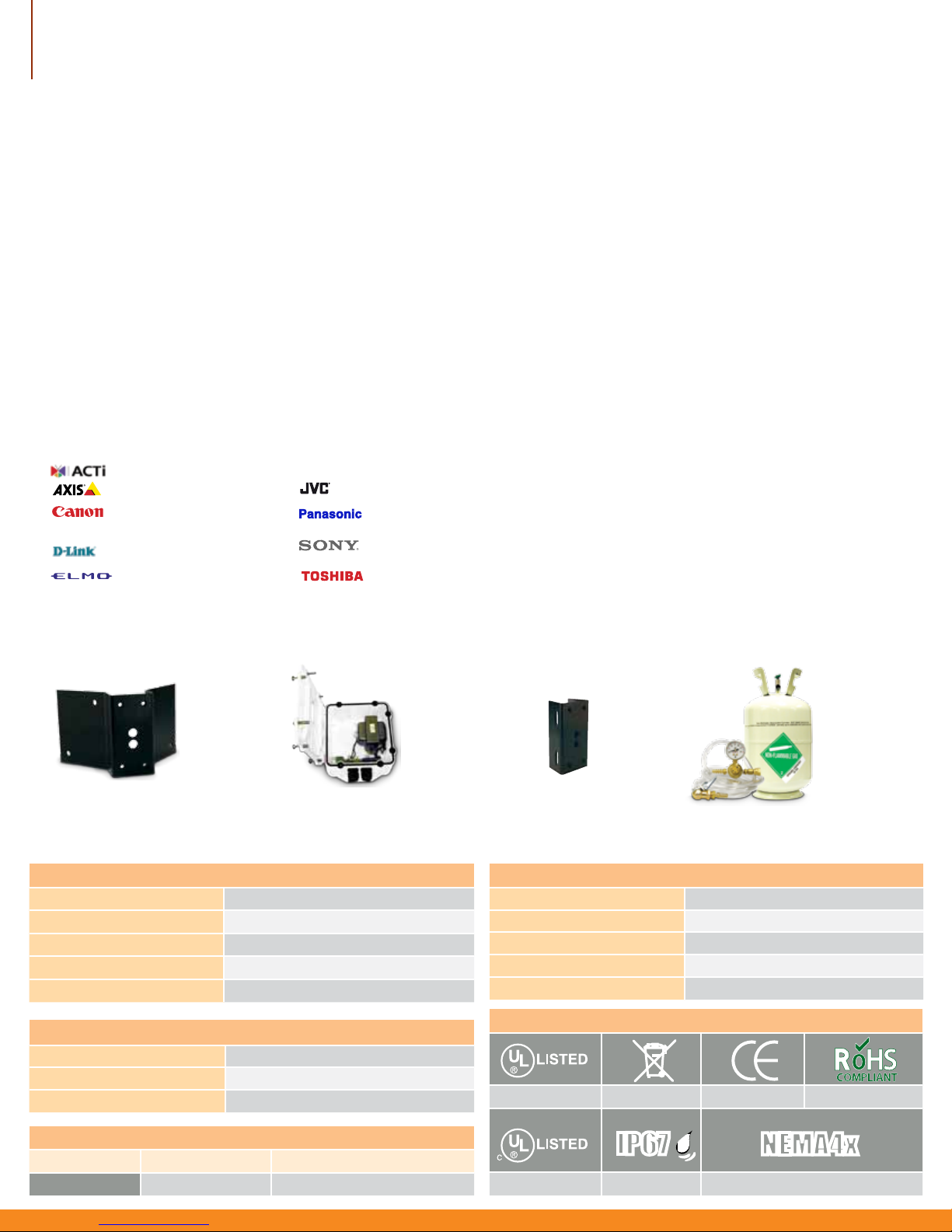

ACCESSORIES:
COMPATIBLE CAMERAS:
I
CAN
T
E
K
ACM-8201/8211,ACM-8511, CAM-6510 iCanView 250/252
213, 214, 215, 231D, 232D, 233D VN-C625U, VN-V685U, VN-V686BU, VN-V686U
VB-C300, VB-C50i, VB-C60, VC-C50i BB-HCE381A, BB-HCE481A, BB-HCE580A,
BB-HCE581A, BB-HCE581A-W, WV-NS202A
dcs 5000 Series, dcs 6600 Series SNC-RH124, SNC-RS44/46, SNC-RX530/550/570
SNC-RZ25, SNC-RZ30, SNC-RZ50
PTC-200C, PTC-400C, PTC-401C IP IK-WB21A
PB24
Rugged cast aluminum
power box with 84vA
and 24W power supply
NPK01
Nitrogen ll kit for
pressurized housing,
includes regulator valve
and ll tank
ACA2
Aluminum corner
mount bracket with
female inserts
APM3
Aluminum pole
mount bracket with
female inserts
To view the latest listing of compatible cameras please visit www.videolarm.com/thirdparty.jsp
PTZ:
FIXED COMPATIBLE CAMERAS ALSO AVAILABLE
For detailed list see web site****
Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA + 1.800.554.1124 www.videolarm.com
500-673 + 08-09-2010
SPECIFICATIONS:
Electrical Specications
Power Requirements:
24VAC 80W (H/B 52W)
Dome 24VAC model:
12VDC, 50W
Dome 12VDC model:
(includes 20W for heater)
Environmental Specications
Operating Temperature:
-20° F to 120° F (-29° C to + 49° C)
Heater Activates at:
60 °F (15° C)
Heater Deactivates at:
80°F (27° C)
Effective Projected Area (EPA):
Approx. 0.12 m^2
Operating Humidity:
Up to 100%
Shipping Specications
MODEL SHIPPING WEIGHT BOX DIMENSIONS
PFDW75
13lbs (5.9 kg) 17 x 14 x 17
(431.8 x 355.6 x 431.8 mm)
Certications and Ratings
UL Listed WEEE CE RoHS
CUL Listed IP67 Rating NEMA 4x Rating
NEMA4x
IP67
Mechanical Specications
Size: (h*w*d)
14.4” x 11.2” x 11.2” (366 x 285 x 285mm)
Weight:
11 lbs (5.0 kg)
Construction TOP:
.125” 3mm) engineered plastic
Construction DOME:
Polycarbonate
Mount Bracket:
Cast aluminum
