Montpellier MON-SWCH500 Manual de usuario

Installation and Operating Instructions

MON-SWCH500

60cm SWING OUT COOKER HOOD

(Picture shown for indicative purposes only)

Please read these instructions carefully before attempting to install or use this appliance.

It is advisable to keep these instructions in a safe place for future reference.

N.B. Should your appliance require attention, our service agents will not be able to book

a service call without your unique serial number which can be found on the last page of

this manual.

Introduction

Thank you for choosing this Montpellier appliance. It has been

designed to give years of trouble-free use provided it is installed and

maintained correctly.

Please read these instructions carefully before installing or using your

appliance. It is advisable to keep your purchase and installation receipts

with these instructions in a safe place for future reference. Included is

some important safety information in addition to guidelines and

recommendations that will enable you to take full advantage of all the

functions available.

This quality appliance has been tested and certified to meet all applicable

UK electrical and safety standards.

This appliance must be installed and connected in accordance with

current regulations by a qualified electrician.

After unpacking the appliance ensure that there is no visible damage. If the

appliance has been damaged during transit, do not use it, contact your

retailer immediately.

Your 2 year Manufacturer's guarantee

THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new Montpellier appliance carries a free guarantee which protects you against the cost of

repairs during the first 24 months from date of purchase provided that:

Any claim is accompanied by evidence of the model reference, model serial number and proof

of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24

months prior to the date of claim.

What is not covered under the Guarantee:

Any appliance not correctly installed and operated in accordance with the manufacturer's

instructions.

Any appliance that is used for anything other than domestic purposes.

Any defect caused by accident, misuse, unauthorized modification or inexpert repair.

Cost of Call-out where a fault cannot be found with the appliance.

Cost of Call-out for work covering routine maintenance, such as, but not exclusively,

cleaning of filters or defrosting.

Cost of Call-out for work required to correct the alignment of doors following door

reversal procedures carried out by you.

Use of the appliance by anyone other than the Householder.

Use in any commercial environment.

Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable

items which require routine replacement.

Repair costs incurred that have not been authorised by Repairtech and/or carried out by

a non-approved Repairtech engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK.

To Register your Appliance simply complete the card in your appliance pack and return it with a stamp

affixed or Alternatively you can Register online at www.repairtechuk.com

SERVICE HELP-LINE

Should your appliance develop a fault, please call the

Repairtech Service Helpline on:

01527-888133

Please remember to have all your product details available, including the model number, serial number,

date of purchase and your retailer’s details before registering a fault.

Your service call cannot progress without this information.

Description of the Appliance

1. Light

2. Function Control Panel

3. Filter

CONTENTS:

Section 1. Installation

Section 2. Safety Advice

Section 3. Operating the Appliance

Section 4. Maintenance

Section 5. Circuit Diagram

Section 1. Installation



A qualified installer must carry out the installation.

N.B. To ensure that your cooker hood operates efficiently the hose

length must not exceed 2m with a maximum of one bend.



This appliance can be used fully ‘vented’ via a ducting hose and external wall

vent, or in ‘re-circulation’ mode by using the charcoal filter provided.



The cooker hood should ideally be installed between 65-75cm above the

work surface/cooker hob. DO NOT INSTALL BELOW 65cm.



Install the cooker hood between two cupboards. Drill and screw on the side

boards of the cupboards (the holes≤2mm).The distance between the head of

the screw and the side board should be 5mm, and the distance between the

screw and the cooking surface should no less than 1040mm. If there is not

room enough, you can place it higher or lower.



Hang the cooker hood on the screws between the two cupboards.

Push the fan-shaped door frames to the end, in order to make the outer

edges of the door frames at the same vertical level as the outer edge of the

cupboards.



Connect the air-outlet board and the air-outlet tube.

N.B. Your installer will supply a wall outlet and may have to supply a

suitable alternative flexible duct to suit the wall outlet.

This appliance must not share the same air outlet as another appliance,

i.e. gas heating outlet.



Door installation: The door should be no less than 16mm thick, 385-700mm

high, and weigh no more than 7KG. Pull out the movable fan-shaped door

frames by the plastic handle, and place the fan-shaped door frames one on

left and one on right.



Mark the installation position of the door and the size of the fixed screws. If

the upper edge of the door is not as high as the upper edge of the

cupboards, please adjust the size accordingly. Mark the positions of the

screws on the door, and make sure the size is as accurate as 569±1.

Fix the fan-shaped door frames on the door with screws. Make sure the

frames are symmetrical. Install the door onto the cooker hood, the two sides

of the door can be pulled to the end and the door can be safely locked. If the

door cannot be safely locked, you can release the plastic handle.

The two screws on both sides of the cooker hood can adjust the sliding of the

door, according to the weight of the door.

Install the adjusting plate, in order to cover the gap between the wall and the

bottom of the cooker hood.

The mains lead should be connected to a suitably positioned fused electrical

spur, protected by a 3amp fuse.

Ensure that dust and debris is cleaned up from the immediate area of the

appliance prior to it being switched on and tested for the first time.

Section 2. Safety Advice



A qualified installer must carry out the installation.

This appliance is manufactured and intended for DOMESTIC use only. Any

guarantee offered with the appliance is not valid for any installation in a

commercial environment.

This appliance incorporates stainless steel. Handle with care as some of the

edges may be sharp.

The main filter must be cleaned on a regular basis in order to help maintain

the appliance in good working order.

Always turn off the electricity supply before cleaning the filter or the appliance

exterior.

When replacing the bulbs or charcoal filter, ensure that you fit a ‘like for like’

replacement.

This appliance shall not be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction on how to use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance. Cleaning and

user maintenance shall not be made by children without supervision.



If the power supply cord is damaged, it must be replaced by the

manufacturer, it’s service agent or similarly qualified persons in order to avoid

a hazard.

Section 3. Operating the Appliance

Pull the Swing Out hood to the ‘Open’ position

Slide the light control to position 1 and the light will operate.

Slide back to position 0 and the light will turn off.

Slide the fan control to either 1, 2 or 3 and the motor will operate at

the required speed.

Slide back to 0 and the motor will turn off.

When you have finished using the hood, push it back to the ‘closed’

position.

For best results, we recommend that the Cooker Hood is switched on at

least 10 minutes prior to cooking and left to run for a period of 10 minutes

after cooking is finished.

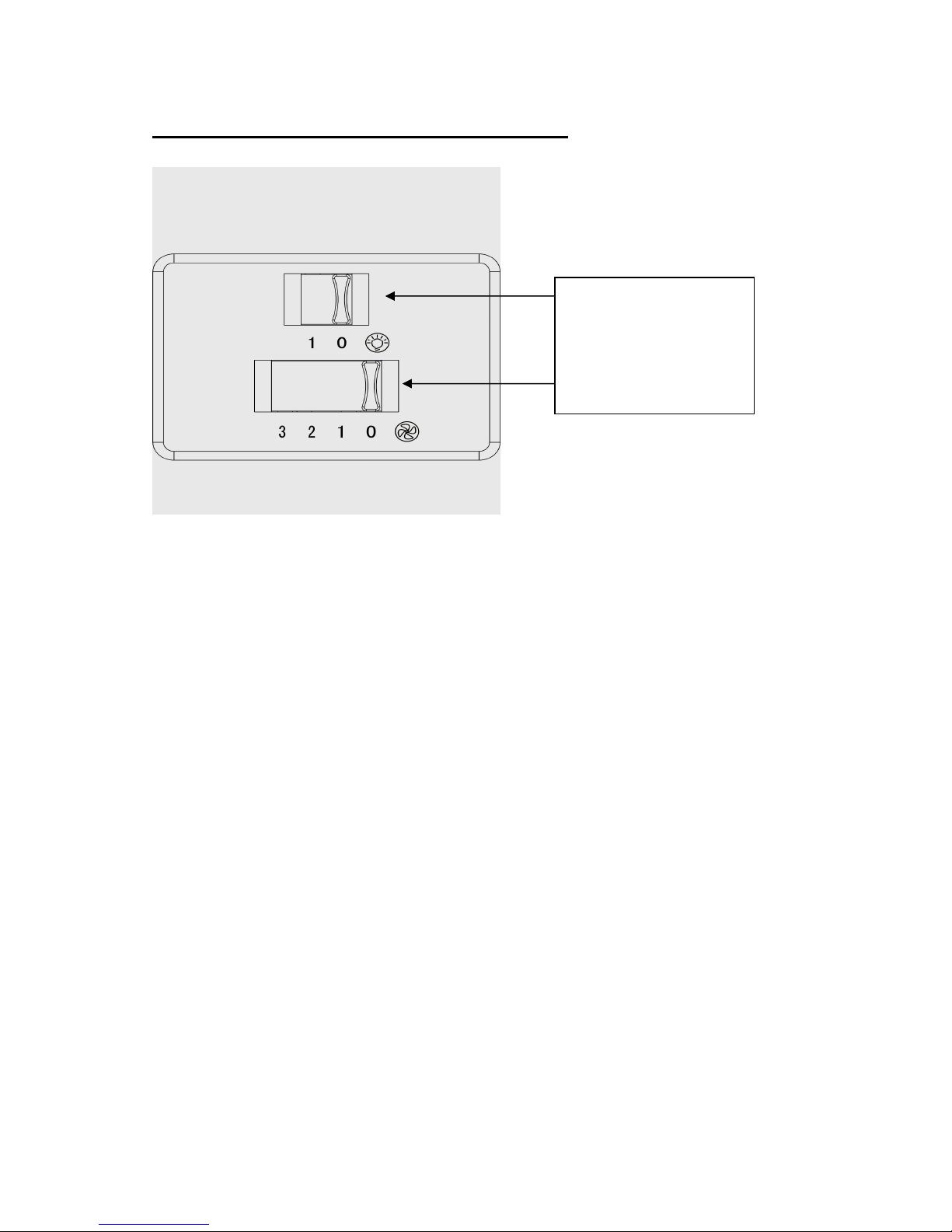

To operate the Cooker Hood, proceed as follows:

Slide control for light

Slide control for fan
