Montpellier MITF85 Manual de usuario

Integrated Freezer - In Column

MITF85 - 88cm - Slider Fixings

Please read these instructions carefully before attempting to install or use this appliance.

We recommend that you keep these instructions in a safe place for future reference.

Installation and Operating Instructions

THE PERFECT BALANCE OF FUNCTION AND STYLE

LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier appliance.

Our appliances have been designed to provide you with the best combination of style, reliability and performance to

give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing

or using your appliance to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future

reference.

Your appliance is covered by a comprehensive two year Parts & Labour

Guarantee. In the unlikely event that you experience a problem with your

appliance, you can rest assured that you are fully protected against the cost of

repairs for the first 24 months . Please note that any claim must be

accompanied by the model reference number, serial number and proof of

purchase.

To activate your guarantee, you will need your product serial number. This can

be found inside your appliance.

NB: Please make sure that you keep a copy of your original sales invoice as this

will be needed if any service call is required.

There are three ways to register your Guarantee:

• Online: Visit the Support page on our website and complete the online

Product Registration form. www.montpellier-appliances.com

•By Post: Simply detach and fill in the form provided, attach a stamp and send

it in the post. Don't forget to include your e-mail address so that we can send

confirmation through to you.

By Phone: Contact our warranty registration department on 0808 1961388

Welcome

ACROSS ALL OUR MODELS

YEAR

GUARANTEE

PA R T S & L A B O U R

www.montpellier-appliances.com

•

Contents

………………………………………. 3-4

………………………………………. 4

………………………………………. 5

………………………………………. 6

………………………………………. 7

………………………………………. 8-9

………………………………………. 10-17

………………………………………. 18-20

………………………………………. 21

………………………………………. 22

………………………………………. 23-24

………………………………………. 25

………………………………………. 26

………………………………………. 27

Safety Instructions

Electrical Safety

Transportation & Handling

Installing & Switching on your Appliance

Before Switching On

Product Overview

Unit & Spare Parts

Usage

Temperature Selection

Installation

Door Reversal

Energy Saving Advice

Defrosting The Freezer

Maintenance & Cleaning

Internal Cleaning

External Cleaning

When the appliance is not in Use

Trouble Shooting

Connection to the Mains Supply

Technical Specification

Guarantee

………………………………………. 21

Safety Instructions

Important note: Please read this booklet before installing and switching on this

appliance. The manufacturer assumes no responsibility for incorrect installation

and usage as described in this booklet.

•This model uses natural refrigerant gas as part of its cooling system. This

gas is known as R600a (Isobutene) and is environmentally friendly but can be

combustible. Care should therefore be taken when handling or transporting the

product to ensure that none of the refrigeration circuit components are

damaged,

•Do not obstruct ventilation openings in the appliance

•The appliance must not be placed or rested on its power cord.

•Do not use mechanical devices or other artificial means to accelerate the

defrosting process, such as a heater or a hair dryer.

•Do not use electrical appliances in the refrigerator compartment of the

appliance.

•If this appliance is to replace an old refrigerator with a lock, the lock must be

removed as a safety measure before storing it or disposing of it. This is to

protect children from locking themselves inside the appliance.

•Old refrigerators and freezers contain insulation gases and refrigerant, they

must be disposed of properly. Contact your local authority or your dealer if

you have any questions. Please ensure that you do not damage the scrapunit

prior to being picked-up by the relevant waste disposal service.

•Do not use adaptors or extension leads when connecting the appliance to the

electrical power supply

•Do not plug in damaged plugs

•Do not pull, twist or damage the power cable.

•Do not plug-in or un-plug the appliance with wet hands to prevent electrical

shock.

•This appliance can be used by childrenaged from 8 years and above and

persons with reduced physical, sensoryor mental capabilitiesor lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children should not play with the appliance.

•This appliance is designed to be used by adults, do not allow childrento play

with the appliance or letthem hang over the door.

•Do not place explosive or flammable material in your appliance for your own

safety.

•Bottles containing a high percentage of alcohol must be sealedwell and placed

vertically in the refrigerator.

•Do not cover the body or the top of the appliance

•Fix down the accessories in the appliance during transportation to prevent

damage to them.

Electrical Safety

THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET

•Before switching on, make sure that the voltage of your electricity supply is the

same as that indicated on the rating plate. This product is designed to operate

on 220 –240V AC; 50Hz. Connection to any other power source may damage

the unit.

•This product may be fitted with a non re-wireable plug. If it is necessary to

change the fuse in the plug, the fuse cover must be refitted. If the fuse cover

becomes lost or damaged, the plug must not be used until a suitable

replacement is obtained.

•If the plug has to be changed because it is not suitable for your socket, or

becomes damaged in any way, it should be cut off and an appropriate plug

fitted following the wiring instructions. This should be carried out by a qualified

electrician. The plug removed must be disposed of safely, as insertion into a 13

Amp socket is likely to cause an electrical hazard.

Transportation and Handling

For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the

base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door

handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly

backwards and push backwards.

This unit is heavy and could cause injury –ensure there are adequate people

present to move the appliance.

Installing and Switching on Your Appliance

•Operating voltage for your appliance is 220-240Vat 50Hz.

•Before plugging in the power supply, ensure that the voltage on the rating label

corresponds to the working voltage of your electrical system in your home.

•Insert the plug into an efficient Ground (Earth) connection. If the socket hasno

Ground (Earth) contact or the plug does not match, we suggestyou call an authorised

electrician for assistance.

•Place your appliance in an area that is not exposed to direct sunlight.

•Your appliance should be placed at least 10cm away from stoves, ovens and other

heating cores.

•This appliance should never be used outdoors or left in the rain.

•When your appliance is placed nextto achest freezer or freezer, there should be at

least 10cms betweenthem to prevent humidityon the outer surface.

•The appliance must be used in the vertical position and on a flat surface.

•To level the appliance, use the adjustable feet at the front of the appliance.

•Do not place your appliance on a carpeted surface as this will prevent adequate

ventilation.

•Keep ventilation openings in the appliance enclosure or in the built in structure clear of

obstruction

•This appliance should only be placed on a flat, firm surface.

•It is recommended the appliance is installed by a qualified kitchen fitter or joiner.

•Choose a dry and well-ventilated space.

•The appliance should be positioned so that the plug is easily accessible.

Before Switching On

•Before using your appliance, add a teaspoon of bicarbonate of soda to warm

water and with a damp cloth wipe down all parts of the new appliance, then

repeat the process with a clean damp cloth and dry. (ensure the appliance is

not connected to the power when performing this task).

•Remove all transport tapes and foam protection pieces . Clean the interior with

a cloth dampened in lukewarm soap and water. Wipe with clean water and

wipe dry.

•There may be an odour when you first switch on the appliance, it will disappear

when the appliance starts to cool.

•When the appliance has been positioned, adjust the feet to ensure the unit is

stable. This is essential to ensure quiet running and proper door opening

/closing.

•Connect to the electrical socket but do not switch the power to the refrigerator

on for at least 3 hours. The coolant within the product needs time to settle after

it has been transported and put in to position, failure to do this will affect the

cooling performance of your appliance.

•Once the appliance has settled locate the thermostat dial on the product and

set to “5" and switch on the power. The compressor will begin to work. Close

the door.

•We recommend that the door is not opened for a minimum of 4 hours to allow

the appliance to reach the standard operating temperature.

•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped

to the cooling system and through the coils or tubing at the rear of the

appliance. When the compressor is in operation you may hear a slight whirring

sound or pulsating noise. The thermostat controls the operation of the

compressor, and you may hear a slight click as it cycles in and out (this is

normal).

•To save energy, you should minimize the frequency and duration of door

opening.

Unit Parts & Spare Parts

Before installation, check that all parts detailed in the product overview are

present.

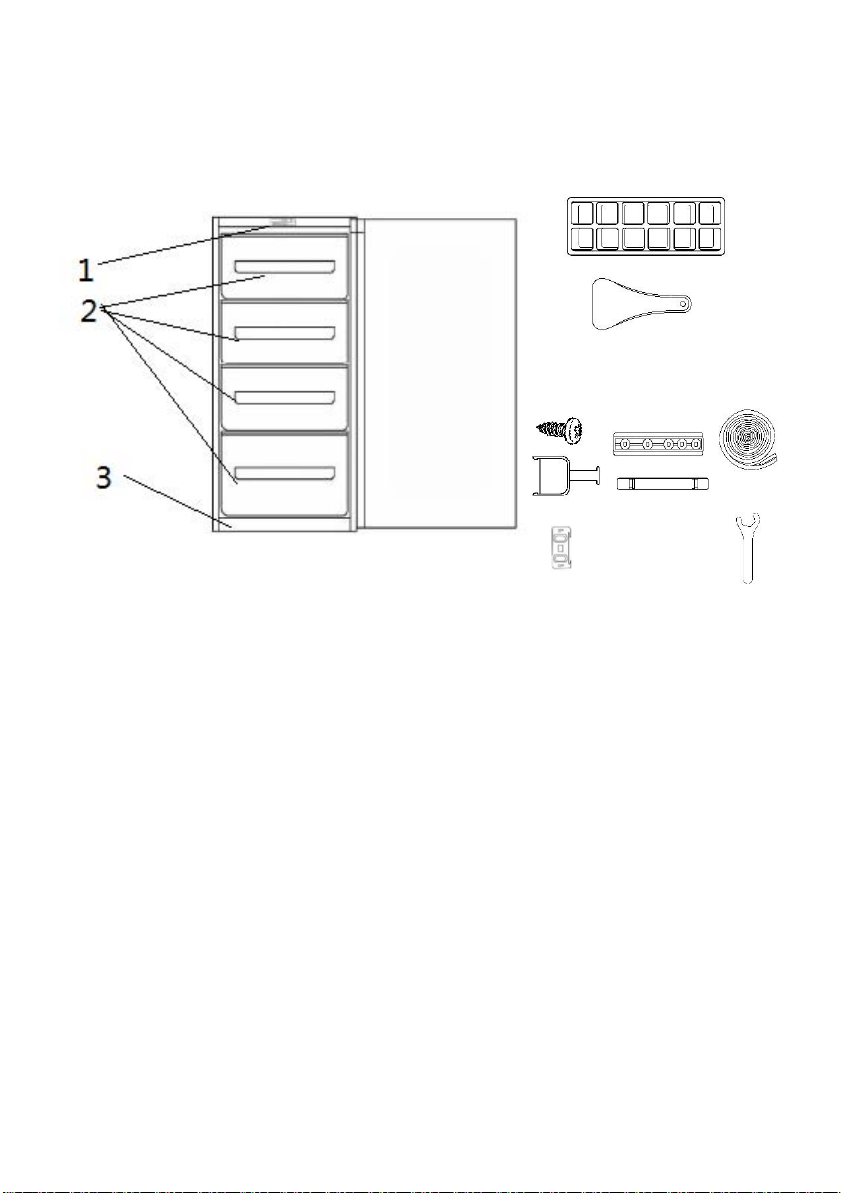

Product Overview

1. Thermostat

2. Drawers

3. Feet (adjustable feet at the front)

4. 1 x ice cube tray, 1 x ice scraper

5. Installation accessories

Depending on the ambient temperature of the room the appliance is situated in,

you may need to adjust the temperature control dial; in a room with a high

ambient temperature the temperature control dial may need to be adjusted to a

colder setting (moved towards setting 6) or in a room with a low ambient

temperature the temperature control dial may need to be adjusted to a warmer

setting (moved towards settings 5 or 4).

Setting 6should be used as a rapid cool/freeze setting and should only be set 2

hours before a large amount of food is placed in the freezer. The temperature

control should be put back to setting 5 after the food has been placed in the

freezer, if this is not done the temperature in the freezer compartment could fall

below -18ºC as the compressor will run continuously.

Once the temperature control has been set, close the door and plug in the

appliance. We recommend that the door is not opened for a minimum of 4

hours to allow the appliance to reach the standard operating temperature.

Usage

We advise that you allow your freezer to stand for a minimum of 3 hours before

plugging it into the mains.

The temperature in the appliance is controlled by the temperature control dial or

thermostat located inside the freezer. Rotate the control dial left or right to

regulate the temperature inside the freezer.

On the temperature control, 1 is the warmest setting and 7is the coldest setting.

Usage

Allow to stand for a minimum of 3 hours before plugging it into the mains.

Note: The standard operating temperature for the freezer compartment should

be between -18°C and -25°C.

Note: The temperature of the f stored food and how often the door is

opened affects the temperature in the  compartment. If required,

change the temperature setting.

Tabla de contenidos

Otros manuales de Congelador de montpellier

montpellier

montpellier MFF18860W Manual de usuario

montpellier

montpellier MS175BK Manual de usuario

montpellier

montpellier MITF210 Manual de usuario

montpellier

montpellier MFF4X Manual de usuario

montpellier

montpellier MS150W Manual de usuario

montpellier

montpellier MS171W Manual de usuario

montpellier

montpellier MAB145C/K/R Manual de usuario

montpellier

montpellier MCF140WLED Manual de usuario

montpellier

montpellier MZF48W-1/BK Manual de usuario

montpellier

montpellier MAB2035 Manual de usuario

montpellier

montpellier MZM201BG Manual de usuario

montpellier

montpellier MS311MX/W Manual de usuario

montpellier

montpellier MZF54W/BK Manual de usuario

montpellier

montpellier MIFF502 Manual de usuario

montpellier

montpellier MFF150W Manual de usuario

montpellier

montpellier MIFF701 Manual de usuario

montpellier

montpellier MFF175W Manual de usuario

montpellier

montpellier MTF273X Manual de usuario

montpellier

montpellier MIFF703LF Manual de usuario

montpellier

montpellier MNF167EW Manual de usuario

montpellier

montpellier MTTF32W Manual de usuario

montpellier

montpellier MFF155W Manual de usuario

montpellier

montpellier MICF192 Manual de usuario

montpellier

montpellier MON-M604DDAP Manual de usuario

Manuales populares de Congelador de otras marcas

Siemens

Siemens GU..D SERIES Manual de usuario

Omcan

Omcan FR-CN-0155 Manual de usuario

Beko

Beko FNE290E24W Manual de usuario

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manual de usuario

Electrolux

Electrolux EUF2042AOX Manual de usuario

Dometic

Dometic CoolFreeze CFX95DZ Manual de usuario

Electrolux

Electrolux EUF7000W1 Manual de usuario

Polar Electro

Polar Electro CT330 Manual de usuario

MPM

MPM MPM-145-SK Series Manual de usuario

SAF

SAF PRESTOTIG 200AC/DC Guía rápida

Zanussi

Zanussi ZFT11407WA Manual de usuario

AEG

AEG A63190GT Manual de usuario

AEG

AEG A81000TNW0 Manual de usuario

Matsui

Matsui MUC50S15E Manual de usuario

NEFF

NEFF G4344X8 Manual de usuario

Frigidaire

Frigidaire FV 1246 H Manual de usuario

Frigidaire

Frigidaire FFC13K1AW Manual de usuario

Electrolux

Electrolux EU 2400C Manual de usuario

montpellier MITF85 Manual de usuario

Manuales populares de Congelador de otras marcas
