Monoprice NB-BT Manual de usuario
NB-BT Neckband Wearable Bluetooth® Speaker
P/N 39417
User's Manual
2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra attention to
these safety warnings and guidelines. Please keep this manual in a safe place for
future reference.
•Do not expose this device to water or moisture of any kind.
•Do not use this device while operating a motor vehicle, heavy equipment,
walking in traffic, or any other situation in which situational awareness is a
key to safety.
•This device contains a Lithium-polymer battery. Dispose of this device only in
accordance with local, state, or federal regulations for electronic waste.
•Charge the battery before first use and at least once every three months.
•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or
detergents. For stubborn deposits, moisten the cloth with warm water.
•This device has no user serviceable parts. Do not attempt to open, service, or
modify this device.
3

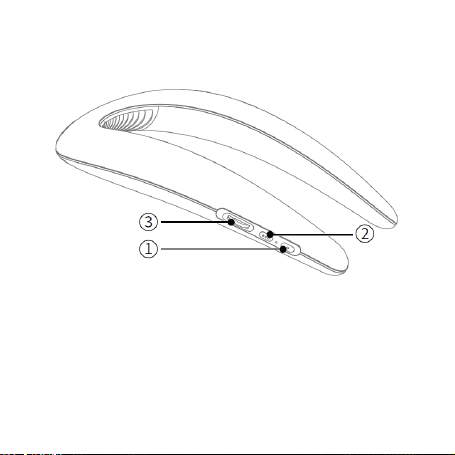

PRODUCT OVERVIEW
1. Power/Multifunction Button
•Press and hold the button for 2 seconds to turn the product on or off.
•Momentarily press the button during audio playback to pause or resume
playback.
•When an incoming phone call is detected, momentarily press the button
to answer the call.
4
•Momentarily press the button while a call is in progress to terminate the
call.
•When an incoming call is detected, momentarily press the button twice
to reject the call.
2. Skip/Multifunction Button
•Momentarily press the button to turn Siri® on.
•Momentarily press the button two times during audio playback to skip
ahead to the next track.
•Momentarily press the button three times during audio playback to skip
back to the previous track.
•Press and hold the button to disconnect Bluetooth®.
3. Volume Knob
•Turn the knob up or down to increase or decrease the volume level.
5
1. Indicator: See the
OPERATION
section for Indicator details.
2. Micro USB Port: To charge the speaker, plug one end of the included Micro
USB cable into the Micro USB Port, then plug the other end into a USB power
source, such as a wall charger or computer (not included).
BLUETOOTH PAIRING
1. Press and hold the Power/Multifunction Button for 2 seconds to turn the
speaker on. The speaker will play an audible tone and the Indicator will start
flashing blue rapidly. If the Indicator does not flash blue, press and hold the
Skip/Multifunction Button to disconnect any previous Bluetooth® pairing.
6
2. Open the Bluetooth settings on your phone, then locate and select the
MP39417 entry. The Indicator will stop flashing and will glow blue steadily.
OPERATION
•The speaker will automatically power off after 10 minutes of inactivity or
when the battery level is less than 10%.
•The Indicator flashes blue rapidly when the speaker is in Bluetooth® pairing
mode or when the speaker is out of range of the device it is paired to.
•The Indicator glows blue steadily when the speaker is on and connected to a
Bluetooth device.
•The Indicator flashes red rapidly when the battery level is less than 20%.
•The Indicator glows red steadily while charging is in progress. When charging
is complete, the Indicator turns off.
•The default volume level is about 50% when the speaker is powered on.
•The speaker will emit an audible tone when the maximum volume level is
reached.
7
FAQ
Q1: What kind of charger should be used?
A1: Any USB power source that provides 5 VDC and at least 0.5A.
Q2: What if there is noise or discontinuous sound during playback.
A2: The speaker is out of range of the paired device or there are obstructions
between the speaker and the paired device.
Q3: Why does the speaker shut down on its own?
A3: The speaker will automatically power off after 10 minutes of inactivity or when
the battery charge level is less than 10%.
Q4: The speaker cannot reconnect to a previously paired device.
A4: Remove the SoundCollar entry from your device's Bluetooth pairing list, then
power cycle the speaker to re-enter Bluetooth pairing mode.
Q5: The speaker won't power on.
A5: Plug it into a USB power source to charge the battery.
8
SPECIFICATIONS
Model
39417
Driver Power
2x 3 watts
Bluetooth® Pairing Name
MP39417
Bluetooth Version
4.2
Battery Capacity
800mAh
Playback Time
About 5-6 hours at 70% volume
Charging Time
About 3 hours
Charging Power
5 VDC, 0.5A
Dimensions
9.6" x 8.1" x 1.7" (245 x 205 x 44 mm)
Weight
10.2 oz. (290g)
9
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for
Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct
any interference to radio or television communications at your own expense.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the F CC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may c ause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
10
Radio Notice for FCC
Caution
This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification
to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate
this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including DEHP which is/are known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov
The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
