Monoprice 37924 Manual de usuario

27" Vivid UHD 4K Monitor

P/N 37924, 38941

User's Manual

CONTENTS

SAFETY WARNINGS AND GUIDELINES.......................................................................................................................................3

CUSTOMER SERVICE....................................................................................................................................................................................4

PACKAGE CONTENTS.................................................................................................................................................................................4

SETUP........................................................................................................................................................................................................................5

KENSINGTON SECURITY SLOT............................................................................................................................................................6

OSD MENU........................................................................................................................................................................................................... 7

Button Labels and Functions ........................................................................................................................................................ 7

Menu Structure..........................................................................................................................................................................................8

TECHNICAL SUPPORT...............................................................................................................................................................................14

SPECIFICATIONS............................................................................................................................................................................................15

REGULATORY COMPLIANCE..............................................................................................................................................................16

Notice for FCC ..........................................................................................................................................................................................16

Notice for Industry Canada........................................................................................................................................................... 17

EU Declaration of Conformity .................................................................................................................................................... 17

WEEE Information ................................................................................................................................................................................. 17

Safety Notice.............................................................................................................................................................................................18

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these

safety warnings and guidelines. Please keep this manual in a safe place for future reference.

This monitor is intended for indoor use only.

Do not expose this monitor to water or moisture of any kind. Do not place drinks or

other containers with moisture on or near the monitor. If moisture does get in or on

the monitor, immediately unplug it from the power outlet and allow it to fully dry

before reapplying power.

Do not touch the monitor, the power cord, or any other connected cables with wet

hands.

Do not place the monitor on an unstable surface where it could fall and cause either

personal injury or damage to the monitor and/or other equipment.

Do not subject the monitor to extreme force, shock, or fluctuations in temperature

or humidity.

Do not block the ventilation holes in the monitor's casing. Do not place the monitor

in a confined space with inadequate ventilation. Periodically check the ventilation

holes to ensure they do not become clogged with dust, debris, or nearby items.

Do not place the monitor near a heat source, such as a fireplace, heating vent,

radiator, etc. Do not leave it in direct sunlight.

Do not place or install this monitor in an area where it can be exposed to excessive

amounts of dust, humidity, oil, smoke, or combustible vapors.

Prior to operation, check the monitor and power cord for physical damage. Do not

use if physical damage has occurred.

Unplug this monitor from the power source when not in use.

Take care to prevent damage to the power cord. Do not allow it to become

crimped, pinched, walked on, or become tangled with other cords. Ensure that the

power cord does not present a tripping hazard.

Never unplug the monitor by pulling on the power cord. Always grasp the

connector head or adapter body.

Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or

detergents. For stubborn deposits, moisten the cloth with warm water.

This monitor has no user serviceable parts. Do not open the case or otherwise

attempt to modify this monitor.

Do not leave a single image on the display for a long period of time. Doing so could

cause "burn-in" of the image. It is recommended to use a variable desktop

background and to use a screen saver to prevent "burn-in". Alternatively, ensure

that the monitor is powered off for at least 2 hours out of every 12.

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice

Customer Service representative through the Live Chat link on our website

www.monoprice.com or via email at [email protected]. Check the website for

support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x Vivid UHD 4K Monitor

1x Stand

1x Base

1x HDMI® Cable

1x AC Power Cord

1x User's Manual

1x Thank You Card

SETUP

Perform the following steps to prepare your monitor for use.

1. Either assemble the stand and attach it to the rear of the monitor or mount the

monitor to a wall or desk mount.

2. Plug one end of the included HDMI® cable into one of the HDMI inputs on the

monitor, then plug the other end into the HDMI video output on your computer.

Alternatively, you can connect using a DisplayPort® cable (not included).

3. Next, plug a pair of headphones or powered speakers into the audio output on the

monitor.

4. Plug one end of the included AC power cord into the AC input on the monitor, then

plug the other end into a nearby AC power outlet. The LED power indicator on the

monitor will illuminate orange.

KENSINGTON SECURITY SLOT

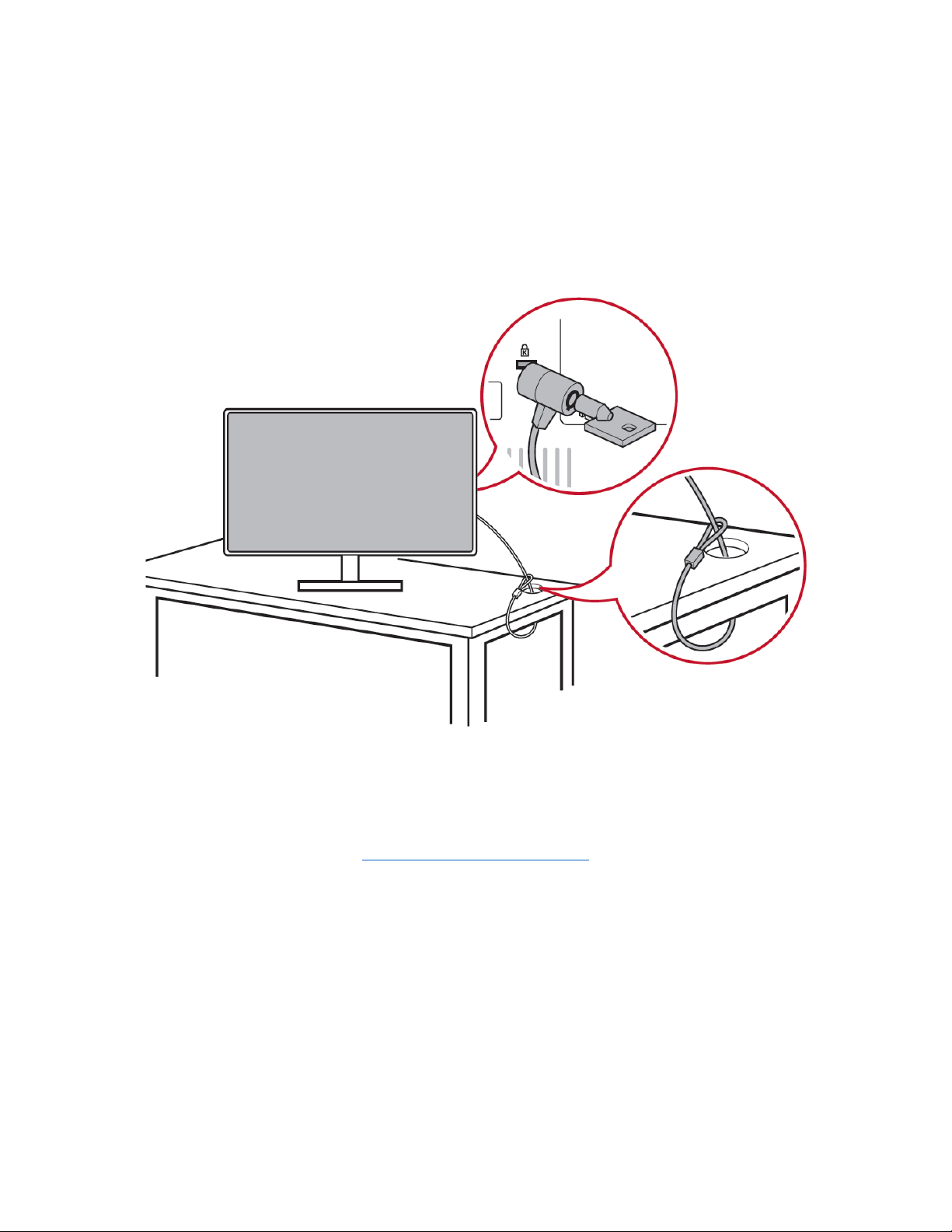

This monitor features a Kensington Security Slot™, which can be used to secure your

monitor to prevent theft. The connector is located on the rear of the monitor. The

following image illustrates an example of usage to secure the monitor to a table or desk.

For more information on installation and usage, please visit the Kensington website at the

following address:

http://www.kensington.com

OSD MENU

Button Labels and Functions

Pressing any of the control buttons, other than the Power Button ( ), causes the button

labels to appear on screen above their respective buttons. Following are the basic menu

level button labels, from left to right.

View Mode: Displays a quick menu that allows for selection of one of nine video

equalization presets (Standard, Game, Movie, Web, Text, MAC, and Mono).

Input Select: Displays a quick menu that allows for selection of one of three video

inputs (HDMI® 1, HDMI 2, and DisplayPort®)

Menu: Displays the full OSD menu.

Exit: Turns off the on-screen button labels.

Once inside one of the above three menus, the button labels will change to indicate their

functions in operating the menus. Following are the various labels and their purpose.

Select: Enters the highlighted submenu or edits the selected menu entry.

Back: Goes back to the previous menu or exits editing an entry.

Exit: Closes the OSD menu.

Up: Moves the highlight up.

Down: Moves the highlight down.

Left/Decrease: Moves the highlight to the left or decreases the displayed value

when editing an entry.

Right/Increase: Moves the highlight to the right or increases the displayed value

when editing an entry.

Menu Structure

Input Select

HDMI 1

HDMI 2

DisplayPort

Audio Adjust

Volume (0-100)

Mute (On/Off)

View Mode

Standard

Low Input Lag (On/Off)

Black Stabilization (0-100 in increments of 10)

Advanced DCR (0/25/50/75/100)

Blue Light Filter (0-100)

Response Time

Standard

Advanced

Ultra Fast

Recall

Game

GAMER 1

Low Input Lag (On/Off)

Black Stabilization (0-100 in increments of 10)

Advanced DCR (0/25/50/75/100)

Blue Light Filter (0-100)

Response Time

Standard

Advanced

Ultra Fast

Rename

Recall

GAMER 2

Low Input Lag (On/Off)

Black Stabilization (0-100 in increments of 10)

Advanced DCR (0/25/50/75/100)

Blue Light Filter (0-100)

Response Time

Standard

Advanced

Ultra Fast

Rename

Recall

GAMER 3

Low Input Lag (On/Off)

Black Stabilization (0-100 in increments of 10)

Advanced DCR (0/25/50/75/100)

Blue Light Filter (0-100)

Response Time

Standard

Advanced

Ultra Fast

Rename

Recall

FPS 1

FPS 2

RTS

MOBA

Movie

Web

Text

MAC

Mono
