Monoprice 39263 Manual de usuario

Wi-Fi®/LAN to RS-232/RS-485 Converter

P/N 39263

User's Manual

SAFETY WARNINGS AND GUIDELINES

Please read this entire manual before using this device, paying extra attention to these safety

warnings and guidelines. Please keep this manual in a safe place for future reference.

•This device is intended for indoor use only.

•Do not expose this device to water or moisture of any kind. Do not place drinks or other

containers with moisture on or near the device. If moisture does get in or on the device,

immediately unplug it from the power outlet and allow it to fully dry before reapplying

power.

•Do not touch the device, the power cord, or any other connected cables with wet

hands.

•Do not expose this device to excessively high temperatures. Do not place it in, on, or

near a heat source, such as a fireplace, stove, radiator, etc. Do not leave it in direct

sunlight.

•Prior to operation, check the unit and power cord for physical damage. Do not use if

physical damage has occurred.

•Before plugging the unit into a power outlet, ensure that the outlet provides the same

type and level of power required by the device.

•Unplug this device from the power source when not in use.

•Take care to prevent damage to the power cord. Do not allow it to become crimped,

pinched, walked on, or become tangled with other cords. Ensure that the power cord

does not present a tripping hazard.

•Never unplug the unit by pulling on the power cord. Always grasp the connector head

or adapter body.

•Clean using a soft, dry cloth only. Do not use chemical cleaners, solvents, or detergents.

For stubborn deposits, moisten the cloth with warm water.

•This device has no user serviceable parts. Do not attempt to open, service, or modify

this device.

INTRODUCTION

This Wi-Fi®/LAN to RS-232/RS-485 Converter allows for remote access, configuration, and the

ability to control any RS-232 or RS-485 serial device over a wired Ethernet or Wi-Fi network

connection. It supports the WEP, WPA-PSK, WPA2-PSK, and WAPI security protocols, as well

as the WEP64, WEP128, TKIP, and AES encryption standards. It has extremely low latency and is

suitable for use in a battery powered system.

FEATURES

•Can connect to an existing wired Ethernet or wireless Wi-Fi® network

•Can control any RS-232 or RS-485 device

•Supports the WEP, WPA-PSK, WPA2-PSK, and WAPI security protocols

•Supports the WEP64, WEP128, TKIP, and AES encryption standards

•Can be configured as a Wi-Fi router or access point

CUSTOMER SERVICE

The Monoprice Customer Service department is dedicated to ensuring that your ordering,

purchasing, and delivery experience is second to none. If you have any problem with your

order, please give us an opportunity to make it right. You can contact a Monoprice Customer

Service representative through the Live Chat link on our website www.monoprice.com or via

email at [email protected]. Check the website for support times and links.

PACKAGE CONTENTS

Please take an inventory of the package contents to ensure you have all the items listed

below. If anything is missing or damaged, please contact Monoprice Customer Service for a

replacement.

1x Wi-Fi®/LAN to RS-232/RS-485 converter

1x Wi-Fi antenna

1x 9-pin RS-232 cable

1x Cat5e Ethernet cable

1x AC power adapter (5 VDC, 1A)

1x User's manual

PRODUCT OVERVIEW

1. RS-232: 9-pin DB-9 connector for connecting the included RS-232 cable to the RS-232 or

RS-485 device.

2. Power: DC barrel connector for connecting the included AC power adapter.

3. Antenna: SMA connector for attaching the included antenna.

4. Reset: Press and hold the button for about 10 seconds to reset the device to its factory

default settings.

5. WAN: RJ45 jack for connecting to a broadband modem.

6. LAN: RJ45 jack for connecting to an Ethernet router or switch.

7. Wi-Fi Status: The LED flashes green when the converter is connected to a Wi-Fi®

network and is off when there is no connection.

RS-232 PINOUT

Pin #

Function

Input/Output

Description

N/A

RxD

Input

Data receiving input

TxD

Output

Data sending output

N/A

GND

Input

Ground

N/A

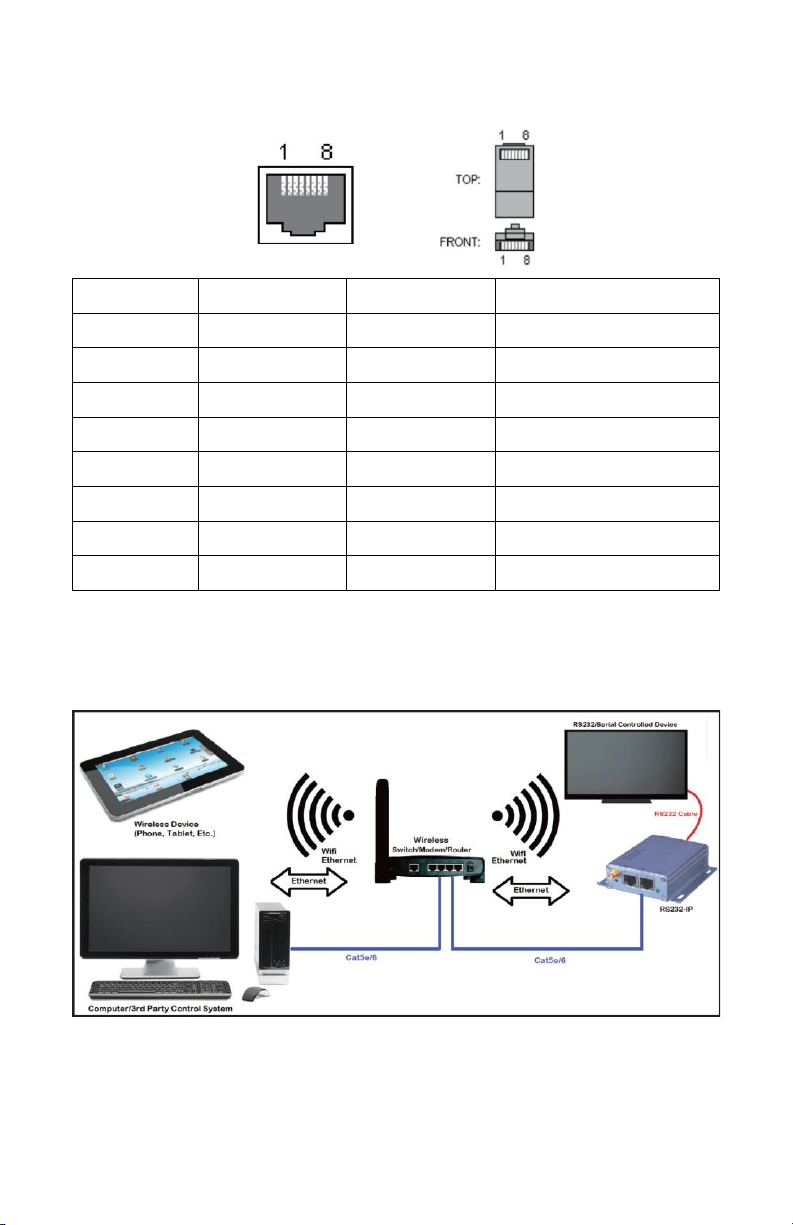

RJ45 PINOUT

Pin #

Function

Input/Output

Description

TX+

Output

Transmit Data +

TX-

Output

Transmit Data -

RX+

Input

Receive Data +

N/A

RX-

Input

Receive Data -

N/A

SAMPLE CONNECTION DIAGRAM

INSTALLATION

Perform the following steps to connect the converter to your network and your

RS-232/RS-485 device.

1. Place the Converter near the device you want to control.

2. Using the included 9-pin RS-232 cable, plug one end into the RS-232 port on your

device, then plug the other end into the RS-232 port on the Converter.

3. If you intend to use a wired connection to the Converter, plug one end of the

included Ethernet cable into the LAN port on the Converter, then plug the other end

into an available LAN port on your router.

Alternatively, if you intend to use a Wi-Fi® connection to the Converter, attach the

included Wi-Fi antenna to the Antenna connector on the Converter.

4. Plug one end of the included AC power adapter into the Power connector on the

Converter, then plug the adapter into a nearby AC power outlet.

5. Depending on whether you are using a wired or wireless connection, perform the

steps in one of the following sections to connect to the Converter using your web

browser.

Wired

1. Open a web browser and connect to your router using the instructions found in your

router's user's manual.

2. In the router's user interface, check the DHCP client to determine the IP address of

the Converter.

3. Enter the IP address into the address bar on your browser and hit ENTER to access

the Converter's Web GUI Login screen.

Wireless

1. Create a wireless connection to the converter using the following Wi-Fi® settings:

SSID: HLINK

Password: 12345678

2. Once you are connected, open a web browser, type 192.168.16.254 into the address

bar, and hit ENTER to access the Converter's Web GUI Login screen.

WEB GUI

Enter the Username and Password into the fields on the dialog, then click the Sign In button to

continue. The default Username and Password are:

Username: admin

Password: admin

Serial2Net Settings

Click HLK-RM04 > Serial2Net Settings to get this screen, which allows you to change the

Wi-Fi® connection and login parameters.

You can change the NetMode setting, but we recommend leaving it at Default.

System Settings

Click HLK-RM04 > Serial2Net UART 2 Settings to get this screen, which allows you to change

many network connection settings. The parameters in the Current column reflect the current

settings, while those in the Updated column are the new settings. Make changes, as desired,

then click the Apply button to save your changes.

Following are details about the entries.

•Serial Configure: Sets the serial communications parameters. The values are Baud

Rate, Data Bits, Parity, and Stop Bits, separated by commas.

•Serial Framing Length: Sets the Serial Framing Length, which is 64 by default and

usually remains unchanged.

•Serial Framing Timeout: Sets the amount of time (in milliseconds) for the Serial

Framing Timeout, which is 10 by default and usually remains unchanged.

•Network Mode: Select Client, Server, or None.

•Remote Server Domain/IP: Sets the IP address of the Remote Server Domain. This can

only be changed if the Network Mode is Client.

•Locale/Remote Port Number: Sets the port number. This can only be changed if the

Network Mode is Client or Server. When Network Mode is set to Client, this specifies

the port number of the remote server. When Network Mode is set to Server, this

specifies the local port number.

•Network Protocol: Select TCP, UDP, or None. For most configurations, set it to TCP.

•Network Timeout: Sets the amount of time (in seconds) of no data transmission

before the server disconnects. Set it to 0to never disconnect.

System Management

Click Administration > Management to get this screen, which allows you to set the UI

Language and the login parameters (Username/Account and Password). The default Account

(Username) and Password are both admin (case sensitive). Click the Reboot button to save and

reload your new settings.

Settings Management

Once you have the Converter configured as you want, it is a good idea to save the settings to

a file on your computer. This allows you to maintain several different sets of settings and to

reload your settings in the event that they are changed from what you want. Click

Administration > Settings Management to get the following screen, which allows you to save

and load settings or to reset all settings to their factory default values.

Home Page

Click the UART-WIFI-ETH label in the upper left corner of the screen to get the Home Page, as

shown below.

AP Configuration

Perform the following steps to configure the Converter to operate as a wireless Access Point

(AP).

1. From the Home Page, click HLK-RM04 > Operation Mode to get the following screen.

2. Click the radio button next to the AP Client label, then click the Apply button.
