Specification Created 1/04

110208

ZFSB26DRSS – GE Monogram 25.5 Cu. Ft. Free-Standing Stainless Steel

Side-by-Side Refrigerator with Dispenser

Listed by

Underwriters

Laboratories

For answers to your Monogram,

® GE Profile™ or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

Dimensions and Specifications (in inches)

36"

72"

34"

Including

Handles

605Dia41

32"

Installation Note:

Door and passageways into the installation location require a

36" minimum opening. If the opening is less than 36", the top cap

and doors must be removed. See installation instructions for details.

Electrical

A 115V, 60Hz., 15 or 20 amp power supply is required. An individual

properly grounded branch circuit or circuit breaker is recommended.

Install a properly grounded 3-prong electrical receptacle recessed

into the back wall.

Note: GFI (ground fault interrupter) is not recommended.

Water Line

The water line can enter the opening through the floor or back wall.

Route 1/4" O.D. copper tubing or GE QuickConnect kit between the

cold water line and the water connection location at the rear of the

refrigerator. The installation of an easily accessible shut-off valve in

the water line is required.

Door Swing Clearances

The installation must allow for clearances to adjacent walls or

cabinets. These refrigerators are factory set for a 160° door swing.

605Dia43

19"

14-1/4"

ZFSB26 and ZFSB23

160°

160° Door Swing

Allow 19" minimum clearance on the fresh food side for a full

160° door swing and pan removal. Allow 14-1/4" clearance on the

freezer side for removal of ice bin.

• 4" minimum clearance is required when the door swing is

restricted to 90°.

Air Circulation Clearances

Allow 1/8" on each side and 1" at the top and back side for proper

air circulation.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

ZFSB26

28"

22"

90° Door Swing

ZFSB26

4" Min.

to Wall

Specification Created 1/04

110208

ZFSB26DRSS – GE Monogram 25.5 Cu. Ft. Free-Standing Stainless Steel

Side-by-Side Refrigerator with Dispenser

ZFSB25DMSS.EPS

QUICK

ICE

CONTROL

LOCK

DOOR

ALARM

RESET

WATER FILTER

Features and Benefits

• 25.5 cu. ft. capacity (fresh food 16.0 cu. ft./

freezer 9.5 cu. ft.)

• ENERGY STAR® qualified

• Integrated Ice™ System – The ice bucket is integrated

into the icemaker, not the freezer door, freeing up

valuable storage space

• Upfront electronic controls with digital readout

• Tri-Level light system

• Multi-shelf air management tower

• Climate control drawer with Express Chill,

Express Thaw and Select Temp

• LightTouch! tall dispenser delivers chilled water,

cubed and crushed ice through the door

• Model ZFSB26DRSS – Stainless steel

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Tabla de contenidos

Otros manuales de Refrigerador de Monogram

Monogram

Monogram ZISS480DXASS Manual de usuario

Monogram

Monogram Monogram ZISW36DRC Manual de usuario

Monogram

Monogram Monogram ZFGP21HYSS Manual

Monogram

Monogram ZISP480DHSS Manual de usuario

Monogram

Monogram Double Door, Double Drawer, Stainless Steel, Free-Standing... Manual de usuario

Monogram

Monogram Monogram ZIBI240PII Manual de usuario

Monogram

Monogram ZIFS240HSS Guía

Monogram

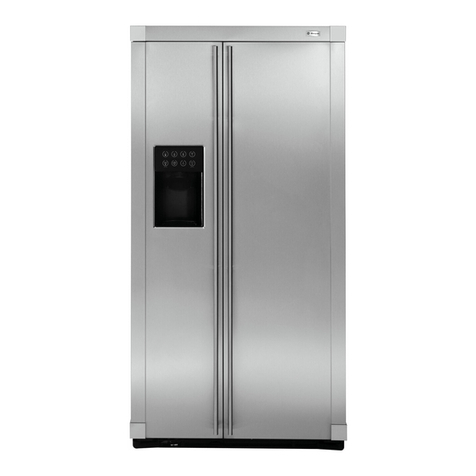

Monogram ZFSB23DRDSS Manual de usuario
