INSTALLATION

INSTRUCTIONS

Advantium®Built-In Wall Oven 120V 27”

MONOGRAM.COM

MFL59060935

Para consultar una version en español de este manual

de instrucciones, visite nuestro sitio de internet Monogram.com.

231-7000078 Rev. 3

Safety Information

CONTENTS

Design Information

Models Available...............................................2

Product Dimensions and Clearances................3

Tools and Parts Required .................................3

Installation Preparation

Electrical Requirements ....................................4

Grounding Instructions......................................4

Preparing the Opening (Standard)....................5

Preparing the Opening (Flush Mount)...............9

Installation Instructions

Step 1, Remove Packaging and Parts............11

Step 2, Slide Oven Into Cutout .......................12

Step 3, Install Bottom Trim..............................12

Step 4, Install Mounting Screws......................12

Step 5, Finalize Installation.............................12

MODELS AVAILABLE

ZSB9121NSS – STAINLESS STEEL

BEFORE YOU BEGIN

Read these instructions completely and

carefully.

IMPORTANT —Save these instructions

for local inspector’s use.

IMPORTANT —Observe all governing codes

and ordinances.

•Note to Installer —Be sure to leave these

instructions with the Consumer.

•Note to Consumer —Keep these instructions

with your Owner’s Manual for future reference.

•Skill Level — Installation of this appliance

requires basic mechanical and electrical skills.

•Completion Time —1 Hour.

• Proper installation is the responsibility

of the installer. Product failure due to improper

installation is not covered under the warranty.

See Owner’s Manual for warranty information.

IMPORTANT —Use this oven only for its

intended purpose. Never use the oven for

warming or heating a room. Prolonged use

of the oven without proper ventilation can be

hazardous. For personal safety, remove

house fuse or oven circuit

breaker before beginning installation to avoid

severe or fatal shock injury.

For personal safety, the

mounting surface must

be capable of supporting the cabinet load, in

addition to the added weight of the oven and

drawer, plus additional oven loads.

CAUTION

31-7000078 Rev.3 3

Design Information

PRODUCT DIMENSIONS AND CLEARANCES

TOOLS AND PARTS REQUIRED

(NOT SUPPLIED)

•#2 Phillips screwdriver

•Hand-held drill

•High speed drill bit, 3/32Ǝdiameter

•3/8Ǝslot-head screwdriver

• Level

• Saw

• 3/8” slot-head screwdriver

• Wood screws or other hardware for installing

runner or shelf to support oven (if required)

• Safety glasses or goggles

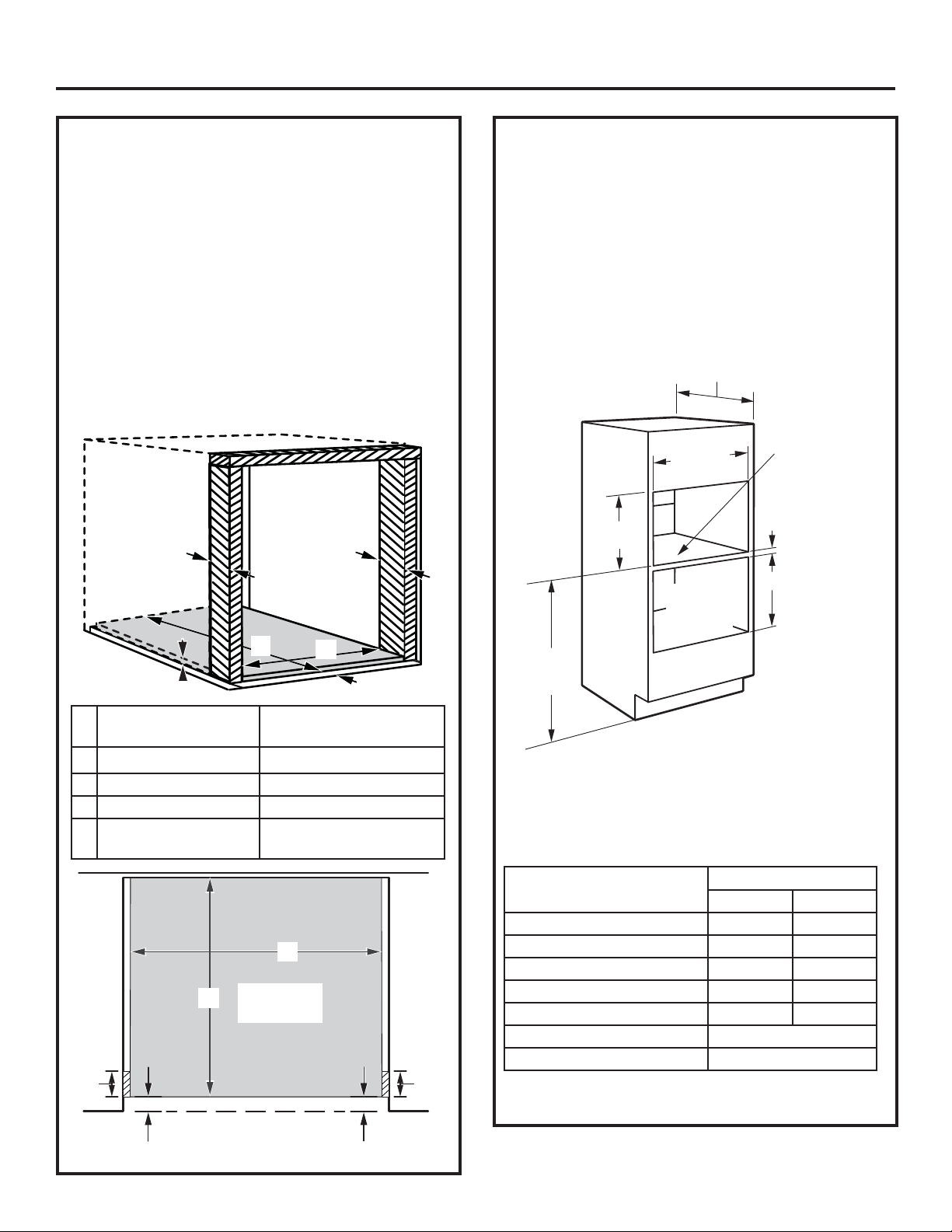

FLUSH MOUNT INSTALLATION

This installation method allows for the unit face to

be inline with the cabinet face.

IMPORTANT: HIGH SKILL LEVEL IN

CARPENTRY IS REQUIRED. Non-standard

cabinetry may be required.

Flush installation of the oven will lead to the

exposure of the cabinet face frame edges.

Side cleats may be visible and should be a

finished surface.

20-1/4”

26-3/4”

ADVANCE PLANNING

•7KHVHRYHQVPD\EHLQVWDOOHGGLUHFWO\LQWRDƎ

wide oven cabinet with standard installation.

•Cutout height dimensions are different for

installations with an accessory storage drawer.

Make sure to use the correct cutout when

preparing the opening.

• Allow for clearance to adjacent corners, walls,

drawers, etc.

The oven must be securely installed in a cabinet

that is firmly attached to the house structure.

Weight on the oven door could cause the oven

to tip and result in injury. Never allow anyone to

climb, sit, stand or hang on the oven door.

21-1/2Ǝ

1Ǝ

13 1/4Ǝ

2-1/4Ǝ

Door Depth

See table

below

Model Door Depth

ZSB9121NSS 1-3/8”

431-7000078 Rev. 3

Installation Preparation

ELECTRICAL REQUIREMENTS

Single Advantium Built-In Oven Installation:

This product requires a 120-volt, 60 Hz, 15-amp

circuit and draws 1.8 kilowatts. This product must be

connected to a supply circuit of the proper voltage and

frequency.

• Wire size must conform to the requirements of the

National Electrical Code or the prevailing local code for

this kilowatt rating.

• The power supply cord and plug should be brought

to a separate 15 or 20 ampere branch circuit single

grounded receptacle. The outlet box should be located

within reach of the 48” power cord.

ELECTRICAL LOCATION

Locate outlet box in the shaded area

6”

9”

Install a recessed electrical outlet

in the back wall of the opening

within 6Ǝof either side and at least

9Ǝabove the cutout floor.

GROUNDING INSTRUCTIONS

WARNING Improper use of the grounding plug can result in a risk of electric shock.

This appliance must be grounded.

In the event of an electrical short

circuit, grounding reduces the risk

of electric shock by providing an

escape wire for the electric current.

This appliance is equipped with a

power cord having a grounding wire with a grounding

plug. The plug must be plugged into an outlet that is

properly installed and grounded.

Consult a qualified electrician or service technician if

the GROUNDING INSTRUCTIONS are not completely

understood, or if doubt exists as to whether the

appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your

personal responsibility and obligation to have it replaced

with a properly grounded 3-prong wall outlet.

Do not under any circumstacnes cut or remove the third

(ground) prong from the power cord.

Do not use an extension cord. If the power cord is too

short, have a qualified electrician or service technician

install an outlet near the appliance.

For best operation, plug this appliance into its own

electrical outlet to prevent flickering of lights, blowing of

fuse or tripping of circuit breaker.

Ensure Proper ground

exists before use.

31-7000078 Rev.3 5

Standard Installation Preparation

PREPARE THE OPENING (CONT.)

Installation over a Warming Drawer:

PREPARE THE OPENING

The Advantium Built-In Oven can be installed

in combination with other Monogram Built-In

appliances. Always follow each product’s

Installation Instructions to complete the

installation.

Single Advantium Built-In Oven

Installation:

Order a 27” or 30” wide single oven cabinet

or cut the opening in a wall to the dimensions

shown.

• Allow the following clearances around the

cutout on the front surface of the cabinet :

í´IURPWKHWRS´IURPWKHVLGHHGJHV

DQGí´IURPWKHERWWRP

(Note: these refer to minimum clearances

required for installation and do not reflect actual

product dimensions.)

• Oven overlaps will conceal cut edges on all

sides of the opening.

When installed over a single oven or a

warming drawer, allow at least 2” between

the two openings. This separation will provide

clearance for bottom overlap of the Advantium

120 and the other appliance overlaps.

• The support must be level and rigidly mounted,

flush with the bottom edge of the cutout.

27” or 30” 23-1/2”

25-1/4”

17-1/2” Construct

solid bottom

- Min. 3/8”

plywood

supported

on all four

sides. Must

be able to

support

weight of

oven and

contents.

36-3/4”

Min.

27” or 30” 23-1/2”

25-1/4”

17-1/2”

36-3/4”

Min.

2ƎMin.

(3ƎRecommended)

Per Warming

Drawer

Requirement

Construct

solid bottom

- Min. 3/8”

plywood

supported

on all four sides.

Must be able to

support weight

of oven and

contents.

NOTE: Additional

clearances between the cutouts

may be required. Check to be sure the oven

supports above the Warming Drawer location does not

obstruct the required interior depth and height. See

Warming Drawer installation instructions for details.

631-7000078 Rev. 3

Standard Installation Preparation

PREPARE THE OPENING (CONT.)

Installation over a Wall Oven:

27 or 30” 23-1/2”

25-1/4”

17-1/2” 2” Min.

(3” Recommended)

45-1/4”

Min.

Construct

solid bottom

- Min. 3/8”

plywood

supported

on all four sides.

Must be able to

support weight

of oven and

contents.

Per Oven

Requirement

• If you are replacing an electric double oven with the

combined installation of an Advantium Built-In Oven

and a single oven, use the dimensions shown. The

middle rail separating the two openings may need to

be larger than the 2” minimum shown.

PREPARE THE OPENING (CONT.)

Installation over a Wall Oven and Warming

Drawer: Construct

Solid Bottom

Min. 3/8”

Plywood

Supported

2x4 or 2x2

Runners all

Four Sides

27 or 30” 23-1/2”

25-1/4”

17-1/2”

2” Min.

Per Oven

Requirement

45-1/4”

Min.

Per warming drawer requirement

2” Min.

(3” recommended)

NOTE: Additional clearances between the cutouts

may be required. Check to be sure the oven supports

above the Warming Drawer location does not obstruct

the required interior depth and height. See Warming

Drawer installation instructions for details.

CAUTION For personal safety, the

mounting surface must be capable of supporting the

cabinet load, in addition to the added weight of the

oven and drawer, plus additional oven loads.

31-7000078 Rev.3 7

Standard Installation Preparation

PREPARE THE OPENING (CONT.)

Installation over another Advantium Built-In

Oven:

27 or 30Ǝ23-1/2Ǝ

25-1/4Ǝ

17-1/2Ǝ3 1/8ƎMin.

(4 1/8ƎRecommended)

17-1/2Ǝ

Construct

solid bottom - Min.

3/8” plywood

supported

on all four sides.

Must be able to

support weight

of oven and

contents.

• If you are mounting a Built-In

Advantium Oven over

another, use the dimensions

shown. The middle rail

separating the two openings may need to be larger

than the 3-1/8Ǝminimum shown.

PREPARE THE OPENING (CONT.)

Installation under a Microwave Oven and over

a Warming Drawer:

27 or 30Ǝ23-1/2Ǝ

25-1/4Ǝ

17-1/2Ǝ

2ƎMin.

(3ƎRecommended)

Per Microwave

Oven Requirement 3.5ƎMin.

(4.5ƎRecommended)

Per Warming

Drawer

Requirement

Construct

solid bottom - Min.

3/8” plywood

supported

on all four sides.

Must be able to

support weight

of oven and

contents.

NOTE: Additional clearances between the cutouts

may be required. Check to be sure the oven supports

above the Warming Drawer location do not obstruct

the required interior depth and height. See Warming

Drawer installation instructions for details.

CAUTION For personal safety, the

mounting surface must be capable of supporting the

cabinet load, in addition to the added weight of the

oven and drawer, plus additional oven loads.

831-7000078 Rev. 3

Standard Installation Preparation

PREPARE THE OPENING (CONT.)

Installation beside another Advantium Built-In

Oven:

• If you are mounting an Advantium Built-In

Oven

beside

another, use the dimensions shown. The middle rail

separating the two openings may need to be larger

than the 4-1/2Ǝminimum shown.

25-1/4Ǝ

17-1/2Ǝ

23-1/2Ǝ

17-1/2Ǝ

4-1/2ƎMin.

(5-1/2ƎRecommended)

25-1/4Ǝ

PREPARE THE OPENING (CONT.)

Installation under a 30Ǝor 36ƎCooktop or Countertop:

Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.

See the label on top of the oven for approved cooktop models. This oven requires a separate, properly grounded

15-Amp, 120-Volt, 60Hz power supply. The cooktop requires a separate power supply. Use a 30Ǝor wider base

cabinet.

Cooktop Cooktop

25Ǝ

1-1/2ƎMin.

4ƎHigh

Toekick

23-1/2Ǝ

25-1/4Ǝ

17-1/2Ǝ

36Ǝ

Countertop

Height

Cooktop height including depth

of electrical box on some

models. Refer to cooktop

installation instructions.

No minimum clearance required

between cooktop and oven.

31-7000078 Rev.3 9

Flush Mount Installation Preparation

PREPARE THE INTERIOR

Cut and install side cleats:

• Cut side wood cleats to height of cabinet

opening and approx. 2-1/2” in depth. Install,

on each side, Dim. E from the front face of the

cabinet.

Cut and install bottom cleat:

• Cut bottom wood cleat to a height of 1-1/8”, a

depth of the cabinet minus Dim. E and a width

of 25-1/4” to fit between side cleats. Install

onto the cabinet floor between the side cleats,

push it all the way back against cabinet wall

and make sure its front face aligns with the front

faces of the side cleats (Dim. E gap from the

front cabinet face).

A Side and top cleats

depth 2-1/2” min.

B Bottom cleat height 1-1/8”

C Bottom cleat depth Cabinet depth minus Dim. E

D Bottom cleat width 25-1/4”

E All four cleats inset

depth 1-3/8” ZSB9121NSS

PREPARE THE OPENING

The Advantium Built-In Oven can be installed

in combination with other Monogram Built-In

appliances. Always follow each product’s

Installation Instructions to complete the

installation.

Single Advantium Built-In Oven

Installation:

Cut the opening in a cabinet to the dimensions

shown.

• The support must be level and rigidly mounted,

flush with the bottom edge of the cutout.

TOP

VIEW

Front Face of Cabinet

A A

**20 1/2”

Construct

solid bottom

- Min. 3/8”

plywood

supported on

all four sides.

Must be able to

support weight

of oven and

contents.

36-3/4”

Min.

F *

23-1/2” min.

2” Min.

(3” recommended)

*See table

below for

desired reveals

on sides.

Per

appliance

specs.

Oven or

warming

drawer

Approved Flush Installation Dimension F

1/8” Reveal 1/4” Reveal

Single Advantium 27” 27-1/4”

Over Warming Drawer 27” 27-1/4”

Over Oven

27” 27-1/4”

Over Oven and Warming Drawer

27” 27-1/4”

Over Built-in Oven

27” 27-1/4”

Double Advantium (side by side)

See page 10

Under Cooktop or Countertop See page 10

** Top and bottom reveals are set to 1/8”.

10 31-7000078 Rev. 3

Flush Mount Installation Preparation

PREPARE THE OPENING

The Advantium Built-In Oven can be installed

beside another Advantium Built-In Oven in a

side-by-side combination.

Double Advantium Built-In Oven

Installation:

Cut the opening in a cabinet to the dimensions

shown.

• Center divider acts as cleat for side of each

respective unit. Only one additional side cleat

needed per oven cutout.

• The support must be level and rigidly mounted,

flush with the bottom edge of the cutout.

23-1/2” min.

20-1/2”

Construct solid bottom - Min. 3/8”

plywood supported on all four

sides. Must be able to support

weight of oven and contents.

I*I*

1 3/8”

*See table for desired reveals on sides and

between unit.

Dimension 1/8” Reveal 1/4” Reveal

G 53-7/8” 54-1/4”

H 1-5/8” 1-3/4”

I 26-1/8” 26-1/4”

36-3/4”

PREPARE THE OPENING

Installation under a 30Ǝor 36ƎCooktop or Countertop:

Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.

See the label on top of the oven for approved cooktop models. This oven requires a separate from the cooktop,

properly grounded 15-Amp, 120-Volt, 60Hz power supply. Use a 30Ǝor wider base cabinet.

Cooktop Cooktop

25Ǝ

1-1/2ƎMin.

4ƎHigh

Toekick

23-1/2Ǝ

J* 20-1/2”

36Ǝ

Countertop

Height

Cooktop height including

depth of electrical box

on some models. Refer

to cooktop installation

instructions.

No minimum clearance

required between cooktop

and oven.

*1/8” reveals on

sides and top

Dimension 1/8” Reveal 1/4” Reveal

J 27” 27-1/4”

*See table for desired reveals on sides.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Horno de Monogram

Monogram

Monogram ZSA1202PSS Manual de usuario

Monogram

Monogram Advantium ZSC2202J3SS Manual de usuario

Monogram

Monogram ZMB9032 Manual de usuario

Monogram

Monogram Advantium CSB912 Manual de usuario

Monogram

Monogram ZTSX1FPSN1SS Manual de usuario

Monogram

Monogram Advantium ZSC2202JSS Manual de usuario

Monogram

Monogram Monogram ZET1038PFSS Guía del usuario

Monogram

Monogram Monogram ZEK938BM Manual de usuario

Monogram

Monogram Advantium ZSB9131NSS Manual de usuario

Monogram

Monogram Advantium ZSA1201 Manual de usuario

Monogram

Monogram ZEK7000SHSS Manual de usuario

Monogram

Monogram Statement ZTDX1FPSN Manual de usuario

Monogram

Monogram Advantium ZSA2201 Manual de usuario

Monogram

Monogram GE ZET1 Manual de usuario

Monogram

Monogram ZSC1000 Manual de usuario

Monogram

Monogram ZKS90DPSNSS Manual de usuario

Monogram

Monogram ZEP30FLSS Manual de usuario

Monogram

Monogram Monogram ZSC2001CSS03 Manual de usuario

Monogram

Monogram ZKD90DSSN Manual de usuario

Monogram

Monogram JKP47G Instrucciones de instalación

Monogram

Monogram ZKD90DPSNSS Manual de usuario

Monogram

Monogram Monogram ZET1038PFSS Manual de usuario

Monogram

Monogram ZEK958 Manual de usuario

Monogram

Monogram Advantium ZSC2201 Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
