Introduction

With the introduction of iOS 4.3 from Apple came

AirPlay. Monitor Audio have used 40 years of

knowledge to produce a TRUE hiﬁ, AirPlay enabled

speaker system. Whether using AirPlay Direct,

streaming via a wireless router or playing your music

collection from PC or MAC, the ASB-2 is the ideal

partner to AirPlay.

ASB-2 Capabilities

• Fully active, high performance soundbar system

• 5 discrete power ampliﬁer stages - fully digital amp

technology (class D)

• Wireless AirPlay music streaming

• Stream audio from an iOS-device using AirPlay

Direct without the need of a wireless router.

• Stream audio from an iOS-device via Wi-Fi to the

ASB-2 connected to the same network.

• Choose which AirPlay device you want to stream

to from your iOS-device when there are multiple

Airstream devices on your network.

• Proprietary 3D spatial effects, consistent in quality

irrespective of environment

• 4 x HDMI connections (3 in, 1 out) 1080P and 3D

pass through and Audio Return Channel (ARC)

• Digital coaxial input (S/PDIF)

• Digital optical input (Toslink)

• Analogue stereo RCA inputs, 3.5mm Jack (auto-

sensing between each input, via analogue switch)

• RCA LFE sub-woofer output (adjustable crossover

settings)

• USB port for service, FW update and Airplay

network set up

• On-screen set up (OSD) – for all advanced audio

features access

• Silicon rubber stand included for secure cabinet

top placement

• Designed to ﬁt Sanus™ TV mounting systems

• Optional sturdy Monitor Audio wall bracket with

cable hole access and template installation

• Stream audio from your iOS-device to multiple

Airstream devices using our Airstream App.

Available in the App Store from 2013.

• Stream audio by Wi-Fi from any PC or Mac using

iTunes (version 10 or later) connected to the same

wireless network as the ASB-2.

What’s in the box

• ASB-2

• Remote Control

• Rubber table stand

• Mains lead (region speciﬁc).

• Quick Start Guide

• Safety Instructions

AirPlay Compatibility

To stream wirelessly to the ASB-2 using AirPlay (not

AirPlay Direct), you will need the following:

• A Wi-Fi certiﬁed router (Wireless 802.11 b/g class

only)

• A host for your music (iPhone/ iPad/ iPod Touch

running iOS 4.3 or later, or a PC/ Mac with iTunes

10 or later)

Compatible AirPlay devices are listed below:

• iPad 4

• iPad 3

• iPad 2

• iPad

• iPhone 5

• iPhone 4S

• iPhone 4

• iPhone 3GS

• iPod Touch 5th Generation

• iPod Touch 4th Generation

• iPod Touch 3rd Generation

• iPod Touch 2nd Generation

The ASB-2

ASB-2 Connections

1. HDMI Inputs

Used to connect up to 3 High Deﬁnition sources to

the ASB-2 (refer to page 6).

2. HDMI output

Used to connect the ASB-2 to the TV, also used

as the Audio Return Channel (refer to page 5).

3. USB Input

Used to connect a USB device to the ASB-2 for

updating and connecting to the wireless network.

4. Digital Coaxial Input

Used to connect digital coaxial audio source to

the ASB-2 (Refer to page 7)

5. Digital Optical Input

Used to connect digital optical audio source to the

ASB-2 (Refer to page 7)

6. Auxiallary 1

Used to connect an analogue stereo audio source

to the ASB-2 using RCA phono connections.

(Refer to page 8).

7. Auxiliary 2

Used to connect an analogue stereo audio source

to the ASB-2 using a 3.5mm stereo mini jack

connector (refer to page 8).

8. Sub Out

Used to connect the ASB-2 to an additional sub

woofer (refer to page 8).

9. Power Switch

Mains Power switch. Used to turn the ASB-2 on

and off (refer to page 9)

10. Mains Input

Used to connect the ASB-2 to the mains (refer to

page 9).

ASB-2 Buttons

12 3 4 5 67 8 9 10

1. Standby

Used to put the ASB-2 in and out of stand by

mode. Holding it down for 5 seconds it searches

for an internet ﬁrmware update or a USB update.

2. HDMI Toggle

Used to toggle through the HDMI inputs. The LED

on the front will ﬂash to denote the HDMI input

number. eg, HDMI 2, will be 2 ﬂashes. To enable

the ARC, it is HDMI 4.

3. Digital Toggle

Used to toggle through the digital auxiliary inputs

(USB, Coaxial, Optical)

4. Analogue Toggle

Used to toggle through the analogue auxiliary

inputs (phono and mini jack).

5. Wi-Fi/ Airstream connect.

This button serves three purposes: A single press

puts the ASB-2 into WPS mode (refer to page 10);

A single press with iOS connected puts it into

Wi-Fi Sharing mode (refer to page 11); Holding

it down for 5 seconds enters Airstream Connect

mode (refer to page 12).

6. AirPlay

Used to toggle between Airplay and Airplay Direct

mode (refer to page 19).

7. 3D

Used to change the sound of the ASB-2 to create

a 3 dimensional effect (refer to page 16).

8. Mute

Used to mute the sound from the ASB-2. Pressing

it again returns the volume to the previous level.

The button will illuminate when mute is activated.

9. Volume Down

Used to reduce the volume of the ASB-2.

10. Volume Up

Used to increase the volume of the ASB-2

Remote 1. Standby

Used to put the ASB-2 in and out of stand by mode.

2. Volume Up

Used to increase the volume of the ASB-2.

3. Previous Track

Used to select the previous track of the audio

source.

4. Volume Down

Used to reduce the volume of the ASB-2.

5. Mute

Used to mute the sound from the ASB-2. Pressing

it again returns the volume to the previous level.

6. Menu

Used to display the on screen display of the ASB-2

(refer to page 15).

7. OK & Play/ Pause

Used to conﬁrm a selection when in the menu and

also used to play/ pause the audio.

8. Next Track

Used to select the next track of the audio source.

9. Input Toggle

Used to toggle through the various analogue and

digital inputs.

1 6

Getting Started

Deciding on location

The ASB-2 is a very versatile product, it can be placed on a cabinet/ shelf siting it on the supplied rubber stand.

It can also be mounted to a wall using the optional Monitor Audio ASB-2 Wall Bracket. It can also be mounted

below a ﬂat panel TV using the Sanus VMA202 Soundbar Speaker Mount. Refer to www.sanus.com for further

information.

Table Stand

The ASB-2 comes with a rubber table stand. This is used to prevent it from moving when placed on a shelf or

cabinet.

Making the Connections

Now the location has been decided, connect the sources to the ASB-2 ensuring that none of the cables are not

kinked or stretched.

NOTE: Do not connect the power to the ABS-2 until you have made all of your audio/ video connections.

Connecting to a TV

When connecting to a TV with an ARC (Audio Return Channel), it is possible to output the sound from the TV

through the ASB-2 without the need for additional cables. Simply connect a single HDMI lead from the TV to the

ASB-2 and select HDMI 4 by pressing the HDMI button on the product (item

2, ASB-2 Buttons, page 4) until the LED ﬂashes white 4 times.

If the TV does not have an ARC, then you can connect the ASB-2 and TV together by using the Digital Optical,

Digital Coaxial or Analogue Coaxial outputs from the TV. These connect to the corresponding input on the ASB-2.

TV (With ARC)

Connecting Digital Devices Via HDMI

Digital devices such as a Blu Ray player, set top box, games console, DVD player, etc can all be connected via a

HDMI connection.

When using this method of connection, picture will go to the TV and sound will be played back through the ASB-

2. No other connections are need for sound.

NOTE: The ASB-2 does not decode Dolby or DTS signals, please set the source to PCM so that does the

decoding.

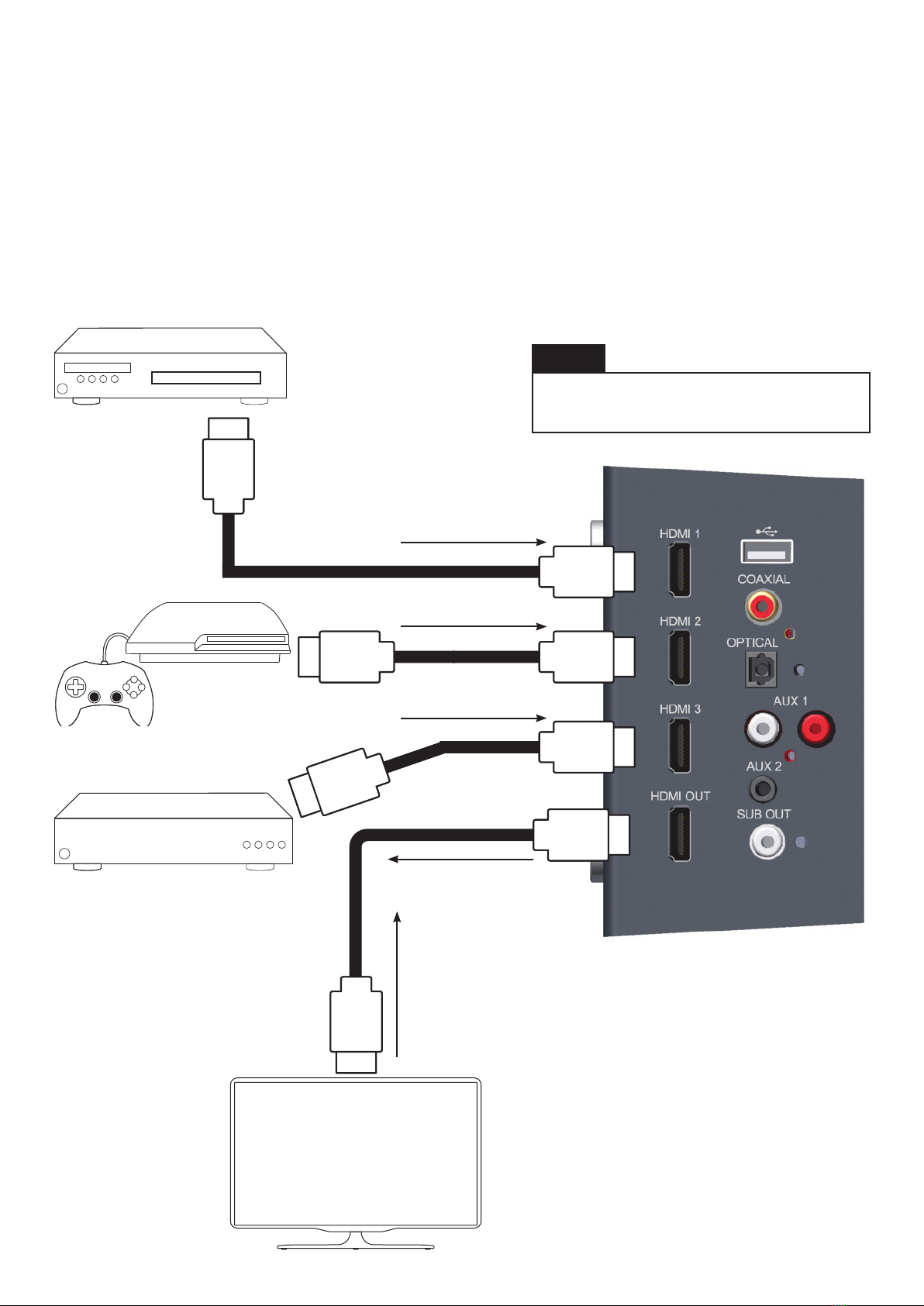

Examples of HDMI connection:

Set Top Box

Audio Return

Channel

Games Console

Blu Ray Player

Any HDMI device can be plugged to any of

the HDMI inputs.

HINT

Connecting Audio Devices Via Digital Input

If the source does not have a HDMI output or it is in use elsewhere (already connected to TV), you can connect

the device to the ASB-2 using the Digital Optical or Digital Coaxial outputs from them.

It is also possible to connect an iOS device via USB to play stored music ﬁles.

CD Player

Games Console

Connecting Analogue Audio Devices Via Coaxial Input

You can connect to the ASB-2 using analogue audio source using either a stereo coaxial connection or a 3.5mm

mini jack lead.

Subwoofer Output

To get extra bass from the ASB-2 it has a subwoofer output facility

on it. The subwoofer must be purchased seperately. Simply use a

coaxial subwoofer lead to connect from the subwoofer output on the

ASB-2 to the LFE input of the subwoofer. Refer to page 17 for details

on the sub woofer settings.

Set Top Box

MP3 Player

Subwoofer

Otros manuales para ASB-2

Tabla de contenidos

Otros manuales de Oradores de Monitor Audio

Monitor Audio

Monitor Audio GSW12 Manual de usuario

Monitor Audio

Monitor Audio GOLD GX series Manual de usuario

Monitor Audio

Monitor Audio Gold Stands Manual de usuario

Monitor Audio

Monitor Audio Radius R225 Manual de usuario

Monitor Audio

Monitor Audio Controlled Performance series Manual de usuario

Monitor Audio

Monitor Audio Radius 45 Manual de usuario

Monitor Audio

Monitor Audio Silver series Manual de usuario

Monitor Audio

Monitor Audio ASB-2 Manual de usuario

Monitor Audio

Monitor Audio Bronze 1 Manual de usuario

Monitor Audio

Monitor Audio Radius R225 Manual de usuario

Monitor Audio

Monitor Audio Platinum 3G Series Manual de usuario

Monitor Audio

Monitor Audio Apex AXSTW Manual de usuario

Monitor Audio

Monitor Audio Silver 50 Manual de usuario

Monitor Audio

Monitor Audio STUDIO Manual de usuario

Monitor Audio

Monitor Audio Radius R225 Manual de usuario

Monitor Audio

Monitor Audio Silver 50 Manual de usuario

Monitor Audio

Monitor Audio ASB-2 Manual de usuario

Monitor Audio

Monitor Audio Airstream S200 Manual de usuario

Monitor Audio

Monitor Audio Radius 45 Manual de usuario

Monitor Audio

Monitor Audio Airstream s300 Manual de usuario

Monitor Audio

Monitor Audio Creator Series Manual de usuario

Monitor Audio

Monitor Audio PL100 STAND Platinum series Manual de usuario

Monitor Audio

Monitor Audio Gold Reference GR20 Manual de usuario

Monitor Audio

Monitor Audio Platinum In-Wall 3G Manual de usuario

Manuales populares de Oradores de otras marcas

argon audio

argon audio IE20 Manual de usuario

Denon

Denon SC-N7 Manual de usuario

Gemline

Gemline Ace 3952 Manual de usuario

Focal

Focal ON WALL 300 Manual de instrucciones

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manual de usuario

SoundLogic

SoundLogic BCCS-6/6395 Manual de usuario

Peavey

Peavey DTH 218 Manual de usuario

Avantree

Avantree Pluto Air Manual de usuario

Morel

Morel Integra Series INTEGRA OVATION 4 Manual de usuario

Oppo

Oppo SONICA Manual de usuario

Bose

Bose SoundLink Wireless Music System Manual de usuario

Rocksteady

Rocksteady Stadium Manual de usuario

Bowers & Wilkins

Bowers & Wilkins 4 Manual de usuario

Sonance

Sonance SONOS OUTDOOR Series Manual de usuario

Electro-Voice

Electro-Voice EVID FM4.2 Manual de usuario

Pioneer

Pioneer XW-HTD630 Manual de usuario

Onn

Onn BWA16AA002 Manual de usuario

HP GL313AA - USB Speakers PC Multimedia Manual de usuario
