Monarch 9406 Documento técnico

Monarch

9406™

Thermal Printer

Equipment Manual

Each product and program carries a respective written

warranty, the only warranty on which the customer can rely.

Monarch reserves the right to make changes in the product

and the programs and their availability at any time and without

notice. Although Monarch has made every effort to provide

complete and accurate information in this manual, Monarch

shall not be liable for any omissions or inaccuracies. Any

update will be incorporated in a later edition of this manual.

WARNING

This equipment can interfere with radio communication if not installed

and used in accordance with the instruction manual. It has been tested

and found to comply with the limits for a Class Acomputing device

pursuant to FCC Rules, Subpart B, Part 15, which provide reasonable

protection against such interference when operated in a commercial

environment. Operation in a residential area is likely to cause

interference which the user must correct at their own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class Alimits for radio

noise emissions from digital apparatus set out in the Radio Interference

Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la

classe Aprescrites dans le Réglement sur le brouillage radioélectrique

édicte par le ministère des Communications du Canada.

WARNING

The power supply cord is intended to serve as the disconnect device.

The socket-outlet shall be near the equipment and shall be easily

accessible.

WARNUNG

Der Stromversorgungskabel dient als abschaltvorrichtung. Die

Steckdose soll in der Nahe der Einheit und liecht zunganglich liegen.

Trademarks

Monarch is a registered trademark and 9406 is a trademark of Monarch Marking

Systems, Inc.

Preface

This manual contains information about the general setup and

maintenance of the Monarch®9406™printer.

Other 9406 manuals include:

Read this First

Explains how to unpack and install

the printer and print a test label.

Operator’s Handbook

Explains how to set up the printer,

enter data, and print labels.

System Administrator’s

Guide

Explains designing formats,

communications, and message

structures for sending formats and

batch data online.

Messages Manual

Lists error messages and what

action you should take (if any).

Graphics Manual

Explains how to create logos and

other graphic images for printing on

your 9406 printer.

Preface

9406 Equipment Manual

Table of Contents

1. Supplies ...........................................................................1-1

Loading or Changing Supplies...................................1-2

Removing Supplies....................................................1-8

Supply Loading Diagram..........................................1-12

Setting the Supply Type Option................................1-13

2. The Ribbon ......................................................................2-1

Loading or Changing the Ribbon ...............................2-1

Removing the Ribbon.................................................2-8

Setting the Ribbon Option........................................2-11

3. Cleaning the Printhead and Platen Roller....................3-1

4. Replacing the Fuse.........................................................4-1

5. Troubleshooting..............................................................5-1

6. Specifications..................................................................6-1

Printer.........................................................................6-1

Supplies......................................................................6-2

Table of Contents

iii

9406 Equipment Manual

1. Supplies

The 9406 printer prints labels that can be fed out the exit chute

• in one strip (

Continuous

Printing

) removed when pulled

up and to the left at the tear bar.

• one at a time while the backing paper rewinds inside

the printer (

On-Demand

Printing

This chapter describes

• loading or changing supplies.

• removing supplies.

• supply loading diagram.

• setting the supply type option.

Supplies

1-1

Loading or Changing Supplies

1. Turn off the power.

2. Grasp the printer cover on both sides and lift it up.

3. Pull the exit chute door open.

Printer

Cover

Exit Chute

Door

9406 Equipment Manual

1-2

4. Move the printhead lever as shown to open the printhead.

5. If you are changing supplies, remove the current supplies.

See "Removing Supplies" for more information.

6. If necessary, change the ribbon. See "Loading or

Changing the Ribbon" for more information.

Printhead

Lever

Supplies

1. Supplies

1-3

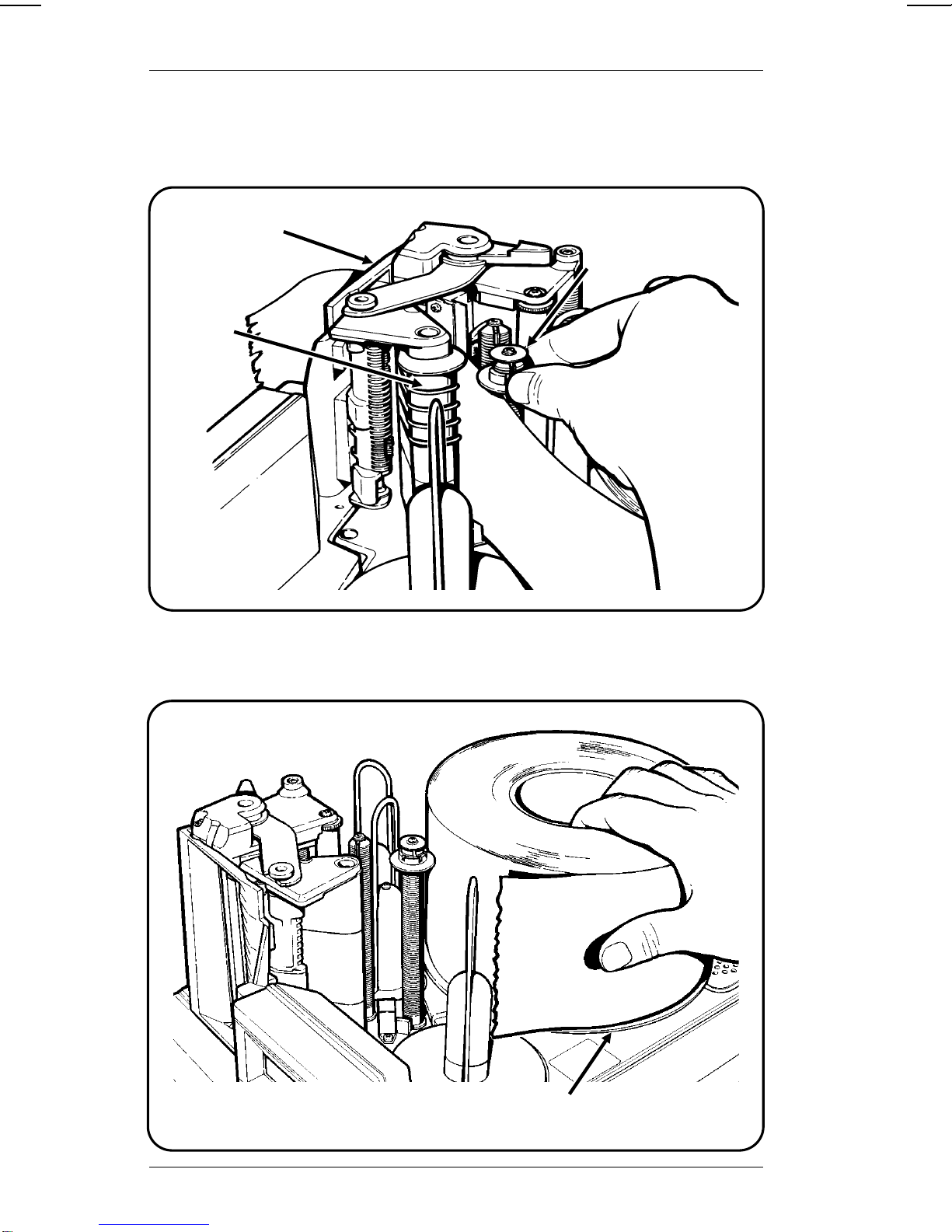

7. Slide the supply edge guide and the ribbon supply guide to

the top of the roller.

8. Remove the seal from the new supplies and place the roll

on the supply platter.

Ribbon

Supply

Guide

Exit

Chute

Door

Supply

Edge

Guide

Supply

Platter

9406 Equipment Manual

1-4
