Moffat Turbofan E32SUBC Manual de usuario

Revision 3

E32SUBC OVEN and PROOFER

E32SUBC

Oven and Proofer

Service Manual

Revision 3

E32SUBC OVEN and PROOFER

ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY

QUALIFIED PERSONS ONLY.

WARNING:

MAKING ALTERATIONS MAY VOID WARRANTIES AND APPROVALS.

IMPORTANT:

Revision 3

E32SUBC OVEN and PROOFER

This manual is designed to take a more in depth look at the E32SUBC for the purpose of making the units

more understandable to service people.

There are settings explained in this manual that should never require to be adjusted, but for completeness

and those special cases where these settings are required to change, this manual gives a full explanation

as to how, and what effects will result.

Section Page Number

1. Specifications.............................................................................................1

2. Installation ................................................................................................2

3. Operation...................................................................................................3

3.1 Description of Controls

3.2 Operation / Flow Charts

3.3 Field Adjustable Settings

4. Cleaning / Maintenance ..........................................................................19

4.1 Cleaning Oven

4.2 Cleaning Proofer

4.3 Routine Maintenance

5. Trouble-shooting Guide...........................................................................21

5.1 Controller Error Messages

5.2 Trouble Shooting Charts - Oven and Proofer

5.3 Fault Diagnosis - Oven

5.4 Fault Diagnosis - Proofer

6. Service Procedures ..................................................................................30

6.1 Access

6.2 Replacement - Oven

6.3 Replacement - Proofer

6.4 Adjustment / Calibration

7. Accessories ..............................................................................................45

8. Replacement Parts ..................................................................................46

9. Circuit Schematic.....................................................................................55

10. Wiring diagram........................................................................................57

11. Service Contacts ...................................................................................... 59

12. Reference ................................................................................................61

Controller Settings

Fault Codes

Contents

Revision 3

E32SUBC OVEN and PROOFER

Revision 3

E32SUBC OVEN and PROOFER

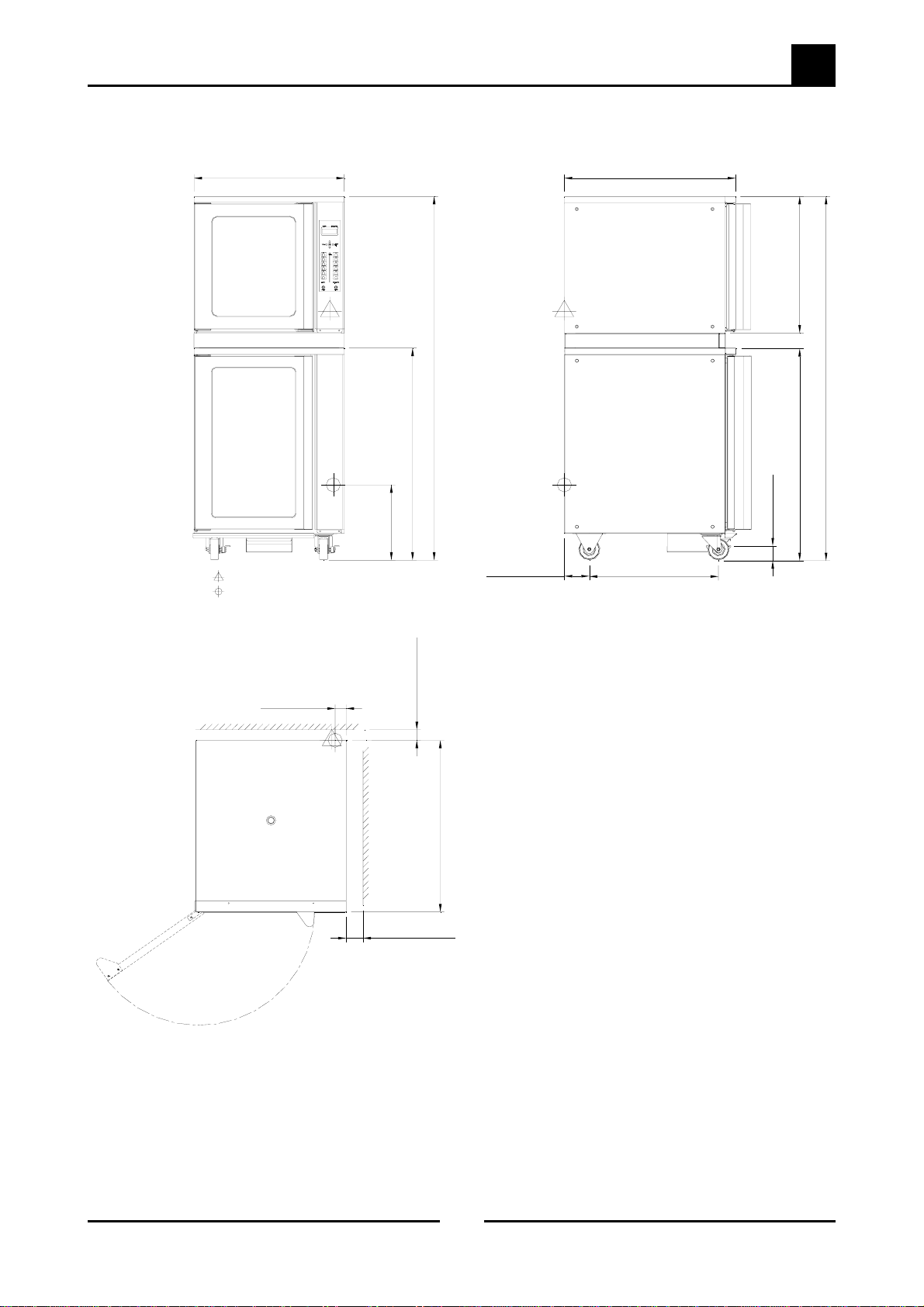

Specifications

1720 (67.71")

MWS

810 (31.89")

ELECTRICAL ENTRY

1000 (39.37")

80 min (3.15")

710 (27.95")

SCAN

50 min (1.97")

DOOR SWING

535mm (21.06")

MINIMUM

INSTALLATION

CLEARANCE

MINIMUM

INSTALLATION

CLEARANCE

MWSCOLD WATER CONNECTION

610 (24.02")

117.5 (4.63")

1000 (39.37")

70 (2.76")

645 (25.40")

810 (31.89")

1720 (67.71")

355 (13.98")

MWS

50 (1.97")

Dimensions

Oven internal dimensions

Width 468 mm / 18.5”

Height 533 mm / 21”

Depth 711 mm / 28”

Oven Volume 0.18 m³ / 6.3 ft³

Proofer internal dimensions

Width 460mm / 18”

Height 675mm / 265/8”

Depth 700mm / 275/8”

Proofer Volume 0.22m³ / 7.8ft³

Rack size

Width: 460 mm / 18”

Depth: 660 mm / 26”

No of rack positions: 4

Rack position spacing: 125 mm / 5”

Electrical supply

400-415 VAC, 3P+N+E, 50 Hz, 7.0 kW

Water supply

Max Pressure 550 kPa / 5.5 bar / 80 psi

Min Pressure 100 kPa / 1.0 bar / 15 psi

Installation

Revision 3

E32SUBC OVEN and PROOFER

2.4 Water connection

ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY

QUALIFIED PERSONS ONLY.

WARNING:

2.3 Electrical connection

2.1 Installation requirements

2.2 Location clearances

2.5 Before use

It is most important that this oven /

proofer is installed correctly and that the

operation is correct before use.

Installation shall comply with local

electrical, health and safety requirements.

Before Connection to Power Supply:

• Remove all packing.

• Check equipment and parts for damage.

Report any damage immediately to the carrier

and

distributor.

• Remove protective plastic coating from the

side panels.

Check that the available power supply is correct

to that shown on the rating plate located on the

right-hand side panel.

To ensure correct ventilation for the motor and

controls the following minimum installation

clearances are to be adhered to:

• Use a spirit level to ensure oven / proofer is

level from side to side and front to back. (If

this is not carried out, uneven baking could

occur).

Important:

THE VENT LOCATED ON THE OVEN TOP MUST

NEVER BE OBSTRUCTED.

• E32SUBC oven / proofers are supplied fitted

with power cords. Ensure unit is fitted with

correct cord and plug.

• To access the electrical connection terminal

block, grounding lug and strain relief, remove

the right hand side panel.

WARNING - THIS APPLIANCE MUST BE

EARTHED / GROUNDED

• A cold water supply should be fitted to the

water inlet hose (connection size R¾).

• Max inlet pressure 550kPa / 80psi.

• Turn on water supply to check for leaks.

• Operate the oven for about 1 hour at 200°C

(400°F) to remove any fumes or odours which

may be present.

Top 200 mm / 8”

Rear 50 mm / 2”

Left-hand side 0 mm / 0”

Right-hand side 80 mm / 3”

380-415 Vac, 50/60 Hz, 3P+N+E, 7.0 kW @ 415V.

208 Vac, 50/60 Hz, 3P+E, 7.0 kW @ 208V.

220-240 Vac, 50/60 Hz, 3P+E, 7.0 kW @ 240V.

Operation

Revision 3

E32SUBC OVEN and PROOFER

3.1 Description of Controls

NOTE: A full user’s operation manual is supplied with the product and can be used for further

referencing of installation and operation.

Display Screen

A full graphical display screen which will display all relevant

information relating to both oven and proofer during operation:-

The left hand Screen - Oven:-

Will display all information relating to the oven during

programming and operation.

Navigation Keys

Used to change the parameters during the

Programming Mode only.

Used to scan through the Oven programmes

selected, during the Cooking Mode and to

change menu’s during the Programming Mode..

Programming Key

Press for 3 seconds to access programming

mode for Oven Program Keys.

Programme Indicator:

Illuminates when in program mode.

Oven Keys

Oven Temp Check Key:

Press to check oven set and actual temperature

at any time.

Oven Programme Keys (Keys 1 to 5):

Press once to call up program (LED ON).

Press again to start program (LED flashes).

Press and hold for 2 seconds to cancel program.

Oven + 1 Minute Key:

Press to increase the cooking time in one

minute increments.

Oven On / Off Key:

Turns the Oven only On / Off.

3.1.1 E32SUBC oven

Operation

Revision 3

E32SUBC OVEN and PROOFER

Display Screen

A full graphical display screen which will display all

relevant information relating to both oven and proofer

during operation:-

The right hand Screen - Proofer:-

Will display all information relating to the

proofer during programming and

operation.

Navigation Keys

Used to change the parameters during the

Programming Mode only.

Used to scan through the Proofer

programmes selected, during the Proofing

Mode and to change menu’s during the

Programming Mode.

Programming Key

Press for 3 seconds to access change of

Proofer temperature and humidity settings.

Also accesses Programming Mode for Proofer

Timer Keys.

Programme Indicator:

Illuminates when in program mode.

Proofer Keys

Proofer Temp / Humidity Check Key:

Press to check proofer set and actual

temperature and humidity at any time.

Proofer Timer Keys:

Press once to call up timer (LED ON).

Press again to start timer (LED flashes).

Press and hold for 2 seconds to cancel timer.

Proofer + 1 Minute Key:

Press to increase the proofing time in one

minute increments.

Proofer On / Off Key:

Turns the Proofer only On / Off.

3.1.2 E32SUBC proofer

Operation

Revision 3

E32SUBC OVEN and PROOFER

TURN ON / PREHEAT

Press ON / OFF key.

PROOFER READY

LOAD PROOFER

START TIMER

– Press Proofer key

NEXT LOAD

START TIMER

– Press Proofer key

TIMER DONE

UNLOAD PROOFER

CANCEL ALARM

– Press timer key

TIMER DONE

UNLOAD PROOFER

CANCEL ALARM

– Press timer key

20 MINS

NEXT LOAD

START TIMER

– Press Proofer key

TIMER DONE

UNLOAD PROOFER

CANCEL ALARM

– Press timer key

20 MINS

3.2 Operation / Flow Charts

3.2.1 Proofer

NOTE: Proofer display will always show timer status of the timer with the least remaining

time.

20MINS TIME-UP

Load Proofer with next load.

20MINS TIME-UP

Load Proofer with next load.

20MINS TIME-UP

Load Proofer with next load.

Operation

Revision 3

E32SUBC OVEN and PROOFER

3.2.2 Oven

TURN ON / PREHEAT

Press ON / OFF key

OVEN READY

LOAD OVEN

START

– Press program key

BAKE PROGRAM DONE

UNLOAD OVEN

CANCEL ALARM

– Press program key

SELECT DIFFERENT PROGRAM

Press program key

TEMP STATUS

OVEN READY
