Modern Forms FH-W1803-44L-BZ Manual de usuario

Axis 44 Flush

Installation Instructions

works with the

Google Assistant

FH-W1803-44

Axis Flush Instructions2

Please read and

save these instructions

before installation

DO NOT RETURN TO STORE

FH-W1803-44 Axis Flush Instructions 3

For all questions about your ceiling fan please read all included

instructions, installation procedures, troubleshooting guidelines

and warranty information before starting installation.

For missing parts or general inquiries call our trained technical staﬀ at:

1-866-810-6615 option 0

MON-FRI 8AM-8PM EST

Email: customerservice@modernforms.com

Or live chat at modernforms.com

For fast service have the following information below when you call:

1. Model Name and Number

2. Part Number and Part Description

3. Date Of Purchase and Purchase Location

1-866-810-6615 option 1

MON-FRI 8AM-8PM EST

Email: customerservice@modernforms.com

General Inquiries

Fan Support

FH-W1803-44

Axis Flush Instructions4

For operation, maintenance, and troubleshooting information,

visit http://modernforms.com/fan-support/

To reduce the risk of electric shock, ensure electricity has been turned oﬀ at the circuit breaker

before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA

70” and local electrical codes. Electrical installation should be performed by a licensed electrician.

The fan must be mounted with a minimum of 7 ft. (2.1m) clearance from the trailing edge of

the fan blades to the floor and a minimum of 1.5 ft (0.5m) from the edge of the fan blades to the

surrounding walls. Never place objects in the path of the fan blades. To avoid personal injury or

damage to the fan and other items, please be cautious when working around or cleaning the fan.

To avoid electrical shock or damage to the motor or ﬁnish, do not use water or chemicals

when cleaning the fan or fan blades. A dry cloth or lightly dampened cloth will be suitable

for most cleaning.

After making electrical connections, spliced conductors should be turned upward and pushed

carefully up into the outlet box. The wires should be spread apart with the grounded conductor and

the equipment-grounding conductor on one side of the outlet box, and the ungrounded conductor

on the other side of the outlet box.

All set screws must be checked and re-tightened

where necessary before installation.

Safety Rules

FH-W1803-44 Axis Flush Instructions 5

WARNING:Do not install or use your fan if any part(s) is/are damaged or missing. This product

is designed for use only with the supplied parts and/or accessories designated for use with this

product by Modern Forms . Substitution of parts or accessories not designated for use with this

product by Modern Forms could result in personal injury or property damage and will void the

warranty. Contact an authorized dealer or the manufacturer if any parts are damaged or missing.

WARNING:To reduce the risk of electric shock, this fan must

be installed and operated with the supplied wall control, or controlled from the Modern Forms app

or Wi-Fi Touch Panel Wall Control (not included).

WARNING:Do not use power tools to assemble or install your fan. Using power tools can result in

improper assembly which can lead to noise or fan damage,personal injury or property damage.

WARNING:To reduce the risk of personal injury, do not bend the blade arms when installing the

brackets, balancing the blades or cleaning the fan.

WARNING: Do not insert foreign objects between rotating fan blades.

WARNING:Do not operate fan unless fan blades are in place. Noise and fan damage can occur

WARNING:This appliance is not intended for use by young children without supervision.

WARNING: To reduce the risk of ﬁre, electric shock, personal injury or damage to the fan or other

items, the outlet box and support structure must be securely mounted and capable of reliably

supporting a minimum of 35 Ibs (15.9 kg). Use only UL/cUL listed outlet boxes marked “FOR FAN

SUPPORT.” Use only the screws and washers provided with the outlet box.

CAUTION:Before assembling your fan, refer to the “Making the Electrical Connections“

section. If you feel you do not have enough wiring knowledge or experience, have your fan

installed by a licensed electrician.

NOTE:Before servicing or cleaning the fan, switch power oﬀ at the circuit breaker.

FH-W1803-44

Axis Flush Instructions6

Get Smart...

Integrates

seamlessly with:

devices you already own

works with the

Google Assistant

Get Smart...

Integrates

seamlessly with:

devices you already own

works with the

Google Assistant

Premium smart

features:

Accessories:

MOTOR

complement high quality materials

personalize your experience

Quiet, reliable, and up to 70%

more ecient than AC fans

Wi-Fi and Bluetooth enabled

for exible control

Bluetooth Wall Control

Dims light to 1% | ON/OFF

6 fan speeds | Sold separately

F-WCBT-WT White

Bluetooth Remote Control

Dims light to 1% | ON/OFF

6 fan speeds

F-RCBT-WT White

Wet Location-listed to the strictest

UL/cUL safety regulations. Finished

and rated for interior and exterior use

FH-W1803-44 Axis Flush Instructions 7

Contents

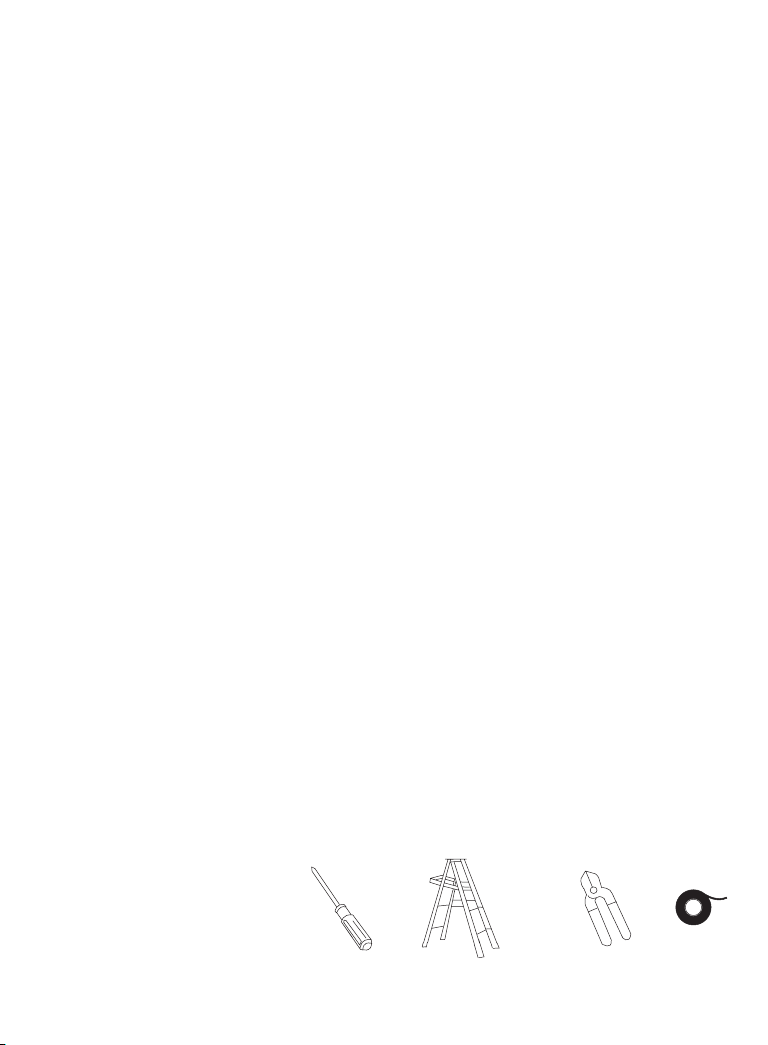

Tools Required

1. Mounting Options 10

2. Installing the Mounting Bracket 10

3. Hanging the Fan 12

4. Attaching the Fan Blades 14

5. Making the Electrical Connections 14-16

6. Installing the Optional Wall Control 18

7. Finishing the Installation 20

8. Installing the Adapter Plate 20

9. Installing the LED Luminaire Module/Cover 22

10. Controlling the Fan 24

11. Reset 26

12. Breeze Mode 26

13. Application 26

14. Accessories 28

15. Troubleshooting 29-32

FH-W1803-44

Axis Flush Instructions8

Package Contents

7. Glass Shade

RPL-F1803-GLA

8. Luminaire Cover

RPL-FH1803-COVER-**

9. Control Receiver

w/Hardware

F-R3-1803-0**

10. Remote w/Wall Cradle

F-RCBT-WT

Hardware Bag

RPL-AXISFLUSH-PART

1. Blade Set of 3

RPL-F1803-**-BD-**

2. Hanger Plate

RPL-F1803-HGR

3. Trim Ring - Decorative

RPL-FH1803-TRIM**

4. Motor Assembly

5. Adapter Plate

6. LED Module

F4IN-120V-R1-30

Before discarding packaging materials be certain all parts have been removed.

Place the parts from the hardware bag into a small container to keep them from being lost.

** denotes ﬁnish code of fan/blade sweep

of fan

AMachine Screws (2)

Spring Washers (2)

Flat Washers (2)

BWood Screw (1)

Spring Washer (1)

Flat Washer (1)

CWire Nuts (8)

DScrew with Fiber Washers (10)

FH-W1803-44 Axis Flush Instructions 9

IMPORTANT: Please make note

of the MAC ID on the

receiver and keep it in a

safe place.

MACID

Hanging Weight: 13 lbs

FH-W1803-44

Axis Flush Instructions10

1. Mounting Options

CAUTION: To prevent electrical shock, ensure electricity has been

turned oﬀ at the circuit breaker before beginning.

If there isn’t an existing UL/cUL listed outlet box, please refer to the

following instructions. Secure the outlet box directly to the building

structure. Use appropriate fasteners and building materials. The outlet

box and support structure must be able to fully support the moving

weight of the fan (at least 35 lbs/15.9 kg). Do not use plastic outlet

boxes. Use only UL/cUL listed outlet boxes marked

“FOR FAN SUPPORT.”

Secure the outlet box directly to the building structure.

Figures 1-1C are examples of diﬀerent ways to mount the outlet box.

NOTE: To hang your fan where there is an existing ﬁxture but no

ceiling joist, you may need an installation hanger bar.

1. Disconnect power to the fan location at the breaker. A licensed

electrician must install the fan.

2. There are four screws on top of the motor assembly. Remove two

that are on the opposite of each other and save for the Finishing

the Installation section. Loosen remaining two.

3. Pass the 120-volt supply wires through the center hole in the

ceiling mounting bracket as shown (Fig. 2).

4. Secure the hanger plate to the ceiling outlet box with the screws

and washers provided (Fig. 2).

REMEMBER to turn oﬀ power at the breaker.

Follow the steps below to hang your fan properly:

2. Installing the Mounting Bracket
