Modena WF 741 WAM Manual del propietario
User
Manual Book
Washing Machine
WF 741 WAM
WF 955 SAM
2
TABLE OF CONTENTS
PART 1: NAME OF PARTS 3
WF 741 WAM 3
WF 955 SAM 4
PART 2: UNDERSTANDING CONTROL PANEL 6
Control Panel WF 741 WAM 6
Program Selection of WF 741 WAM 7
Control Panel WF 955 SAM 8
Program Selection of WF 955 SAM 9
PART 3: INSTALLATION 10
PART 5: HOW TO USE 14
PART 6: CLEANING AND MAINTENANCE 18
PART 7: TROUBLESHOOTING 20
PART 8: SPECIFICATION 24
APPENDIX 1: INTERNATIONAL TEXTILE CARE LABEL 25
APPENDIX 2: HELPFUL INSTRUCTIONS IN REMOVING THE STAIN 27
3
WF 741 WAM

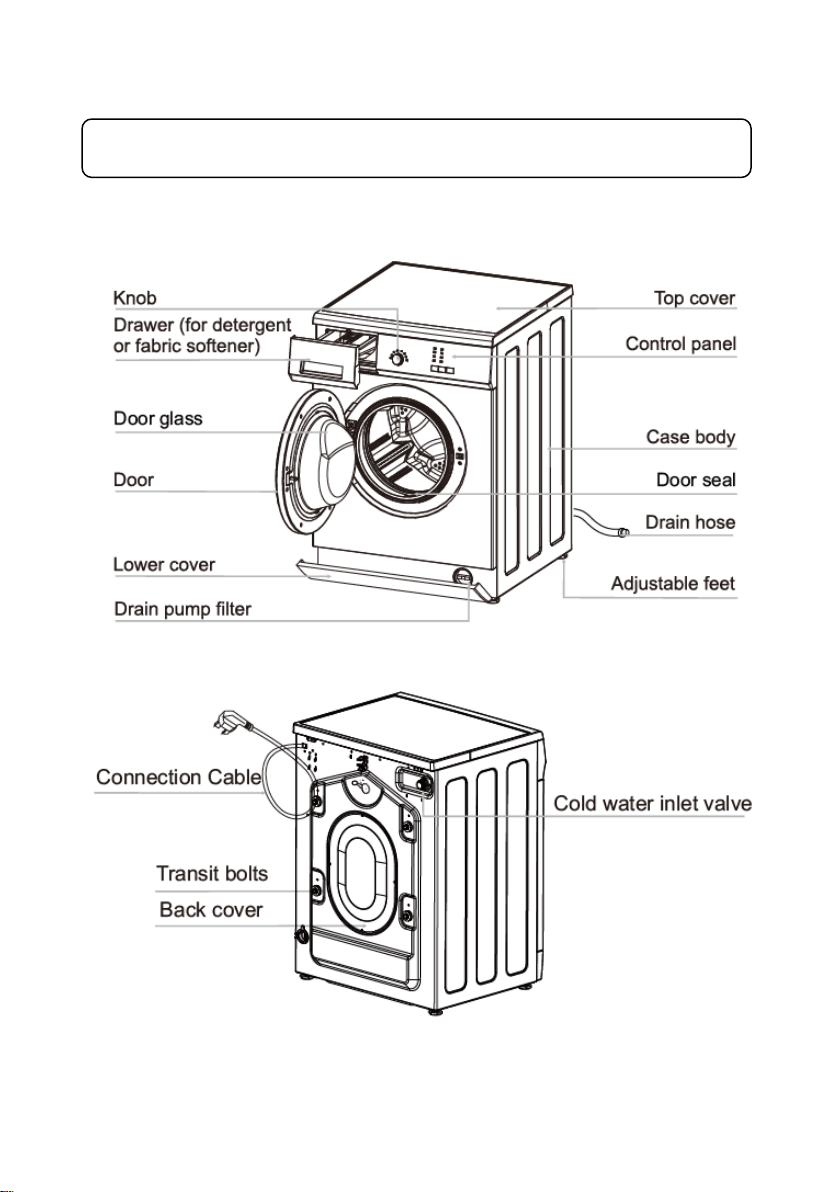

PART 1: NAME OF PARTS
4
Accessories
WF 955 SAM
5
Accessories
6
Control Panel WF 741 WAM
Remarks:
1.
Power
Turn on/off the washing machine by pressing this button.
2.
Start/Pause
Start/pause the washing program by pressing this button. The LED
of “Start/Pause” flickers when the machine is in standby mode or
pauses, and it is lighted when running
.
3.
Temp
Press this button and select a required wash temperature. When
all the lights of temperature are off, this program has no heating
function.
4.
Knob
Turn this knob clockwise or anticlockwise to select the required
wash program. Once the “Start/Pause”
PART 2: UNDERSTANDING CONTROL PANEL
7
button is pressed and the machine is running, the program cannot
be changed.
Program Selection of WF 741 WAM
Program
Max
Weight
(kg)
Time
(min)
Max
Temp.
(oC)
Max Spin
Speed
(rpm)
20 oC
7
57
20
800
Eco 40-60
7
195
-
1200
Intensive
7
107
60
1200
Spin
7
11
-
1200
Anti-Allergy
4
131
90
800
Quick
2
18
Cold
800
Wool
2,5
50
20
600
Mixed
4
63
60
800
NOTE:
Be sure to turn off the machine at the end of a wash cycle
8
Control Panel WF 955 SAM
Remarks:
1.
Start/Pause
Press this button to start or pause a wash cycle. The door cannot
be open when the machine is on pause.
2.
Temp
Press this button repeatedly to change the desired temperature
3.
Speed
Press this button repeatedly to change the spin speed
4.
Rinse+
Press this button repeatedly to change the rinse time
5.
Delay
Press this button repeatedly to set the delay time of the starting
of a wash cycle from 1 hour to 24 hours
6.
Knob
Turn this knob clockwise or anti-clockwise to select the desired
washing program. Once the “Start/Pause” button is pressed and
the machine is running, the program cannot be changed.
9
Program Selection of WF 955 SAM
Program
Max
Weight
(kg)
Max
Temp.
(oC)
Max Spin
Speed
(rpm)
20 oC
9
20
1200
Eco 40-60
9
-
1400
Intensive
6.5
95
1400
Anti-Allergy
5
95
1000
Denim
5
40
800
Bulky Item
9
60
1400
Drum Clean
0
95
600
Spin
9
-
1400
Rinse + Spin
9
-
1400
Quick
7
0
1200
Night Wash
3
60
800
Synthetics
5
60
800
Silk
3.5
40
600
Wool
3,5
20
600
Mixed
4
60
1400
NOTE:
Be sure to turn off the machine at the end of a wash cycle
10
Take the washing machine out from the cardboard box and put it on a
flat and sturdy floor. Don’t place the washing machine on an incline,
non-flat, on the carpet, or on the wooden floor. Don’t place the washing
machine outdoor and avoid a humid place that can cause damage.
1. Removing transit bolts
-Remove all the transit bolts
at the back of the machine
with tools.
-Plug the holes with the
transit bolts caps supplied.
-Keep the transit bolts for
future transportation.
Whenever the machine is
transported, the transot
bolts must be refitted.
PART 3: INSTALLATION
Transit bolt
