Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

Epila Wall Mounted Ethanol Fireplace

User’s Manual

Model: GF101300

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

Part List:

A. Fireplace Flame 1pc

B. Firebox base 1pc

C. Tempered Glass 1pc

D. 1.5L double-layer Burner 2pc

E. Mounting bar unit 1pc

F. Control tool 1pc

G. Screws (5*30mm) 2pcs

H. Wall plugs (φ8*40mm) 2pcs

I. Screw (M6*10) 4pcs

J. Screw cap 4pcs

K. Stainless steel stud 4pcs

L. Instruction manual and safety instructions.

A. B.

C. D.

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

E. F.

G. H.

I. J.

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

Assembly Instructions:

Unpack the fireplace and accessories. Check the content for completeness and

any damages incurred in transit. Keep children away from the packing.

The fireplace must only be installed on a solid wall of non-flammable material

1. Assemble the fireplace base and glass onto the back plate with solid studs

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

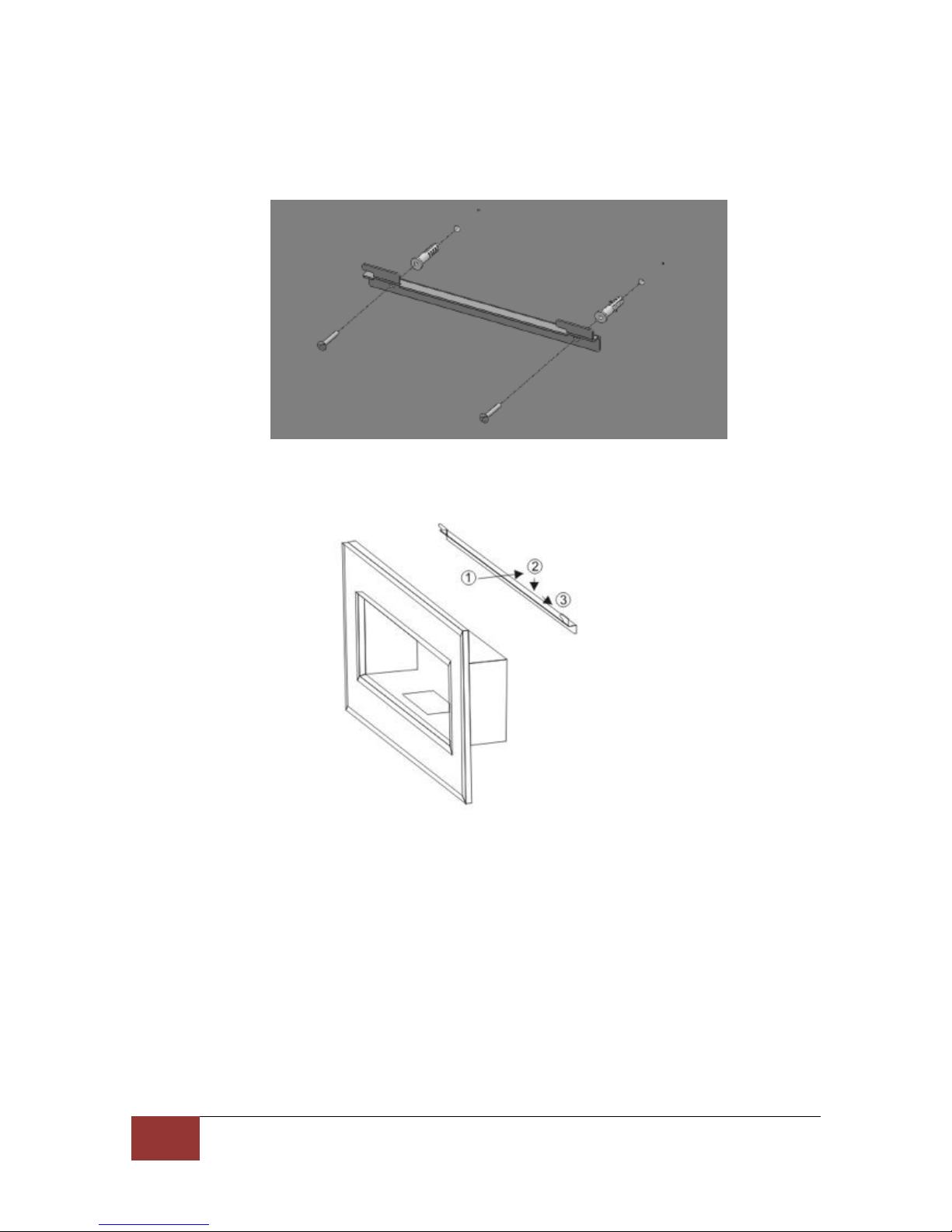

2. Mount the mounting bar unit to the wall using screws, and wall plugs.

3. Attach the fireplace body onto the mounting bar unit. Follow the arrows:

4. Place the burner into the burning chamber of the fireplace body.

WARNING: Risk of fire, Minimum 1.8 cm air space clearance to insulation and

building materials (the back wall) must be maintained.

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

OPERATION INSTRUCTIONS

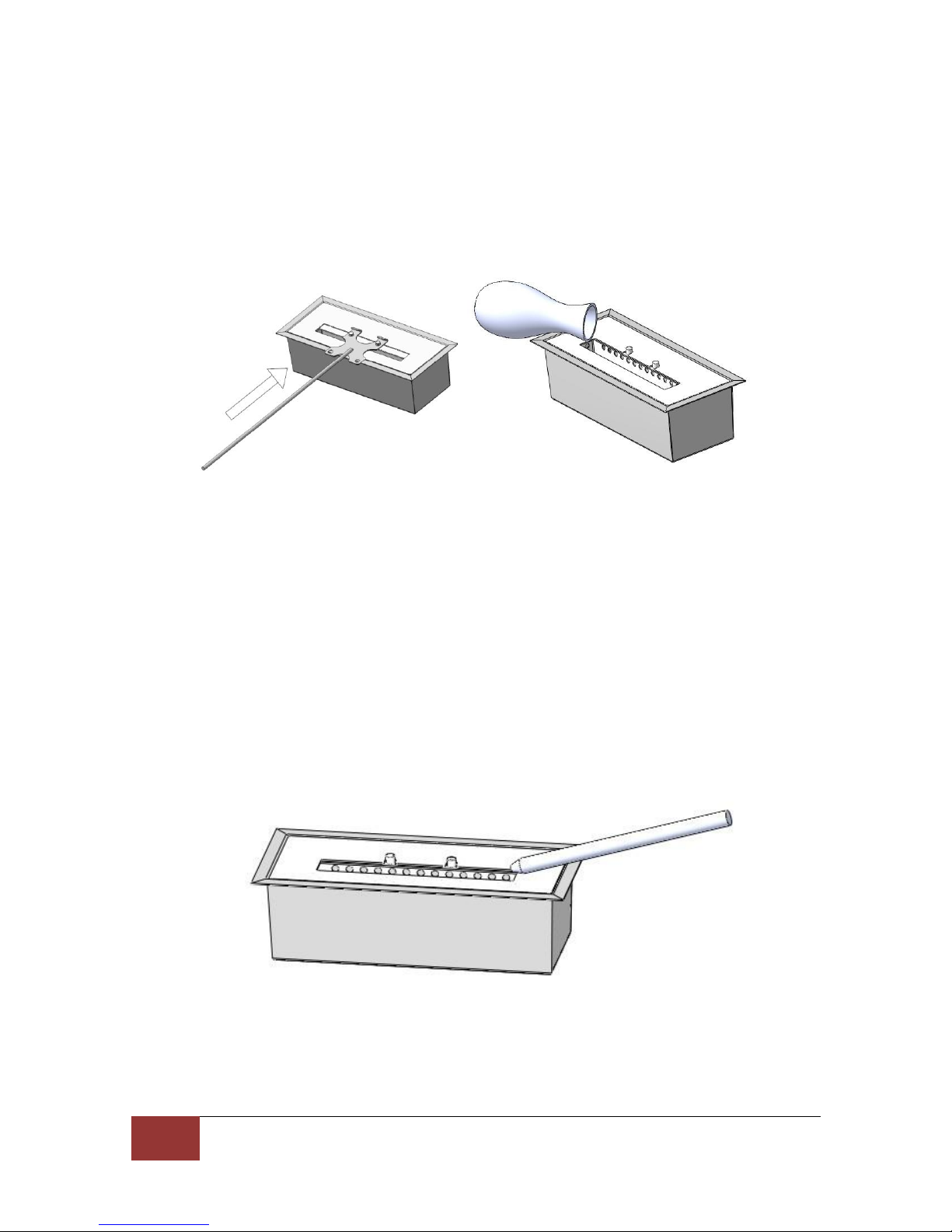

Step 1: Open the cover of the burner reservoir completely by using the control

tool. Fill the burner with the ethanol, pay attention to the “Max” line.

CAUTION: Spilled ethanol must be removed with an absorbent tissue and

cleaned with water to prevent ignition outside the burner reservoir.

Spilled ethanol may lead to matt stains on parquet flooring.

Fuel must be kept in safe distance (min.1m/40 inch) to the fireplace.

Close bottle and do not place fuel in near fireplace while operating.

Step 2: Light the ethanol with stick-lighter. Keep a safe distance of the burner.

CAUTION: Fuel will burn low at first. Please allow 15 minutes to reach the

optimum temperature and flame height. Opening or closing the sliding cover on

the burner with the puller can adjust the flame.

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

Extinguish ：

CAUTION: Never extinguish the flame with water!

Let the fuel burn out completely if possible. This prevents ethanol left in the

burner and deflagration when reigniting.

If you wish to extinguish the flame before the fuel has completely burned out.

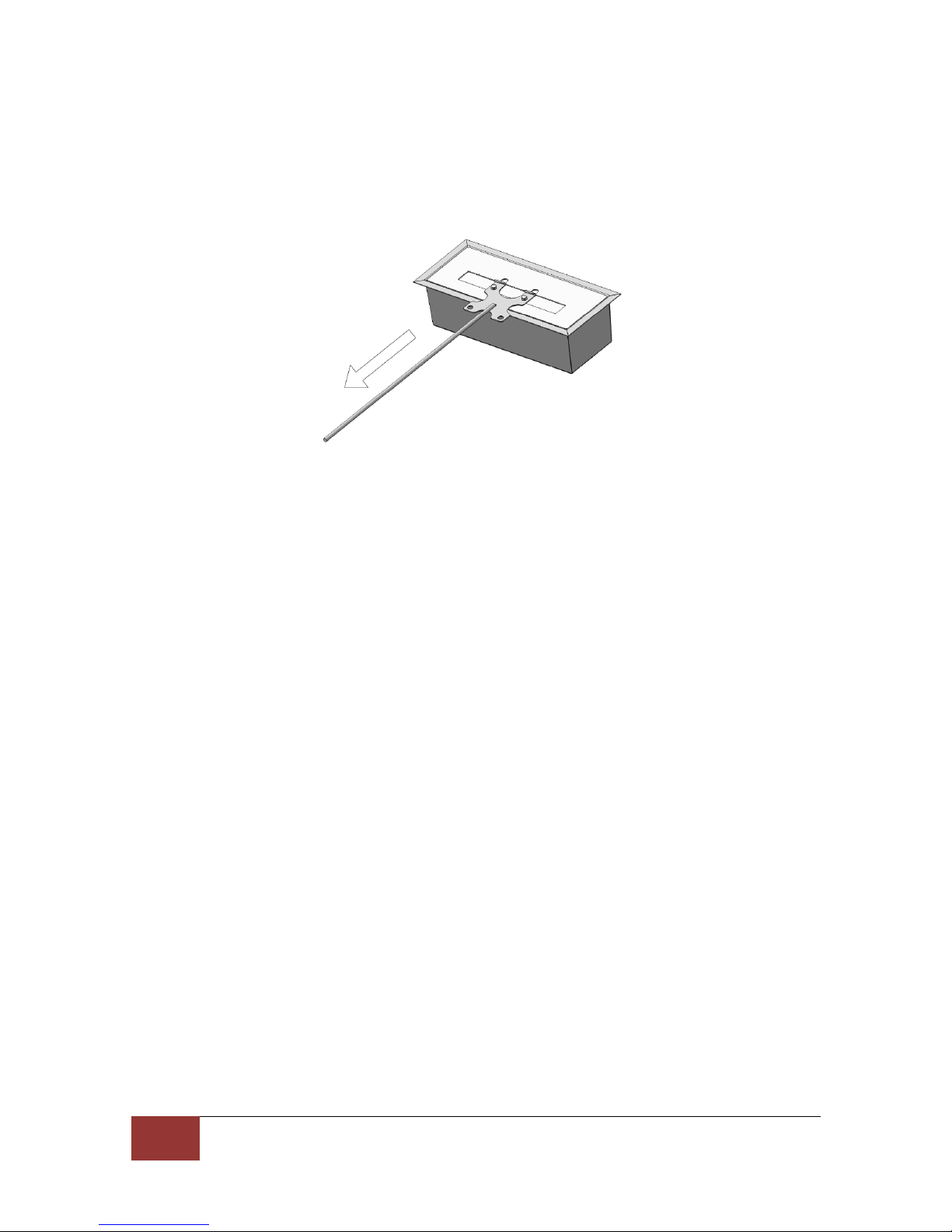

Please use the controlling tool to fully close the slide cover of the burner and

wait until the flame is extinguished. Wait approximately 20 minutes until the

burner has reached room temperature. Only then dispose of the remaining

fuel.

In case the flame is not extinguished immediately. Please close the cover

and wait approximate10-15 minutes to allow the flame to cool down. Repeat

the above instructions until the flame is fully extinguished.

It is urgently recommended that you keep a Class B fire extinguisher at hand

close to the device in case of fire.

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

Refill：

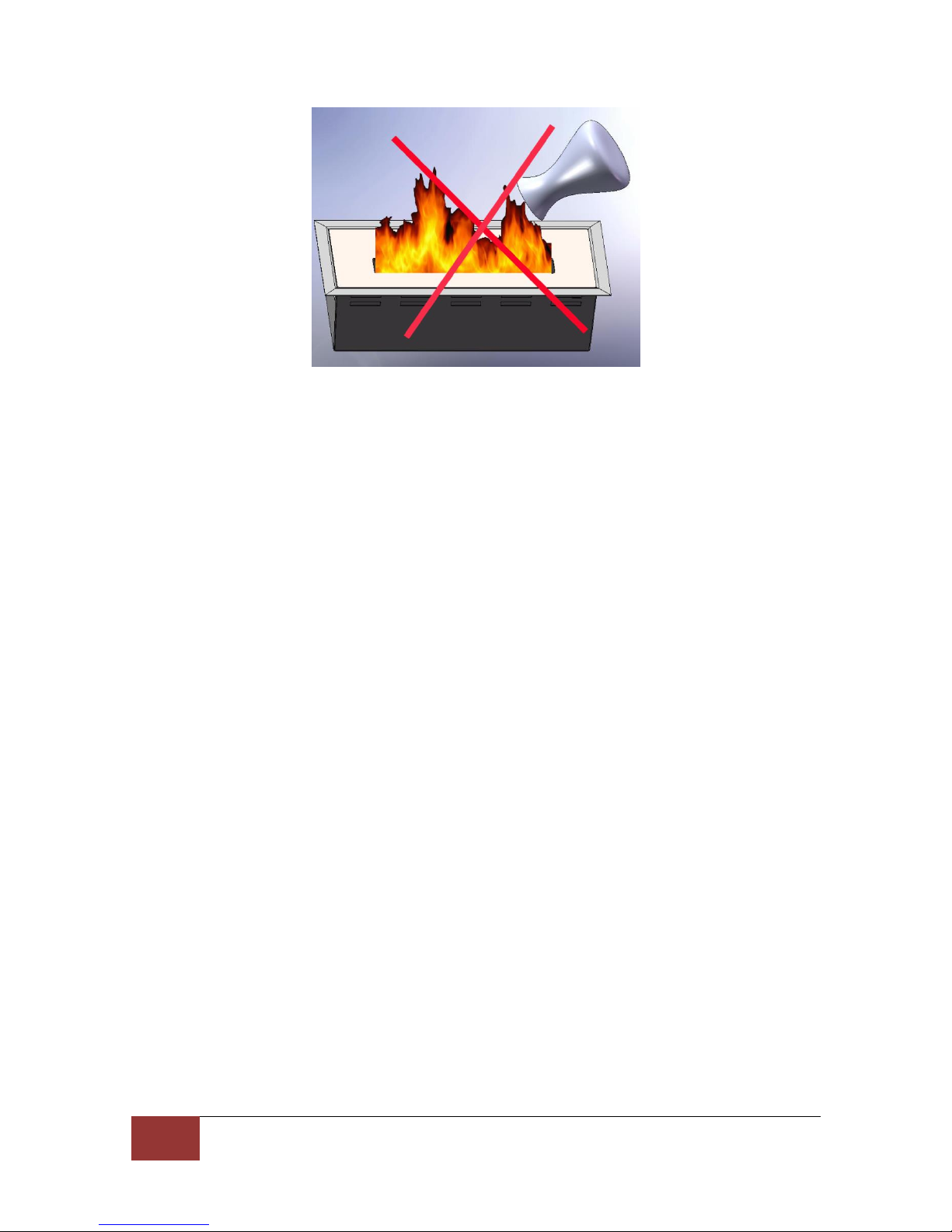

CAUTION: Never pour fuel into the burning flame.

WARNING：Allow the burner to cool down for at least 15 minutes before

refilling. Never refill the burner when the fireplace is operating or still hot.

SAFETY INSTRUCTION

We recommend using only Moda Fuel ethanol fuel. When burning bio ethanol

fireplace fuel, water-vapor and carbon dioxide are produced.

Never leave an open fire unattended at any time!

In a house of typical construction, that is, one that is not of unusually tight

construction due to heavy insulation and tight seals against air infiltration, an

adequate supply of air for combustion and ventilation is provided through

infiltration. The fireplace should not be used in a small room where less than

5.7m3 (200ft3) of air space is provided minimum for each 1,000 Btu per hour

of fireplace (considering the maximum burner adjustment). Do not use the

fireplace in a bathroom, a room where sleeping accommodation is provided

or any other small room.

CAUTION: Item gets hot while in operation. Do not touch the fireplace while

burning. Please allow at least 15 minutes to cool down before touching the

product after flame is extinguished.

CAUTION: Risk of burns. Do not operate the ethanol fireplace without the

guard or grille or screen completely attached.

Never pour fuel into an open flame or into the burner reservoir unless it has

cooled down for at least 15 minutes after used.

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

Do not place any flammable material within 1 meter/ 40 inches around the

fireplace. A safety distance of at least 2 meters/80 inches should be kept

from any window or curtain. Do not burn under over hanging items.

CAUTION: Do not smoke while handling the fuel.

Avoid airflow in the room where the fireplace is operated.

WARNING:

ⅰRisk of Explosion

a.Never use any fuel other than premium Moda Flame ethanol fireplace fuel.

Never use gasoline.

b.Never use the appliance in areas where flammable vapors or gas may be

present.

c.Never store or transport the fuel in other than a metal or plastic container

that is acceptable for use with the specified fuel in accordance with the

Consumer Chemicals and Containers Regulations 2001 and is the original

container for the specified fuel.

d.Never store fuel in the living space or in the same location as the appliance.

ⅱ.Due to high surface temperatures, keep children, clothing, and furniture

away.

ⅲ.Do not use the appliance to heat or boil water or use as a cooking

appliance.

ⅳ.Do not use in a room with Oxygen tanks in use. Do not use the appliance

in a bathroom, a room where sleeping accommodation is provided or any

other small room.

ⅴ.Do not operate without installing the protective screens, grilles, or guards.

ⅵ.THIS APPLIANCE HAS NOT BEEN TESTED FOR USE WITH DOORS.

TO REDUCE THE RISK OF FIRE OR INJURY, DO NOT INSTALL DOORS

OR MODIFY.

ⅶ. Risk of Indoor Air Pollution - Use ethanol fireplace only in well-ventilated

areas and with doors of adjacent room open. Do not obstruct air flow to the

fuel holder box by piling logs over the fuel holding box, but only around it and

Moda Flame Epila Wall Mounted Ethanol Fireplace ©

Instruction Manual

do not obstruct the fuel holder box in any other way or with any other material.

People with breathing problems should consult a physician before using the

ethanol fireplace.

WARNING: THIS APPLIANCE HAS NOT BEEN TESTED WITH AN

UNVENTED GAS LOG SET. TO REDUCE RISK OF FIRE OR INJURY, DO

NOT INSTALL AN UNVENTED GAS LOG SET INTO THIS APPLIANCE."

CLEANING INSTRUCTION:

After each use, the burner surfaces must be cleaned regularly. Use warm

water and washing-up liquid. If the burner is not cleaned after each use, bad

odors can occur.

Check the sliding cover of burner for warp or damage before each use.

After several uses, the stainless steel burner may discolor depending on the

type of ethanol fuel you use. Rub the burner with a sponge to restore the

original shine of the stainless steel. Marks can be best removed with a soft

cloth and a mixture of lukewarm water and a small amount of cleaning liquid

(ph-neutral). We recommend cleaning the stainless steel items regularly to

prevent contamination.

CAUTION: Never use chemical, steel-wool or scrubbing sponges eight.

These can scratch the surface. The manufacturer cannot be held responsible

for any damages resulting out of false use and/ or cleaning of the products.
