Mixx StreamBuds Micro Guía del administrador

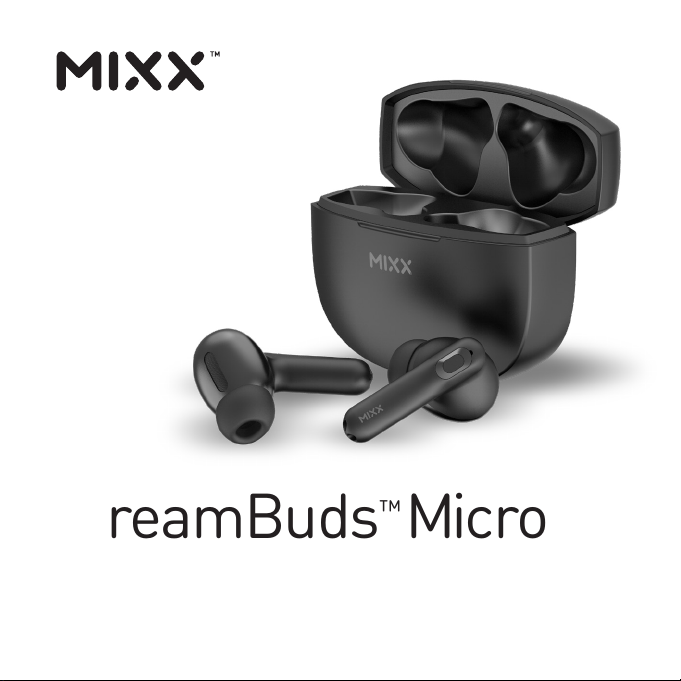

StreamBuds™ Micro
True Wireless Earbuds
HOW TO GUIDE
LET’S START 1
LET’S CONNECT 2
LET’S ASK GOOGLE OR SIRI 2
LET’S STAY CHARGED 3
LET’S PLAY 4
NEED EXTRA HELP? 6
LET’S VIEW TECHNICAL SPECS 7
CONTACT MIXX 7
LET’S BE SAFE 8
LET’S RECYCLE 9
SAFE USAGE INFO 10
CONTENTS
1
LET’S START
Left Touch Sensor
Earbud LED Lights
Right Touch Sensor
Microphones
Portable Charging Case
LED Charge Light
USB Type C Charging Port
USB Type C Charging Cable
3 Pairs of Ear Cushions (S, M and L)
1
2
3
4
5
6
7
8
9
8
9
6
L R
2
What’s in the box?
USB Type C charging cable
A pair of MIXX StreamBuds Micro
True Wireless Earbuds
Portable charging case
5
1 3
4
7
LET’S CONNECT
First Time Pairing
Remove both of the MIXX StreamBuds Micro earbuds from the Portable charging
case . They will automatically dual pair with each other. You may hear ‘Power on’
and then ‘Pairing’.
One of the Earbud LED Lights will flash BLUE to confirm it is in pairing mode.
Go to the Bluetooth settings on your audio device to select ‘MIXX StreamBuds Micro’
from the list. Once paired successfully you will hear ‘Connected’ and the Earbud
LED Light will turn off. You can now enjoy your music, watch a video or take
a call hands free.
After this initial pairing the earbuds will seamlessly reconnect to the last used
Bluetooth audio device it was paired with and will confirm by saying ‘Connected’.
Placing both earbuds back in the Portable Charging Case will power them off.
LET’S ASK GOOGLE OR SIRI
Pair your Bluetooth device with your earbuds.
Triple tap either Touch Sensor or to activate Siri or Google Assistant.
Your Voice Assist familiar ‘Beep’ will sound to confirm connection.
You can now ask Siri or Google Assistant a question or state a command.
4
5
2
2
2
1 3
LET’S STAY CHARGED
The Earbuds
The StreamBuds Micro earbuds are charged using the Portable Charging Case .
While in the case each Earbud LED Light will be RED and once fully charged
the LED Lights will turn off.
Secure the earbuds by closing the lid.
The Portable Charging Case
Ensure that one or both earbuds are inside the Portable Charging Case
to check the battery status of the case. Remove the earbuds then place them
back into the case.
When the case LED Charge Light flashes BLUE or does not light up then
it is time to recharge the Case.
Always charge the case to a suitable USB wall charger, computer USB port
or a power bank using the USB Type C charging cable supplied.
The LED Charge Light will flash BLUE while charging and will then remain
a solid BLUE once fully charged.
This can take up to 1 to 2 hours.
5
5
6
6
2
3
LET’S PLAY
4
Remove both earbuds from the
Portable Charging Case.
They will automatically dual pair
with each other. You may hear
‘Power on’ and then ‘Pairing’.
Go to the Bluetooth settings on
your audio device to select
‘MIXX StreamBuds Micro’ from the list.
Once paired successfully you will
hear ‘Connected’.
Play / Pause
Double tap either Touch Sensor or .
Lower Volume
Single tap LEFT Touch Sensor
Increase Volume
Single tap RIGHT Touch Sensor
First Time Pairing
1 3
1
3
TOP TIP: For better noise isolation,
comfort and sound quality ensure
the correct sized (S, M or L)
ear cushions supplied are fitted
on the earbuds.
L R
1 3
5
Previous Track
Tap and hold LEFT Touch Sensor
Skip Track
Tap and hold RIGHT Touch Sensor
Answer / End Call
Double tap either Touch Sensor or .
Decline an incoming call
Tap and hold either Touch Sensor or .
Activate Siri or Google Assistant
Triple tap either Touch Sensor or to activate Siri or Google Assistant.
Listen for the familiar Voice Assist ‘beep’ then ask a question or state a command.
Power on
Remove both earbuds from the Portable Charging Case and they will automatically
dual pair to each other and will confirm with ‘Connected’.
Power off
Place both earbuds in the charging case and close the lid to turn off.
1
3
1
1
1
3
3
3
NEED EXTRA HELP?
Question & Answers
Common solutions
If you are experiencing problems with your earbuds:
• Power on the earbuds (see Let’s play section).
• Check the status on the LED Lights (see Let’s stay charged section).
• Charge the earbuds (see Let’s stay charged section).
• Move your device closer to the earbuds and away from any
obstructions or interference.
• Try connecting to another device.
Q. While pairing with my phone, I see
two ‘MIXX StreamBuds Micro’ in my
Bluetooth menu listing?
A. Wait for 4 seconds for the earbuds
to connect to each other before
pairing with your device.
If there is still no connection simply
‘forget’ or ‘unpair’ both earbuds in
your Bluetooth settings, place them
back in the Portable Charging Case
and start again.
Q. What smartphone voice assist
systems do these earbuds work with?
A. You can connect to Siri or Google
Assistant after pairing with your
smartphone.
5
6
Play time on a single charge: Up to 6 hours
Play time with charging case: Up to 20 hours extra
Bluetooth: Version 5.1
Resistance: IPX5, water and dust resistant
Supported profiles: HSP, HFP, A2DP, AVRCP
Wireless range: 10m
Earbud capacity: 50mAH each side
Standby: 120 days
Dynamic driver: 6mm
Frequency response: 20Hz – 20KHz
Weight including case: Total 38g (earbuds 4g each)
Portable case dims: 60 x 50 x 28 mm (L x H x D)
LET’S VIEW TECHNICAL SPECS
Compatibility
Suitable for most Bluetooth audio supported smartphones, tablets,
notebooks, laptops and computers.
7
CONTACT MIXX
or visit mixxaudio.com for more information.
LET’S BE SAFE
It’s important that you read this section completely, especially the
‘Warning, Caution and Safe Usage’ instructions.
For your protection
Ensure the product is correctly connected using the manufacturer’s original
accessories included with the product.
Please keep the product out of reach from children and animals.
Do not listen to loud music for a long duration of time.
Adjust the volume to a comfortable level before listening.
Do not use the earbuds while operating machinery, including cars.
Do not use in areas where the use of hearing is required for safety.
Do not drop, short circuit, disassemble or continue to use this product and its
portable charging case if damaged.
We recommend
To refer all servicing to qualified persons. Servicing may be required when
the product has been damaged in any way, does not operate normally or has
been dropped.
The operating temperature range for this product is 5º - 40º celsius.
8
