Mitsubishi HS-1168E Manual de usuario

It runs and runs and runs . . . a total of 168 hours in long-play

mode and 24 hours in real time making the HS 1168E the first

choice for long-term surveillance operations. And this on public

holidays too, thanks to the integrated timer. In order that you

don’t miss any details, the recording speed guarantees 6

pictures/second. From the “hard facts” to the “soft skills” of

the HS 1168E: its particularly receptive High Density Record-

ing method with the permanent inspection of the tape abrasion

ensures constant quality. And the automatic Azimuth head

selection makes the analogue video recorder compatible with

all recording formats. Refined technology, made easy thanks

to the user friendly operation of the Jog Shuttle and the mul-

tilingual On-Screen Menu. Just as straightforward is the pic-

ture selection using the Index, Time/Date or Alarm list criteria.

The HS 1168E, however, really shows its qualities in

recording situations. Here, the audio signal and the alarm

lamp indicate any footage errors immediately. And in the

case of a power cut, start-up follows automatically retain-

ing all the settings.

• Up to 168 hours recording time

• 6 pictures/second in 24 hour mode

• Automatic head cleaning during recording

• Fully automatic daylight saving conversion

• Remaining recording capacity indicator

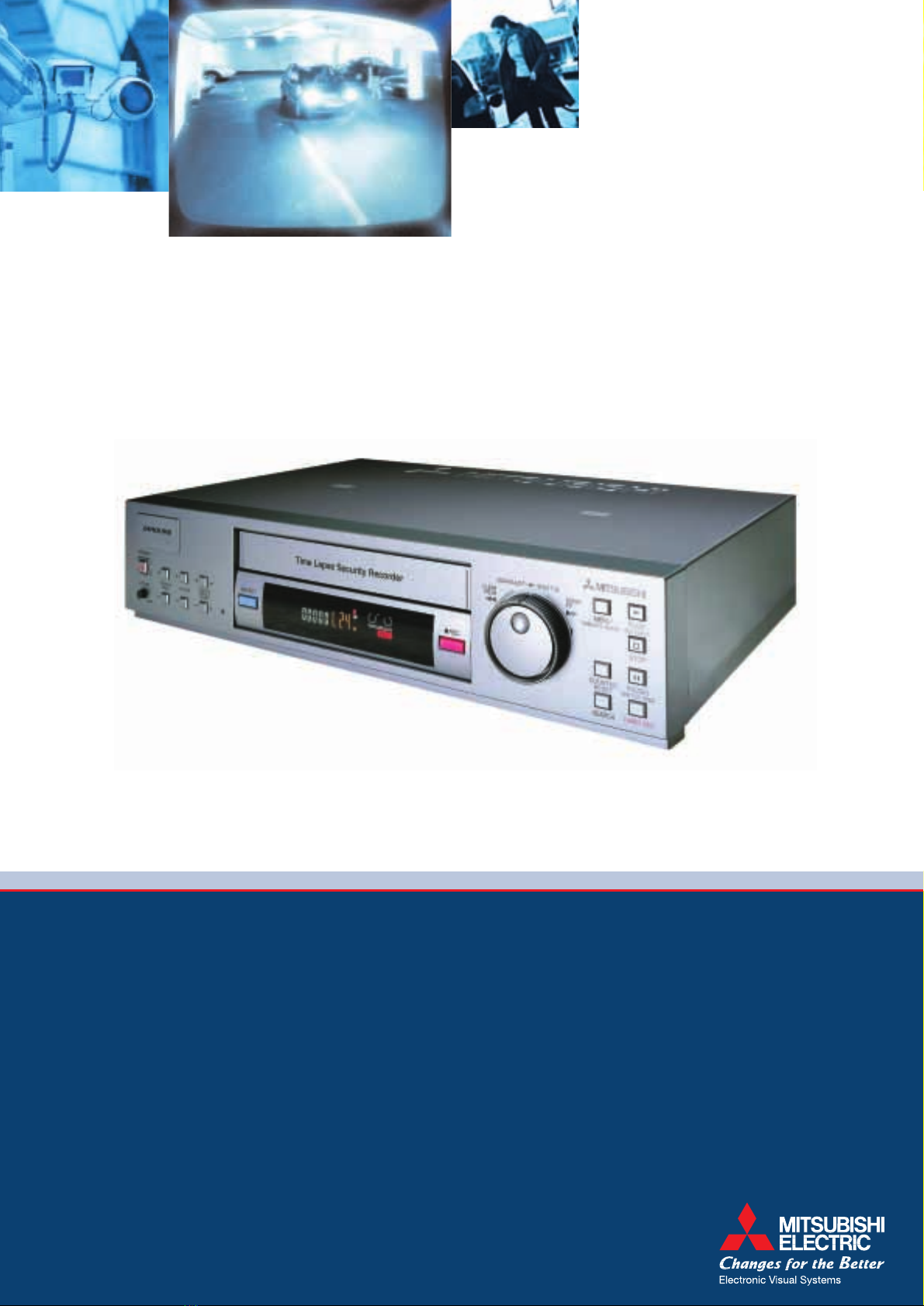

HS 1168E

168 hours recording capacity.

Continuous top performance.

Mitsubishi Electric Europe B. V. • German Office • Electronic Visual Systems • Gothaer Straße 8 • D-40880 Ratingen

Tel.: +49 (0) 21 02/4 86 92 50 • Fax: +49 (0) 21 02/4 86 73 20 • www.mitsubishi-evs.de

(The right to make technical changes is reserved; no liability is accepted for printing or other errors)

Model HS 1168E

Recording System (VHS/S-VHS) VHS

Tape Format E-180/E-240

No. of Videoheads 4

Max. Recording Time (E-180) 171 hours

Further Recording Modes – hours (E-180) 3, L12, L24, 48,

(E-240 see operation manual) 72, 96, 120, 168

Recording Type (Frame/Field) Half frame (field)

Picture Recording 6 pictures/second

Horizontal Resolution b/w (TV-lines) 330

Horizontal Resolution color (TV-lines) 240

Signal Noise Ratio > 42 dB

No. of Video Inputs/Outputs 1/1

No. of Audio Inputs/Outputs 2/1

Audio Recording: Continuous/Playback 3/L12/L24 hr

On-Screen Display: Date/Time/Mode Yes

On-Screen Display: Alarm Yes

On-Screen Display: Power Loss Yes

Alarm: Time-lapse/Real Time Yes

Alarm Stand-by/Real Time Yes

Alarm Index Yes

Recording via Alarm Contact Yes

Number of Timer Programs 8

Tape End: Repeat Function Yes

Tape End: Warning Yes

Tape End: Contact Alarm Yes

Tape End: Recording Connection Alarm Yes

Function Lock Yes

Alarm/Error Display Yes

Recording after Power Loss Yes

Record-Check-Automatic Yes

Elapsed Time Indicator Yes

Search Function: Still Picture Yes

Search Function: Speed 9-step

Search Function: Rewind Playback Yes

Search Function: Date/Time Yes

Search Function: Alarm Yes

Automatic Daylight Saving Yes

Wire Remote Control Optional

Interface (RS-232) Optional

Power Source (Volt) 100–230 V/AC

Power Consumption Approx. 20 W

Operation Temperature 5–40 °C

Dimensions in mm (W x H x D) 425 x 93 x 309

Weight 4.5 kg

Approvals (VDE/GS/etc.) EN 60065, EN 55022 Class B, EN 50082/1

Documentation Languages GB/D/FR/I/ES/NL/RU

Delivery Range User manual, power cable

Optional Accessories R-9000RS; R-9100E

Special Features Public holiday program

HS 1168E

Optional Accessories R-9100E/R-9000RS
