Mitsubishi Electric PAR-31MAA Manual de usuario

CITY MULTI Control System

and Mitsubishi Mr. Slim Air Conditioners

MA Remote Controller PAR-31MAA

Simple Operation Manual

Prior to use, thoroughly read the instructions in this manual to use the product correctly.

Retain for future reference.

Make sure that this manual, CD-ROM, and the Installation Manual are passed on to any

future users.

To ensure safety and proper operation of the remote controller, the remote controller should

only be installed by qualified personnel.

English

Deutsch

Français

Español

Italiano

Nederlands

Português

Ελληνικά

Русский

Türkçe

Český

Slovenský

Magyar

Polski

Slovenščina

Svenska

Hrvatski

Български

Română

Dansk

WARNING

• Thoroughly read the following safety precautions before using the unit.

• Observe these precautions carefully to ensure safety.

CAUTION

Indicates a risk of death or serious injury.

Indicates a risk of serious injury or structural damage.

WARNING

Safety precautions

• After reading this manual, pass it on to the end user to retain for future reference.

• Keep this manual for future reference and refer to it as necessary. This manual should be made available

to those who repair or relocate the controller. Make sure that the manual is passed on to any future

users.

• For information not contained in this booklet, please refer to the Instruction Book on the CD-ROM that is

supplied with the Remote Controller.

General precautions

To reduce the risk of electric shock, malfunctions,

smoke or fire, do not operate the switches/buttons or

touch other electrical parts with wet hands.

To reduce the risk of shorting, current leakage,

electric shock, malfunctions, smoke, or fire, do not

wash the controller with water or any other liquid.

Do not install the unit in a place where large

amounts of oil, steam, organic solvents, or corrosive

gases, such as sulfuric gas, are present or where

acidic/alkaline solutions or sprays are used

frequently. These substances can compromise

the performance of the unit or cause certain

components of the unit to corrode, which can result

in electric shock, malfunctions, smoke, or fire.

When disinfecting the unit using alcohol, ventilate

the room adequately. The fumes of the alcohol

around the unit may cause a fire or explosion when

the unit is turned on.

To reduce the risk of injury or electric shock, before

spraying a chemical around the controller, stop the

operation and cover the controller.

To reduce the risk of injury or electric shock, stop

the operation and switch off the power supply before

cleaning, maintaining, or inspecting the controller.

If any abnormality (e.g., burning smell) is noticed,

stop the operation, turn off the power switch, and

consult your dealer. Continued use of the product

may result in electric shock, malfunctions, or fire.

Properly install all required covers to keep moisture

and dust out of the controller. Dust accumulation and

water can cause electric shock, smoke, or fire.

CAUTION

To reduce the risk of fire or explosion, do not place

flammable materials or use flammable sprays

around the controller.

To reduce the risk of damage to the controller, do not

directly spray insecticide or other flammable sprays

on the controller.

To reduce the risk of environmental pollution, consult

an authorized agency for proper disposal of remote

controller.

To reduce the risk of electric shock or malfunctions,

do not touch the touch panel, switches, or buttons

with a pointy or sharp object.

To reduce the risk of injury and electric shock, avoid

contact with sharp edges of certain parts.

To avoid injury from broken glass, do not apply

excessive force on the glass parts.

To reduce the risk of injury, wear protective gear

when working on the controller.

Precautions for moving or repairing the controller

WARNING CAUTION

The controller should be repaired or moved only by

qualified personnel. Do not disassemble or modify

the controller.

Improper installation or repair may cause injury,

electric shock, or fire.

To reduce the risk of shorting, electric shock, fire,

or malfunction, do not touch the circuit board with

tools or with your hands, and do not allow dust to

accumulate on the circuit board.

Additional precautions

To avoid damage to the controller, use appropriate

tools to install, inspect, or repair the controller.

To avoid discoloration, do not use benzene, thinner,

or chemical rag to clean the controller. To clean the

controller, wipe with a soft cloth soaked in water with

mild detergent, wipe off the detergent with a wet

cloth, and wipe off water with a dry cloth.

This controller is designed for exclusive use with the

Building Management System by Mitsubishi Electric.

The use of this controller for with other systems or

for other purposes may cause malfunctions. To avoid damage to the controller, provide protection

against static electricity.

Names and functions of controller components

Display The main display can be displayed in two different modes: "Full" and "Basic."

The factory setting is "Full."

Fri

Mode Temp. Fan

Room

Cool Auto

Set temp.

Fri

Cool

Mode Temp. Fan

AutoSet temp.

hgfedcb

Fan speed setting appears here.

4Fan speed

Appears while the units are operated in the

energy-save mode.

Appears while the outdoor units are operated in

the silent mode.

Preset temperature appears here.

Appears when the ON/OFF operation is centrally

controlled.

Current time appears here.

Appears when the buttons are locked.

Indoor unit operation mode appears here.

Appears when the operation mode is centrally

controlled.

2Preset temperature

1Operation mode

Indicates the vane setting.

Indicates the louver setting.

Indicates the ventilation setting.

Appears when the On/Off timer, Night setback, or

Auto-off timer function is enabled.

appears when the timer is disabled by the

centralized control system.

Indicates when filter needs maintenance.

Appears when the filter reset function is centrally

controlled.

Appears when the preset temperature is centrally

controlled.

Appears when the Weekly timer is enabled.

Appears when the preset temperature range is

restricted.

Functions of the corresponding buttons appear

here.

5Button function guide

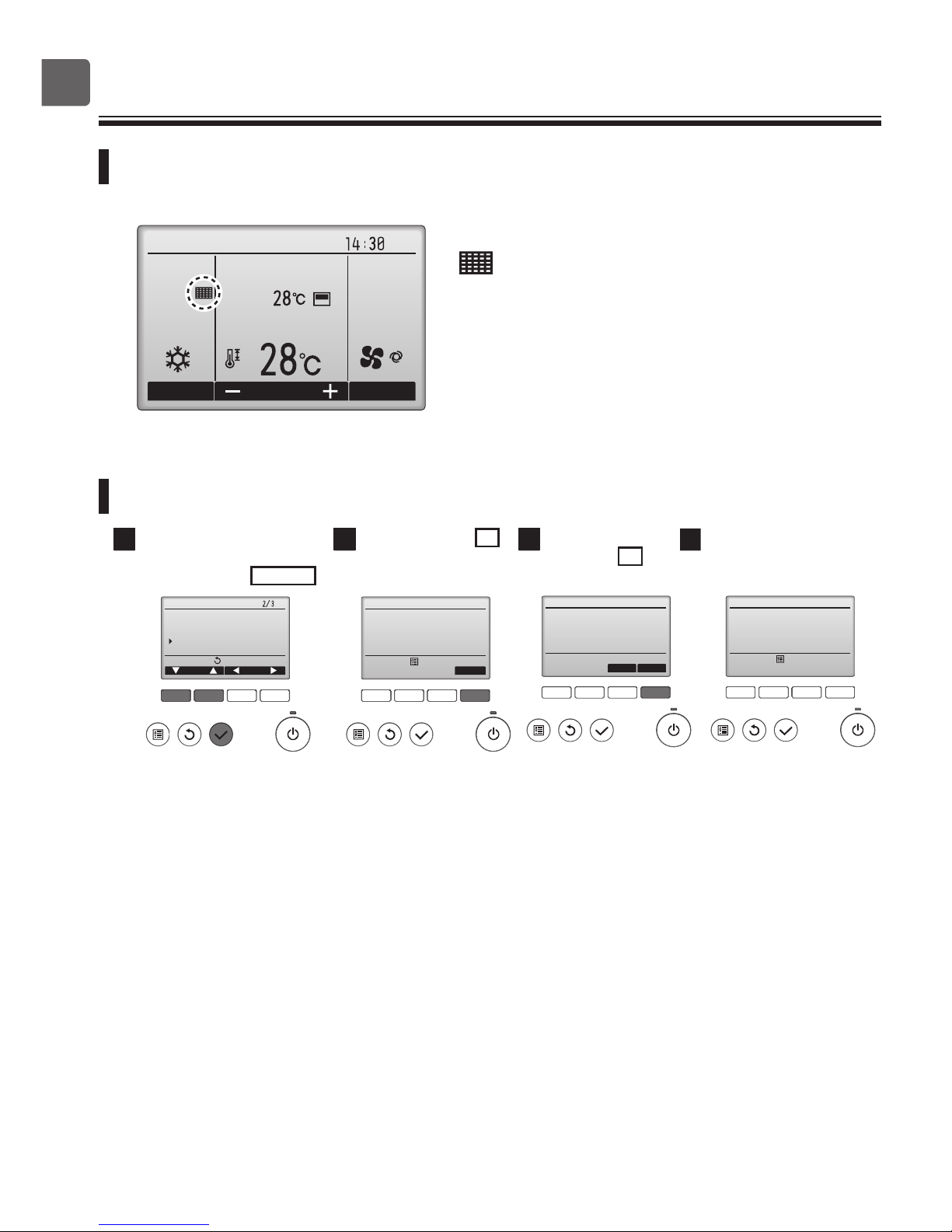

Appears when the built-in thermistor on the

remote controller is activated to monitor the

room temperature (a).

appears when the thermistor on the

indoor unit is activated to monitor the room

temperature.

3Clock

(See the Installation Manual.)

Current room temperature appears here.

aRoom temperature

(See the Installation Manual.)

Full mode

Basic mode

* All icons are displayed for explanation.

Function buttons

1234

7890

Press to turn ON/OFF the indoor unit.

1ON/OFF button

This lamp lights up in green while the unit

is in operation. It blinks while the remote

controller is starting up or when there is

an error.

Press to save the setting.

Main display: Press to change the operation

mode.

Main menu: Press to move the cursor down.

Press to return to the previous screen.

Main

display

: Press to decrease temperature.

Main menu: Press to move the cursor up.

Press to bring up the Main menu.

Main

display

: Press to increase temperature.

Main menu: Press to go to the previous page.

Operation settings will appear.

When the backlight is off, pressing any

button turns the backlight on and it

will stay lit for a certain period of time

depending on the screen.

Main

display

: Press to change the fan speed.

Main menu: Press to go to the next page.

6ON/OFF lamp

2SELECT button

7Function button F1

3RETURN button

8Function button F2

4MENU button

9Function button F3

5Backlit LCD

0Function button F4

Fri

Room

Set temp.

Mode Temp. Fan

Cool Auto

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

The functions of the function buttons

change depending on the screen. Refer

to the button function guide that appears

at the bottom of the LCD for the functions

they serve on a given screen.

When the system is centrally controlled,

the button function guide that

corresponds to the locked button will not

appear.

Main display Main menu

Function guide

7890 7890

Controller interface

• When the backlight is off, pressing any button turns the backlight on and

does not perform its function. (except for the ON/OFF button)

• Most settings (except ON/OFF, mode, fan speed, temperature) can be

made from the Menu screen.

Basic operations

Press button 1( ON/OFF ).

Press button 7 ( F1 ) to go through the operation

modes.

Turning ON and selecting operation mode

Preset temperature setting

Cool Dry Fan Auto

Heat Auto cool Auto heat

2The ON/OFF lamp and the LCD will light up.

Operation modes that are not available to the connected indoor unit models will not appear on the display.

*2 Single or dual set points will appear, depending on the indoor unit model.

* Interlocked operation is performed in all the operation modes when the ventilation unit is interlocked.

Cool

Dry

Fan Auto

*1*2

Heat

Operation mode icons

Preset temperature will be displayed either in Celsius in 0.5- or 1-degree increments, or in Fahrenheit, depending on

the indoor unit model and the display mode setting on the remote controller.

Press button 8( F2 ) or 9( F3 ).

1 2 Press button 7( F1 ) or button 8( F2 ) to

move the cursor to the desired temperature

setting (cooling or heating).

Press button 9( F3 ) to decrease the selected

temperature, and 0( F4 ) to increase.

F1 F2 F3 F4

Auto

Room

Auto

Mode Temp. Fan

Fri

F1 F2 F3 F4

Main display:

Cursor

Set Temp.

Temp.

Press button 8( F2 ) to decrease the preset temperature.

Press button 9( F3 ) to increase the preset temperature.

<Cool, Dry, Heat, and Auto (single set point)>

Preset temperature

for cooling

Preset temperature

for heating

Fan speed setting

Auto

Press button 0( F4 ) to go through the fan speed.

* The number of available fan speeds depends on the model.

<Note>

The actual fan speed will be different from the fan speed displayed on

the LCD when one of the following conditions is met.

• While "Standby" or "Defrost" is displayed

• When the room temperature is higher than the preset temperature during

the heating mode

• Right after the heating operation (during stand by for switching the

operation mode)

• During the dry mode

F1 F2 F3 F4

Fri

LouverVent.Vane

Low

F1 F2 F3 F4

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

Step 1 Step 2 Step 3 Step 4 Step 5 Swing

Auto

F1 F2 F3 F4

Cool

Room

AutoSet temp.

Mode Temp. Fan

Fri

Vane setting

1Press button 4( MENU ). 2

"Vane•Louver•Vent.(Lossnay)" is

selected. Press button 2( SELECT ).

3Press button 7( F1 ) or 8 ( F2 )

to change the vane angle.

* The settable vane

angle varies with

the model of indoor

units.

<Note>

The actual vane angle will be different from the vane angle displayed on the LCD when one of the following conditions is met.

• While "Standby" or "Defrost" is displayed

• The room temperature is higher than the preset temperature during the heating mode

• Right after the heating operation (during stand by for switching the operation mode)

Operation mode Preset temperature range

Cool/Dry 19 ~ 30 ºC (67 ~ 87 ºF) *1

Heat 17 ~ 28 ºC (63 ~ 83 ºF) *1

Auto

(Single set point)

19 ~ 28 ºC (67 ~ 83 ºF) *1

Auto

(Dual set points)

[Cool]

Preset temperature range for the

Cool mode

[Heat]

Preset temperature range for the

Heat mode

Fan/Ventilation Not settable

* The temperature range restriction setting will be applied

preferentially, if any. If the setting value is outside of the

range, a message "Temp. range locked" will appear. Refer to

the Instruction Book of the remote controller for details.

*1 The settable temperature range varies with the model of

indoor units.

*2 The preset temperature settings for cooling and heating in the

Auto (dual set point) mode are used by the Cool/Dry and Heat

modes.

The preset temperatures for cooling and heating in the Auto

(dual set point) mode can be set to meet the conditions below:

• Preset cooling temperature is higher than preset heating

temperature.

• The minimum temperature difference requirement

between cooling and heating preset temperatures (varies

with the models of indoor units connected) is met.

Ventilation operation

Automatic cooling/heating operation

Press button 1( ON/OFF ).

Press button 7 ( F1 ) to display the operation mode "Auto".

When the room temperature is higher than the preset temperature, cooling operation starts.

When the room temperature is lower than the preset temperature, heating operation starts.

* The current operation mode ("Auto cool" or "Auto heat") will be displayed after the mode is determined.

If "Display/non-display of COOL/HEAT during AUTO mode" has been set to "Non-display" while making

the initial settings, only "Auto" will be displayed. Refer to the Installation Manual for details about initial

settings for the remote controller.

Press button 1( ON/OFF ) to turn both the indoor unit and the ventilation unit on.

1Press button 4( MENU ). 2

"Vane•Louver•Vent.(Lossnay)" is

selected. Press button 2( SELECT ).

3Press button 9( F3 ) to

change the fan speed.

F1 F2 F3 F4

Fri

LouverVent.Vane

Low

F1 F2 F3 F4

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

F1 F2 F3 F4

Cool

Room

AutoSet temp.

Mode Temp. Fan

Fri

Indoor unit fan may operate even when the ventilation unit is operated individually, depending on the models of the indoor unit and the

ventilation unit.

When the room temperature is higher than the preset cooling temperature, cooling operation starts.

When the room temperature is lower than the preset heating temperature, heating operation starts.

* When the operation mode is set to the Auto (dual set point) mode, only "Auto" will appear on the display, even

if the display setting of "Auto cool/Auto heat" is enabled.

Troubleshooting

When an error occurs, the following screen will appear.

Check the error status, stop the operation, and consult your dealer.

F1 F2 F3 F4

Error information

Error code

Error unit IU

Ref. address Unt#

Model name

Serial No.

ResetPage

Error information

Contact information

Dealer

Tel

ResetPage

Reset error: Reset button

Error code, error unit, refrigerant address, unit model name, and

serial number will appear.

The model name and serial number will appear only if the information

have been registered.

Press button 7( F1 ) or 8( F2 ) to go to the next page.

Contact information (dealer's phone number) will appear if the

information have been registered.

blinks

F1 F2 F3 F4

Main

Main display:

Cursor Page

Main menu

Vane·Louver·Vent. (Lossnay)

High power

Timer

Weekly timer

OU silent mode

Timer, Weekly timer, Energy saving

F1 F2 F3 F4

Main

Main display:

Cursor Page

Main menu

Restriction

Energy saving

Night setback

Filter information

Error information

The settings for Timer, Weekly timer, and Energy saving operation can be made from the remote controller.

Press button 4( MENU ) to go to the Main menu, and move the cursor to the desired setting with button 7 ( F1 )

or 8( F2 ). Refer to the Instruction Book of the remote controller for further information.

Timer

Weekly timer

Energy saving

•On/Off timer

Operation On/Off times can be set in 5-minute increments.

•Auto-Off timer

Auto-Off time can be set to a value from 30 to 240 in 10-minute increments.

Operation On/Off times for a week can be set.

Up to eight operation patterns can be set for each day.

•Automatic return to the preset temperature

The units operate at the preset temperature after performing energy-save operation for a preset time period.

The preset time can be set to a value from 30 to 120 in 10-minute increments.

•Setting the energy-saving operation schedule

The start/stop times to operate the units in the energy-save mode for each day of the week and the energy-saving

rate can be set.

Up to four operation patterns can be set for each day.

The times can be set in 5-minute increments.

The energy-saving rate range is 0% and 50 to 90% in 10% increments.

Maintenance

Cool

Room

AutoSet temp.

Mode Temp. Fan

Fri will appear on the Main display in the Full mode when it

is time to clean the filters.

F1 F2 F3 F4

Main

Main display:

Cursor Page

Main menu

Restriction

Energy saving

Night setback

Filter information

Error information

F1 F2 F3 F4

Main menu:

Filter information

Reset

Please clean the filter.

Press Reset button after

filter cleaning.

F1 F2 F3 F4

Filter information

Cancel

Reset filter sign?

Filter information

1Select "Filter information"

from the Main menu and

press button 2( SELECT ).

2Press button 0( F4 )

to reset filter sign. 3Select "OK" with

button 0( F4 ). 4A conﬁrmation screen will

appear.

Resetting the filter sign

F1 F2 F3 F4

Filter information

Filter sign reset

Main menu:

<Note>

• Make sure to clean the ﬁlters before resetting ﬁlter sign. When the ﬁlter sign is reset, the cumulative operation time of the unit

will be reset.

• If two or more indoor units of different models are connected, the ﬁlter sign will appear when the ﬁlter on one of the indoor units

is due for cleaning. (long life ﬁlter: 2500 hours, general ﬁlter: 100 hours)

When the ﬁlter sign is reset, the cumulative operation time of all units will be reset.

• The ﬁlter sign is scheduled to appear after a certain duration of operation, based on the premise that the indoor units are

installed in a space with ordinary air quality. Depending on the air quality, the ﬁlter may require more frequent cleaning.

Otros manuales para PAR-31MAA

Tabla de contenidos

Idiomas:

Otros manuales de Mando a distancia de Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric PAC-SE51CRA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-FL32MA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-CT01MAU-SB Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-FL32MA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric RC-EX3A Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAC-SF44SRA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-31MAA Manual

Mitsubishi Electric

Mitsubishi Electric Lossnay PZ-41SLB-E Manual de instrucciones

Mitsubishi Electric

Mitsubishi Electric PZ-62DR-E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA-J Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PZ-61DR-E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAC-SE51CRA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Trane TAR-40MAAU Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Ecodan PAR-WT50R-E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAR-SL101A-E Series Instrucciones de instalación y funcionamiento

Mitsubishi Electric

Mitsubishi Electric PAC-SC30GRA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MLZ-HW Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Ecodan PAR-WT50R-E Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
