Mitsubishi Electric XD400U Manual de usuario

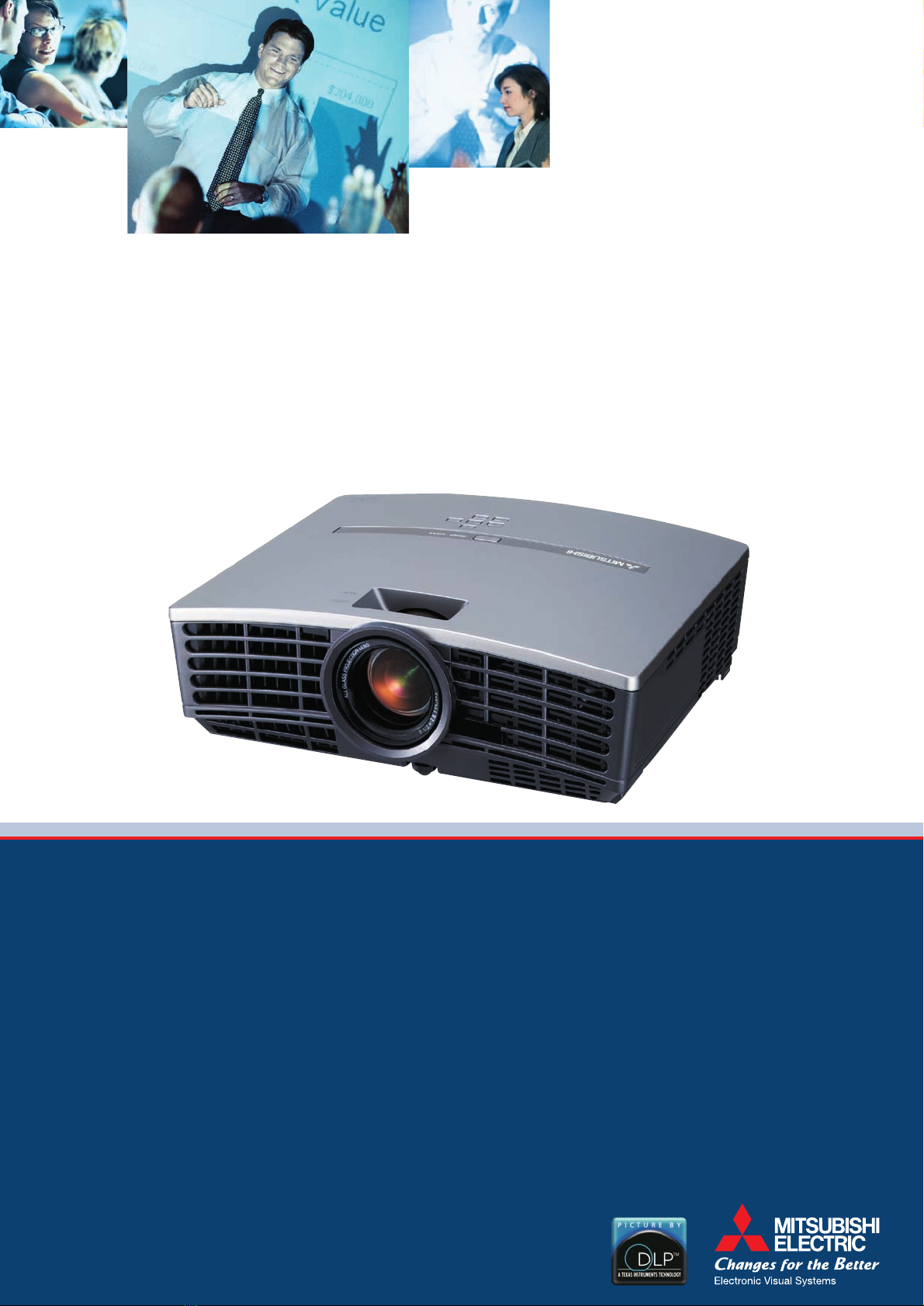

The XGA DLP™ projectors XD400U/XD450U will dazzle you

with some of their innovations. Even at first sight the design

will impress you. But the XD400U and the XD450U will also

convince you with their inner qualities. With a contrast ratio

of 2200:1, when it comes to picture sharpness and bright-

ness, you’ll not be left wanting for anything. With a bright

2100/2600 ANSI lumens you’ll always be presented in the

best light, even when the room is not completely dark. So

that nothing distracts from your presentation, the XD400U/

XD450U function with an extremely quiet fan noise.

The XD400U and the XD450U also prove that feature-packed

projectors do not have to weigh much: at just 2.9 kg you can

really take them with you anywhere. And because such a

projector may also be irresistible to others, an anti-theft pin-

code has been installed.

• 0.7" DLP™, 12˚ DDR

• 2100/2600 ANSI lumens

• XGA resolution (1024 x 768 pixels)

• Contrast ratio: 2200:1

• Weight: 2.9 kg

• XD450 includes an DVI-D input (with HDCP)

XD400U/XD450U

Be bedazzled:

with a lamp life

of up to 5000 hours.

Mitsubishi Electric Europe B. V. • German Office • Electronic Visual Systems • Gothaer Straße 8 • D-40880 Ratingen

Tel.: +49 (0) 21 02/4 86 92 50 • Fax: +49 (0) 21 02/4 86 73 20 • www.mitsubishi-evs.de

Model XD400U/XD450U

Technology 0.7" DMD, 12° DDR

Resolution 1024 x 768 (total 786,432 pixels)

Brightness 2100/2600 ANSI lumens

Contrast 2200:1

Colors 16.77 million

Video 600 lines

Vertical Frequency (V-Sync) 50–120 Hz

Horizontal Frequency (H-Sync) 15–100 kHz

Band Width up to 140 MHz

Projection Lamp 200 W

Lamp Life approx. 5000 hours (low mode)1

Lens F/2.4–2.6

Focus/Zoom Manual focus and zoom

Picture Diagonal 1.02–7.62 m

Fan Noise XD400U: 30 dB/XD450U: 30 dB (low mode)

Audio Speaker 2 W Mono

PC Compatibility 640 x 480 to 1024 x 768 pixels (compr. 1280 x 1024 pixels), Sync on green possible

Video Compatibility NTSC/NTSC 4.43, PAL (incl. PAL-M, N), SECAM/PAL-60, DVD (component)/HDTV

(525 p, 625 p, 1080 i [50, 60 Hz], 720 p [50, 60 Hz])/SCART (RGB + 1 V Comp)

Features Picture-in-Picture (both pictures live), sRGB, Natural Color Matrix, Digital Keystone Correction

(horizontal and vertical), Video-Line Doubler (3:2 pull-down), 3D Y/C, 16:9 (picture position: top/middle/

bottom), user-programmable Start Logo, 10-language OSD, Digital-Expand Zoom, Anti-theft Pin-code

Input Terminals PC (RGB): 2 x Mini-D-Sub 15-pin

XD450U: 1 x DVI-D (with HDCP)

Audio: 1 x Stereo-mini-jack (Ø 3.5 mm)

Video: 1 x RCA, 1 x S-Video

Audio: 2 x RCA (L, R)

Output Terminals PC (RGB): 1 x Mini-D-Sub 15-pin

Audio: 1 x stereo-mini-jack (Ø 3.5 mm)

Communication Terminals RS-232C (8-pin), USB-interface, Mouse

Remote Control Complete operation of the projector, USB: Mouse cursor operation, laser pointer,

programmable (DVD, VCR)

Dimensions (W x H x D) 310 x 100 x 245 mm (excl. stand feet)

Weight 2.9 kg

Power Consumption XD400U: approx. 280 W/XD450U: approx. 340 W

Power Supply 100–240 V ± 10 %, 50/60 Hz

Accessories (incl. in delivery) Power cable, remote control (incl. batteries), soft bag, Quick-Start Card, operation manual

(CD-ROM, ENG/FRE/GER/ITA/SPA/CHI/POR)

Optional Accessories Projection lamp (VLT-XD400LP), ceiling bracket

1Depending on the operation environment and application. This is an average value given by the manufacturer based on ideal conditions.

(The right to make technical changes is reserved; no liability is accepted for printing or other errors)

XD400U/XD450U

Picture Size Distance from Screen

Diagonal Size Width Height cm/min. with cm/max. with

cm cm cm maximum zoom minimum zoom

102 81 61 129 157

152 122 91 196 238

203 163 122 263 318

254 203 152 330 399

381 305 229 497 601

508 406 305 664 803

635 508 381 832 –

762 610 457 999 –

Projection distance

Height

projected
