PORTABLE WXGA PROJECTOR

MULTIMEDIA DATA/VIDEO PROJECTORS

Ushering in New Planes of Presentation Perfection,

With the WXGA Projector

Fan noise is barely perceptible at 29dBA (at “lamp

Low” mode). Your assurance of clear and quiet

presentations, even in cramped room conditions.

Supported by our optimum design for light source

lamp temperature control, maximum light source

lamp use soars to 4,000 hours.*1This makes

dramatic reductions in running cost, while likewise

slashing replacement hassle for the light source

lamp as a consumable part.*2

Display different windows

side by side,banishing the idea of

left-right scrolling.

Wide-screen broadcasts

in all their natural glory.

(*1): When used at the low lamp mode. Maximum lamp life at standard mode use

is 2,000 hours. (*2): Lamp life refers to the average time required for brightness to

be reduced by half, and not the time specified in the warranty. Use time may vary

widely by the environment and conditions, and whether or not cleaning and other

maintenance procedures are followed.

Lamp Replacement Frequency*2

2,000-hour

lamp

4,000-hour

lamp

2,000 hours 4,000 hours

Note: Mitsubishi Electric cannot accept

responsibility for thefts occurring

despite use of this safety feature.

A robust key-lock chain

may be passed through the

projector hook. This reliable

anti-theft measure helps

prevent unauthorized

removal of the projector unit

from the premises.

The lamp may be removed

from the side of the projector

unit. This simplifies

replacement without turning

the projector around or over

when suspended from the

ceiling or resting on a shelf.

Long Life Lamp ~ Maximum 4,000 hours

Quiet Fan Noise

Security Anchor

Lamp Side Replacement

Fully Friendly with Wide Screens

Mounted lamp

Reduced

running

cost

Noise Level Examples

Quiet house late at night

29dBA

Whispering voices

30 - 40dBA

Daytime residential district

40dBA and above

1st replacementMounted lamp

Presenting the WXGA Projector (1280 x 800 dots),

finely tuned to screen aspect ratio to support the

shift toward wider PC screens. Built with 1.3-times

the display area of conventional XGA projectors,

making it fully compatible with wide screens,

the WXGA purges any need for left-right screen

scrolling. Depending on the application, screen

two windows at once, such as the menu and

preview domains, in even greater presentation

might. DVD images may also be replayed as-is,

free of compression.

Lamp

VLT-XL650LP

L-188-7-B7705-A KYO-0705 Printed in Japan(MDOC)

New publication, effective May. 2007

Specifications subject to change without notice.

* BrightEra and are trademarks of Sony corporation.

All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

WL639U

0.75”3-LCD

1280 x 800 (total 1,024,000 pixels)

3500lm

600:1

f=24-29mm, F1.7-1.9

40”~300”

Video: RCA x 1, S-video x 1, Audio: RCA (L,R)x 2

3W mono

29dBA (at Low Mode)

333 x 113 x 272mm (excluding height adjustment)

4.7kg / 10.4lbs

AC100 - 240V, 50/60Hz

VLT-XL650LP

Model

Display technology

Resolution

Brightness

Contrast

Projection lens

Picture Size

Video input terminals

Audio speaker

Fan noise

Dimension (W

HxD)

Weight

Power supply

Optional lamp

Video compatibility

PC input terminals

Output terminals

Computer compatibility

NTSC/NTSC4.43/PAL(including PAL-M, N)/SECAM/PAL-60,

Component Video:480i/p(525i/p),576i/p(625i/p),

720p(750p 50/60Hz),1080i(1125i 50/60Hz),

1080p(1125p 50/60Hz),SCART(RGB+1V sync)

Source lamp 220W (Shut Off Time 4000Hrs) with Low Mode

261W (Shut Off Time 2000Hrs)

640 x 480 ~ 1920 x 1080

True: 1280 x 800, Sync on green available

4 5 6 7

910 11

The above numbers are approximate, and may be slightly different from the actual measurements.

Screen

Diagonal size Width (W)Shortest LongestHeight (H)

inch

Distance from screen (L)Height projected

image (Hd)

inch cm inch cm cm inch

1.2

1.9

2.5

3.2

4.8

6.4

8.0

9.6

inch

1.5

2.3

3.1

3.8

5.8

7.7

9.7

inch cm

Screen size chart (WXGA)

0.5

0.8

1.1

1.3

2.0

2.6

3.3

3.9

121

151

228

305

381

100

125

189

252

315

379

108

135

202

269

337

404

106

132

159

129

172

215

323

431

538

646

127

170

212

254

102

152

203

254

381

508

635

762

100

150

200

250

300

Unit:mm

Option

As seen from the side

PC: mini D-sub 15pin x 2, DVI-D(with HDCP)x 1,

Audio: stereo mini( 3.5) x 2

Monitor Out: mini D-sub 15pin x 1,

Audio: stereo mini( 3.5) x 1

LAN(RJ-45)x 1, RS-232C(D-Sub 9 pin)x 1,

USB terminal for mouse control x 1

Communication terminals

S-Video / Video input

PC / Component Video input(mini D-sub 15pin)

PC /

Audio input

DVI-D(with HDCP)

input

USB terminal for mouse control

Serial RS-232C(D-sub 9pin)

LAN(RJ-45)

Video

/ Audio

input

Security Anchor

Audio output

Monitor output

Enhanced terminal group realizes a versatile range of presentations.

Top view Bottom view

Side view

Front view

112.9

84.5

59.5

333.4

272.4

325.4

88.1

240.9 20.5

272.5

132.5

80 57

145.5

HOLES FOR

HANGER (3PLACES)

M4 DEPTH 8

73.5

30.55

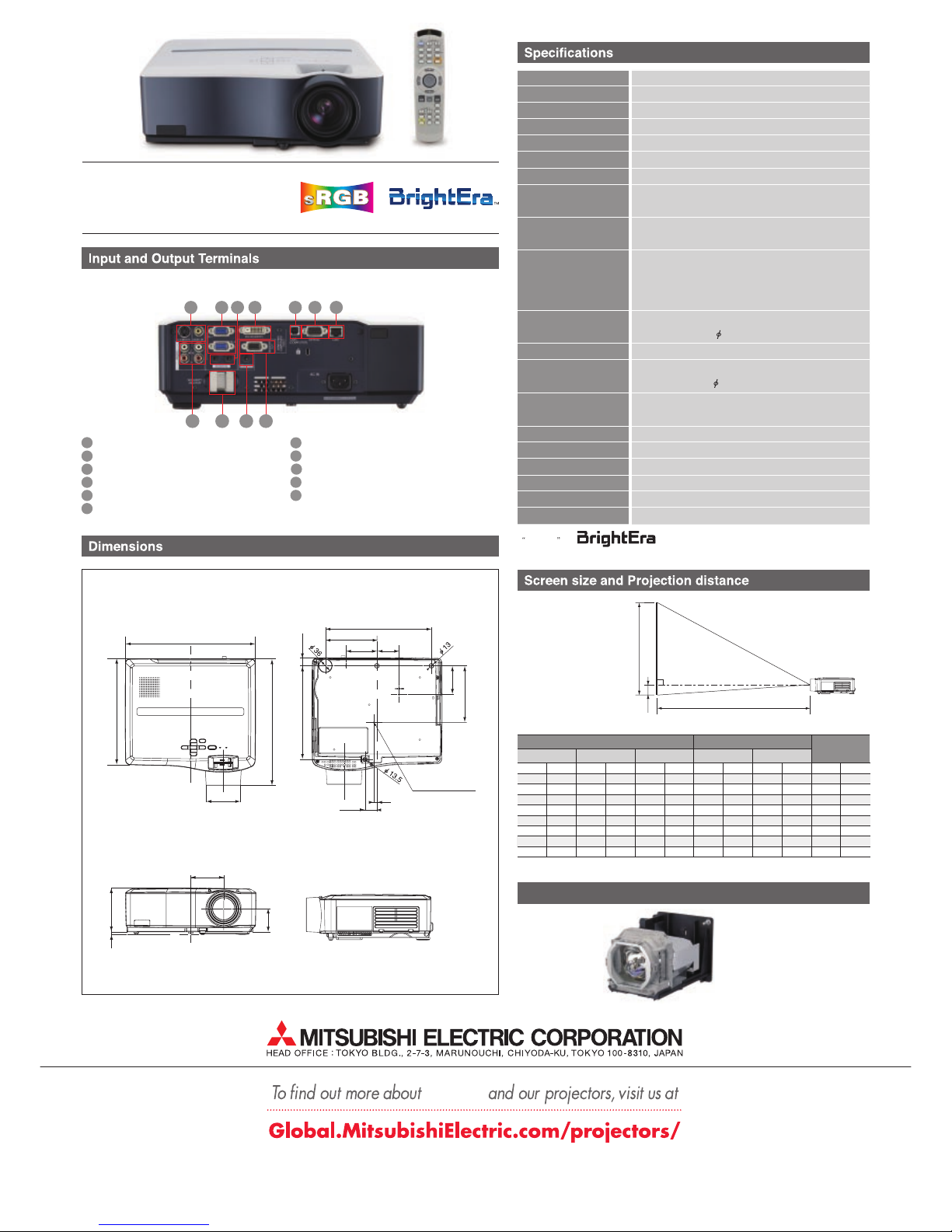

WL639U

PORTABLE WXGA PROJECTOR

WL639U

Height

WL639U

Hd Projection Distance(L)
