Mitsubishi Electric SL4SU Manual de usuario

Upto 5000 hour lamp life ●3 year loan replacement warranty ●Anti-Theft password

Once upon a time...

SL4SU/XL5U

MULTIMEDIA DATA/VIDEO PROJECTORS

Technology has improved dramatically since the old

days of chalk and blackboards. The SL4SU and XL5U

projectors make another technological advance in

providing high performance, numerous features and

reliability all at an affordable price and with low

operating cost.

XL5U/SL4SU2pp A4 7/04 30/7/04 10:35 AM Page 1

SL4SU/XL5U

DIMENSIONS

(UNITS: MM. INCH)

SL4SU/XL5U

PROJECTION DISTANCE

AND SCREEN SIZE

Mitsubishi Electric Europe B.V.

Travellers Lane, Hatfield, Herts AL10 8XB

Tel: 01707 278684 Fax: 01707 278541

www.mitsubishielectric.co.uk/vis

email: projector[email protected]

USB terminal for Mouse

PS/2 mouse serial terminal RS-232C

PC/Component Video output (mini D-sub 15 pin)

PC/Component Video input (mini D-sub 15 pin)

S-Video/Video/Audio input

1 2 3 4 5

INPUT AND OUTPUT TERMINALS

multimedia data/video projectors

Model SL4SU XL5U

Display technology 0.7” Polysilicon panel x 3 0.7” Polysillicon panel x 3

Resolution 800 x 600 (total 1,440,000 pixels), 600 video lines 1024 x 768 (total 2,359,296 pixels), 600 video lines

Brightness 1700 lm 1700 lm

Colour 16,770,000 colours 16,770,000 colours

Zoom / focus Manual control (zoom ratio 1.2:1) Manual control (zoom ratio 1.2:1)

Picture size/Throw ratio 40” ~ 300” (100” = 3.2m) 40” ~ 300” (100” = 3.2m)

Source lamp 180W / 2000hrs (normal mode), 160W / 5000hrs (low mode) 200W / 2000hrs (normal mode), 160W / 5000hrs (low mode)

Computer compatibility VGA®~ XGA®(640 x 480 ~ 1024 x 768) VGA®~ SXGA®(640 x 480 ~ 1280 x 1024)

True: 800 x 600, Sync on green available True: 1024 x 768, Sync on green available

Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) NTSC / NTSC 4.43 / PAL (including PAL-M, N)

SECAM / PAL 60 / Component Video (DVD / HDTV) (480i, 576i, 480p,576p SECAM / PAL 60 / Component Video (DVD / HDTV) (480i, 576i,

720p,1080i), SCART (RGB + 1V sync) 480p,576p,720p,1080i), SCART (RGB + 1V sync)

Input terminals PC: mini D-sub 15 pin x 1, Video: RCA + S-Video x 1, Audio: RCA (L, R) x 1 PC: mini D-sub 15 pin x 1, Video: RCA + S-Video x 1,Audio: RCA (L, R) x 1

Output terminals RGB: mini D-sub 15 pin x 1 RGB: mini D-sub 15 pin x 1

Communication terminals RS-232C x 1 (8pin), mouse terminal for USB RS-232C x 1 (8pin), mouse terminal for USB

Audio speaker 2 W Mono 2 W Mono

Dimensions (W x H x D) 275 x 70 x 261 mm / 10.8” x 2.8” x 10.3”(Excluding all protrusions) 275 x 70 x 261 mm / 10.8” x 2.8” x 10.3” (Excluding all protrusions)

Weight 2.7 kg / 5.9 lbs 2.7 kg / 5.9 lbs

Power supply AC 100 ~ 240 V / ±10%, 50/60 Hz AC 100 ~ 240 V / ±10%, 50/60 Hz

GREAT FEATURES IN A COMPACT BODY

• Upto 5000Hrs life Lamp (low mode)

•Anti-Theft Password

•Short Throw Lens

• sRGB

•Natural Colour Matrix™

REPLACEMENT

LAMP

VLT-XL8LP

REPLACEMENT

LAMP

VLT-XL5LP The SL4SU/XL5U come with a compact card

style remote control as standard. A system

operation remote can be added as an optional

extra. This provides a laser-

pointer, PC mouse control

and it can operate the main

functions of a DVD player,

VCR or almost any other

remote control device.

REMOTE CONTROL

• Line Doubler

• Versatile Input Terminals

• 3-mode Gamma Correction

• User Logo Function

• Digital Expanded Zoom

Standard

Remote

Optional

System

Operation

Remote

Indicates

Ceiling Mount

Holes M4 x 8

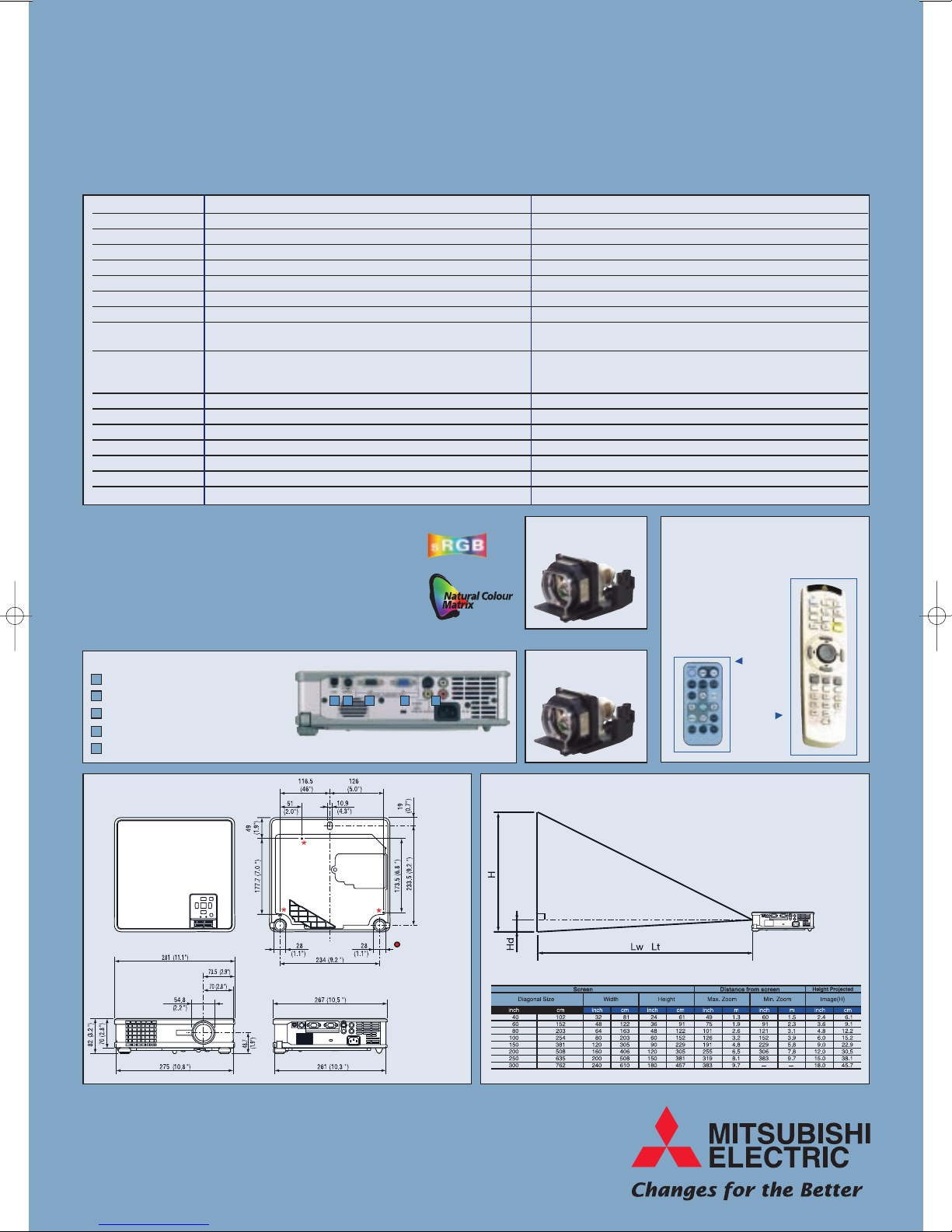

TECHNICAL SPECIFICATIONS

XL5U/SL4SU2pp A4 7/04 30/7/04 10:35 AM Page 2
