MITSUBISHI ELECTRIC

E1070

Installation manual

MA00776C 2008-07 English

Foreword

Mitsubishi Electric, MA00776C

Installation manual for the E1000 series operator panels

Foreword

The E1000 operator panel is developed to satisfy the demands of human-machine

communication. Built-in functions such as displaying and controlling text, dynamic

indication, time channels, alarm and recipe handling are included.

The operator panel work, for the most part, in an object-oriented way, making it easy

to understand and use. The configuration operation of the panel is made in a person-

al computer, using the configuration tool E-Designer. The project is then transferred

and stored in the operator panel.

The operator panel can be connected to many types of automation equipment, such

as PLCs, servos or drives. In this manual the expression “the controller“ is used as a

general term for the connected equipment.

This manual explains how to install the operator panel. Please refer to the reference

manual for further information.

The information in this document is subject to change without notice and is provided as available at the time

of printing. The manufacturer reserves the right to change any information without updating this publication.

The manufacturer assumes no responsibility for any errors that may appear in this document.

Read the entire installation manual prior to installing and using this equipment.

Only qualified personnel may install, operate or repair this equipment. The manufacturer is not responsible

for modified, altered or renovated equipment.

Because the equipment has a wide range of applications, users must acquire the appropriate knowledge to use

the equipment properly in their specific applications.

Persons responsible for the application and the equipment must themselves ensure that each application is in

compliance with all relevant requirements, standards and legislation in respect to configuration and safety.

Only parts and accessories manufactured according to specifications set by The manufacturer may be used.

THE MANUFACTURER SHALL NOT BE LIABLE TO ANYONE FOR ANY DIRECT, INDIRECT,

SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE

INSTALLATION, USE OR REPAIR OF THIS EQUIPMENT, WHETHER ARISING IN TORT,

CONTRACT, OR OTHERWISE. BUYER'S SOLE REMEDY SHALL BE THE REPAIR,

REPLACEMENT, OR REFUND OF PURCHASE PRICE, AND THE CHOICE OF THE APPLICABLE

REMEDY SHALL BE AT THE SOLE DISCRETION OF THE MANUFACTURER.

Table of Contents

Mitsubishi Electric, MA00776C

Table of Contents

1 Safety Precautions................................................................................. 5

1.1 UL and cUL Installation ................................................................... 5

1.2 General ............................................................................................. 6

1.3 During Installation............................................................................ 6

1.4 During Use ....................................................................................... 7

1.5 Service and Maintenance................................................................... 7

1.6 Dismantling and Scrapping............................................................... 7

2 Installation ........................................................................................... 9

2.1 Space Requirements .......................................................................... 9

2.2 Installation Process............................................................................ 9

2.2.1 Mode Switches ................................................................................................ 11

2.2.2 Connections to the Controller......................................................................... 11

2.2.3 Other Connections and Peripherals ................................................................. 11

3 Technical Data ................................................................................... 13

4 Chemical Resistance ........................................................................... 15

4.1 Metal Casing................................................................................... 15

4.2 Touch Screen and Overlay.............................................................. 15

4.2.1 Autotex F157/F207 ......................................................................................... 15

4.2.2 Touch Screen Surface ...................................................................................... 16

4.2.3 Autoflex EB ..................................................................................................... 16

5 Operator Panel Drawings ................................................................... 17

5.1 Communication Ports..................................................................... 17

5.2 E1070 Outline................................................................................ 18

5.3 E1070 Text Strip ............................................................................ 19

6 Additional Installation Tips................................................................ 21

6.1 Grounding the Operator Panel ....................................................... 21

6.2 Ethernet Connection in the Panel ................................................... 22

6.3 To Achieve Better EMC Protection ................................................ 23

6.4 Ambient Temperature..................................................................... 24

6.5 Safety .............................................................................................. 25

6.6 Galvanic Isolation ........................................................................... 26

6.7 Cable and Bus Termination RS485................................................. 27

Table of Contents

Mitsubishi Electric, MA00776C

Safety Precautions

Mitsubishi Electric, MA00776C 5

1 Safety Precautions

Both the installer and the owner and/or operator of the operator panel must read and

understand this installation manual.

1.1 UL and cUL Installation

– This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D

OR non-hazardous locations only. [Combinations of equipment in your system

are subject to investigation by the local Authority Having Jurisdiction at the time

of installation.]

– Maximum ambient temperature 40 °C when mounted horizontal or 50 °C when

mounted vertical.

– WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless

power has been removed or the area is known to be non-hazardous.

– For Canada also AVERTISSEMENT – RISQUE D’EXPLOSION – AVANT DE

DECONNECTER L’EQUIPEMENT, COUPER LE COURANT OU

S’ASSURER QUE L‘EMPLACEMENT EST DESIGNE NON DANGEREUX.

– WARNING – EXPLOSION HAZARD - Substitution of components may

impair suitability for Class I, Division 2.

– For Canada also AVERTISSEMENT – RISQUE D’EXPLOSION – LA

SUBSTITUTION DE COMPOSANTS PEUT RENDRE CE MATERIEL

INACCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I,

DIVISION 2.

– WARNING – EXPLOSION HAZARD – only UL and cUL approved expansion

units are allowed to be connected to the port designated “EXPANSION”. At the

moment there are no such units evaluated or allowed.

– WARNING – EXPLOSION HAZARD - Do not replace expansion unit unless

power has been switched off or the area is known to be non-hazardous.

– This product contains battery, this must only be changed in an area known to be

non-hazardous. Permitted types are shown in the section Technical Data.

– For use on a flat surface of a type 4X enclosure indoor use only.

– To make wiring connections to the power supply connector, use an AWG 28-12

cable and a tightening torque of min. 0.5 Nm.

Safety Precautions

6Mitsubishi Electric, MA00776C

1.2 General

– Read the safety precautions carefully.

– Check the delivery for transportation damage. If damage is found, notify the

supplier as soon as possible.

– Do not use the operator panel in an environment with high explosive hazards.

– The supplier is not responsible for modified, altered or reconstructed equipment.

– Use only parts and accessories manufactured according to specifications of the

supplier.

– Read the installation and operating instructions carefully before installing, using

or repairing the operator panel.

– Never allow fluids, metal filings or wiring debris to enter any openings in the

operator panel. This may cause fire or electrical shock.

– Only qualified personnel may operate the operator panel.

– Storing the operator panel where the temperature is lower/higher than

recommended in this manual can cause the LCD display liquid to congeal/become

isotopic.

– The LCD display liquid contains a powerful irritant. In case of skin contact, wash

immediately with plenty of water. In case of eye contact, hold the eye open, flush

with plenty of water and get medical attention.

– The figures in this manual serves an illustrative purpose. Because of the many

variables associated with any particular installation, the supplier cannot assume

responsibility for actual use based on the figures.

– The supplier neither guarantees that the operator panel is suitable for your

particular application, nor assumes responsibility for your product design,

installation or operation.

1.3 During Installation

– The operator panel is designed for stationary installation on a plane surface, where

the following conditions are fulfilled:

• no high explosive risks

• no strong magnetic fields

• no direct sunlight

• no large, sudden temperature changes

– Install the product according to the accompanying installation instructions.

– Ground the product according to the accompanying installation instructions.

– Only qualified personnel may install the operator panel.

– Separate the high voltage, signal and supply cables.

– Make sure that the voltage and polarity of the power source is correct before

connecting the product to the power outlet.

– Peripheral equipment must be appropriate for the application and location.

Safety Precautions

Mitsubishi Electric, MA00776C 7

1.4 During Use

– Keep the operator panel clean.

– Emergency stop and other safety functions may not be controlled from the

operator panel.

– Do not use too much force or sharp objects when touching the keys, touch screen

etc.

1.5 Service and Maintenance

– Only qualified personnel should carry out repairs.

– The agreed warranty applies.

– Before carrying out any cleaning or maintenance operations, disconnect the

equipment from the electrical supply.

– Clean the display and surrounding front cover with a soft cloth and mild

detergent.

– Replacing the battery incorrectly may result in explosion. Only use batteries

recommended by the supplier.

1.6 Dismantling and Scrapping

– The operator panel or parts thereof shall be recycled according to local regulations.

– The following components contain substances that might be hazardous to health

and the environment: lithium battery, electrolytic capacitor and display.

Safety Precautions

8Mitsubishi Electric, MA00776C

Installation

Mitsubishi Electric, MA00776C 9

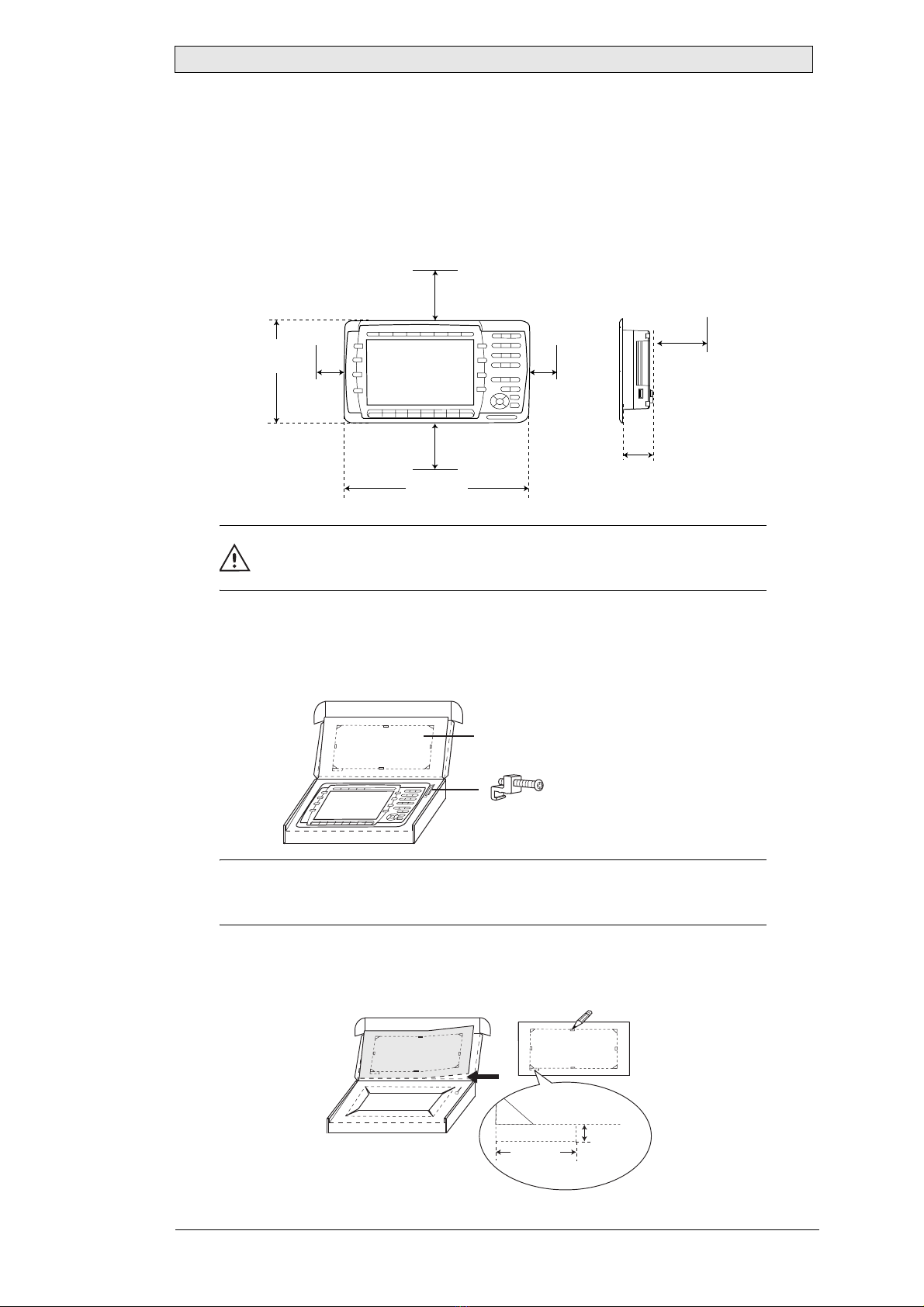

2 Installation

2.1 Space Requirements

– Installation plate thickness: 1.5 - 9.0 mm (0.06 - 0.35 inch)

– Space requirements when installing the operator panel:

Caution

The openings on the enclosure are for air convection. Do not cover these

openings.

2.2 Installation Process

1. Unpack and check the delivery. If damage is found, notify the supplier.

Note:

Place the operator panel on a stable surface during installation.

Dropping it or letting it fall may cause damage.

2. Place the panel cut out where the operator panel is to be situated, draw along the

outer sides of the holes and cut according to the markings. If access to the text

strip is needed, add extra space in the lower left corner.

50 mm

100 mm

285 mm

177 mm

56 mm

100 mm

(6.97 inch)

(2.0 inch)

(4.0 inch)

(2.0 inch)

(4.0 inch)

(2.20 inch)

(11.22 inch)

Panel cut out 245.5 x 138.5 mm

(9.67 x 5.45 inch)

5.0 mm

18.0 mm

For text strip

(0.20 inch)

(0.71 inch)

Installation

10 Mitsubishi Electric, MA00776C

3. Secure the operator panel in position, using all the fastening holes and the

provided brackets and screws:

4. Connect the cables in the specified order.

Use an M5 screw and a grounding conductor (as short as possible)

with a cross-section of minimum 2.5 mm2.

5. Carefully remove the laminated film over the operator panel display, to avoid

static electricity that could damage the panel.

0.5 - 1.0 Nm

ACaution

Ensure that the operator panel and the controller system have the

same electrical grounding (reference voltage level), otherwise errors

in communication may occur.

Caution

- Use only shielded communication cables.

- Separate high voltage cables from signal and supply cables.

Caution

- The operator panel must be brought to ambient temperature

before it is started up. If condensation forms, ensure that the

operator panel is dry before connecting it to the power outlet.

- Ensure that the voltage and polarity of the power source is correct.

24V DC

RS422/RS485 24V DC

CF CARD

RS232

Controller

Power

Ethernet

Otros manuales para E1070

Tabla de contenidos

Otros manuales de Panel de control de Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric E1000 series Guía de instalación y uso

Mitsubishi Electric

Mitsubishi Electric GOT 1000 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric E1032 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric GOT SIMPLE GS2110-WTBD Manual de usuario

Mitsubishi Electric

Mitsubishi Electric GT1155-QTBD Manual de usuario

Mitsubishi Electric

Mitsubishi Electric E1061 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PANEL_RS2 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric E1151 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAC-YT34STA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric GOT 900 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FR-PA07 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Got 1000 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric E900T Manual de usuario

Mitsubishi Electric

Mitsubishi Electric FR-LU08 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric GT1020 Series Guía del usuario

Mitsubishi Electric

Mitsubishi Electric E1041 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric GT10 Instrucciones de funcionamiento y mantenimiento

Mitsubishi Electric

Mitsubishi Electric E1022 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric GOT Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric E1060 Manual de usuario

Manuales populares de Panel de control de otras marcas

RDZ

RDZ PC-HRX Manual de usuario

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manual técnico

Efka

Efka Variocontrol V810 Manual de usuario

Cebora

Cebora 208-10 Manual de usuario

AMX

AMX AutoPatch CP-15 Manual de usuario

Satel

Satel CA-6 KLED-S Manual de usuario

Evolution

Evolution IQ plus 800 Manual de usuario

Fagor

Fagor 8040 TCO CNC Manual de usuario

Trane

Trane ComfortLink II XL950 Control Manual de usuario

AKO

AKO PROCool AKO-17635-2 Manual de usuario

ABB

ABB 6136/30M-101 Manual de usuario

Telikou

Telikou BK-603 Belt Pack Manual de usuario

Mapei

Mapei Mapeheat Thermo Touch Manual de usuario

Bosch

Bosch D9412GV4 Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manual de usuario

Sminn

Sminn BOX L VF1L EI Manual de usuario

Balboa

Balboa TP600 Manual de usuario

Nice

Nice HSCU1 Especificaciones técnicas
