SERVICE MANUAL

CONTENTS

1. TECHNICAL CHANGES ···································3

2. PART NAMES AND FUNCTIONS ·····················4

3. SPECIFICATION ················································5

4. NOISE CRITERIA CURVES ····························13

5. OUTLINES AND DIMENSIONS ······················16

6. WIRING DIAGRAM ··········································20

7. REFRIGERANT SYSTEM DIAGRAM ·············27

8. PERFORMANCE CURVES ·····························34

9. ACTUATOR CONTROL ···································62

10. SERVICE FUNCTIONS ····································63

11. TROUBLESHOOTING ·····································67

12. DISASSEMBLY INSTRUCTIONS ····················97

INDOOR UNITS COMBINATION SHEETS

Models

No. OBH626

REVISED EDITION-B

HFC

utilized

R410A

SPLIT-TYPE AIR CONDITIONERS

OUTDOOR UNIT

Indoor unit service manual

MSZ-EF•VE Series (OBH589)

MSZ-SF•VA Series (OBH555)

MSZ-SF•VE Series (OBH600)

MSZ-FH•VE Series (OBH623)

MFZ-KA•VA Series (OB409)

MLZ-KA•VA Series (OBH483)

SLZ-KA•VA Series (OC320)

SEZ-KD•VA Series (HWE07110)

PLA-RP•BA Series (OCH412)

PCA-RP•KA Series (OCH454)

PEAD-RP•JA Series (HWE08130)

NOTE:

RoHS compliant products have <G> mark

on the spec name plate.

PARTS CATALOG (OBB626)

MXZ-2D33VA - E1

MXZ-2D40VA - E1

MXZ-2D53VA - E1

MXZ-2D53VAH - E1

MXZ-3D54VA - E1

MXZ-3D68VA - E1

MXZ-4D72VA - E1

MXZ-4D83VA - E1

MXZ-5D102VA - E1

MXZ-2D33VA

MXZ-2D40VA

MXZ-2D53VA MXZ-2D53VAH

Please void OBH626 REVISED EDITION-A.

Revision B:

•

INDOOR UNITS COMBINATION SHEETS for

MXZ-3D54VA, MXZ-3D68VA, MXZ-4D72VA,

MXZ-4D83VA and MXZ-5D102VA have been added.

•

11-4. TROUBLESHOOTING CHECK TABLE (MXZ-

2D) has been modified.

Prepare the proper tools.

Prepare the proper protectors.

Provide adequate ventilation.

After stopping the operation of the air conditioner, turn off the power-supply breaker and remove the power plug.

Discharge the capacitor before the work involving the electric parts.

Do not perform the work involving the electric parts with wet hands.

Do not pour water into the electric parts.

Do not touch the refrigerant.

Do not touch the hot or cold areas in the refrigeration cycle.

When the repair or the inspection of the circuit needs to be done without turning off the power, exercise great caution not to

touch the live parts.

Use the specif ed refrigerant only

Never use any refrigerant other than that specified.

Doing so may cause a burst, an explosion, or fire when the unit is being used, serviced, or disposed of.

Correct refrigerant is specified in the manuals and on the spec labels provided with our products.

We will not be held responsible for mechanical failure, system malfunction, unit breakdown or accidents caused by

failure to follow the instructions.

Revision A:

•

MXZ-3D54VA-

, MXZ-3D68VA-

, MXZ-4D72VA-

, MXZ-4D83VA-

and MXZ-5D102VA-

have been added.

Revision B:

•

INDOOR UNITS COMBINATION SHEETS for MXZ-3D54VA, MXZ-3D68VA, MXZ-4D72VA, MXZ-4D83VA and MXZ-5D102VA

have been added.

•

11-4. TROUBLESHOOTING CHECK TABLE (MXZ-2D) has been modified.

OBH626B

TECHNICAL CHANGES

MXZ-2C30VA - E1 MXZ-2D33VA - E1

1. Grill has been changed.

2. Ice guard has been added.

3. Electrical parts have been changed.

4. Fan motor has been changed.

5. Indoor units combinations have been added.

6. Compressor has been changed. (KNB073FGDHC KNB073FFDHC)

MXZ-2C40VA - E1 MXZ-2D40VA - E1

MXZ-2C52VA - E1 MXZ-2D53VA - E1

1. Grill has been changed.

2. Ice guard has been added.

3. Electrical parts have been changed.

4. Fan motor has been changed.

5. Indoor units combinations have been added.

MXZ-2C52VA - E1 MXZ-2D53VAH - E1

1. Grill has been changed.

2. Ice guard has been added.

3. Electrical parts have been changed.

4. Fan motor has been changed.

5. Indoor units combinations have been added.

6. Base heater has been added.

7. Drain socket has been removed.

MXZ-3C54VA - E1 MXZ-3D54VA - E1

MXZ-3C68VA - E1 MXZ-3D68VA - E1

MXZ-4C71VA - E1 MXZ-4D72VA - E1

1. Grill has been changed.

2. Ice guard has been added.

3. Power board has been changed.

4. Electrical control P.C. board has been changed.

5. Noise filter P.C. board has been changed.

6. Fan motor has been changed.

7. Indoor units combinations have been added (MSZ-FH Series).

MXZ-4C80VA2 - E1 MXZ-4D83VA - E1

MXZ-5C100VA2 - E1 MXZ-5D102VA - E1

1. Indoor units combinations have been added (MSZ-FH Series).

OBH626B

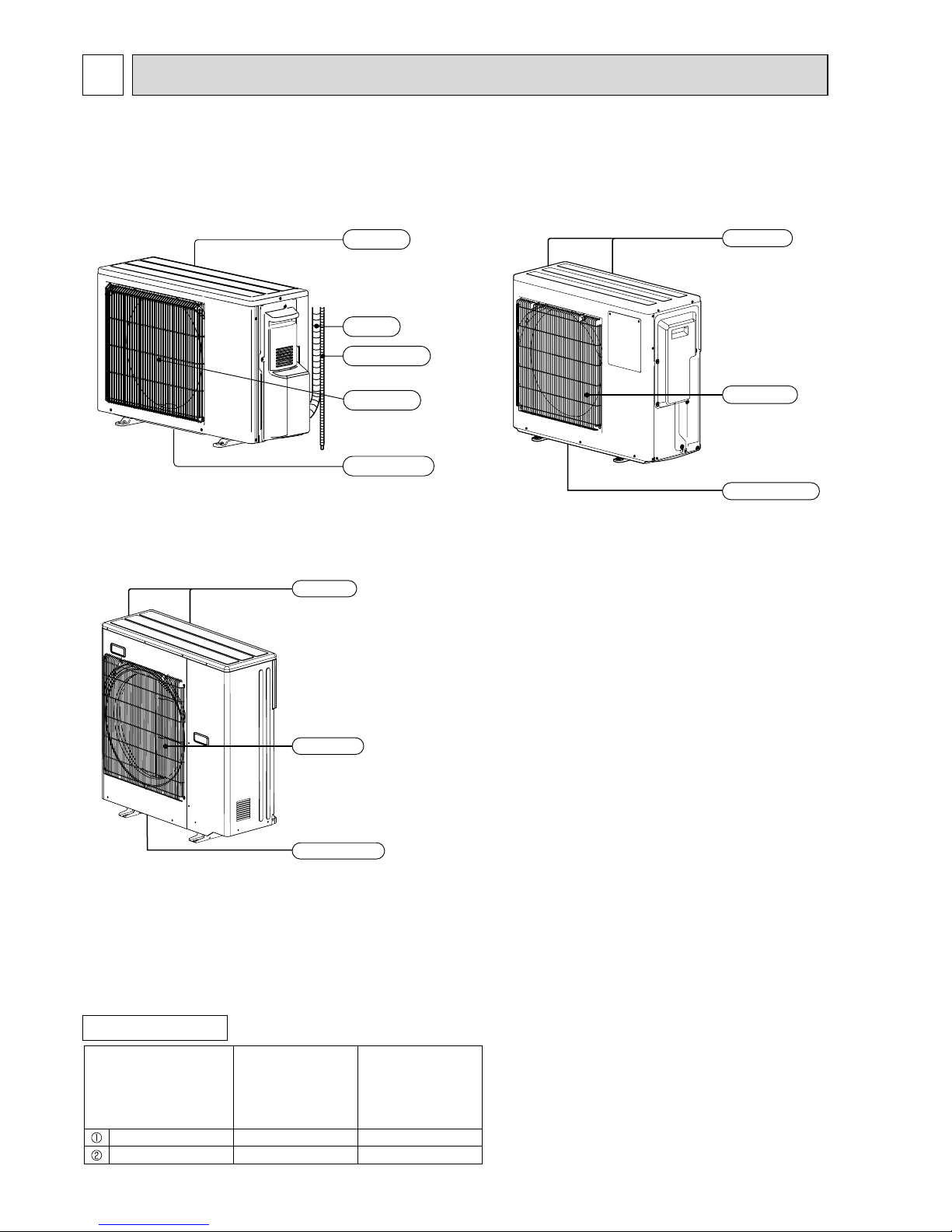

PART NAMES AND FUNCTIONS

ACCESSORIES

MXZ-2D33VA

MXZ-2D40VA

MXZ-2D53VA

MXZ-2D53VAH

Air inlet

Air outlet

Drain outlet

Piping

Drain hose

(Back and side)

Model

MXZ-2D33VA

MXZ-2D40VA

MXZ-2D53VA

MXZ-4D83VA

MXZ-5D102VA

MXZ-3D54VA

MXZ-3D68VA

MXZ-4D72VA

Drain socket 1 1

Drain cap 2

Air outlet

Drain outlet

Air inlet

(Back and side)

MXZ-3D54VA

MXZ-3D68VA

MXZ-4D72VA

MXZ-4D83VA

MXZ-5D102VA

Air outlet

Drain outlet

Air inlet

(Back and side)

OBH626B

SPECIFICATION

Outdoor model MXZ-2D33VA

Outdoor unit power supply Single phase

230 V, 50 Hz

System

Indoor units number 1 to 2

Piping total length m Max. 20

Connecting pipe length m Max. 15

Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Function Cooling Heating

Capacity Rated frequency (Min.-Max.) 2 kW 3.3 (1.1 - 3.8) 4.0 (1.0 - 4.1)

Breaker capacity A 15

Electrical

data

Power input (Total) 1, 2 W 900 960

Running current (Total) 1, 2 A 4.3 4.6

Power factor (Total) 1, 2% 90

Starting current (Total) 1, 2 A 4.6

Coeff cient of performance (C.O.P) (Total) 1, 2 3.67 4.17

Compressor

Model KNB073FFDHC

Output W 800

Current 1, 2 A 4.0 4.2

Refrigeration oil (Model) L 0.32 (NEO22)

Fan

motor

Model RC0J50-FA

Current 1, 2 A 0.35

Dimensions W x H x D mm 800 x 550 x 285

Weight kg 32

Special

remarks

Air f ow (Rated) m3 /h 1,974 2,022

Sound level (Rated) dB(A) 49 50

Fan speed (Rated) rpm 860 880

Refrigerant f lling capacity (R410A) kg 1.15

1 Measured under rated operating frequency.

2 When connected with below indoor units.

MSZ-SF15VA + MSZ-EF18VE

NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)

COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C

OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C

HEATING INDOOR Dry-bulb temperature 20.0 °C

OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626B

Outdoor model MXZ-2D40VA

Outdoor unit power supply Single phase

230 V, 50 Hz

System

Indoor units number 1 to 2

Piping total length m Max. 30

Connecting pipe length m Max. 20

Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Function Cooling Heating

Capacity Rated frequency (Min.-Max.) 2 kW 4.0 (1.1 - 4.3) 4.5 (1.0 - 4.8)

Breaker capacity A 15

Electrical

data

Power input (Total) 1, 2 W 970

Running current (Total) 1, 2 A 4.7

Power factor (Total) 1, 2% 90

Starting current (Total) 1, 2 A 4.7

Coeff cient of performance (C.O.P) (Total) 1, 2 4.12 4.64

Compressor

Model KNB092FFDHC

Output W 1,100

Current 1, 2 A 4.4 4.2

Refrigeration oil (Model) L 0.32 (NEO22)

Fan

motor

Model RC0J50-FA

Current 1, 2 A 0.35

Dimensions W x H x D mm 800 x 550 x 285

Weight kg 34

Special

remarks

Air f ow (Rated) m3 /h 1,752 1,662

Sound level (Rated) dB(A) 49 50

Fan speed (Rated) rpm 840 800

Refrigerant f lling capacity (R410A) kg 1.3

1 Measured under rated operating frequency.

2 When connected with below indoor units.

MSZ-EF18VE + MSZ-EF22VE

NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)

COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C

OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C

HEATING INDOOR Dry-bulb temperature 20.0 °C

OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626B

Outdoor model MXZ-2D53VA MXZ-2D53VAH

Outdoor unit power supply Single phase

230 V, 50 Hz

System

Indoor units number 1 to 2

Piping total length m Max. 30

Connecting pipe length m Max. 20

Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Function Cooling Heating

Capacity Rated frequency (Min.-Max.) 2 kW 5.3 (1.1 - 5.6) 6.4 (1.0 - 7.0)

Breaker capacity A 15

Electrical

data

Power input (Total) 1, 2 W 1,540 1,700

Running current (Total) 1, 2 A 6.9 7.6

Power factor (Total) 1, 2% 97

Starting current (Total) 1, 2 A 7.6

Coeff cient of performance (C.O.P) (Total) 1, 2 3.44 3.76

Compressor

Model SNB130FGBHT

Output W 1,400

Current 1, 2 A 6.6 7.2

Refrigeration oil (Model) L 0.45 (NEO22)

Fan

motor

Model RC0J50-FA

Current 1, 2 A 0.35

Dimensions W x H x D mm 800 x 550 x 285

Weight kg MXZ-2D53VA: 37 MXZ-2D53VAH: 38

Special

remarks

Air f ow (Rated) m3 /h 1,974 1,998

Sound level (Rated) dB(A) 50 53

Fan speed (Rated) rpm 900 910

Refrigerant f lling capacity (R410A) kg 1.3

1 Measured under rated operating frequency.

2 When connected with below indoor units.

MSZ-EF18VE + MSZ-EF35VE

NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)

COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C

OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C

HEATING INDOOR Dry-bulb temperature 20.0 °C

OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626B

Outdoor model MXZ-3D54VA

Outdoor unit power supply Single phase

230 V, 50 Hz

System

Indoor units number 1 to 3

Piping total length m Max. 50

Connecting pipe length m Max. 25

Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Function Cooling Heating

Capacity Rated frequency (Min.-Max.) 2 kW 5.4 (2.9 - 6.8) 7.0 (2.6 - 9.0)

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2 W 1,390 1,590

Running current (Total) 1, 2 A 6.1 7.0

Power factor (Total) 1, 2% 99

Starting current (Total) 1, 2 A 7.0

Coeff cient of performance (C.O.P) (Total) 1, 2 3.88 4.40

Compressor

Model SNB130FGBH1T

Output W 1,400

Current 1, 2 A 5.72 6.62

Refrigeration oil (Model) L 0.7 (NEO22)

Fan

motor

Model SIC-71FW-F764-1

Current 1, 2 A 0.2

Dimensions W x H x D mm 840 x 710 x 330

Weight kg 57

Special

remarks

Air f ow (Rated) m3 /h 2,334 2,376

Sound level (Rated) dB(A) 50 53

Fan speed (Rated) rpm 650 660

Refrigerant f lling capacity (R410A) kg 2.7

1 Measured under rated operating frequency.

2 When connected with below indoor units.

MSZ-EF18VE + MSZ-EF18VE + MSZ-EF18VE

NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)

COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C

OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C

HEATING INDOOR Dry-bulb temperature 20.0 °C

OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626B

Outdoor model MXZ-3D68VA

Outdoor unit power supply Single phase

230 V, 50 Hz

System

Indoor units number 1 to 3

Piping total length m Max. 60

Connecting pipe length m Max. 25

Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Function Cooling Heating

Capacity Rated frequency (Min.-Max.) 2 kW 6.8 (2.9 - 8.4) 8.6 (2.6 - 10.6)

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2 W 2,190 2,380

Running current (Total) 1, 2 A 9.6 10.5

Power factor (Total) 1, 2% 99

Starting current (Total) 1, 2 A 10.5

Coeff cient of performance (C.O.P) (Total) 1, 2 3.11 3.61

Compressor

Model SNB172FEGH1T

Output W 1,800

Current 1, 2 A 9.22 10.12

Refrigeration oil (Model) L 0.7 (NEO22)

Fan

motor

Model SIC-71FW-F764-1

Current 1, 2 A 0.2

Dimensions W x H x D mm 840 x 710 x 330

Weight kg 57

Special

remarks

Air f ow (Rated) m3 /h 2,334 2,376

Sound level (Rated) dB(A) 50 53

Fan speed (Rated) rpm 650 660

Refrigerant f lling capacity (R410A) kg 2.7

1 Measured under rated operating frequency.

2 When connected with below indoor units.

MSZ-EF18VE + MSZ-EF25VE + MSZ-EF25VE

NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)

COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C

OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C

HEATING INDOOR Dry-bulb temperature 20.0 °C

OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626B

Outdoor model MXZ-4D72VA

Outdoor unit power supply Single phase

230 V, 50 Hz

System

Indoor units number 1 to 4

Piping total length m Max. 60

Connecting pipe length m Max. 25

Height difference (Indoor ~ Outdoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Height difference (Indoor ~ Indoor) m Refer to 7 REFRIGERANT SYSTEM DIAGRAM.

Function Cooling Heating

Capacity Rated frequency (Min.-Max.) 2 kW 7.2 (3.7 - 8.8) 8.6 (3.4 - 10.7)

Breaker capacity A 25

Electrical

data

Power input (Total) 1, 2 W 2,250 2,280

Running current (Total) 1, 2 A 9.9 10.0

Power factor (Total) 1, 2% 99

Starting current (Total) 1, 2 A 10.0

Coeff cient of performance (C.O.P) (Total) 1, 2 3.20 3.77

Compressor

Model SNB172FEGH1T

Output W 2,000

Current 1, 2 A 9.46 9.56

Refrigeration oil (Model) L 0.7 (NEO22)

Fan

motor

Model SIC-71FW-F764-1

Current 1, 2 A 0.2

Dimensions W x H x D mm 840 x 710 x 330

Weight kg 58

Special

remarks

Air f ow (Rated) m3 /h 2,334 2,376

Sound level (Rated) dB(A) 50 53

Fan speed (Rated) rpm 650 660

Refrigerant f lling capacity (R410A) kg 2.7

1 Measured under rated operating frequency.

2 When connected with below indoor units.

MSZ-EF18VE + MSZ-EF18VE + MSZ-EF18VE + MSZ-EF18VE

NOTE: Test conditions are based on ISO 5151. (Refrigerant piping length (one way): 5 m)

COOLING INDOOR Dry-bulb temperature 27.0 °C Wet-bulb temperature 19.0 °C

OUTDOOR Dry-bulb temperature 35.0 °C Wet-bulb temperature 24.0 °C

HEATING INDOOR Dry-bulb temperature 20.0 °C

OUTDOOR Dry-bulb temperature 7.0 °C Wet-bulb temperature 6.0 °C

OBH626B

Otros manuales para MXZ-2D33VA-E1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric PLFY Series Manual de funcionamiento

Mitsubishi Electric

Mitsubishi Electric SUZ-KA60VA3 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSZ-WN25VA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr. Slim MS09TW Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MUZ-EF25VG-E1 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric City Multi PUHY-RP-YJM-B Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MXZ-2D33VA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSZ-GL25VGD Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr. Slim MSZ-GE06NA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PUHY-P108 Cómo utilizar

Mitsubishi Electric

Mitsubishi Electric PEA-RP-EA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSC-A07WV Manual de usuario

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PEFY-P-NMLU-E Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MCFH-24NV Manual de usuario

Mitsubishi Electric

Mitsubishi Electric TRANE NTXWST06A112A Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MUZ-GE25VAH Manual de usuario

Mitsubishi Electric

Mitsubishi Electric American Standard NAXWST30A112A Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PKFY-P63VFM-E Manual de funcionamiento

Mitsubishi Electric

Mitsubishi Electric Trane NTXAMT12A112AA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MUZ-FH09NA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSH-18RV Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr.SLIM PLA-A-BA4 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PLA-RP35BA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MXZ-SM36NAM Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
