SERVICE MANUAL

CONTENTS

1. TECHNICAL CHANGES ····································2

2. PART NAMES AND FUNCTIONS······················7

3. INDOOR/OUTDOOR

CORRESPONDENCE TABLE ···························8

4. INDOOR UNITS COMBINATION·····················10

5. SPECIFICATION···············································24

6. NOISE CRITERIA CURVES·····························27

7. OUTLINES AND DIMENSIONS ·······················28

8. WIRING DIAGRAM ··········································31

9. REFRIGERANT SYSTEM DIAGRAM··············35

10. PERFORMANCE CURVES······························39

11. ACTUATOR CONTROL····································50

12. SERVICE FUNCTIONS·····································50

13. TROUBLESHOOTING······································53

14. DISASSEMBLY INSTRUCTIONS·····················77

15. PARTS LIST······················································86

16. OPTIONAL PARTS ······················BACK COVER

Inverter-controlled multi system type

Models

MXZ-2A40VA -

MXZ-2A52VA -

MXZ-3A54VA -

MXZ-4A71VA -

MXZ-4A80VA - E1

No. OB377

REVISED EDITION-A

HFC

utilized

R410A

SPLIT-TYPE, HEAT PUMPAIR CONDITIONERS

MXZ-4A80VA

NOTE:

•This service manual describes technical data of outdoor units.

Indoor unit service manual

MSZ-FA•VA Series (OB371)

MSZ-GA•VA Series

(OB378,OB388)

MSZ-CB•VA Series (OB441)

Please void OB377

OUTDOOR UNIT

Revision : A

• MXZ-3A54/4A71VA-has been added.

• MXZ-2A40/2A52VA-has been added.

OB377--1.qxp 05.12.14 3:17 PM Page 1

TECHNICAL CHANGES

MXZ-A26WV - ➔MXZ-3A54VA -

1. Indication of capacity has been changed. (BTU➔kW)

2. Capacity specification has been changed. (Cooling capacity 7.1kW➔5.4kW)

3. Dimensions of unit has been changed. (W900oH900oD320➔W840oH710oD330)

4. Combinations of connectable indoor units have been changed.

5. Capacity class of connectable indoor units have been changed.

6. Communication system has been changed.

7. Power supply way has been changed(change to supply to outdoor unit).

8. Compressor has been changed. (TNB220FMCH➔SNB130FLDH1)

9. High-pressure switch has been removed.

10.Outdoor fan motor has been changed. (PM8H60-UA➔RC0J60-AA)

11.Evaporation temperature thermistor has been removed.

12.Ambient temperature thermistor has been added.

13.New dip switch has been added to the controller board for "Locking the operation "mode

and "Lowering the operating noise "mode.

14.A Quick Clean Kit has been added.

MXZ-A32WV - ➔MXZ-4A71VA -

1. Indication of capacity has been changed. (BTU➔kW)

2. Capacity specification has been changed. (Cooling capacity 8.0kW➔7.1kW)

3. Dimensions of unit has been changed. (W900oH900oD320➔W840oH710oD330)

4. Combinations of connectable indoor units have been changed.

5. Capacity class of connectable indoor units have been changed.

6. Communication system has been changed.

7. Power supply way has been changed(change to supply to outdoor unit).

8. Compressor has been changed. (TNB220FMCH➔SNB130FLDH1)

9. High-pressure switch has been removed.

10. Outdoor fan motor has been changed. (PM8H60-U➔RC0J60-AA)

11. Evaporation temperature thermistor has been removed.

12. Ambient temperature thermistor has been added.

13. New dip switch has been added to the controller board for "Locking the operation "mode

and "Lowering the operating noise "mode.

14. A Quick Clean Kit has been added.

MXZ-A32WV - ➔MXZ-4A80VA -

1. Indication of capacity has been changed. (BTU➔kW)

2. Communication system has been changed.

3. Power supply way has been changed(change to supply to outdoor unit).

4. Evaporation temperature thermistor has been removed.

5. Ambient temperature thermistor has been added.

6. New dip switch has been added to the controller board for "Locking the operation "mode

and "Lowering the operating noise "mode.

7. A Quick Clean Kit has been added.

E1E1

• MXZ-3A54/4A71VA- has been added.

Quick clean kit has been removed.(Refer to 2)

• MXZ-2A40/52VA- has been added.

Revision : A

OB377--1.qxp 05.12.14 3:17 PM Page 2

MXZ-A14WV - ➔MXZ-2A40VA -

1. Indication of capacity has been changed. (BTU➔kW)

2. Dimensions of unit has been changed. (W840oH640oD330➔W800oH550oD285)

3. Communication system has been changed.

4. Power supply way has been changed(change to supply to outdoor unit).

5. Compressor has been changed. (SNV092FJYH➔SNB130FKCH)

6. Outdoor fan motor has been changed. (RA6V49➔RC0J50-CF)

7. Evaporation temperature thermistor has been removed.

8. Pas pipe temperature thermistor has been removed.

9. Ambient temperature thermistor has been added.

MXZ-A18WV - ➔MXZ-2A52VA -

1. Indication of capacity has been changed. (BTU➔kW)

2. Cooling capacity specification has been changed. (5.4kW➔5.2kW)

3. Heating capacity specification has been changed. (6.6kW➔6.4kW)

4. Dimensions of unit has been changed. (W840oH640oD330➔W800oH550oD285)

5. Communication system has been changed.

6. Power supply way has been changed(change to supply to outdoor unit).

7. Compressor has been changed. (SNV092FJYH➔SNB130FKCH)

8. Outdoor fan motor has been changed. (RA6V49➔RC0J50-CF)

9. Evaporation temperature thermistor has been removed.

10.Pas pipe temperature thermistor has been removed.

11. Ambient temperature thermistor has been added.

MXZ-3A54VA - ➔MXZ-3A54VA -

MXZ-4A71VA - ➔MXZ-4A71VA -

1. Quick clean kit has been removed.

E2E1

E1E2

OB377--1.qxp 05.12.14 3:17 PM Page 3

Refrigeration

oil

Refrigerant

New refrigerant

R410A

HFC-32: HFC-125 (50%:50%)

Pseudo-azeotropic refrigerant

Not included

A1/A1

72.6

-51.4

1.557

Non combustible

1730

From liquid phase in cylinder

Possible

Incompatible oil

Non

Previous refrigerant

R22

R22 (100%)

Single refrigerant

Included

86.5

-40.8

0.94

44.4

Non combustible

0.055

1700

Gas phase

Possible

Compatible oil

Light yellow

Non

Refrigerant

Composition (Ratio)

Refrigerant handling

Chlorine

Safety group (ASHRAE)

Molecular weight

Boiling point (:)

Steam pressure [25:](Mpa)

Saturated steam density [25:](Kg/K)

Combustibility

ODP w1

GWP w2

Refrigerant charge method

Additional charge on leakage

Kind

Color

Smell

w1:Ozone Destruction Parameter : based on CFC-11

w2 :Global Warmth Parameter : based on CO2

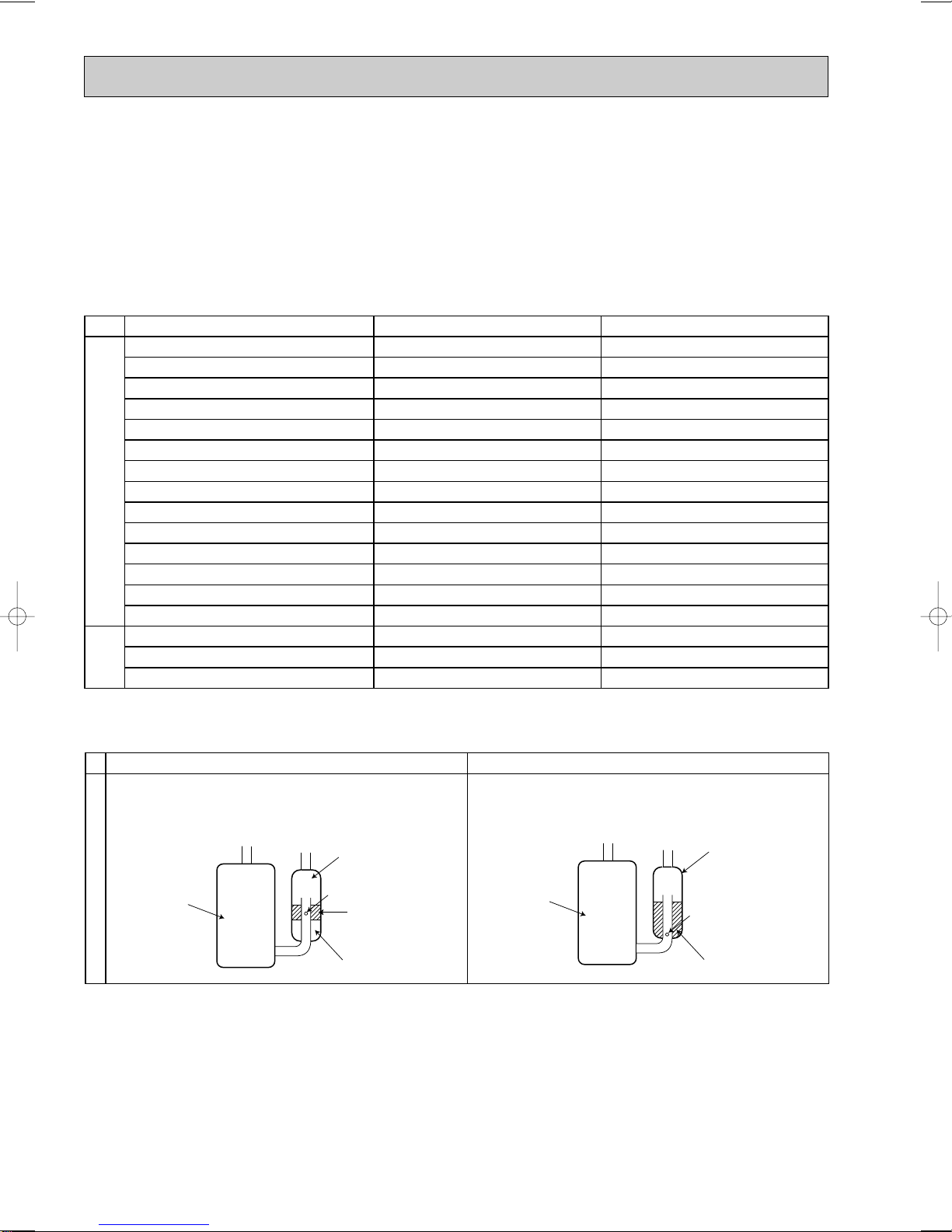

INFORMATION FOR THE AIR CONDITIONER WITH R410A REFRIGERANT

• This room air conditioner adopts HFC refrigerant (R410A) which never destroys the ozone layer.

•Pay particular attention to the following points, though the basic installation procedure is same as that for R22 air conditioners.

1As R410A has working pressure approximate 1.6 times as high as that of R22, some special tools and piping parts/

materials are required. Refer to the table below.

2Take sufficient care not to allow water and other contaminations to enter the R410A refrigerant during storage and

installation, since it is more susceptible to contaminations than R22.

3For refrigerant piping, use clean, pressure-proof parts/materials specifically designed for R410A. (Refer to 2. Refrigerant

piping.)

4Composition change may occur in R410A since it is a mixed refrigerant. When charging, charge liquid refrigerant to prevent

composition change.

NOTE : The unit of pressure has been changed to MPa on the international system of units(SI unit system).

The conversion factor is: 1(MPa [Gauge]) =10.2(kgf/ff[Gauge])

New Specification Current Specification

The incompatible refrigeration oil easily separates from

refrigerant and is in the upper layer inside the suction muffler.

Raising position of the oil back hole enables to back the

refrigeration oil of the upper layer to flow back to the

compressor.

Since refrigerant and refrigerantion oil are compatible each,

refrigeration oil goes back to the compressor through the

lower position oil back hole.

Compressor

Suction muffler

Oil back hole

Refrigeration oil

Refrigerant

Compressor

Suction muffler

Oil back hole

Refrigeration oil /Refrigerant

Compressor

OB377--1.qxp 05.12.14 3:17 PM Page 4

-30 -20 -10 0 10 20 30 40 50 60

-0.5

0.0

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

(MPa [Gauge])

R410A

R22

Conversion chart of refrigerant temperature and pressure

Saturated liquid pressure

(:)

NOTE :The unit of pressure has been changed to MPa on the

international system of units(SI unit system).

The conversion factor is: 1(MPa [Gauge]) =10.2(kgf/ff[Gauge])

R410A tools Can R22 tools be used?

Gas leak detector

R410A has high pressures beyond the measurement range of existing

gauges. Port diameters have been changed to prevent any other refrigerant

from being charged into the unit.

Hose material and cap size have been changed to improve the pressure

resistance.

Dedicated for HFC refrigerant.

6.35 mm and 9.52 mm

Description

Clamp bar hole has been enlarged to reinforce the spring strength in the tool.

Provided for flaring work (to be used with R22 flare tool).

Provided to prevent the back flow of oil. This adapter enables you to use

vacuum pumps.

It is difficult to measure R410Awith a charging cylinder because the

refrigerant bubbles due to high pressure and high-speed vaporization

Yes

New

Gauge manifold

Charge hose

Torque wrench

Flare tool

Flare gauge

Vacuum pump

adapter

Electronic scale for

refrigerant charging

No : Not Substitutable for R410A Yes : Substitutable for R410A

No 12.7 mm and 15.88 mm

1.Tools dedicated for the air conditioner with R410A refrigerant

The following tools are required for R410A refrigerant. Some R22 tools can be substituted for R410A tools.

The diameter of the service port on the stop valve in outdoor unit has been changed to prevent any other refrigerant being

charged into the unit. Cap size has been changed from 7/16 UNF with 20 threads to 1/2 UNF with 20 threads.

2.Refrigerant piping

1Specifications

Use the copper or copper-alloy seamless pipe for refrigerant that meet the following specifications.

Wall thickness

Outside diameter

6.35

9.52

12.7

15.88

0.8 mm

1.0 mm

Heat resisting foam plastic

Specific gravity 0.045 Thickness 8 mm

Insulation material

OB377--1.qxp 05.12.14 3:17 PM Page 5

Electronic scale for refrigerant charging

Outdoor unit

Refrigerant gas

cylinder

operating valve

Refrigerant gas cylinder

for R410A with siphon

Refrigerant (liquid)

Service port

Gauge manifold

valve (for R410A)

Union

Liquid pipe

Gas pipe

Stop valve

Indoor unit

Charge hose (for R410A)

R410A

Pipe diameter

6.35

9.52

12.7

15.88

Dimension of flare nut

R22

2Flaring work and flare nut

Flaring work for R410A pipe differs from that for R22 pipe.

For details of flaring work, refer to Installation manual “FLARING WORK”.

3.Refrigerant oil

Apply the special refrigeration oil (accessories: packed with indoor unit) to the flare and the union seat surfaces.

4.Air purge

• Do not discharge the refrigerant into the atmosphere.

Take care not to discharge refrigerant into the atmosphere during installation, reinstallation, or repairs to the refrigerant

circuit.

• Use the vacuum pump for air purging for the purpose of environmental protection.

5.Additional charge

For additional charging, charge the refrigerant from liquid phase of the gas cylinder.

If the refrigerant is charged from the gas phase, composition change may occur in the refrigerant inside the cylinder and the

outdoor unit. In this case, ability of the refrigeration cycle decreases or normal operation can be impossible. However,

charging the liquid refrigerant all at once may cause the compressor to be locked. Thus, charge the refrigerant slowly.

OB377--1.qxp 05.12.14 3:17 PM Page 6

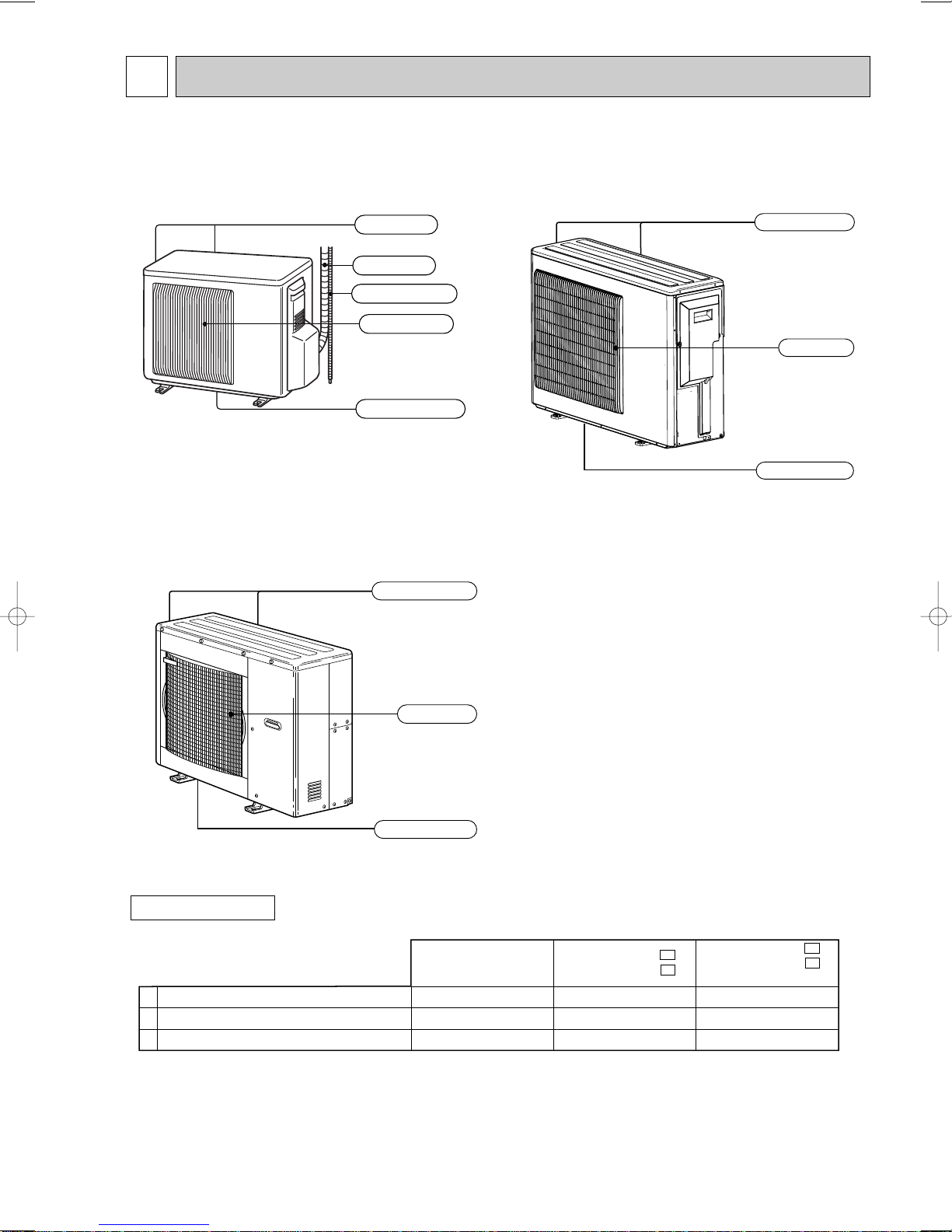

PART NAMES AND FUNCTIONS

ACCESSORIES

MXZ-2A40VA

MXZ-2A52VA

Drain socket

Drain cap

Quick Clean kit

−

MXZ-2A40VA

MXZ-2A52VA MXZ-3A54VA - E1

MXZ-4A71VA - E1

MXZ-3A54VA - E2

MXZ-4A71VA - E2

MXZ-4A80VA

Air outlet

Drain outlet

Air inlet

(Back and side)

Air inlet

Air outlet

Drain outlet

Piping

Drain hose

(back and side)

MXZ-3A54VA

MXZ-4A71VA

Air outlet

Drain outlet

Air inlet

(Back and side)

OB377--1.qxp 05.12.14 3:17 PM Page 7

INDOOR/ OUTDOOR CORRESPONDENCE TABLE

MXZ-2A40VA

MXZ-2A52VA

MXZ-3A54VA

❈There is no combination other than this table.

MXZ-4A71VA

22+22

22+25

22+35

25+25

25+35

Combination of the connectable indoor units

22+22

22+25

22+35

22+50

25+25

25+35

25+50

35+35

35+50

50+50

22+22+22

22+22+25

22+22+35

22+22+50

22+25+25

22+25+35

22+25+50

22+35+35

25+25+25

25+25+35

25+25+50

25+35+35

Combination of the connectable indoor units

22+22

22+25

22+35

22+50

22+60

25+25

25+35

25+50

25+60

35+35

35+50

35+60

50+50

50+60

60+60

22+22+22

22+22+25

22+22+35

22+22+50

22+22+60

22+25+25

22+25+35

22+25+50

22+25+60

22+35+35

22+35+50

22+35+60

22+50+50

25+25+25

25+25+35

25+25+50

25+25+60

25+35+35

25+35+50

25+35+60

25+50+50

35+35+35

35+35+50

22+22+22+22

22+22+22+25

22+22+22+35

22+22+22+50

22+22+25+25

22+22+25+35

22+22+25+50

22+22+35+35

22+25+25+25

22+25+25+35

22+25+25+50

25+25+35+35

22+25+35+35

25+25+25+25

25+25+25+35

25+25+25+50

Combination of the

connectable indoor

units

22+22

22+25

22+35

25+25

25+35

35+35

Combination of the

connectable indoor

units

OB377--1.qxp 05.12.14 3:17 PM Page 8

❈There is no combination other than this table.

MXZ-4A80VA MXZ-4A80VA

Combination of the connectable indoor units

22+22

22+25

22+35

22+50

22+60

22+71

25+25

25+35

25+50

25+60

25+71

35+35

35+50

35+60

35+71

50+50

50+60

50+71

60+60

60+71

22+22+22

22+22+25

22+22+35

22+22+50

22+22+60

22+22+71

22+25+25

22+25+35

22+25+50

22+25+60

22+25+71

22+35+35

22+35+50

22+35+60

22+35+71

22+50+50

22+50+60

22+50+71

25+25+25

25+25+35

25+25+50

25+25+60

25+25+71

25+35+35

25+35+50

25+35+60

25+35+71

25+50+50

Combination of the connectable indoor units

25+50+60

35+35+35

35+35+50

35+35+60

35+35+71

35+50+50

35+50+60

22+22+22+22

22+22+22+25

22+22+22+35

22+22+22+50

22+22+22+60

22+22+22+71

22+22+25+25

22+22+25+35

22+22+25+50

22+22+25+60

22+22+25+71

22+22+35+35

22+22+35+50

22+22+35+60

22+22+50+50

22+25+25+25

22+25+25+35

22+25+25+50

22+25+25+60

22+25+35+35

22+25+35+50

22+25+35+60

22+35+35+35

22+35+35+50

25+25+25+25

25+25+25+35

25+25+25+50

25+25+25+60

25+25+35+35

25+25+35+50

25+35+35+35

35+35+35+35

OB377--1.qxp 05.12.14 3:17 PM Page 9

22+22

22+25

22+35

25+25

25+35

Indoor units

combination Unit A Unit B

Cooling capacity (kW) Total Outdoor unit

power consumption

(kW) Current

(A) Power

factor

(%)

NOTE: Electrical data is for outdoor unit only.

MXZ-2A40VA

2.08

2.37

3.53

3.80

4.44

4.78

2.2

(0.9 - 3.0)

2.5

(0.9 - 3.3)

3.5

(0.9 - 4.0)

3.8

( 1.1 - 4.3)

3.9

(1.1 - 4.3)

3.9

(1.1 - 4.4)

3.9

(1.1 - 4.4)

4.0

(1.1 - 4.5)

0.430

(0.120 - 0.620)

0.490

(0.120 - 0.690)

0.730

(0.120 - 0.900)

0.830

(0.250 - 1.110)

0.970

(0.250 - 1.110)

0.970

(0.250 - 1.130)

0.970

(0.250 - 1.130)

1.045

(0.250 - 1.170)

1.90

2.07

2.39

1.95

2.33

2.20

2.50

3.50

1.90

1.83

1.51

1.95

1.67

INDOOR UNITS COMBINATION4

22+22

22+25

22+35

25+25

25+35

Indoor units

combination Unit A Unit B

Heating capacity (kW) Total Outdoor unit

power consumption

(kW) Current

(A) Power

factor

(%)

NOTE: Electrical data is for outdoor unit only.

3.24

3.53

4.20

4.16

4.32

3.3

(0.9 - 4.0)

3.6

(0.9 - 4.5)

4.0

(0.9 - 4.8)

4.4

(1.0 - 4.8)

4.4

(1.0 - 4.8)

4.4

(1.0 - 4.9)

4.4

(1.0 - 4.9)

4.5

(1.0 - 5.0)

0.670

(0.110 - 0.910)

0.730

(0.110 - 1.050)

0.870

(0.110 - 1.150)

0.910

(0.200 - 1.010)

0.910

( 0.200 - 1.010)

0.910

(0.200 - 1.030)

0.910

(0.200 - 1.030)

0.945

(0.200 - 1.050)

2.20

2.34

2.70

2.20

2.65

3.30

3.60

4.00

2.20

2.06

1.70

2.20

1.85

OB377--1.qxp 05.12.14 3:17 PM Page 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Acondicionador de aire de Mitsubishi Electric

Mitsubishi Electric

Mitsubishi Electric MSZ-FA25VA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr. Slim MXZ-2A20NA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSZ-FE18NA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MXZ-8A140VA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric City Multi Series PCFY-P15NKMU-E Manual de funcionamiento

Mitsubishi Electric

Mitsubishi Electric MSZ-HJ60VA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric CITY MULTI PLFY-WL-NEMU-E Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MXZ-18NV Manual de usuario

Mitsubishi Electric

Mitsubishi Electric SLZ-KA25 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSZ-G09SV Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PKFY-P NBMU-E2 Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MU-GD15ND Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr.Slim MUZ-FE NA Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PKA-A12LA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric PAC-BH03EHT-E Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr. Slim PEA-A12AA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MSZ-YE09VA-H1 Manual de instrucciones

Mitsubishi Electric

Mitsubishi Electric PLA-RP35BA.UK Manual de usuario

Mitsubishi Electric

Mitsubishi Electric City Multi PEFY-WP20VMA-E Manual de funcionamiento

Mitsubishi Electric

Mitsubishi Electric PLA-P2KA Manual de funcionamiento

Mitsubishi Electric

Mitsubishi Electric MSH09TW Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Mr. Slim PSA-M KA Series Manual de usuario

Mitsubishi Electric

Mitsubishi Electric City Multi PKFY-P12NHMU-E2 Manual del propietario

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PEA-RP250WHA Manual de usuario

Manuales populares de Acondicionador de aire de otras marcas

Spheros

Spheros CC 355 Manual de usuario

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manual de usuario

Panasonic

Panasonic CS-E12HKEW Manual de usuario

nedis

nedis ACMB1WT7 Manual de usuario

Samsung

Samsung AR KV Series Guía

Daikin

Daikin FCFV50A Manual de usuario

Fujitsu

Fujitsu Inverter ASBA30JFC Manual de usuario

Toshiba

Toshiba RAS-M10SMUV-E Manual de usuario

Daikin

Daikin FXLQ20MAVE Manual de usuario

Hitachi

Hitachi RAS-E24CAK Manual de usuario

CIAT

CIAT Magister 2 Series Guía

Bestron

Bestron AAC6000 Manual de usuario

Hisense

Hisense 7K Manual técnico

Frigidaire

Frigidaire FFRE0533S1E0 Manual de usuario

Samsung

Samsung AS09HM3N Manual de usuario

Frigidaire

Frigidaire CRA073PU11 Manual del propietario

Soleus Air

Soleus Air GB-PAC-08E4 Manual de usuario

McQuay

McQuay MCK020A Manual de usuario
